2014 SHARP SV-4328ST VERTICAL MACHINING CENTER, 43.3" X, 27.56" Y, 24" Z TRAVEL, 10,000 RPM

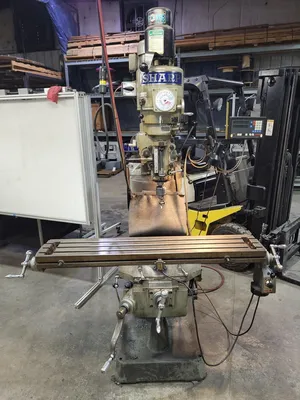

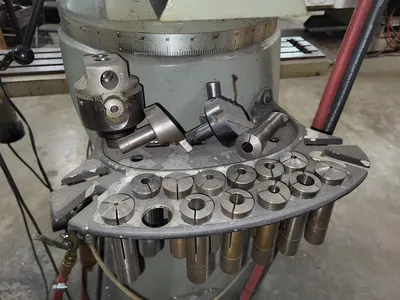

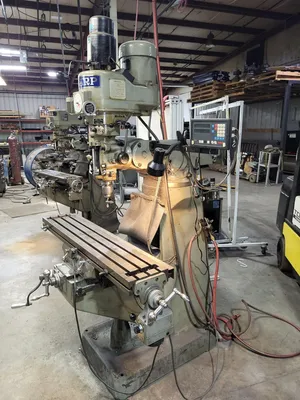

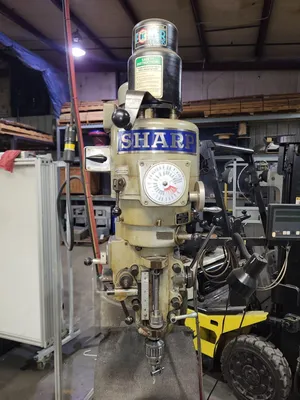

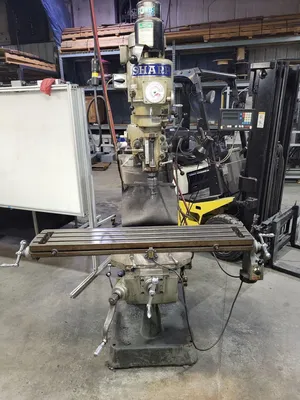

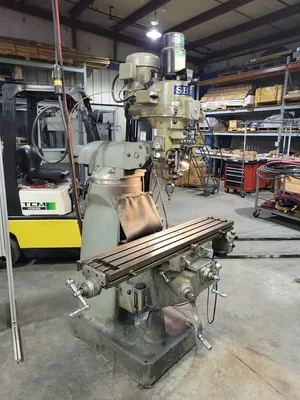

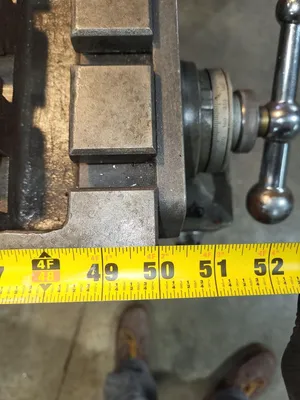

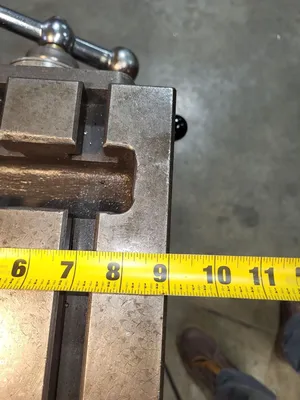

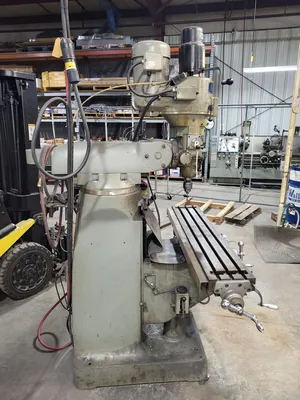

THE SHARP LMV-50 VERTICAL MILL IS EQUIPPED WITH A 3HP HEAD CAPABLE OF OPERATING AT SPEEDS RANGING FROM 60 TO 4500 RPM. IT FEATURES A KURT POWER DRAW BAR AND A NEWALL TOPAZ DIGITAL READ OUT FOR PRECISION OPERATIONS. THE MILL UTILIZES AN R8 SPINDLE WITH COLLETS AND IS SUPPORTED BY A BIJUR ONE SHOT LUBE SYSTEM. THE WORKTABLE MEASURES 9" X 50" AND INCLUDES DOVETAIL SLIDE WAYS WITH A T-SLOT CONFIGURATION OF 3 SLOTS AT 5/8" EACH. THE TABLE OFFERS A TRAVEL RANGE OF 37" ON THE X-AXIS AND 12" ON THE Y-AXIS, WHILE THE RAM TRAVEL IS 12". THE QUILL HAS A TRAVEL OF 5" ON THE Z-AXIS WITH FEED RATES OF .00015", .003", AND .006" IPR. THE KNEE TRAVEL IS 16", AND THE MACHINE INCLUDES A SERVO X AXIS POWER FEED. THE SPINDLE-TO-COLUMN DISTANCE RANGES FROM A MINIMUM OF 2.125" TO A MAXIMUM OF 18". THE HEAD CAN SWIVEL 360 DEGREES AND TILT 45 DEGREES BOTH RIGHT TO LEFT AND UP AND DOWN. THE MILL OPERATES ON A 220-440 V 3-PHASE POWER SUPPLY. THE OVERALL DIMENSIONS OF THE MACHINE ARE 7' X 6.5' X 8', AND IT WEIGHS 2400 LBS.
