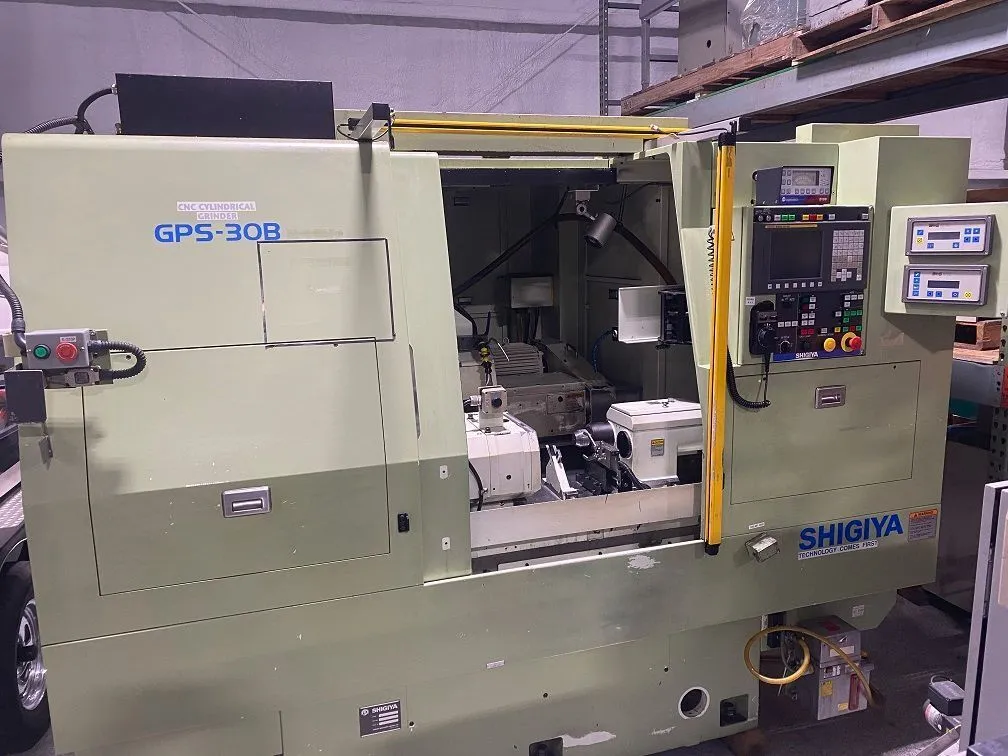

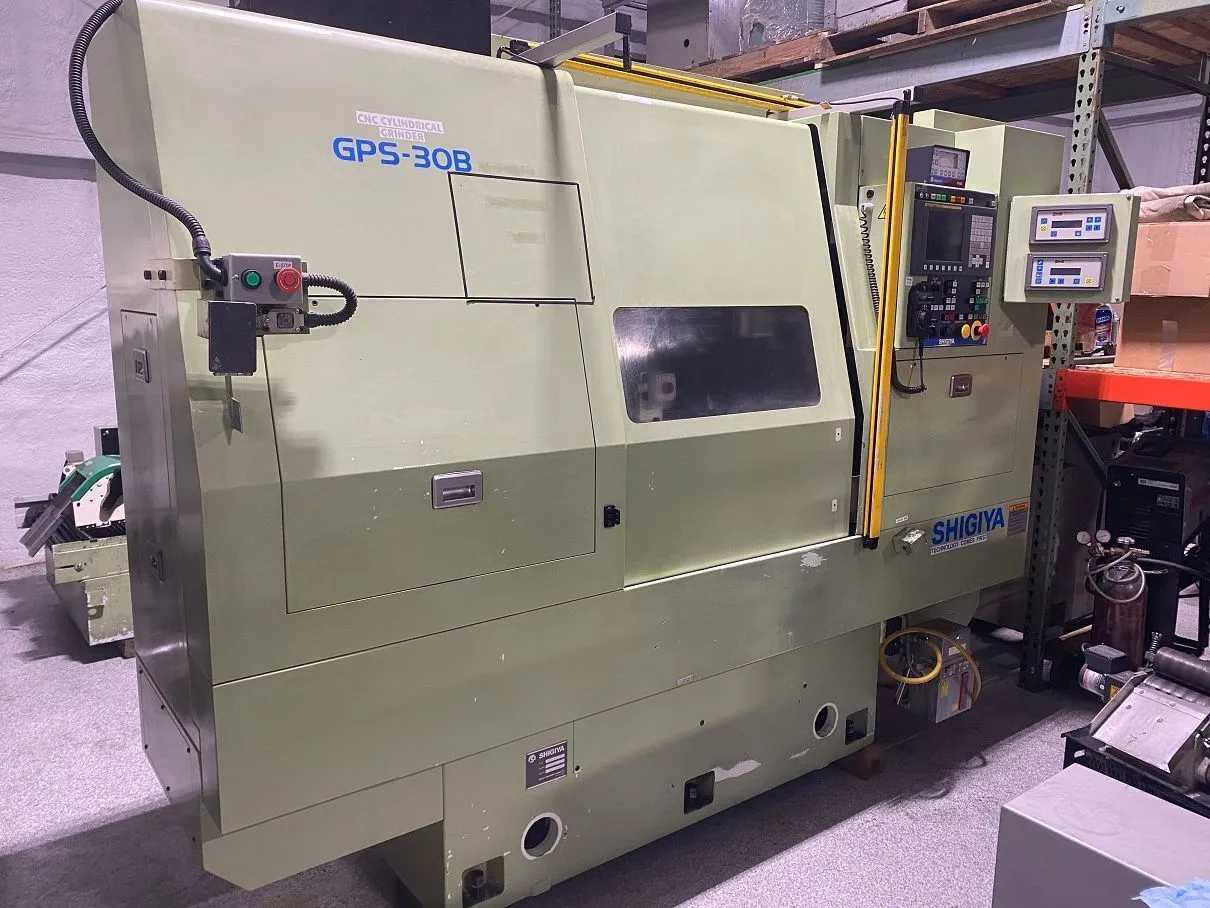

2014 Shigiya GPS-30B 50 Universal Cylindrical Grinder With Fanuc CNC Control

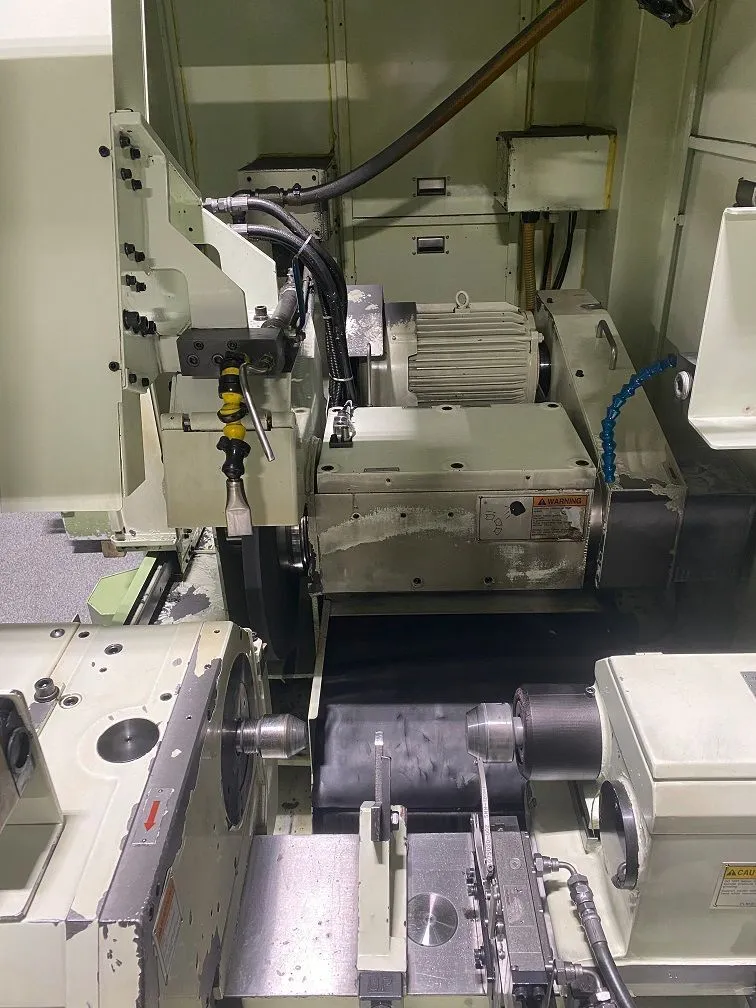

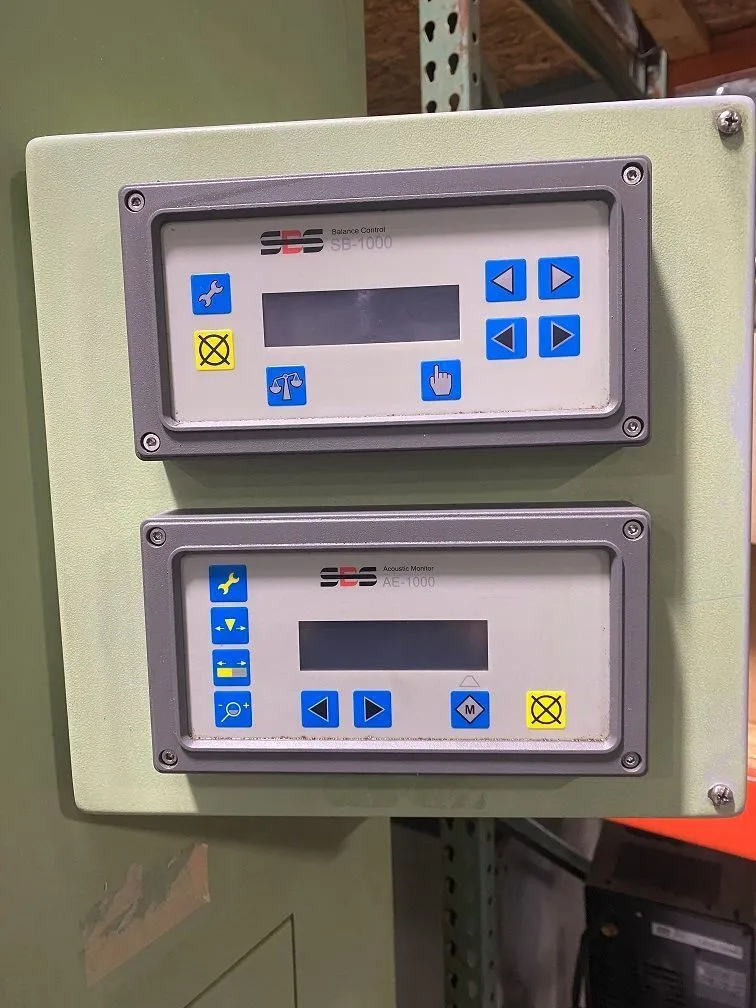

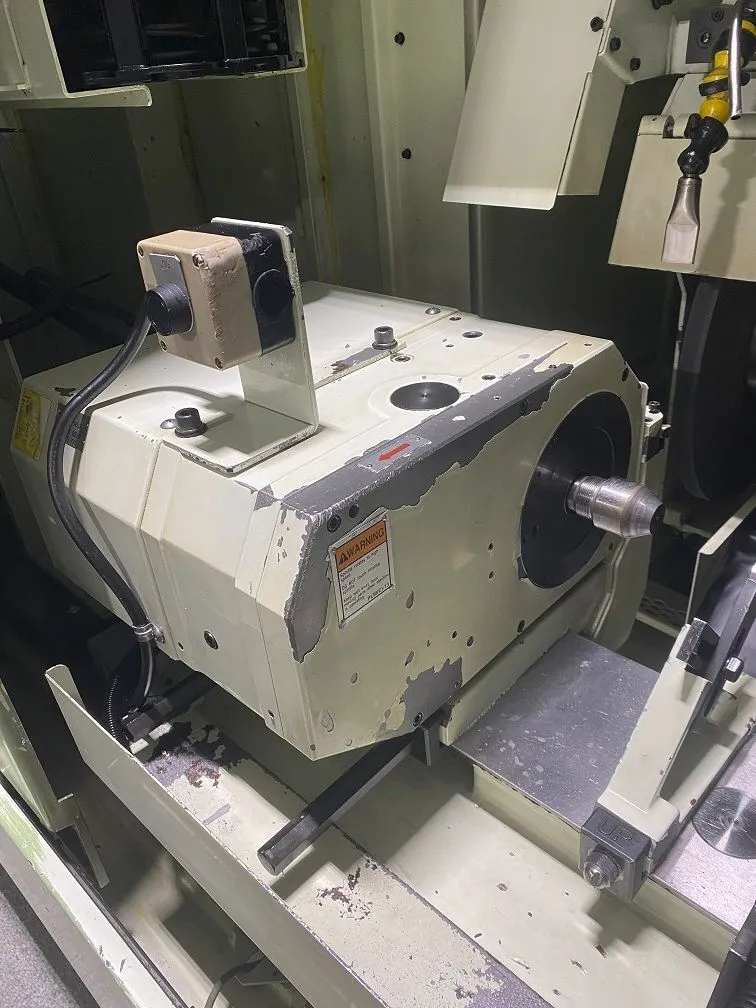

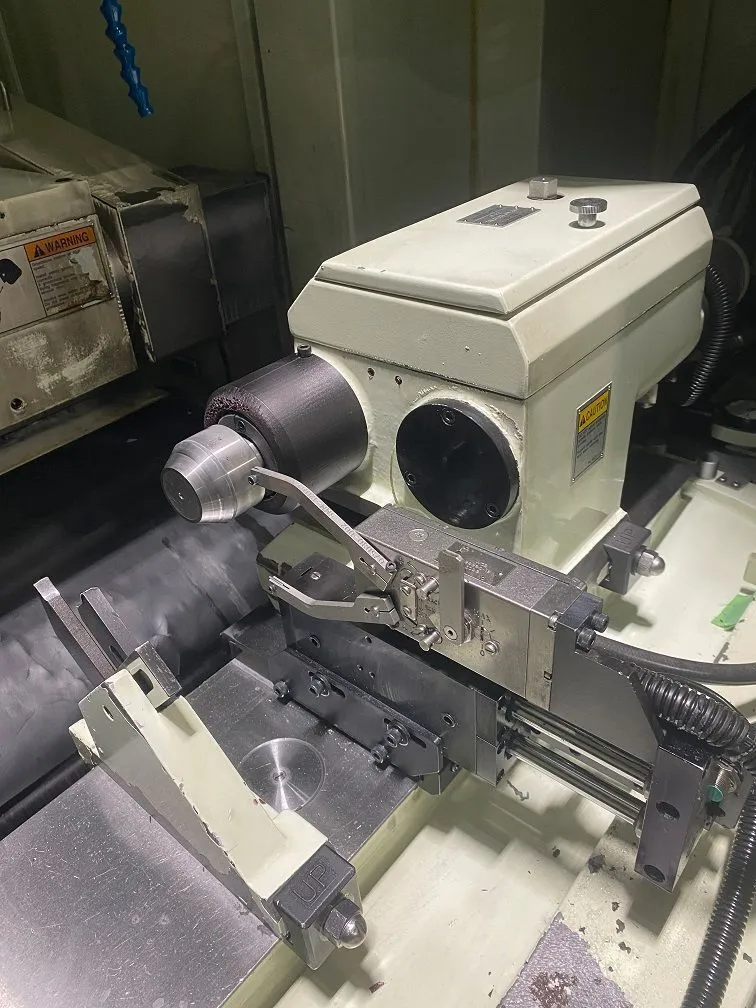

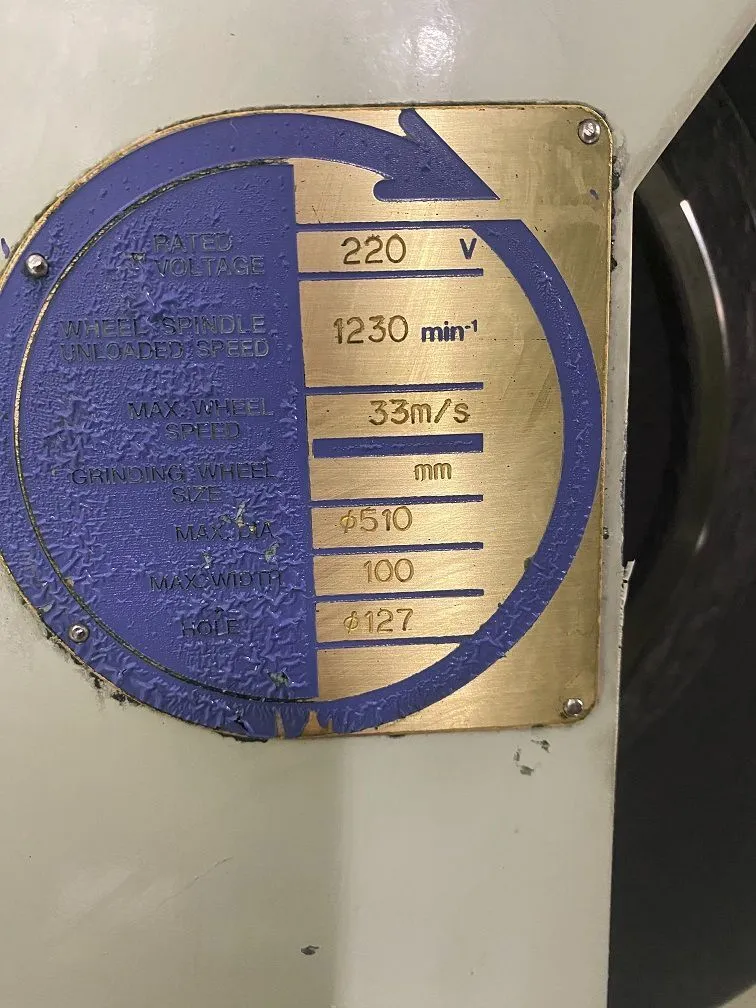

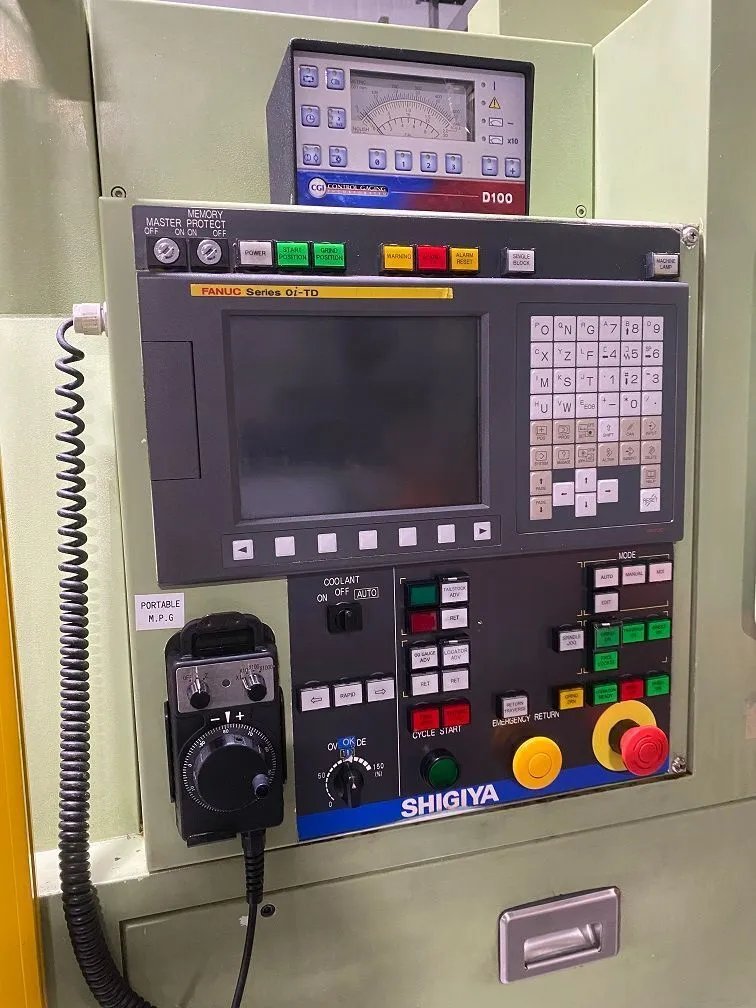

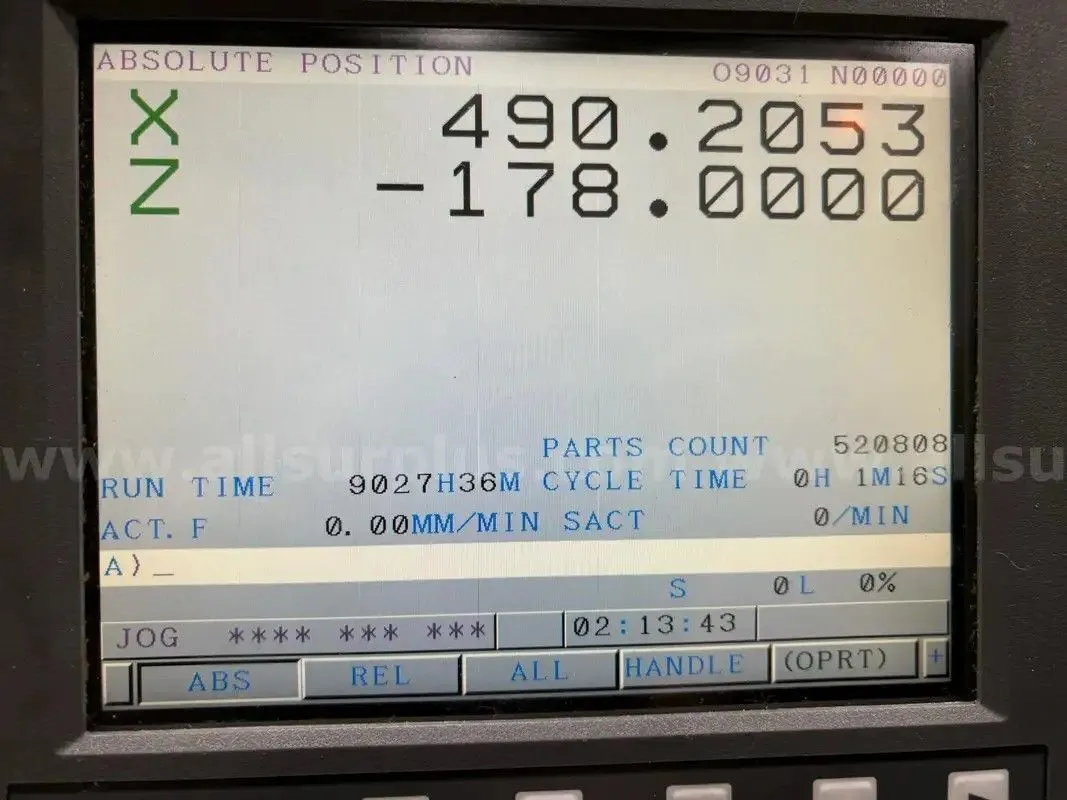

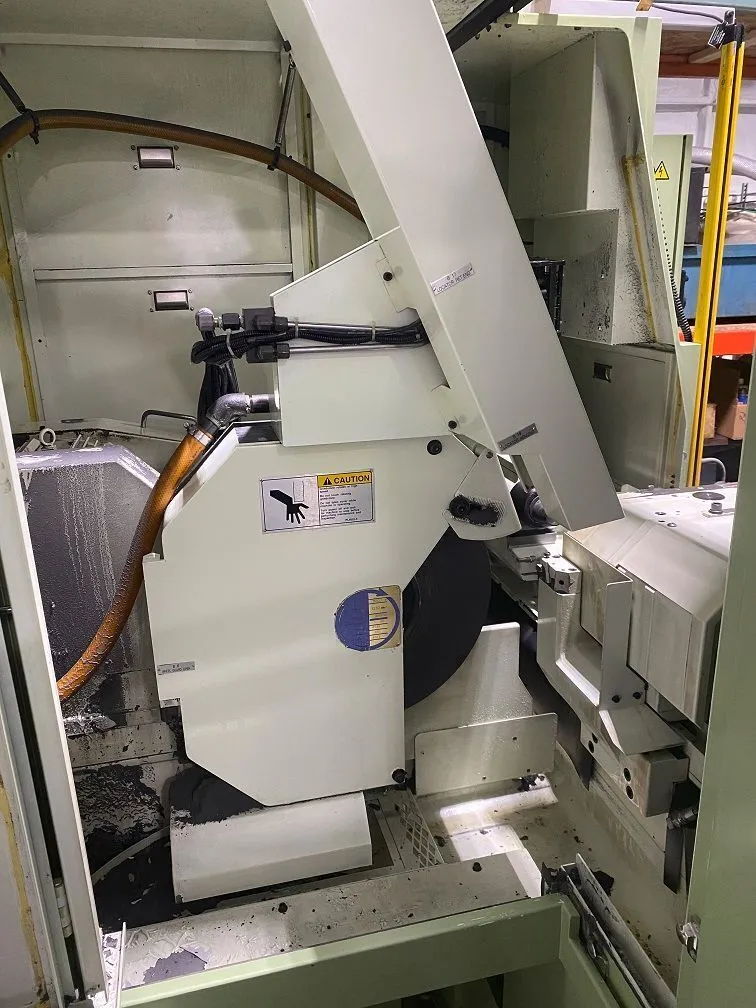

The Shigiya GPS-30B 50 is a 2014 universal cylindrical grinder with 9,027 run time hours. It features an 11.8” swing, 19.68” center distance, and a grinding wheel capacity of 20” diameter by 3.93” wide with a 5” bore. The maximum wheel speed is 33 m/s. It has a workhead speed ranging from 15 to 600 RPM, a 4-MT workhead taper, a 4-MT tailstock taper, and a 1.2” tailstock stroke. The table swivel is 11 degrees counterclockwise and 0 degrees clockwise. The machine is equipped with a Fanuc CNC control, a shoulder (lateral locating) gauge, an in-process sizing gauge, an SBS SB-100 automatic wheel balancer, and an SBS AE-1000 acoustic monitor for gap elimination. Additional integrated systems include light safety curtains, a coolant system, and a mist collector.
