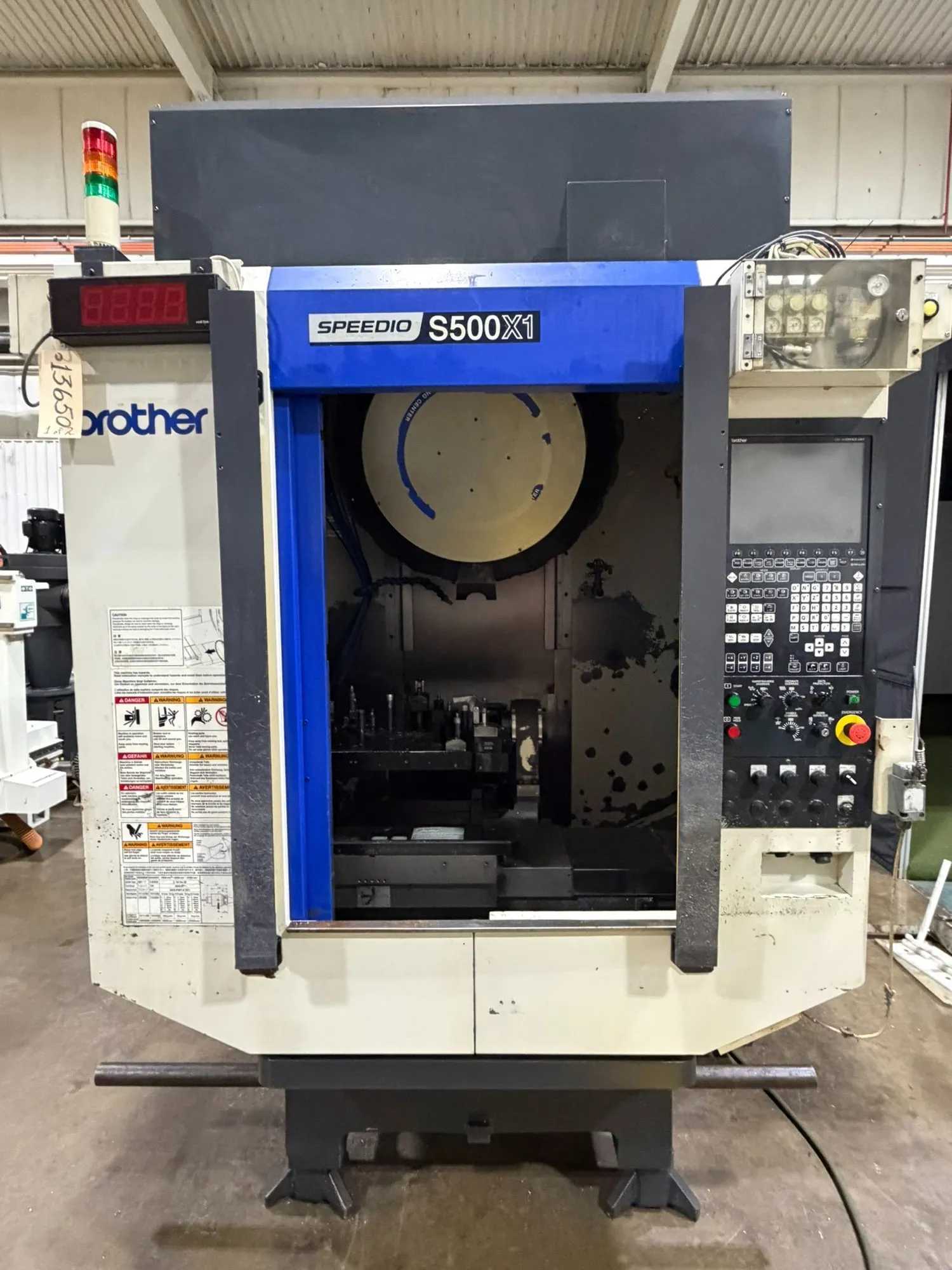

2015 BROTHER SPEEDIO S500X1 4-AXIS VERTICAL MACHINING CENTER, 10K RPM, BT30, 21 ATC, 4TH AXIS

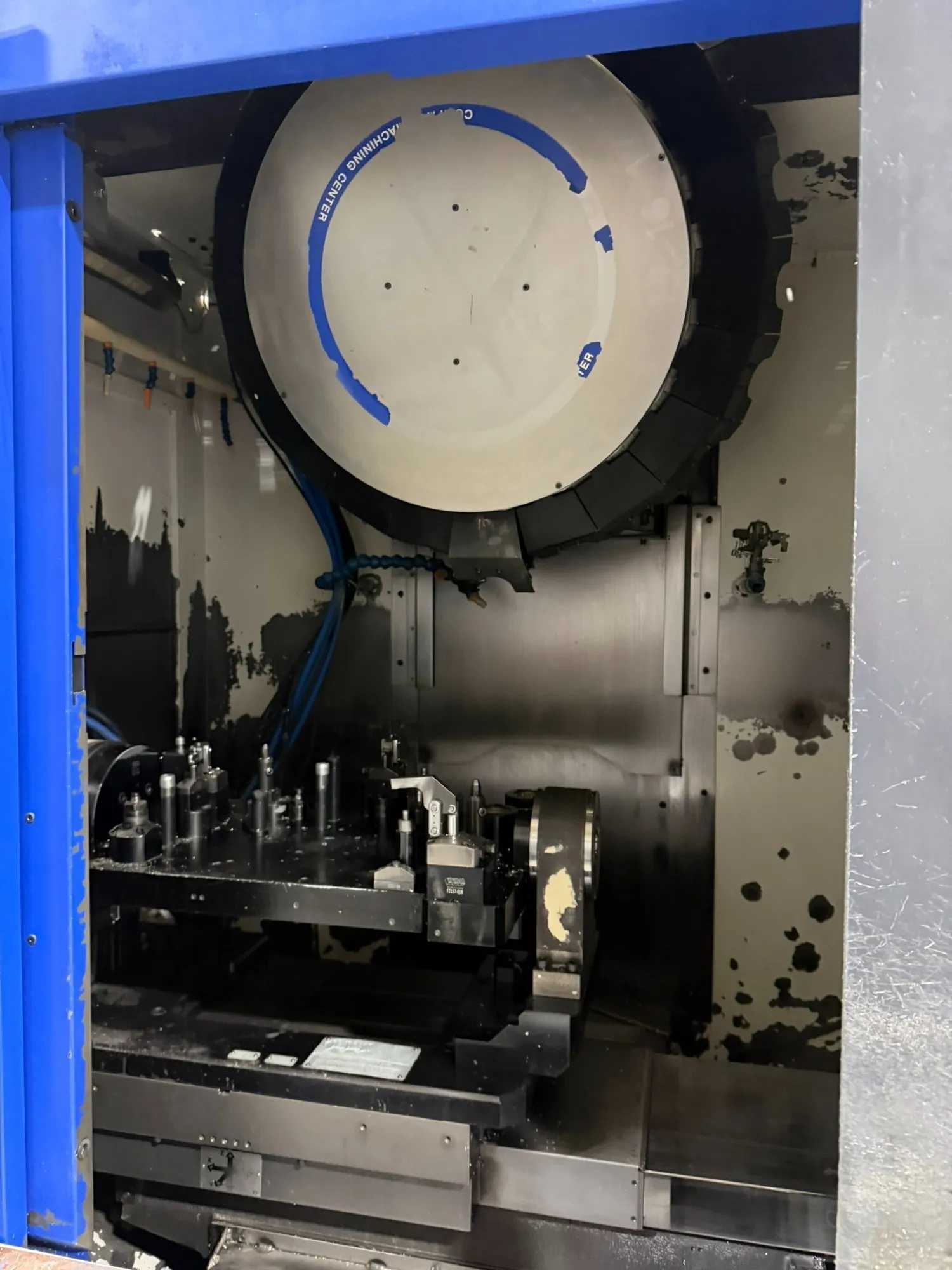

THE 2015 BROTHER SPEEDIO S500X1 IS A 4-AXIS VERTICAL MACHINING CENTER FEATURING A TABLE SIZE OF 23.4 INCHES BY 15.7 INCHES. IT PROVIDES TRAVEL DIMENSIONS OF 19.70 INCHES ON THE X-AXIS, 15.70 INCHES ON THE Y-AXIS, AND 11.80 INCHES ON THE Z-AXIS. THE MACHINE IS EQUIPPED WITH A BT30 TAPER SPINDLE CAPABLE OF SPEEDS UP TO 10,000 RPM, WITH A SPINDLE NOSE TO TABLE TOP DISTANCE RANGING FROM 7.1 TO 18.9 INCHES. IT INCLUDES A 21-POSITION AUTOMATIC TOOL CHANGER AND A TSUDAKOMA RNA-201 4TH AXIS ROTARY TABLE WITH TAILSTOCK. ADDITIONAL INTEGRATED FEATURES INCLUDE HIGH-PRESSURE COOLANT THROUGH THE SPINDLE, A CHIP CONVEYOR, AND HYDRAULIC CLAMPING.
