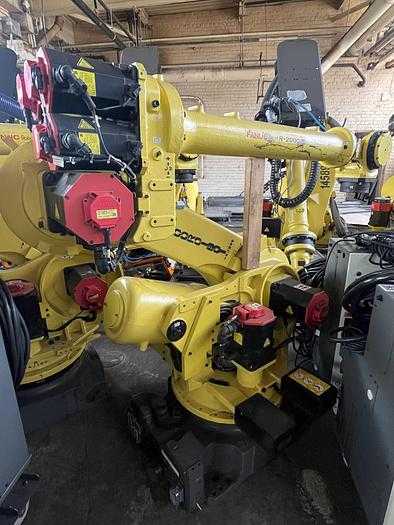

2015 FANUC R-2000IB/125L ARTICULATED ROBOT, 125KG PAYLOAD, 3005MM REACH, R-30IB CONTROLLER

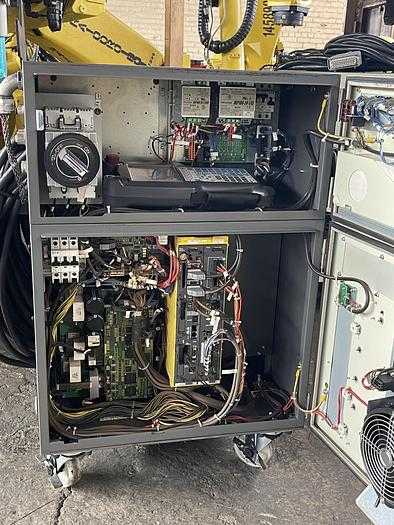

THE 2015 FANUC R-2000IB/125L IS A HIGH-PERFORMANCE, SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR A WIDE RANGE OF APPLICATIONS INCLUDING MATERIAL HANDLING, PLASMA CUTTING, SPOT WELDING, MACHINE LOADING, AND PALLETIZING. THIS MODEL FEATURES AN EXTENDED REACH OF 3005 MM AND A PAYLOAD CAPACITY OF 125 KG, OFFERING THE LARGEST WORK ENVELOPE IN THE R-2000IB SERIES. IT IS EQUIPPED WITH A FANUC R-30IB CONTROL SYSTEM AND IS DESIGNED FOR FLOOR MOUNTING. TECHNICAL SPECIFICATIONS INCLUDE A REPEATABILITY OF ±0.2 MM AND A TOTAL ROBOT MASS OF 1190 KG. THE UNIT UTILIZES A VERTICAL ARTICULATED STRUCTURE WITH A SLIM ARM AND COMPACT WRIST TO MINIMIZE INTERFERENCE AND SIMPLIFY INTEGRATION. MOTION SPEEDS FOR THE SIX AXES ARE RATED AT 110°/S FOR J1, J2, AND J3; 170°/S FOR J4 AND J5; AND 260°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 +75° TO -60°, J3 +230° TO -132°, J4 ±360°, J5 ±125°, AND J6 ±360°. ITS DESIGN INCLUDES A NON-ROTATING FOREARM TO SIMPLIFY CABLE DRESSOUT AND IMPROVE SERVICE LIFE BY REDUCING MECHANICAL COMPLEXITY. THE SYSTEM PROVIDES HIGH THROUGHPUT AND FAST CYCLE TIMES, MAKING IT SUITABLE FOR DEMANDING INDUSTRIAL ENVIRONMENTS SUCH AS FOUNDRIES AND INJECTION MOLDING FACILITIES.
