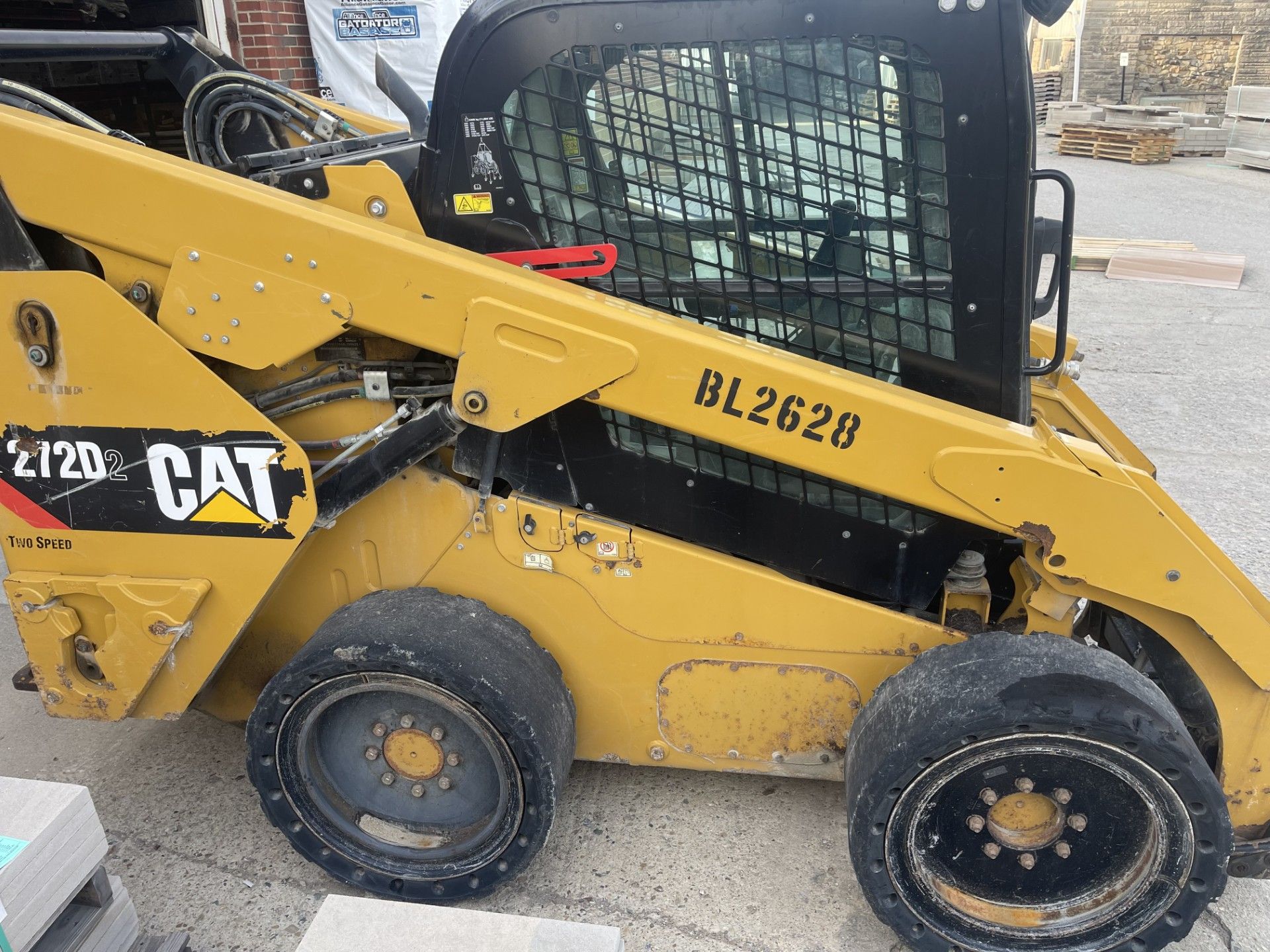

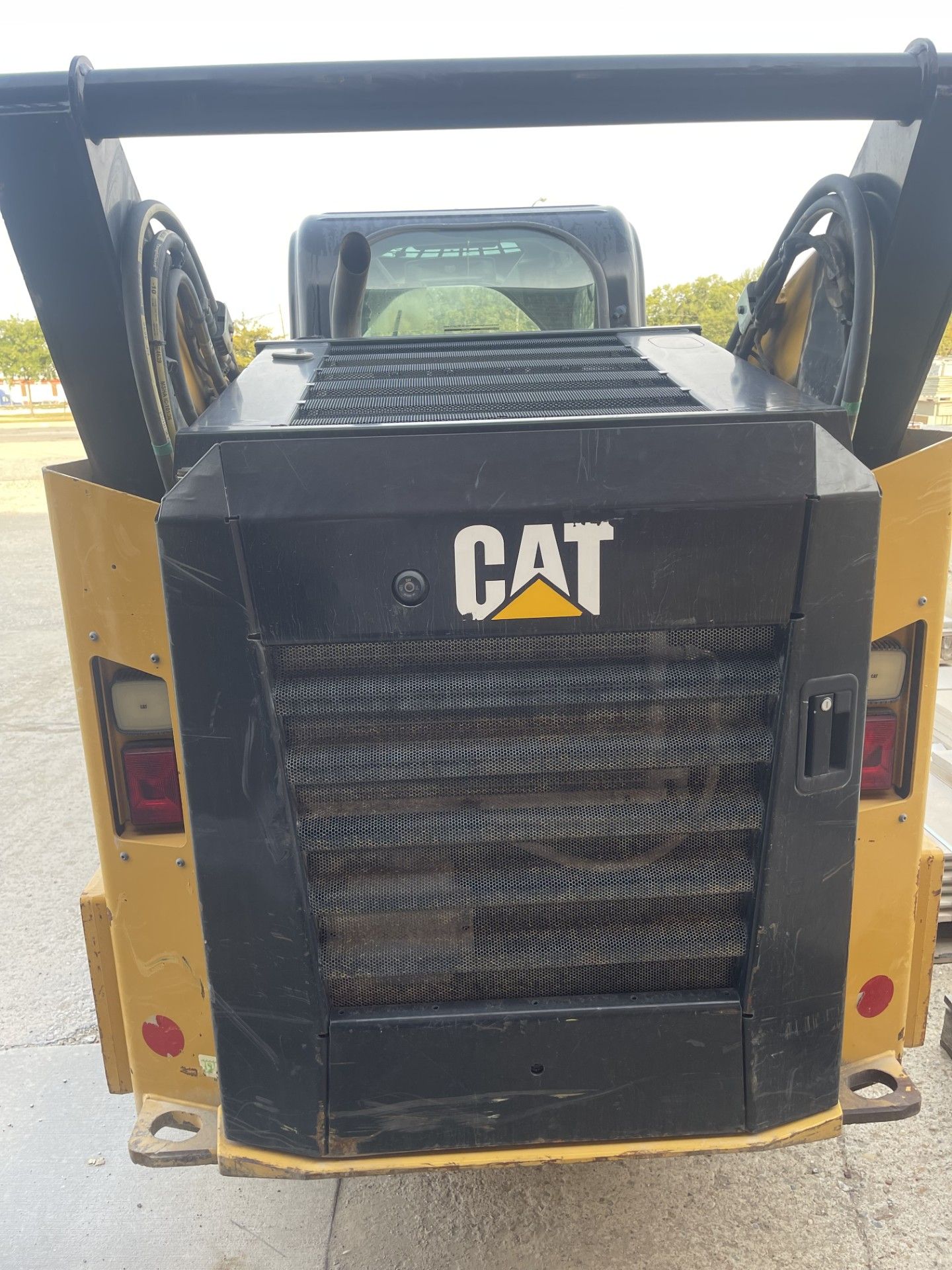

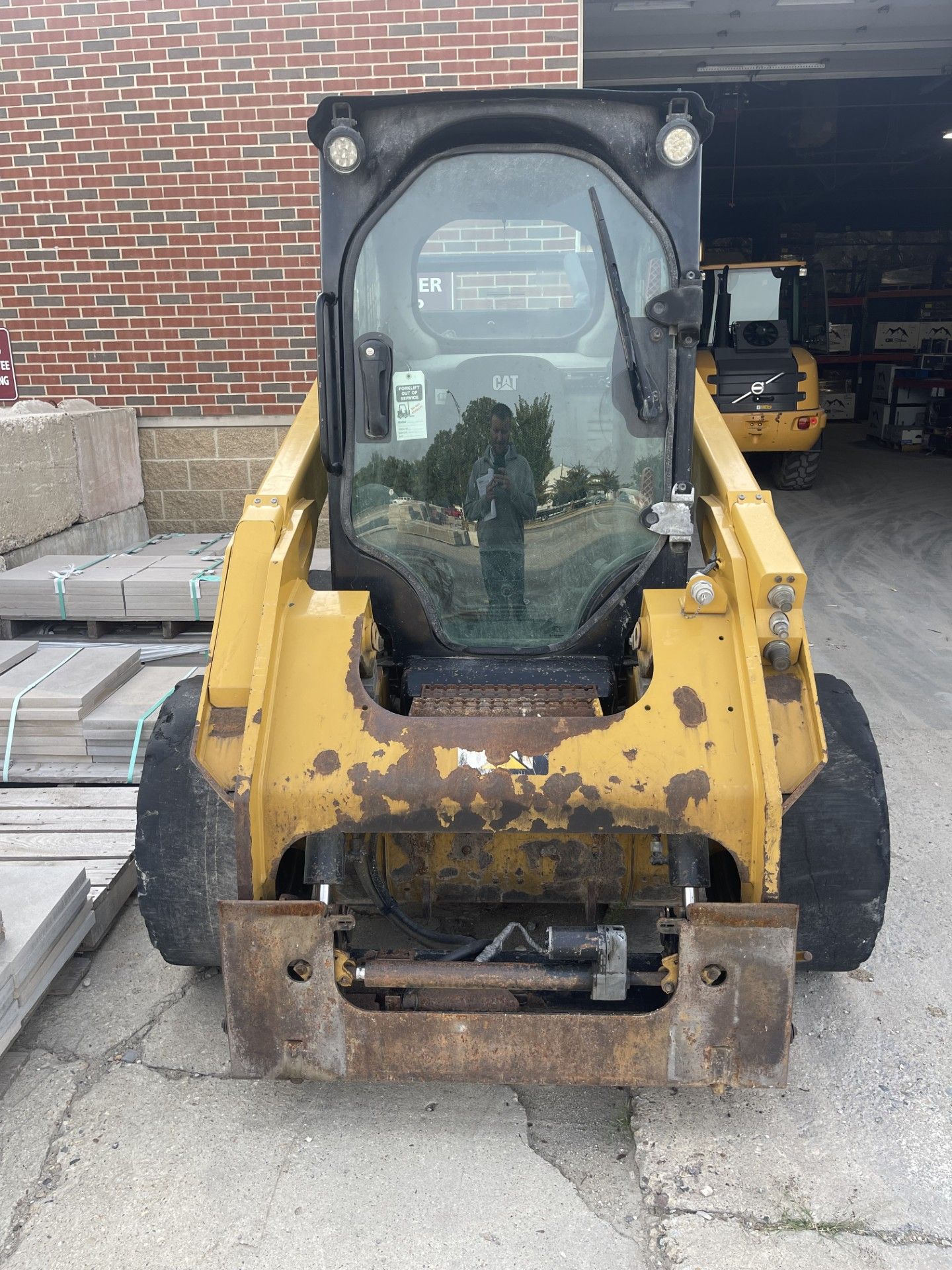

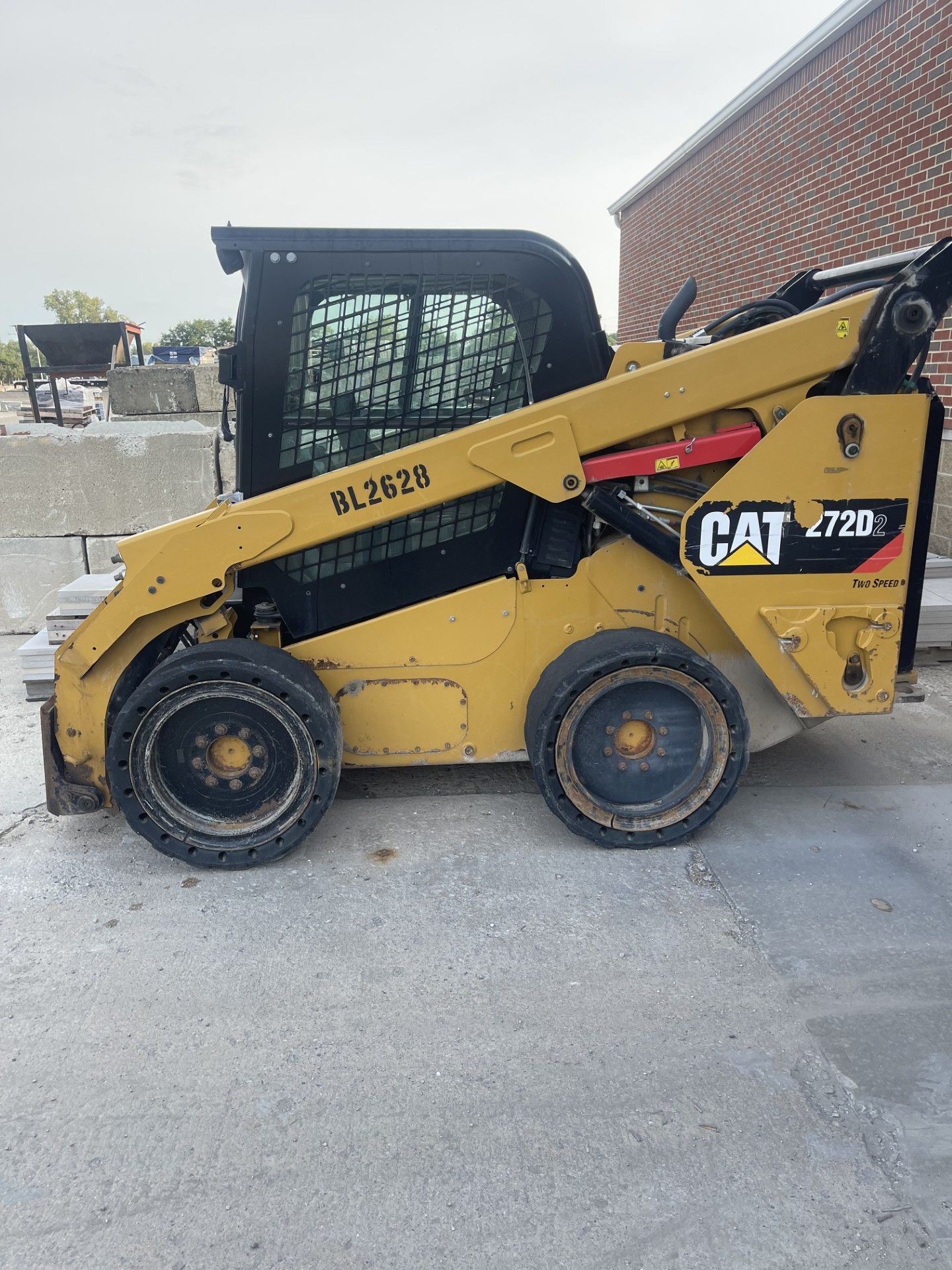

2016 CATERPILLAR 272D2 SKID STEER LOADER, 98 HP, 3400 LB ROC, VERTICAL LIFT, 8768 LB WEIGHT

THE 2016 CATERPILLAR 272D2 IS A HIGH-PERFORMANCE SKID STEER LOADER POWERED BY A CAT C3.8 DIT TURBOCHARGED ENGINE, DELIVERING 98 HP GROSS POWER AND 246 LBF-FT OF PEAK TORQUE AT 1,500 RPM. THIS TIER 4 FINAL COMPLIANT MACHINE FEATURES A VERTICAL LIFT DESIGN WITH A RATED OPERATING CAPACITY OF 3,400 LBS AT 50 PERCENT TIPPING LOAD, WHICH INCREASES TO 3,650 LBS WITH OPTIONAL COUNTERWEIGHTS. IT HAS AN OPERATING WEIGHT OF 8,768 LBS AND OFFERS A BREAKOUT FORCE OF 7,443 LBS FOR THE TILT CYLINDER AND 6,074 LBS FOR THE LIFT CYLINDER. THE HYDRAULIC SYSTEM PROVIDES A STANDARD FLOW OF 23 GAL/MIN AT 3,335 PSI, WHILE THE OPTIONAL HIGH FLOW XPS SYSTEM REACHES 32 GAL/MIN AT 4,061 PSI. DIMENSIONALLY, THE 272D2 HAS A WHEELBASE OF 54.6 INCHES, A TRANSPORT LENGTH OF 155.7 INCHES WITH A BUCKET, AND A WIDTH OF 72 INCHES OVER THE TIRES. IT ACHIEVES A MAXIMUM BUCKET PIN HEIGHT OF 127.1 INCHES AND A CLEARANCE OF 96 INCHES AT MAXIMUM LIFT AND DUMP. THE POWER TRAIN SUPPORTS A STANDARD TRAVEL SPEED OF 6.6 MPH, WITH A TWO-SPEED OPTION REACHING 9.4 MPH. THE OPERATOR STATION INCLUDES A SEALED, PRESSURIZED CAB WITH A 5-INCH LCD ADVANCED DISPLAY FOR MACHINE ADJUSTMENTS AND SECURITY. STANDARD FEATURES INCLUDE A 12-VOLT ELECTRICAL SYSTEM, A 100-AMP ALTERNATOR, AND HEAVY-DUTY BATTERY SUPPORT.
