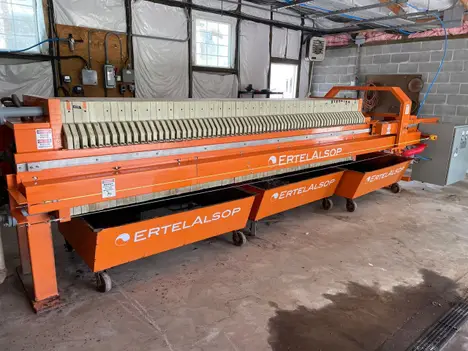

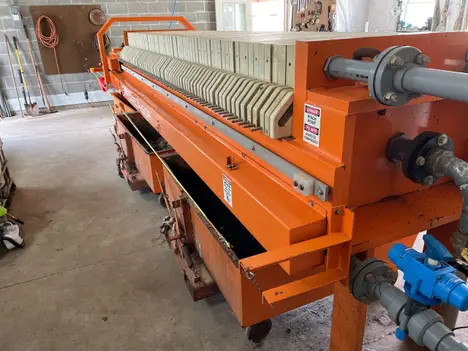

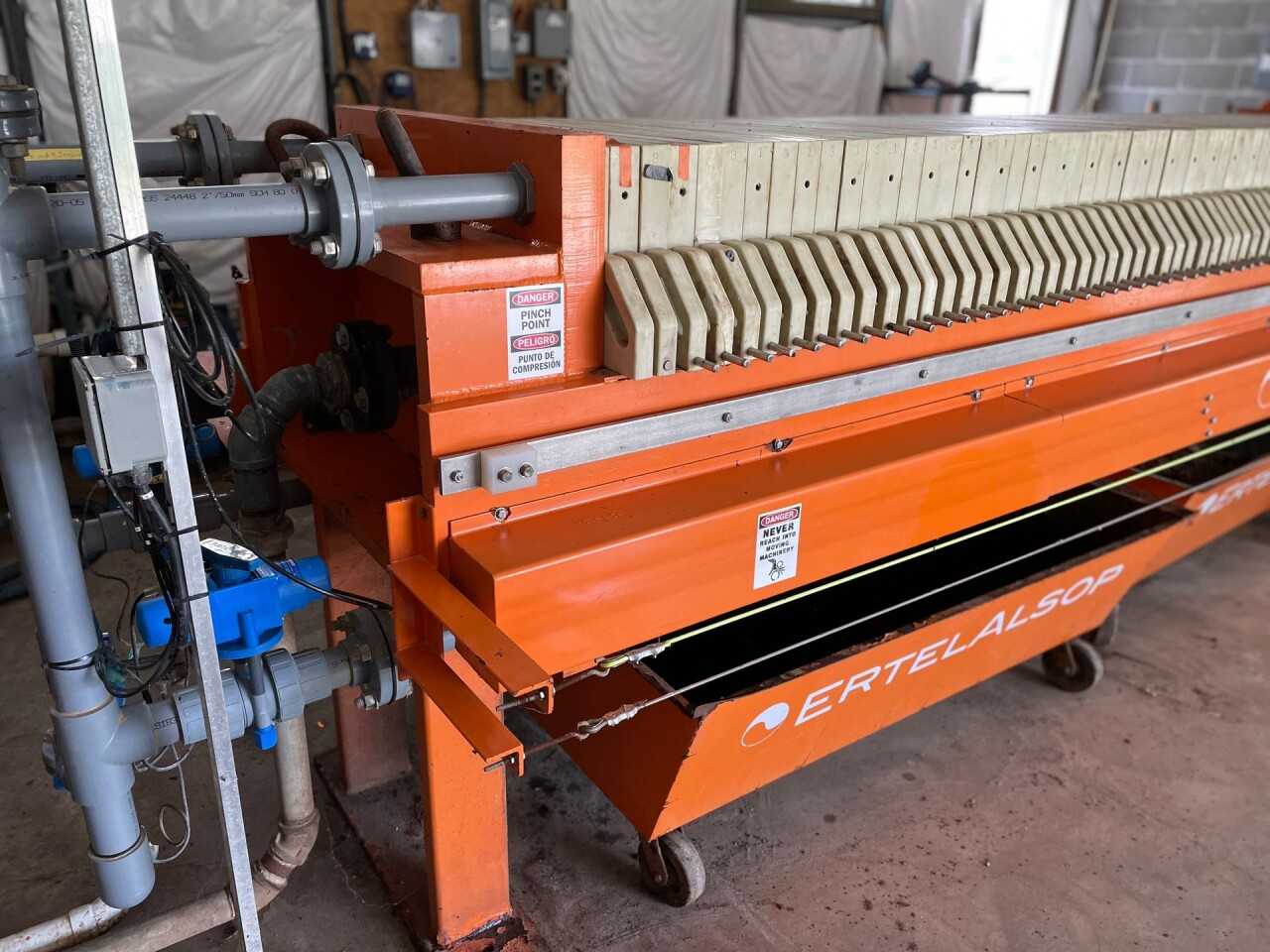

2016 ERTEL ALSOP FILTER PRESS

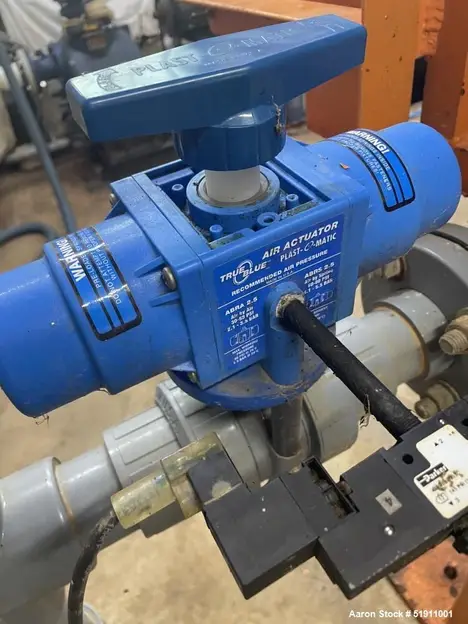

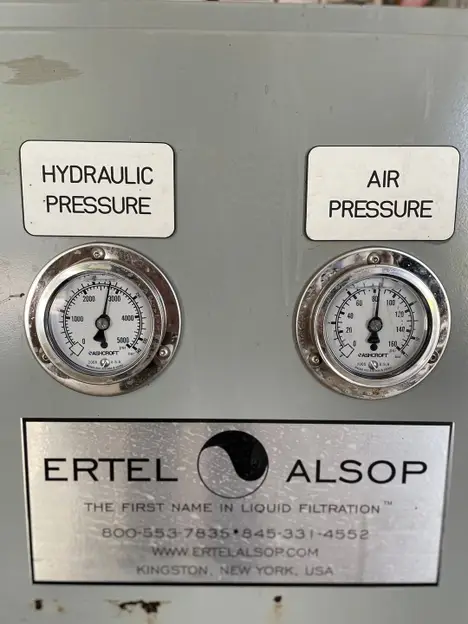

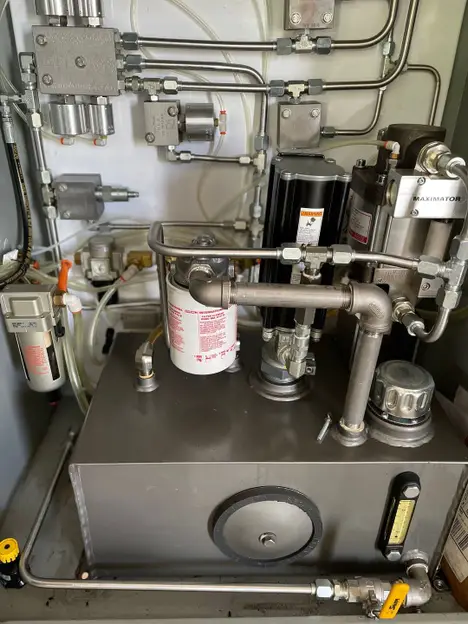

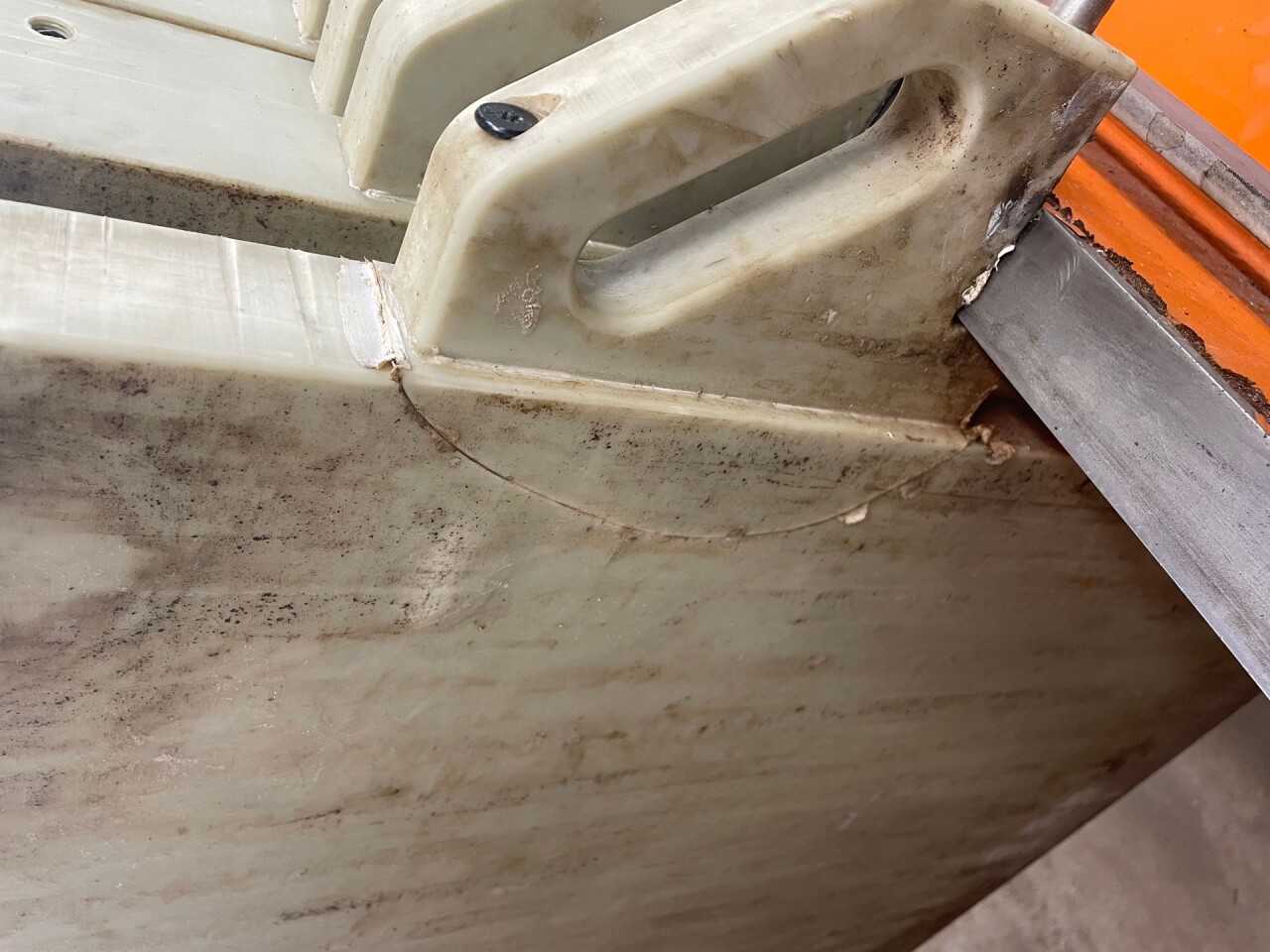

CONDITION: GOOD VOLUME: 26 CUBIC FEET FILTER AREA: 670 SQUARE FEET PLATE SIZE: 800MM SQUARE CHAMBER SIZE: 22MM CHAMBER PLATE TYPE: CAULKED AND GASKET RECESSED CHAMBER PLATE MATERIAL: POLYPROPYLENE GASKET MATERIAL: EPDM PLATE SHIFTER: EQUIPPED WITH PLATE SHIFTER FILL METHOD: UNIFORM FILL WITH AIR BLOW INLET CONNECTION: 3" PIPE FLANGE CPVC OUTLET CONNECTION: 2" PIPE FLANGE CPVC PRESS OPTIONS: PNEUMATIC OPERATED MANIFOLD VALVES PLATE SHIFTER CAKE CARTS CLOSING DEVICE: A TYPE, ALL/OIL, SYS# 4B HYDRAULIC CLAMPING PRESSURE: 3000 PSI HYDRAULIC RELIEF VALVE SETTING: 3300 PSI HYDRAULIC CYLINDER SPECIFICATIONS: BORE: 6" STROKE: 24" CAPACITY: 42 TONS INTERNAL CLOTH: 800 MM CGR LAST USED FOR: SECONDARY SOLID SEPARATION OF ANAEROBIC DIGESTION EFFLUENT IN A POULTRY LITTER PROCESSING FACILITY
