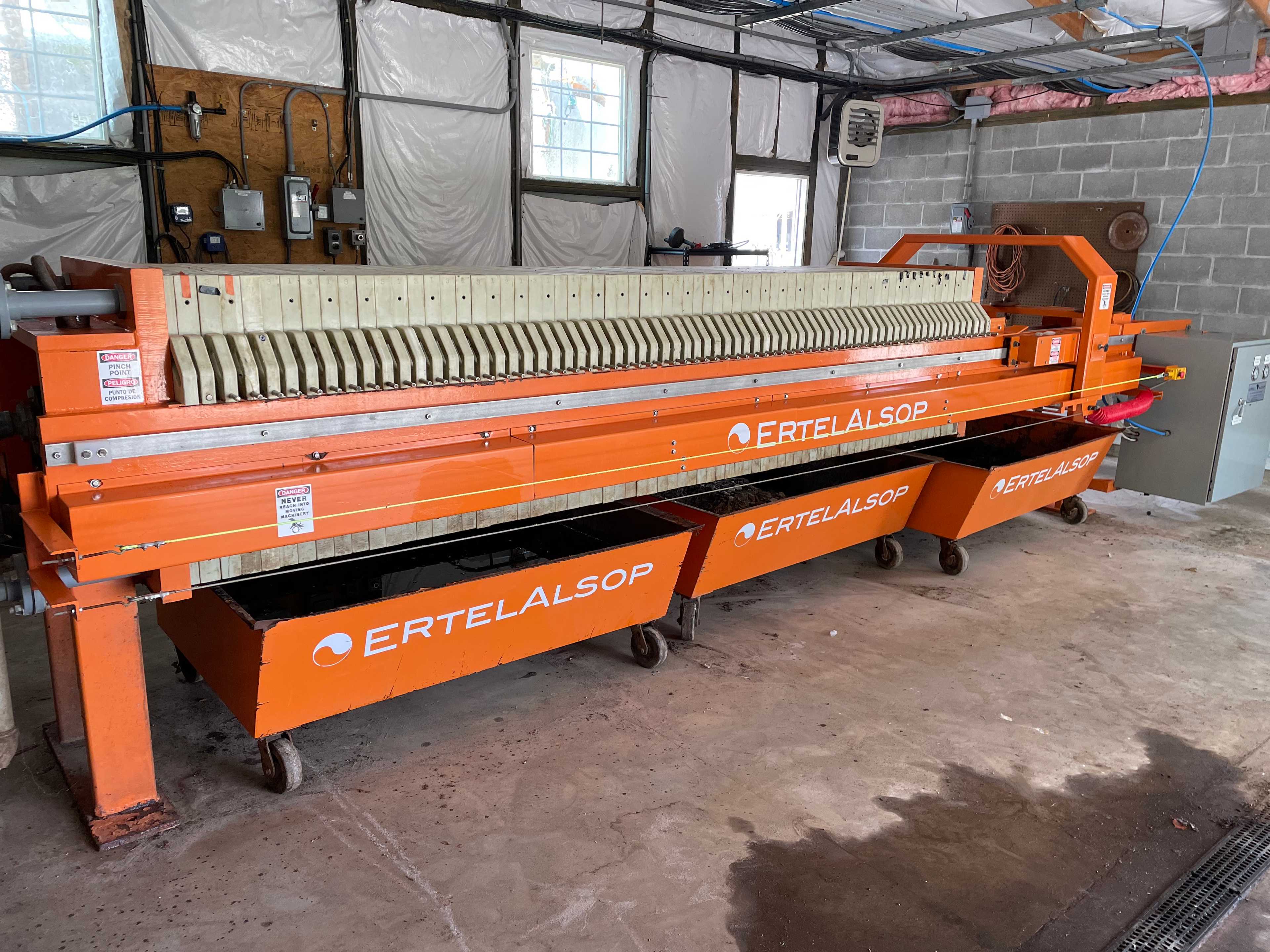

2016 Ertel Alsop Filter Press

Condition: Good Volume: 26 Cubic feet Filter area: 670 square feet Plate size: 800mm Square Chamber size: 22mm Chamber plate type: Cauked and gasket recessed Chamber plate material: Polypropylene Gasket material: EPDM Plate shifter: Equipped with plate shifter Fill method: Uniform fill with air blow Inlet connection: 3" pipe flange CPVC Outlet connection: 2" pipe flange CPVC Press options: Pneumatic operated manifold valves Plate shifter Cake carts Closing device: A type, AIl/oil, SYS# 4B Hydraulic clamping pressure: 3000 psi Hydraulic relief valve setting: 3300 psi Hydraulic cylinder specifications: Bore: 6" Stroke: 24" Capacity: 42 tons Internal cloth: 800 mm CGR Last used for: Secondary solid separation of anaerobic digestion effluent in a poultry litter processing facility
