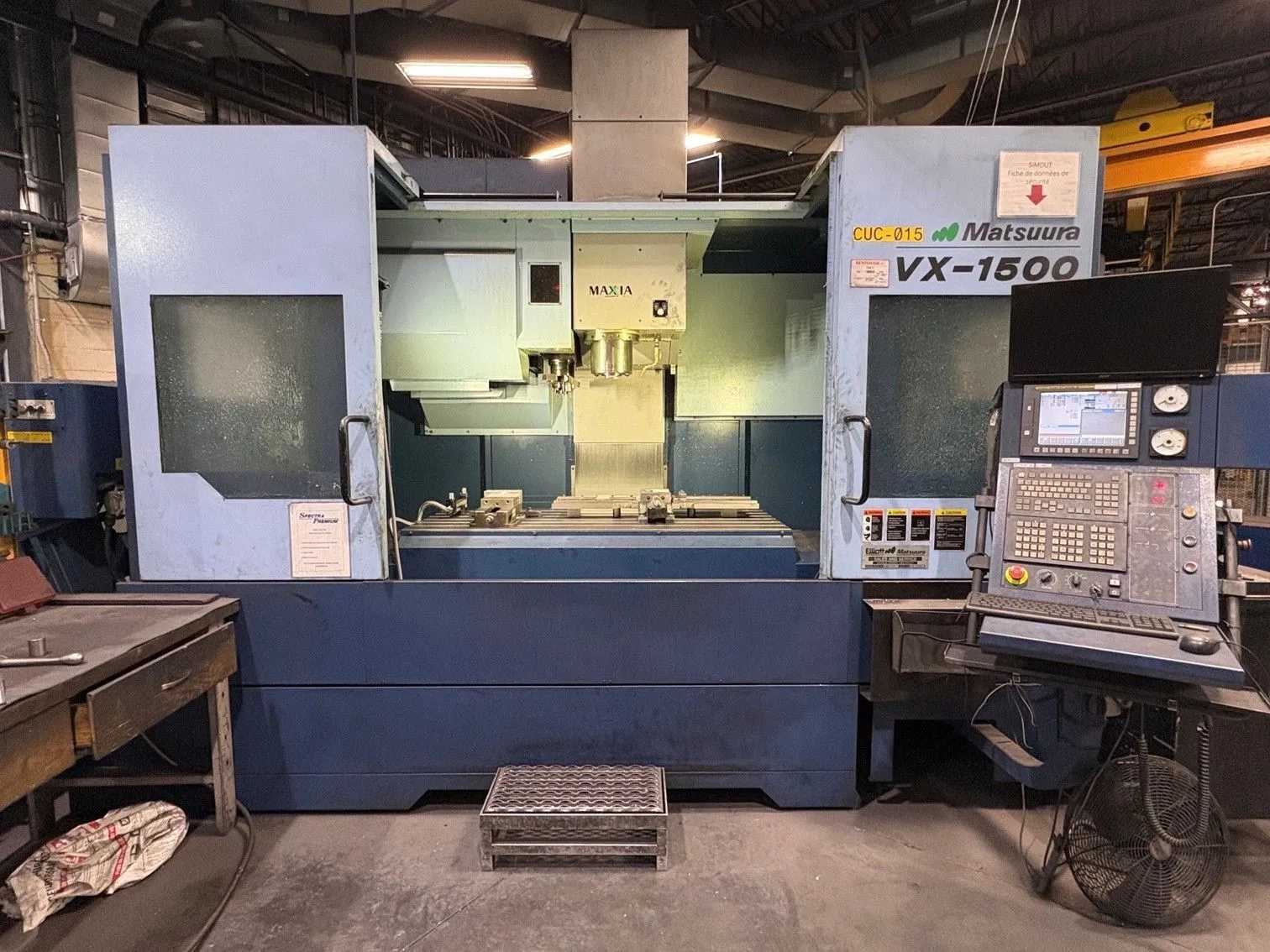

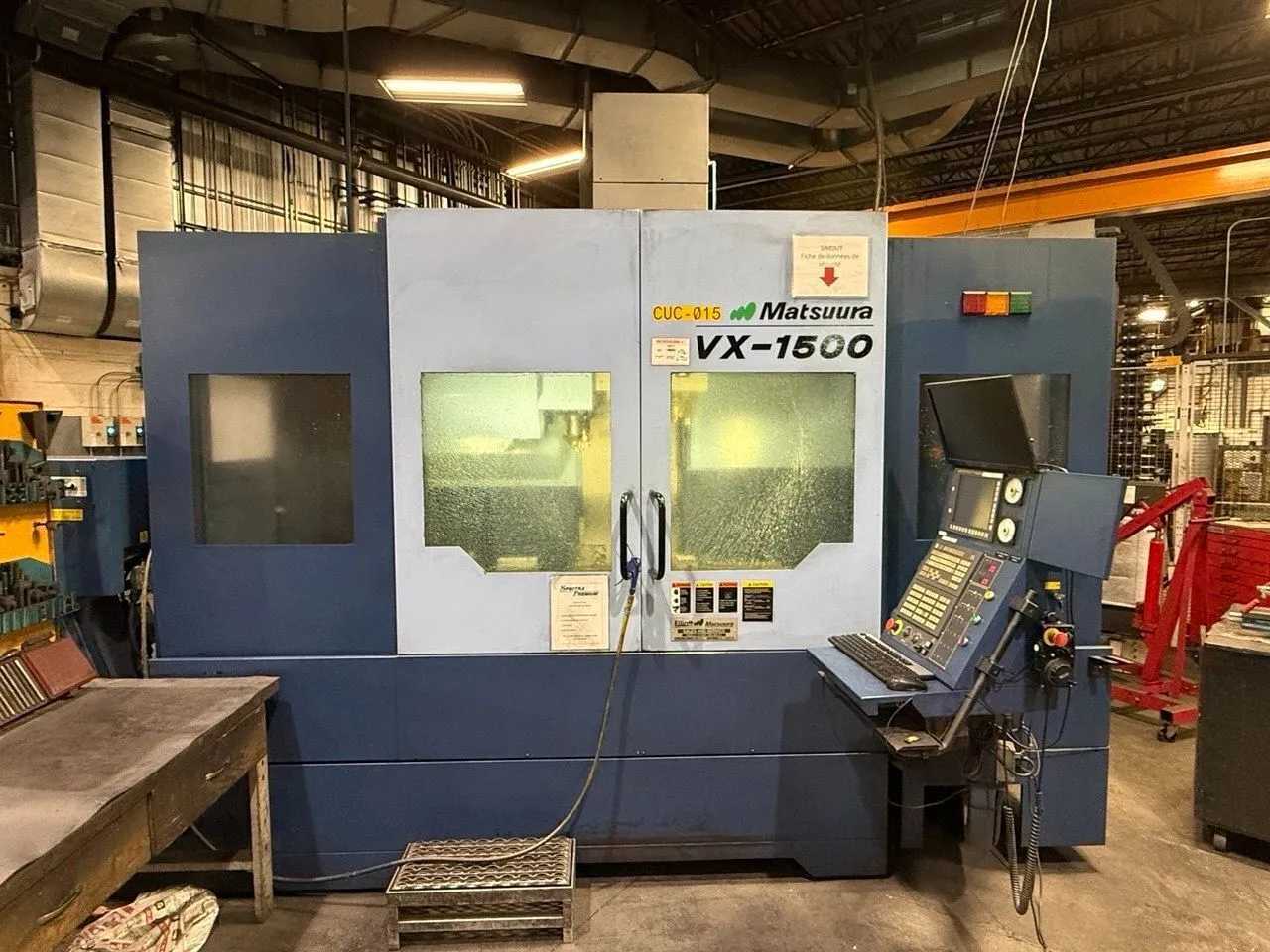

2016 MATSUURA VX-1500 VMC, FANUC 31I, CAT50, 60X27.5X24, 30 ATC, 15K RPM

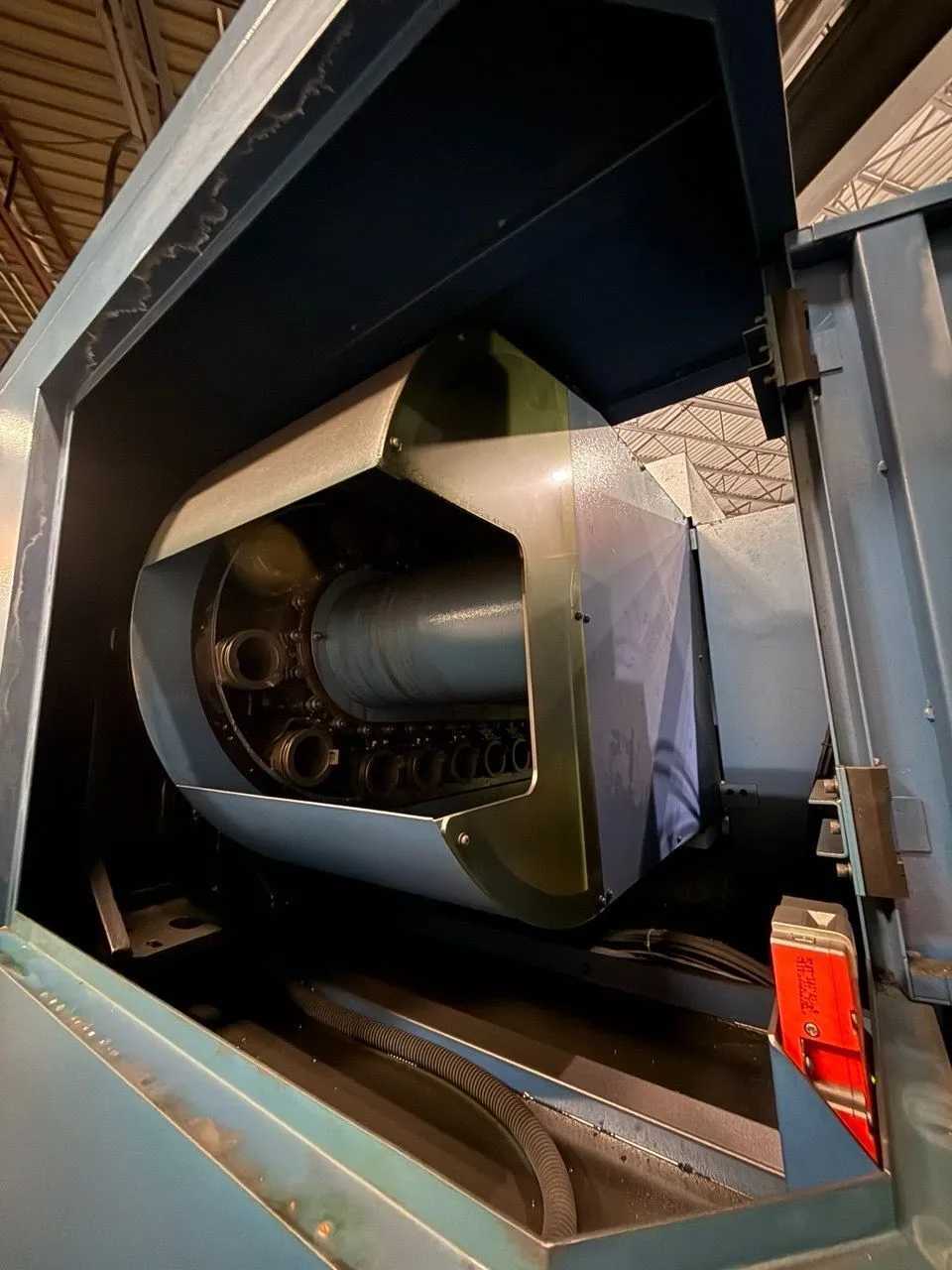

2016 MATSUURA VX-1500 VERTICAL MACHINING CENTER WITH FANUC G-TECH 31I CONTROL, 200V/3-PHASE/60 HZ POWER, AND CAT 50 SPINDLE TAPER. THE MACHINE FEATURES 60 IN X 27.5 IN X 24 IN X/Y/Z TRAVELS, A 66.9 IN X 27.5 IN TABLE WITH 4,400 LB CAPACITY, AND 6 T-SLOTS AT 18 MM ON 100 MM CENTERS. SPINDLE SPEED RANGES FROM 50 TO 15,000 RPM WITH 20/40 HP SPINDLE POWER AND 258 FT-LBS MAXIMUM TORQUE. EQUIPPED WITH A 30-POSITION AUTOMATIC TOOL CHANGER, 1,417 IPM RAPID TRAVERSE, THROUGH-SPINDLE COOLANT, AIR THROUGH SPINDLE, RENISHAW OMP-60 PROBE SYSTEM, RENISHAW NC-4 TOOL SETTER, AND LIFT-UP CHIP CONVEYOR. OVERALL DIMENSIONS ARE 178 IN X 126 IN X 126 IN, WITH APPROXIMATE WEIGHT OF 24,250 LBS.
