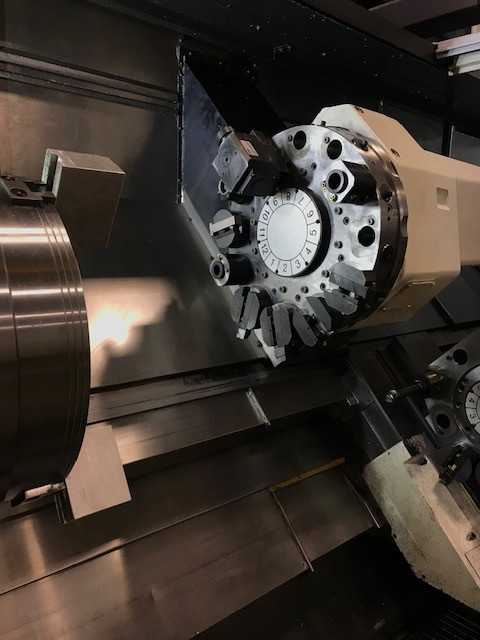

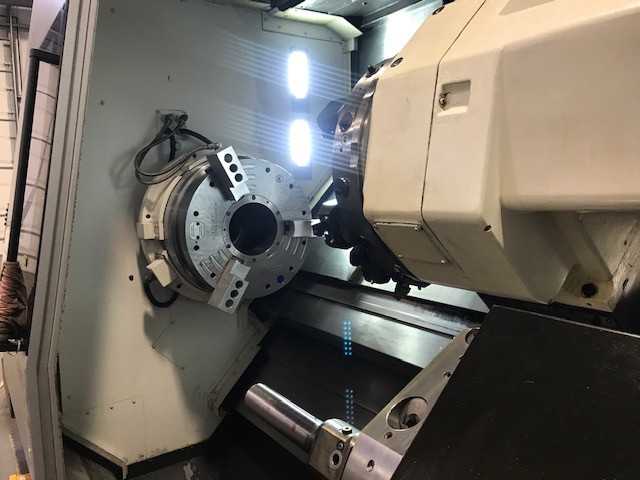

2016 Okuma LU-35-IIM -2SC-2000 Super Big Bore Live Mill Lathe

OKUMA 4-AXIS DUAL TURRET BOXED WAY CNC LATHE WITH LIVE MILLING Model: LU-35-IIM -2SC-2000 Swing over bed: 29” Swing over saddle: 18.90” Distance between centers: 78.74” Max. turning diameter: 21.65” Max. work length: 81.50” Spindle rpm: 2,800, 4-speed ranges Spindle bore: 175 to 180 mm: 7.0866” Spindle mount: A2-15 Spindle HP: 50 Spindle index increments: 0.001 degree Turrets: 12 station upper and all live mill capable, 10 station lower Rapid travels: 591 ipm in X, 787 ipm in Z Live milling rpm: 4-2,000 Live mill HP: 7/5 Dimensions: 8’ x 21’ Weight: 36,080 lbs. EQUIPPED WITH: OSP-P300L controls Portable pulse handle Multi Tap transformer UL prep spec Super Big Bore spindle A2-15 A2-15 rear of spindle prepped for chuck adapter Thread start point offset Chip conveyor Prepped for SMW air chuck for both front and rear of spindle Hyd/air chuck switchable interface Variable spindle speed threading Rapid traverse over ride switch 3-jaw Schunk 500 mm chuck for front of spindle, self-contained pneumatic chuck with 7” bore 4-jaw manual independent 600 mm rear chuck package Chuck jaws Standard Tool package M, plus 5 Live holders, three with Quick Change Capto 5 Manuals SN: 507.182275, new June 2016 Low hours In plant under power – Houston, Texas Original list price: $600,435.00, plus a tooling package that was over $10,000.00
