2016 PEDDINGHAUS PEDDI-WRITER PW-1250 BEAM / DRILL LINE, PLASMA LAYOUT SYSTEM, MAX. WIDTH 50"

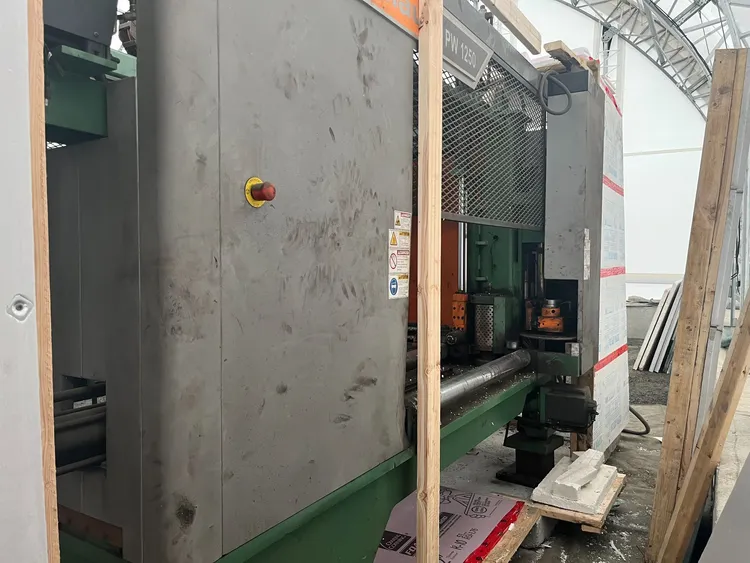

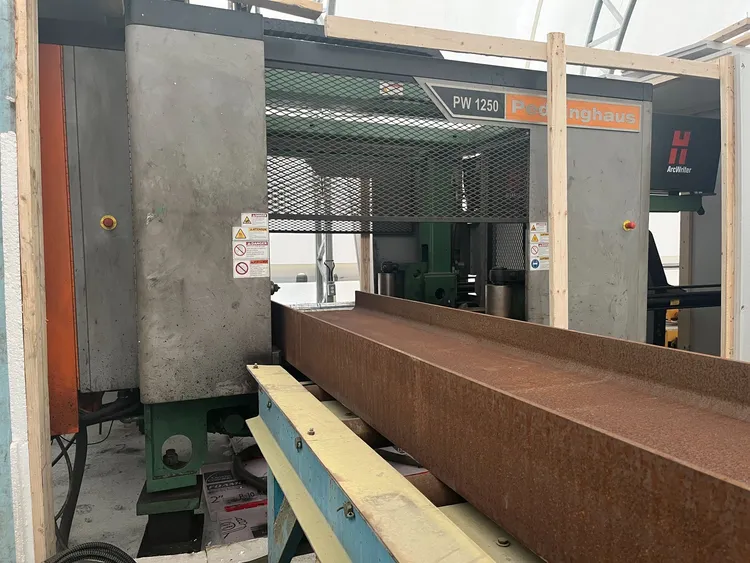

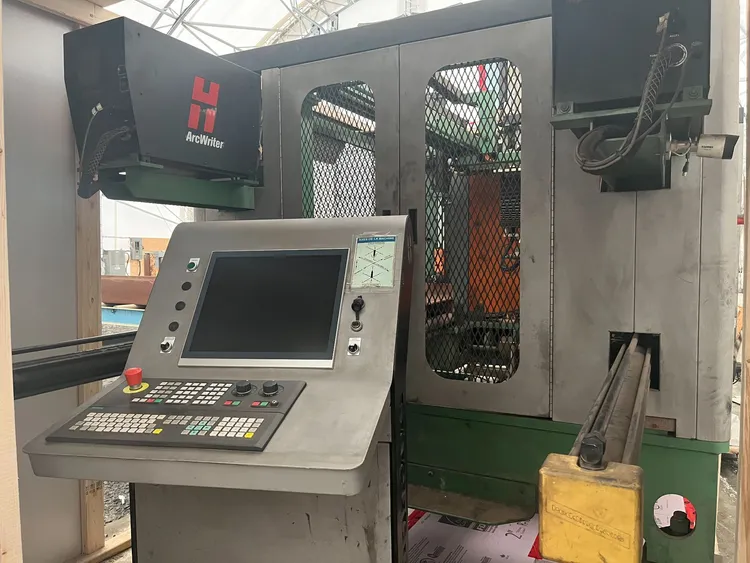

THE PEDDINGHAUS PEDDIWRITER PW-1250 IS AN AUTOMATIC PLASMA LAYOUT MARKING SYSTEM FEATURING HYPERTHERM PLASMA ARCWRITING TECHNOLOGY AND TWO INDEPENDENT TORCH ASSEMBLIES FOR SIMULTANEOUS 2-SIDED MARKING. IT UTILIZES A SIEMENS CNC CONTROL AND RAPTOR 3D CAD/CAM SOFTWARE. THE MACHINE IS CAPABLE OF MARKING FOUR SIDES OF A PROFILE (TOP/BOTTOM WEB AND FLANGE) AND EMPLOYS ROLLER FEED MEASUREMENT FOR NONSTOP THROUGHPUT AND CONTINUOUS SURFACE DETECTION. KEY SPECIFICATIONS INCLUDE A MAXIMUM SECTION WIDTH OF 50 INCHES (1,270 MM) AND A MAXIMUM SECTION HEIGHT OF 24 INCHES (610 MM). MINIMUM DIMENSIONS ARE 3 INCHES BY 3 INCHES FOR BEAMS AND ANGLES. IT CAN HANDLE A MAXIMUM PROFILE WEIGHT OF 43,800 LBS AND ACCEPTS VARIOUS PROFILES INCLUDING BEAMS, CHANNELS, SQUARE/RECTANGULAR TUBING, ANGLE, AND FLAT STOCK. THE ELECTRICAL REQUIREMENTS ARE 460 V, 3 PHASE.
