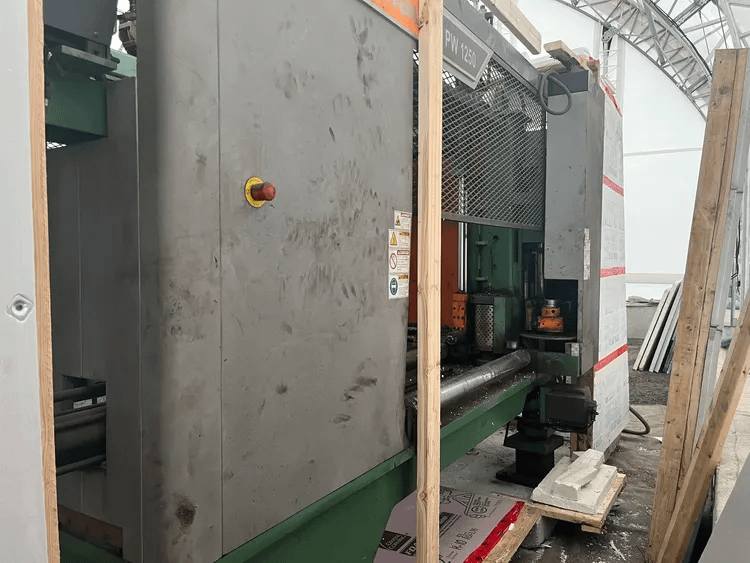

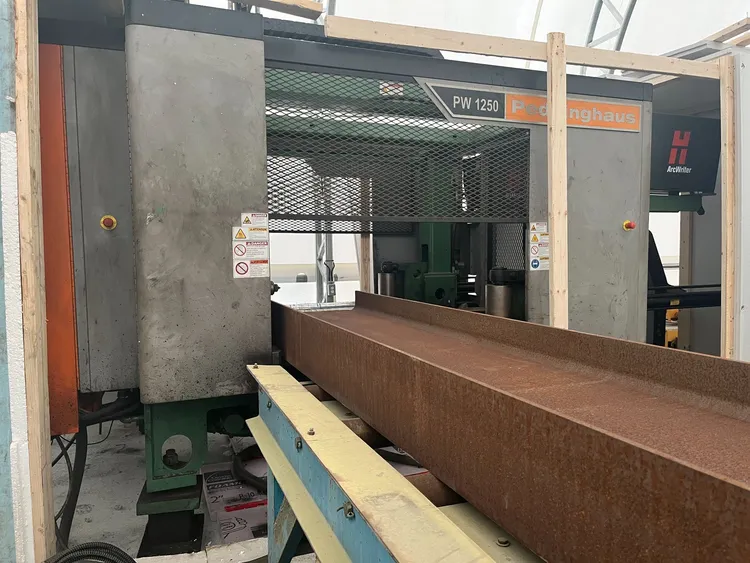

2016 Peddinghaus Peddi-Writer PW-1250 Beam / Drill Line, Plasma Layout System, Max. Width 50"

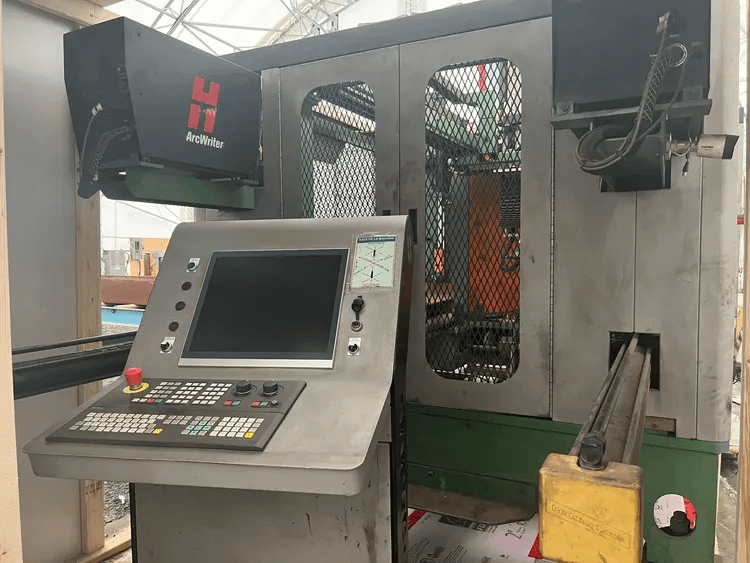

The Peddinghaus PeddiWriter PW-1250 is an automatic plasma layout marking system featuring Hypertherm plasma arcwriting technology and two independent torch assemblies for simultaneous 2-sided marking. It utilizes a Siemens CNC control and Raptor 3D CAD/CAM software. The machine is capable of marking four sides of a profile (top/bottom web and flange) and employs roller feed measurement for nonstop throughput and continuous surface detection. Key specifications include a maximum section width of 50 inches (1,270 mm) and a maximum section height of 24 inches (610 mm). Minimum dimensions are 3 inches by 3 inches for beams and angles. It can handle a maximum profile weight of 43,800 lbs and accepts various profiles including beams, channels, square/rectangular tubing, angle, and flat stock. The electrical requirements are 460 V, 3 phase.
