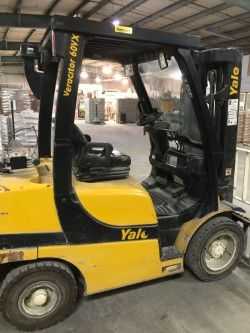

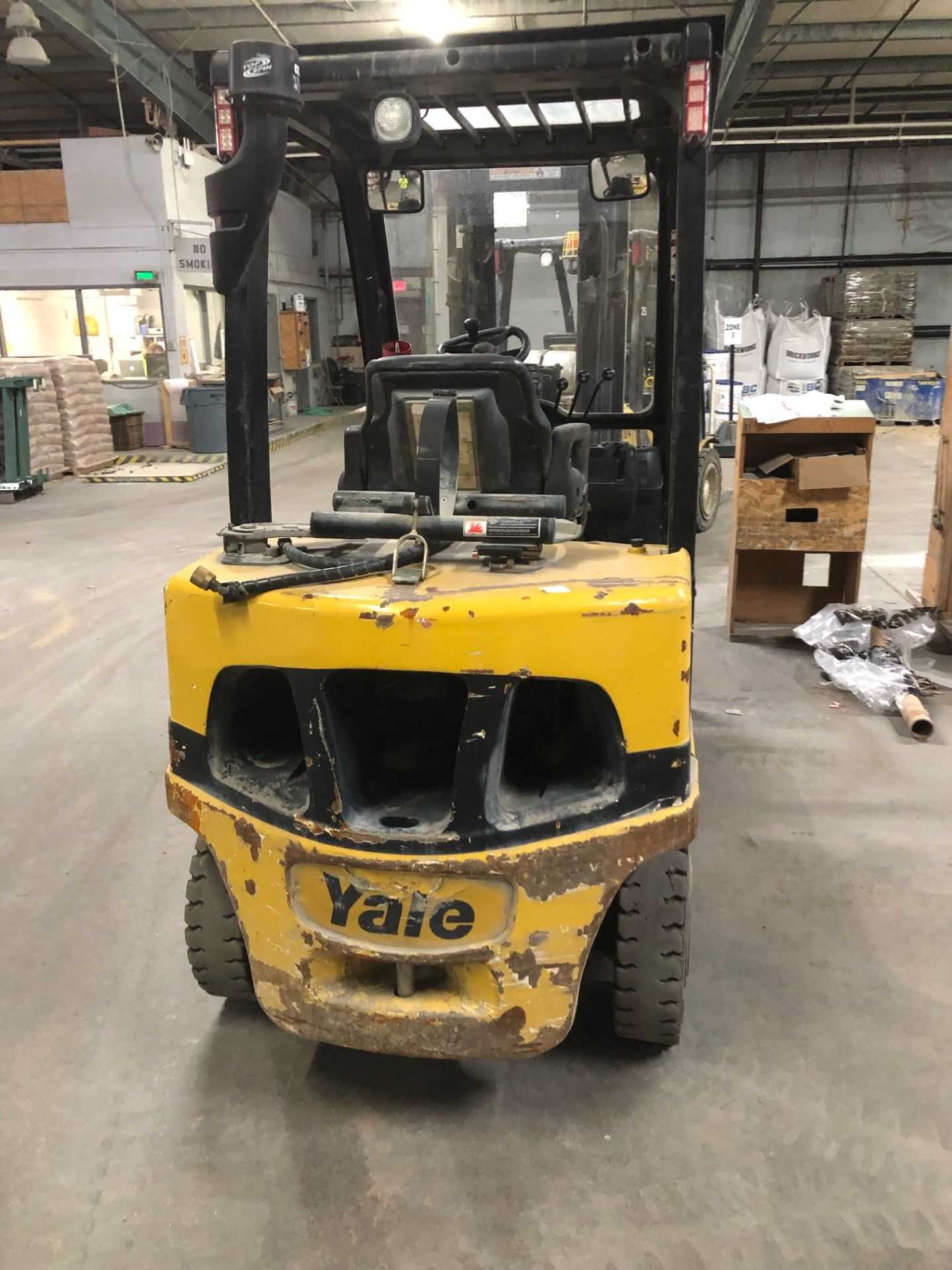

2016 YALE GLP060VX FORKLIFT: 6000LB CAPACITY, LPG, PNEUMATIC TIRES, 199IN LIFT, TECHTRONIX TRANS

THE 2016 YALE GLP060VX IS A HIGH-CAPACITY, SIT-DOWN INTERNAL COMBUSTION FORKLIFT DESIGNED FOR DEMANDING MATERIAL HANDLING APPLICATIONS. IT IS POWERED BY A PSI 4.3L 6-CYLINDER ENGINE FUELED BY LPG, DELIVERING APPROXIMATELY 103 HP AND 225 LB-FT OF TORQUE AT 2400 RPM. THIS MODEL FEATURES A LOAD CAPACITY OF 6,000 LBS (APPROXIMATELY 2,722 KG) AT A 24-INCH LOAD CENTER. IT IS EQUIPPED WITH PNEUMATIC TIRES (8.25 X 15 14PR) ON A FOUR-WHEEL CHASSIS WITH DUAL FRONT DRIVE WHEELS. THE DRIVETRAIN INCLUDES A HYDRODYNAMIC TECHTRONIX TRANSMISSION WITH ELECTRONIC INCHING AND SHIFT CONTROL, ENABLING A MAXIMUM TRAVEL SPEED OF 14 MPH AND A GRADEABILITY OF APPROXIMATELY 23% WHEN LADEN. THE HYDRAULIC SYSTEM UTILIZES A 155-BAR RELIEF PRESSURE, SUPPORTING VARIOUS MAST CONFIGURATIONS, INCLUDING COMMON 3-STAGE VERSIONS WITH LIFT HEIGHTS REACHING APPROXIMATELY 188 TO 199 INCHES. STANDARD DIMENSIONS INCLUDE AN OVERALL LENGTH TO THE FORK FACE OF 12 FEET, AN OVERALL WIDTH OF 82 INCHES, AND AN OVERHEAD GUARD HEIGHT OF ROUGHLY 100 INCHES. THE UNIT FEATURES A TURNING RADIUS OF 10.9 FEET AND A GROUND CLEARANCE OF APPROXIMATELY 5 INCHES. OPERATOR SAFETY AND COMFORT ARE FACILITATED BY AN ADJUSTABLE SUSPENSION SEAT, POWER STEERING, AND THE INTELLIX VEHICLE MANAGEMENT SYSTEM UTILIZING CAN BUS TECHNOLOGY FOR SYSTEM MONITORING. BRAKING IS PROVIDED BY A HYDRAULIC SERVICE BRAKE AND A HAND-OPERATED PARKING BRAKE.
