2017 FANUC A06B-0243-B605 Aif 12/4000 AC Servo Motor 3kW 3000RPM 12NM IP65 200-240V

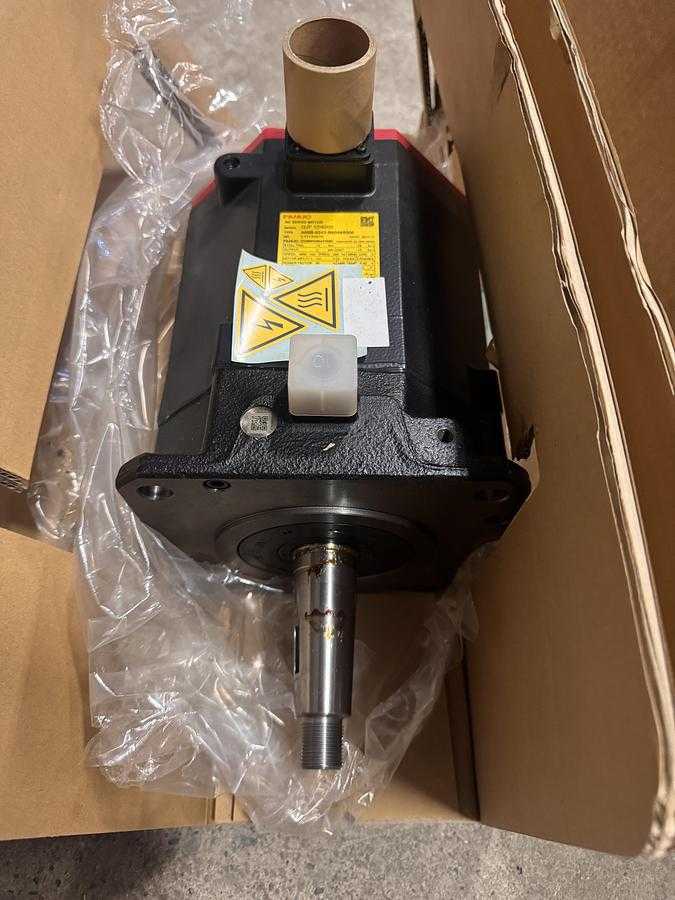

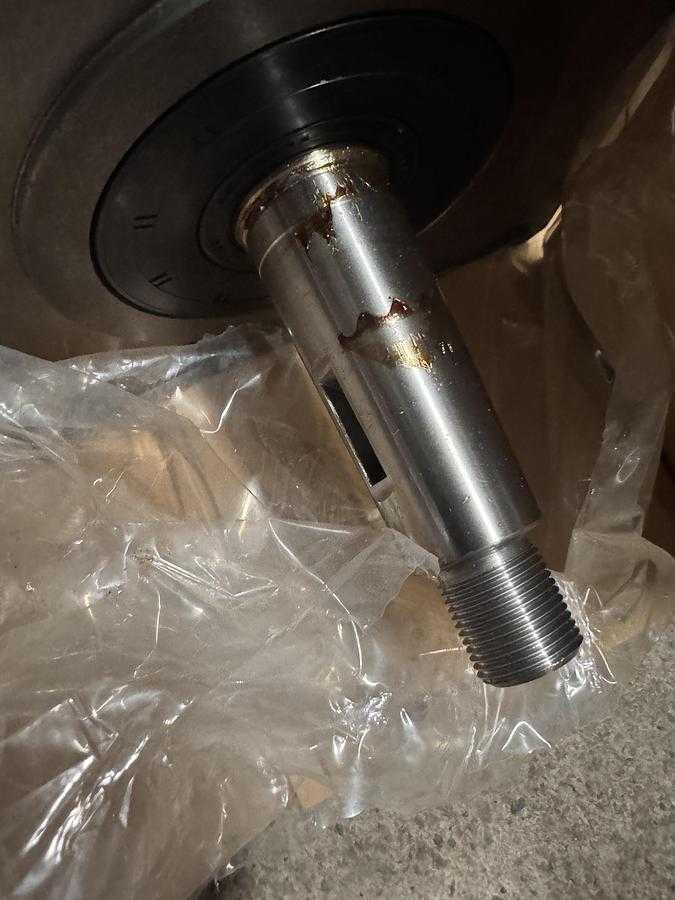

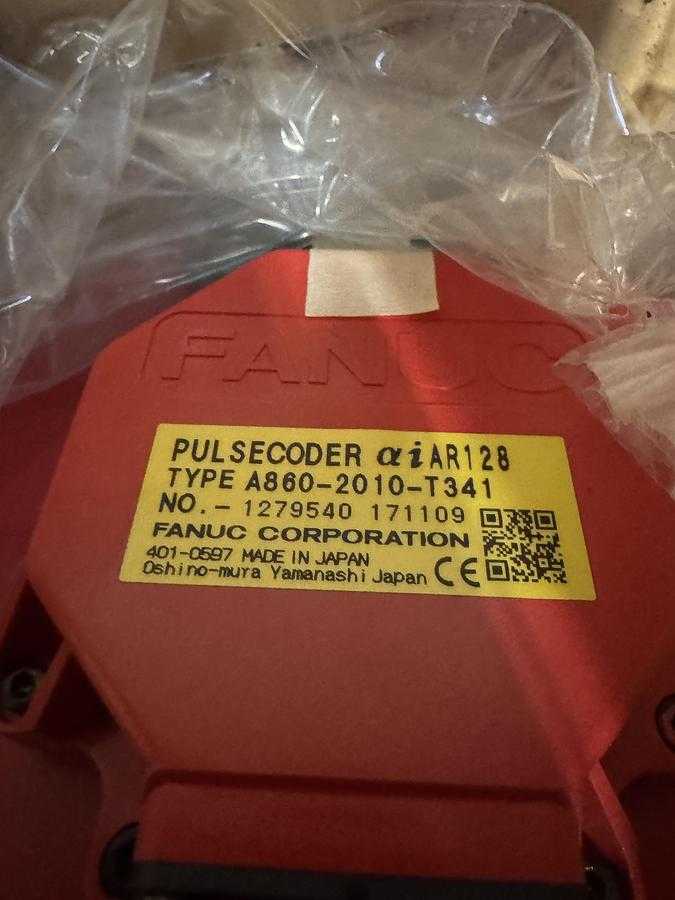

The FANUC A06B-0243-B605#S000 is an AC servo motor from the Alpha iF series, specifically model Aif 12/4000. Manufactured in 2017, this three-phase, eight-pole motor is designed for high-performance industrial automation and CNC applications. It features a tapered shaft and is equipped with a 90V brake for precise motion control. The motor has a rated output of 3 kW and operates at a rated speed of 3000 RPM with a maximum frequency of 200 Hz. Technical specifications include a stall torque of 12 NM, a rated current of 14 A, and an input voltage of 200-240 V. It utilizes a Y winding connection and is rated for an ambient temperature range of 0-40°C with an IP65 protection rating and class F insulation. The unit includes an integrated AiAR128 pulsecoder (type A860-2010-T341) for feedback. The motor weighs approximately 55 lbs and has physical dimensions of roughly 14 x 7 x 9 inches.
