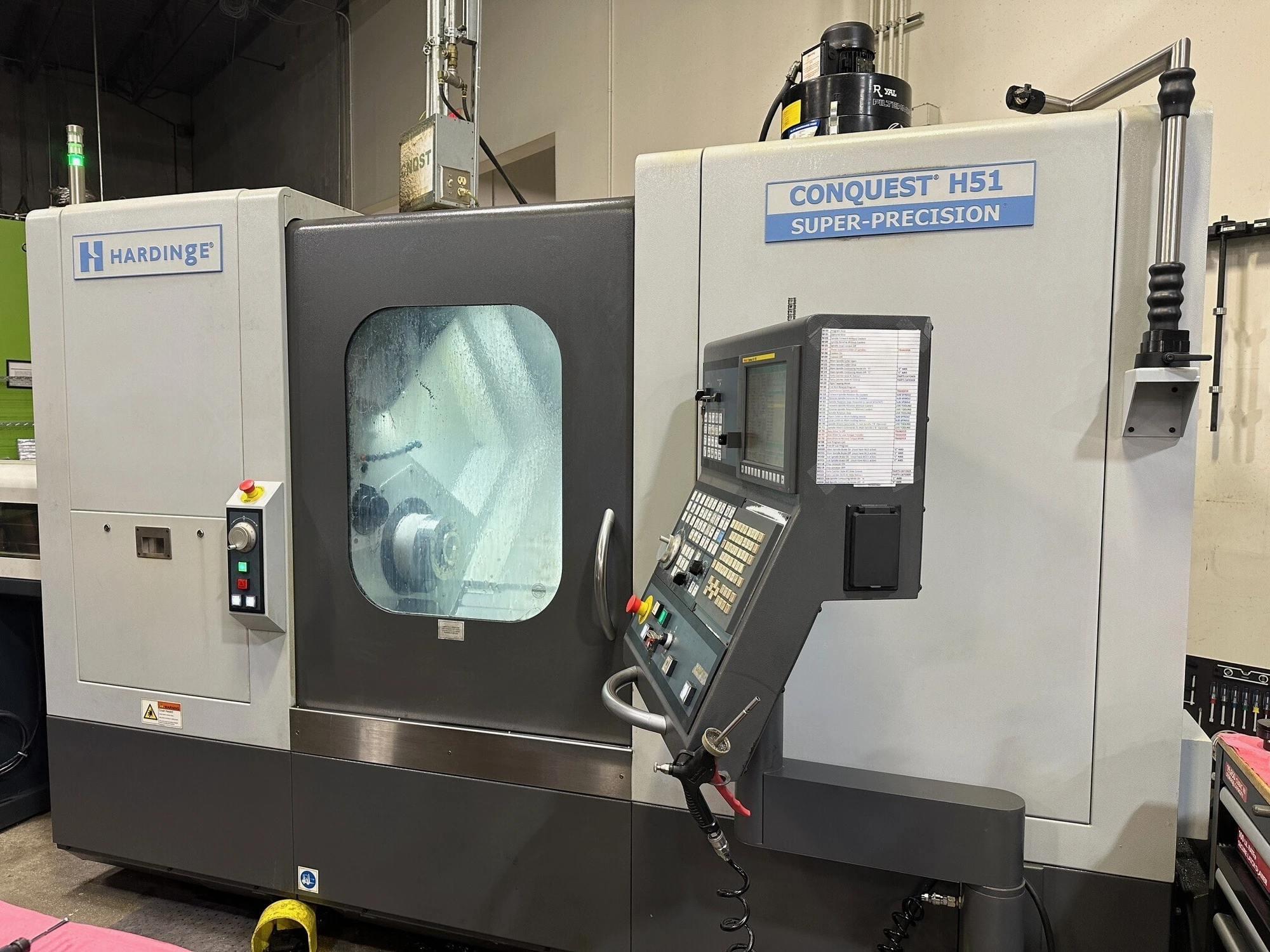

2017 Hardinge Conquest H51MSY CNC Turning Center, 5000 RPM, 20 HP, 2 Spindles

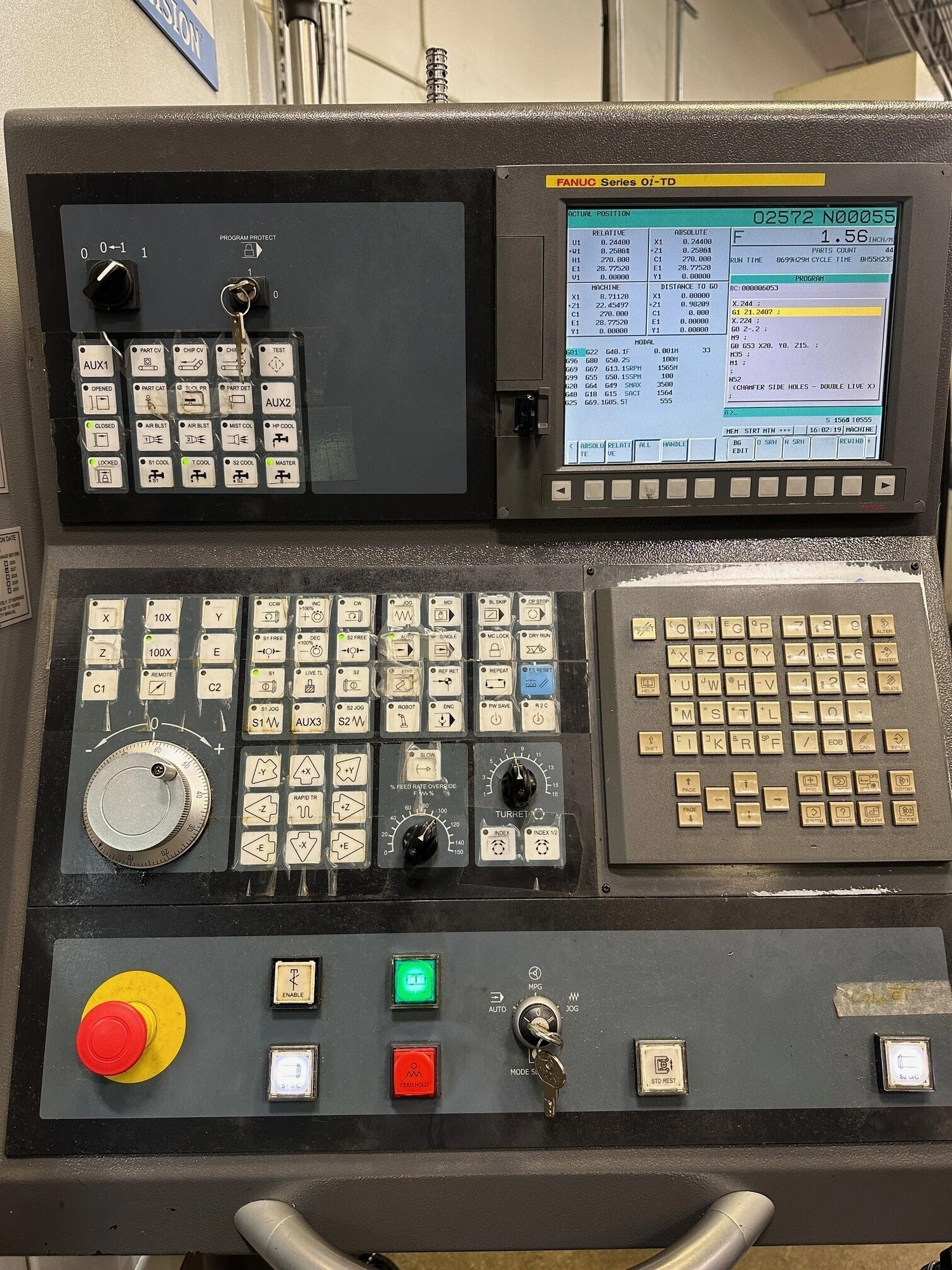

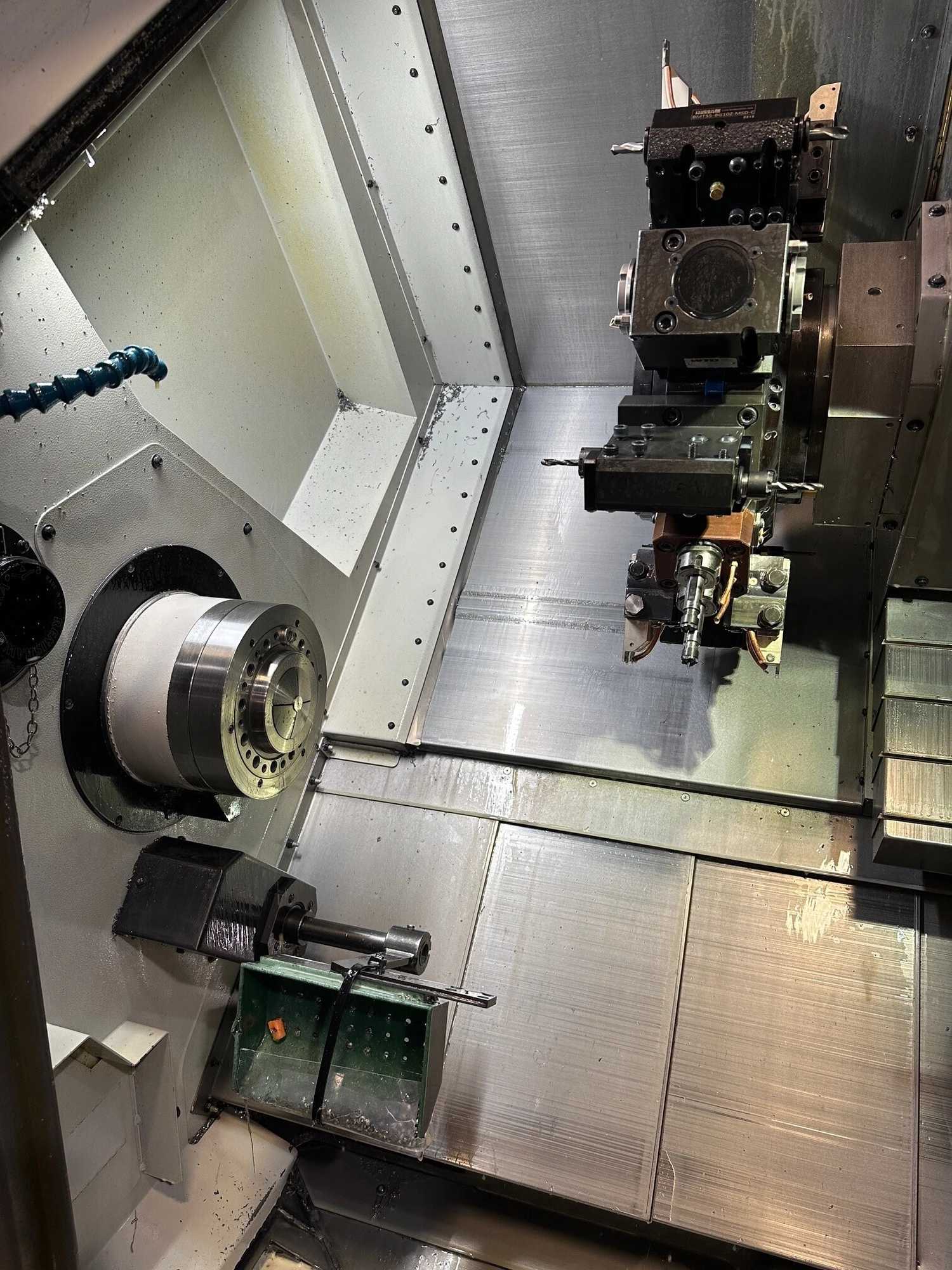

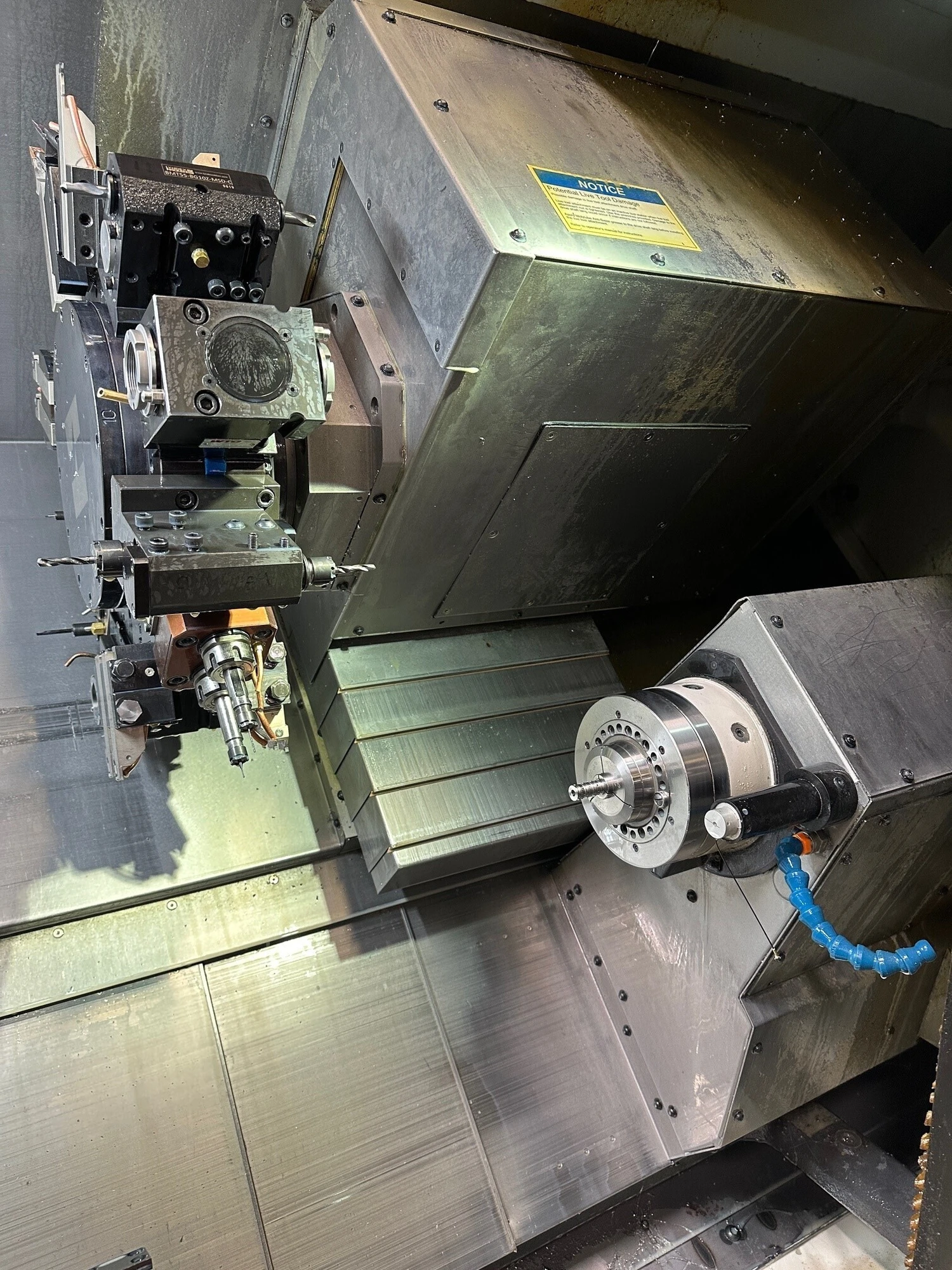

The 2017 Hardinge Conquest H51 is a CNC lathe featuring a maximum swing of 27.87 inches, a maximum turning diameter of 12.3 inches, and a maximum machining length of 25.5 inches. Powered by a 20 kW motor, the machine delivers a maximum spindle speed of 5,000 RPM and supports a bar capacity of 2 inches, utilizing an 8 mm chuck size. Operations are controlled via a Fanuc Series 0i TD CNC control system. Designed for complex turning operations, this model is equipped with a sub-spindle, a tailstock, Y-axis capability, and a part ejector. The unit has recorded approximately 8,700 run-time hours. Standard tooling and workholding accessories included with the machine consist of approximately 24 main spindle 20C collets, approximately 10 spindle liners, and approximately 8 to 10 ID/OD tool holders mounted on the turret. The sub-spindle does not include 16C collets, and no live toolholders are included with the unit.
