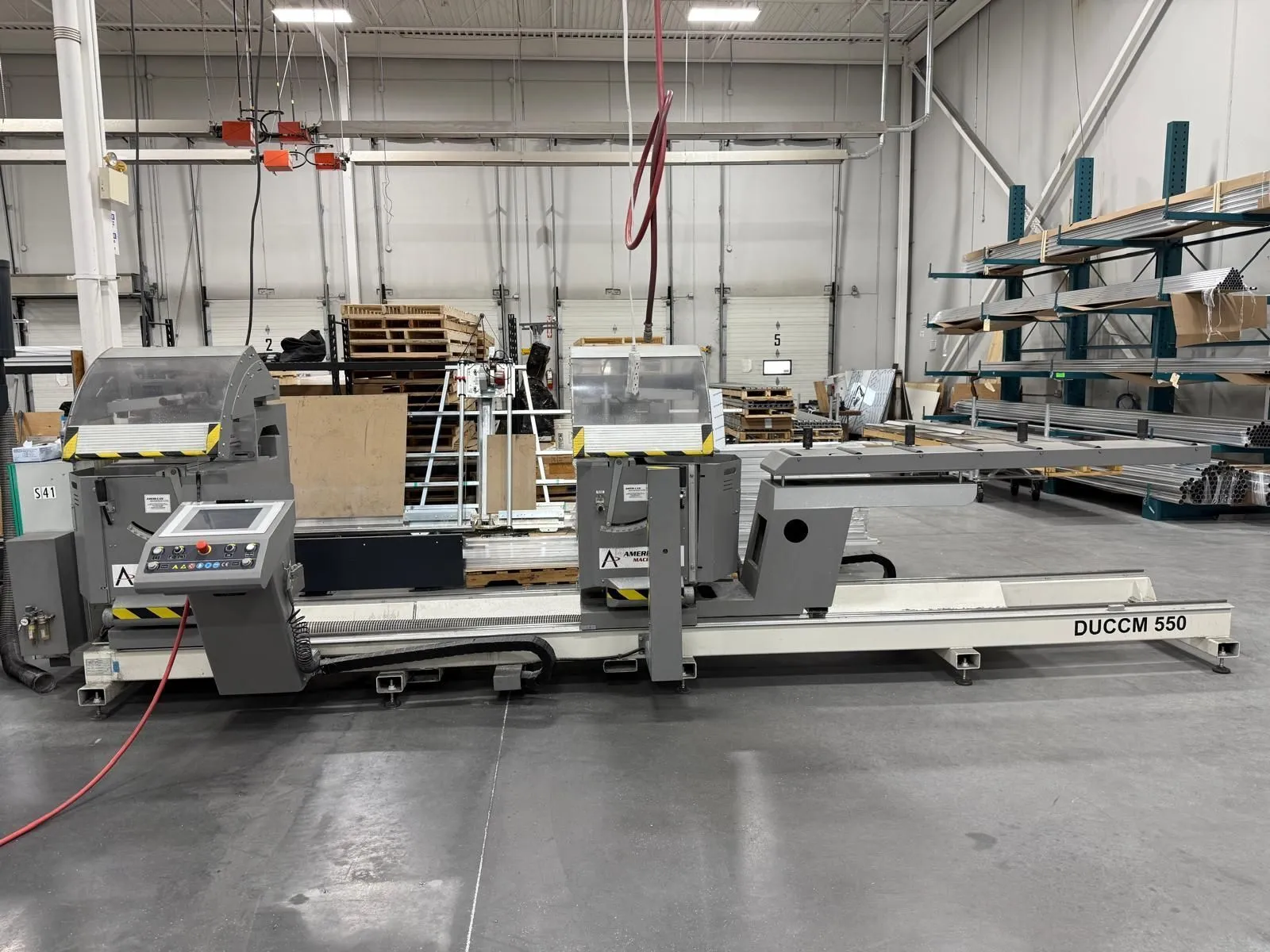

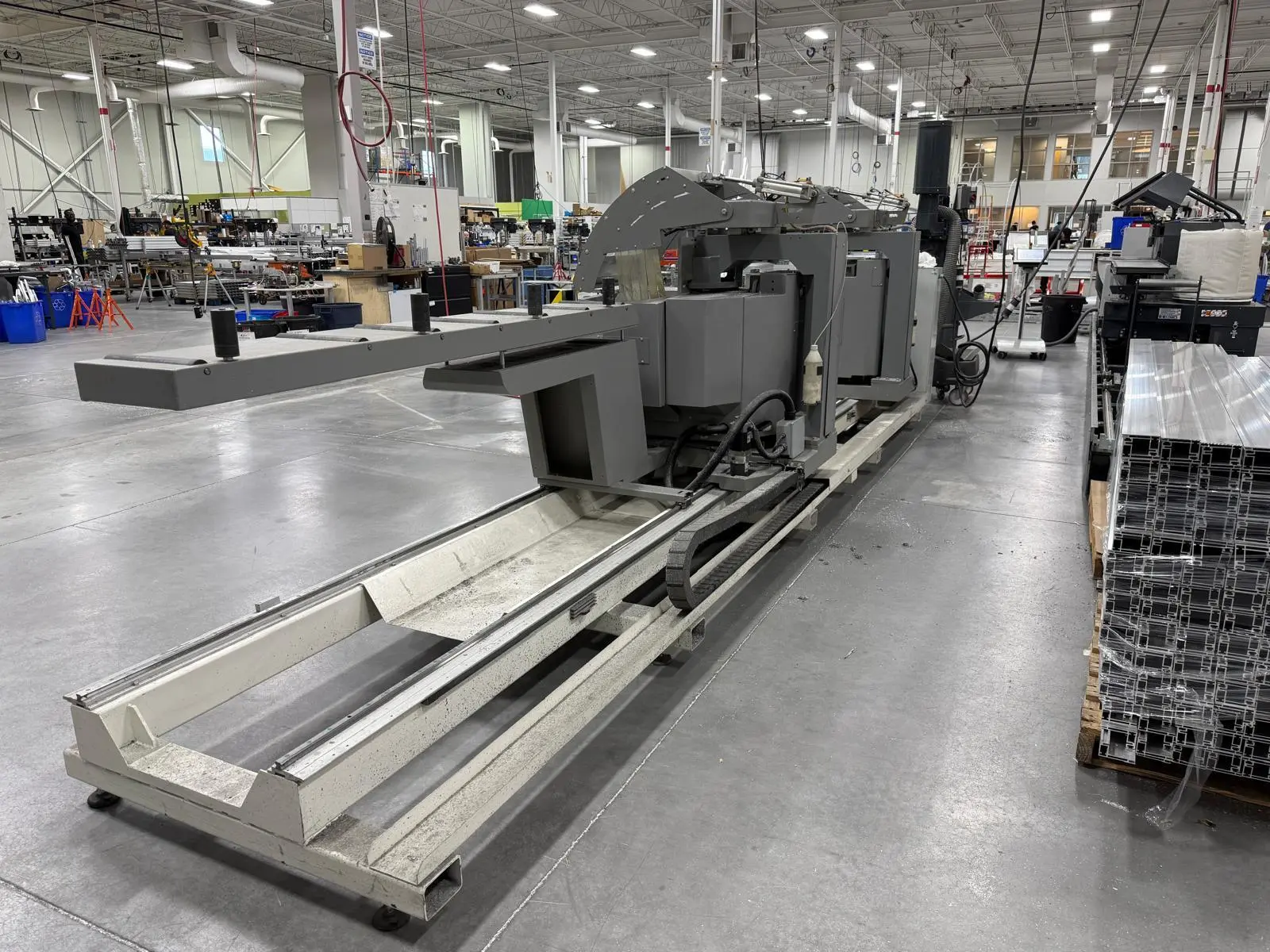

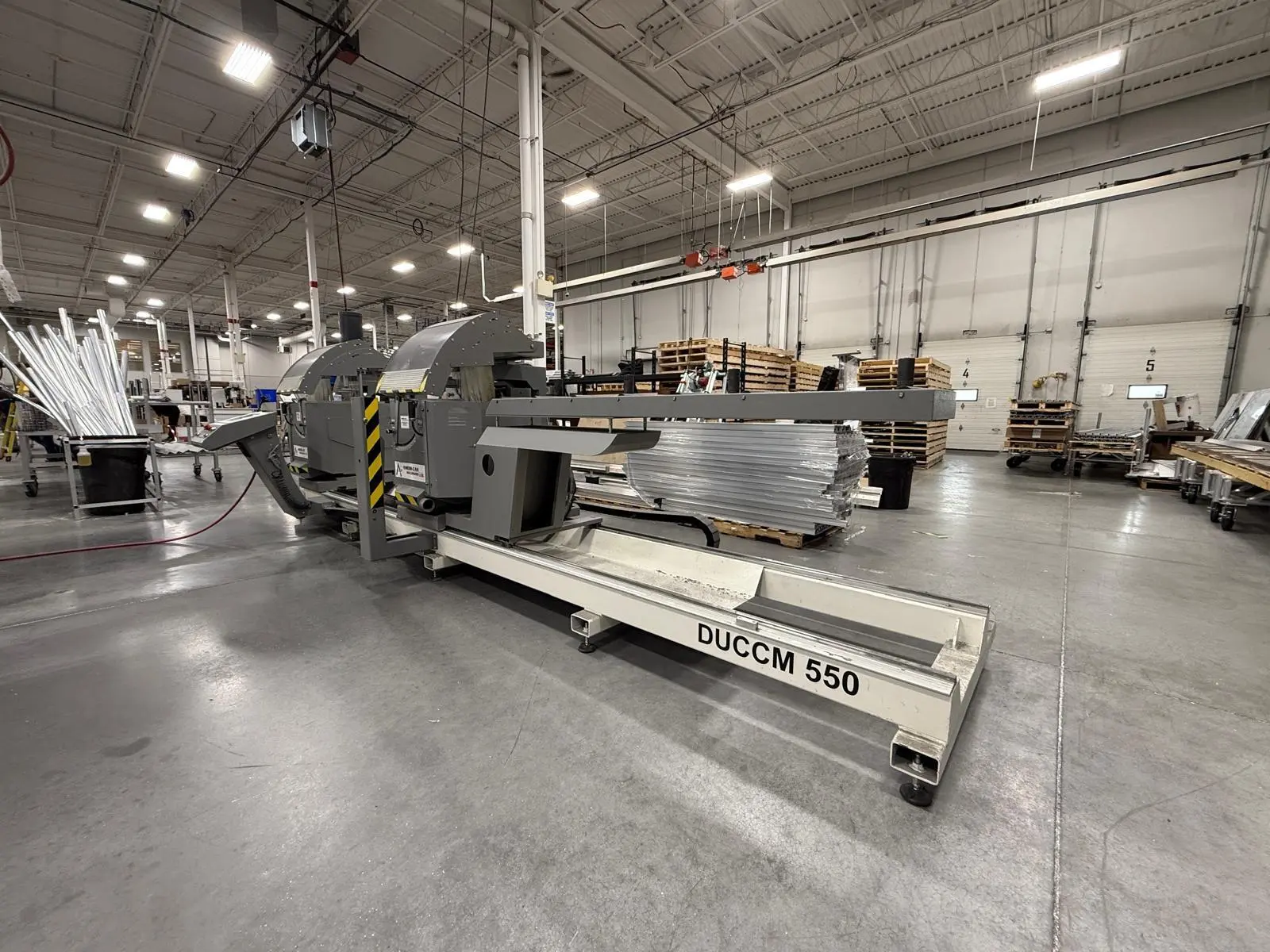

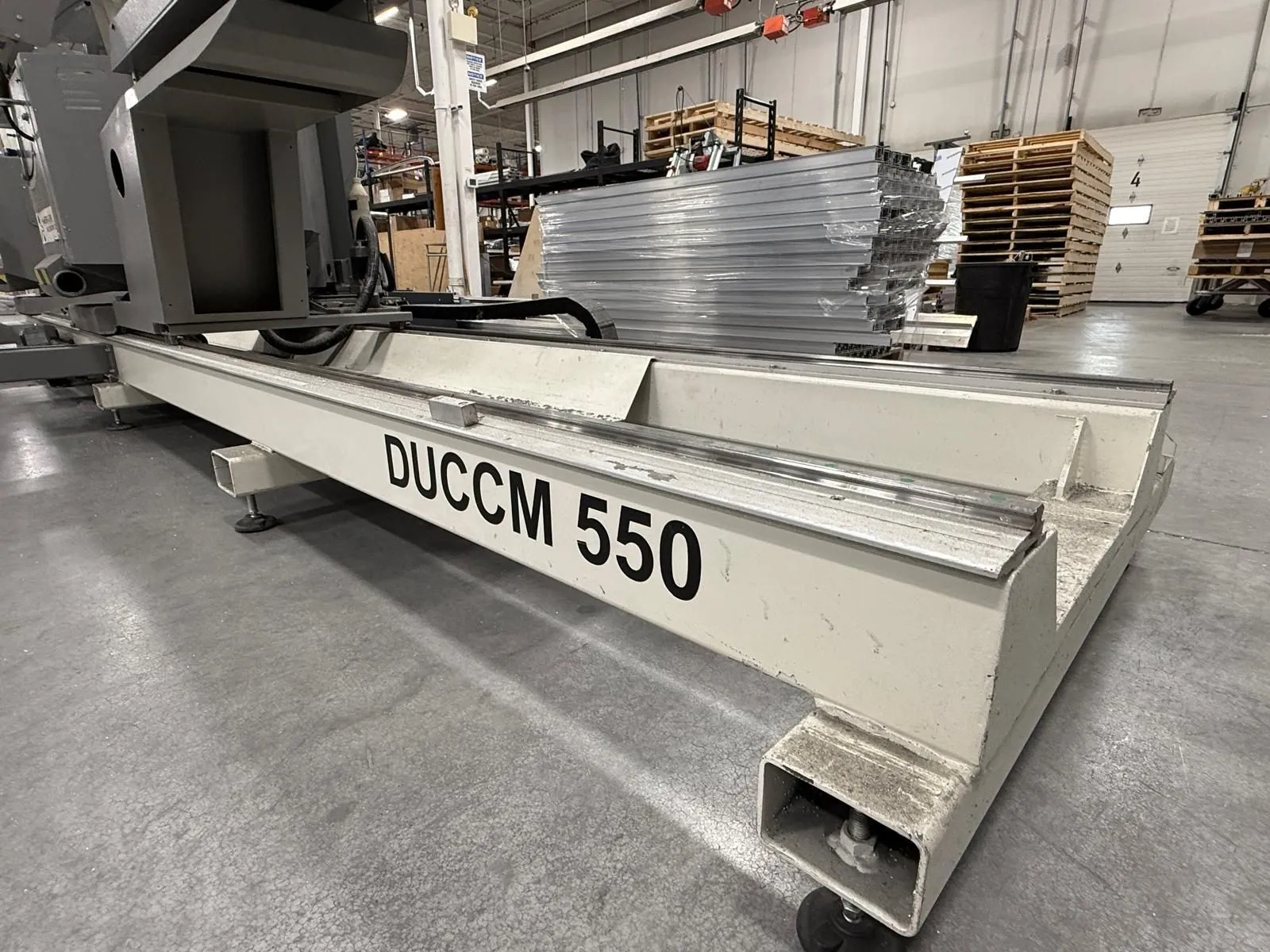

2017 MEPAL ITALIA REMIX DUCCM 550 CNC DOUBLE COMPOUND MITRE SAW 4M 21.6IN BLADES 2X4HP 220V

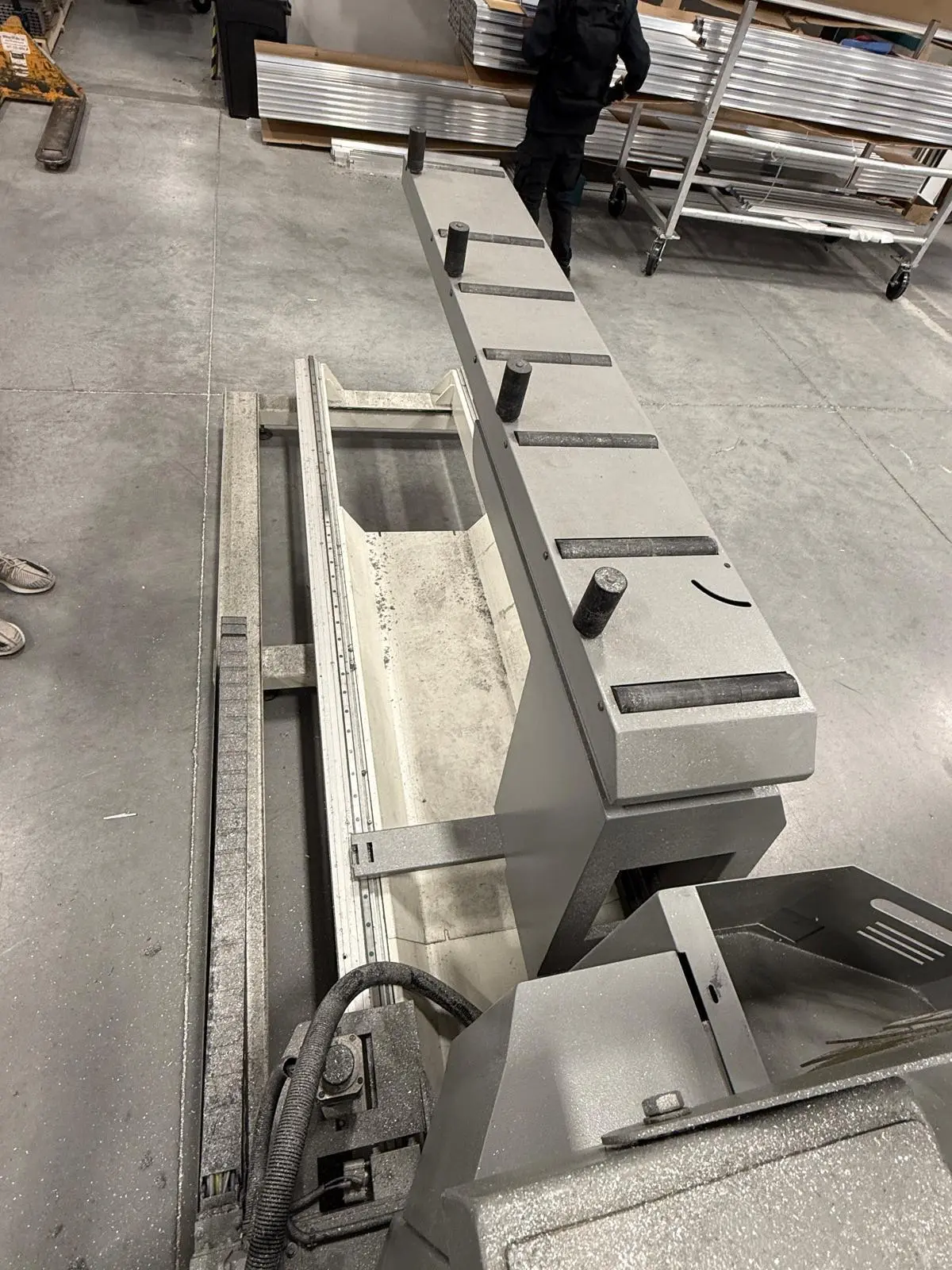

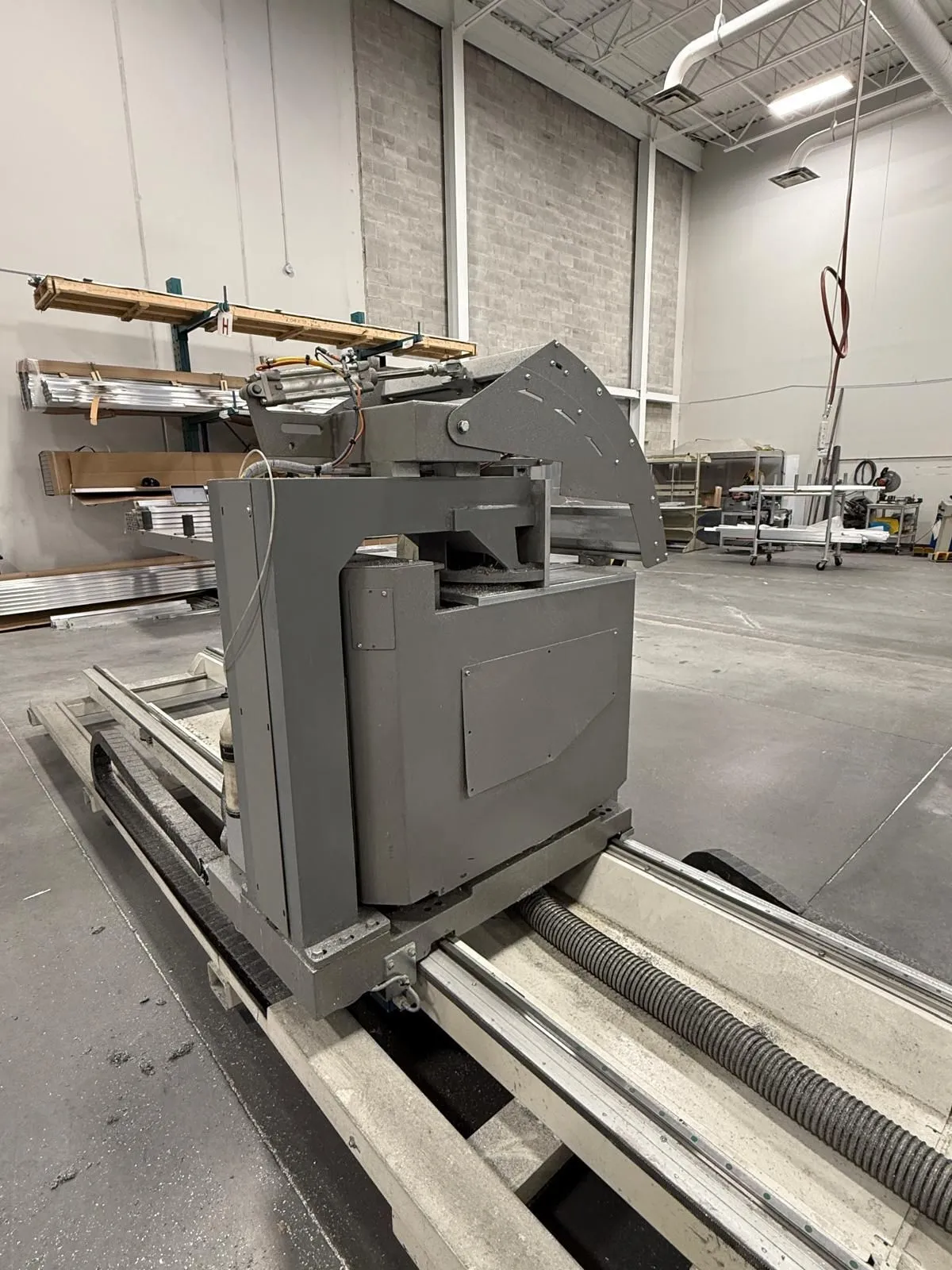

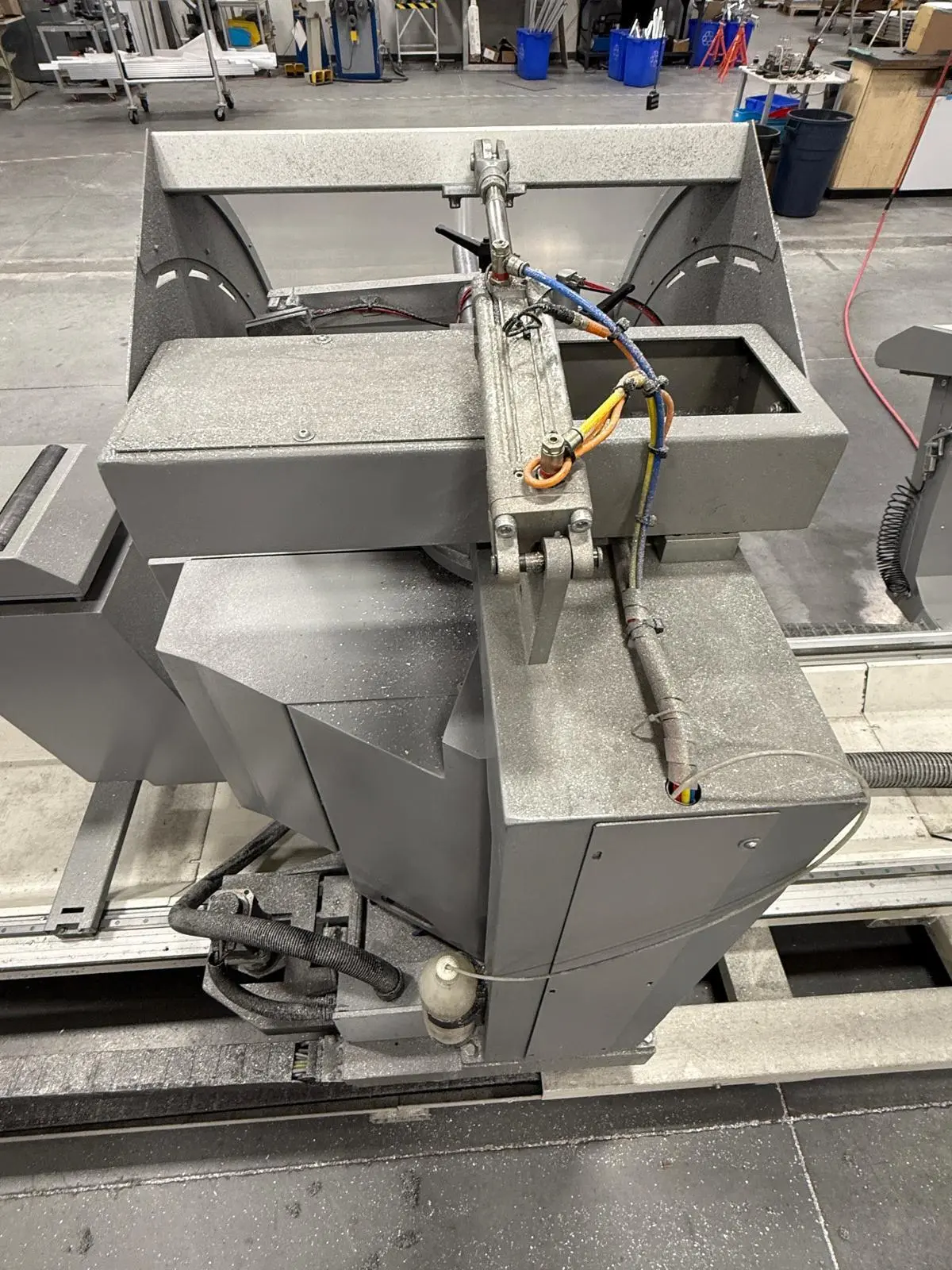

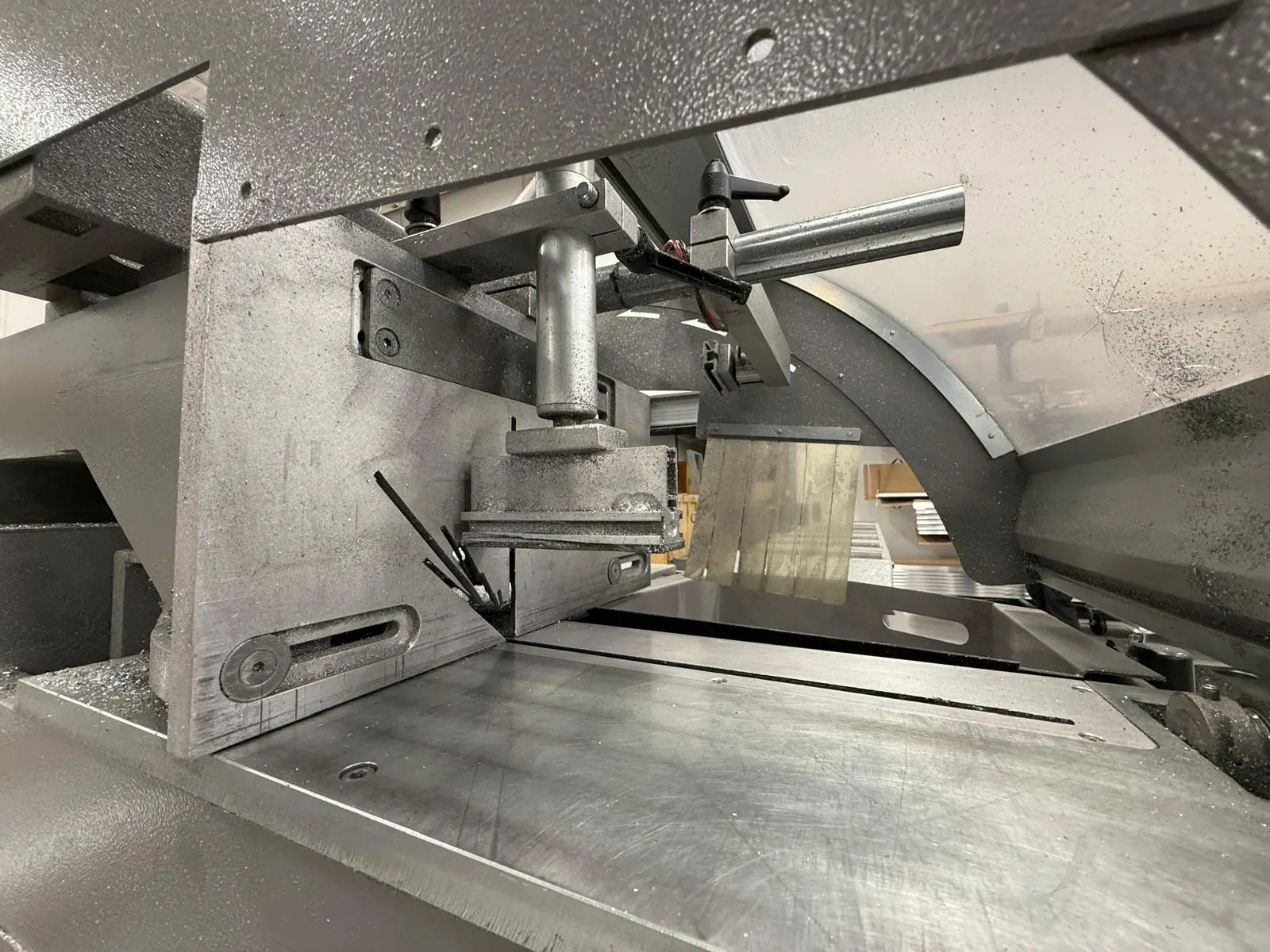

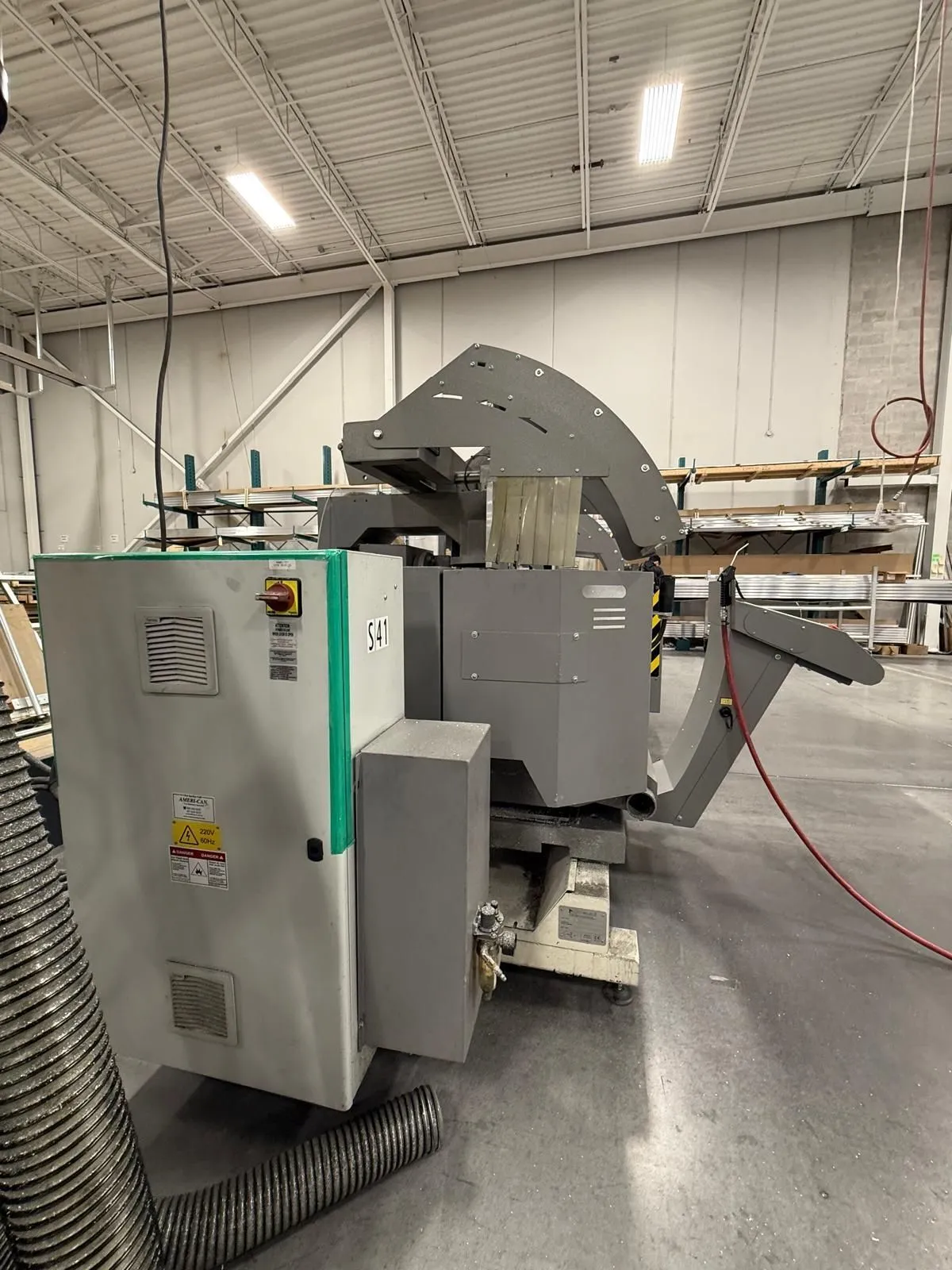

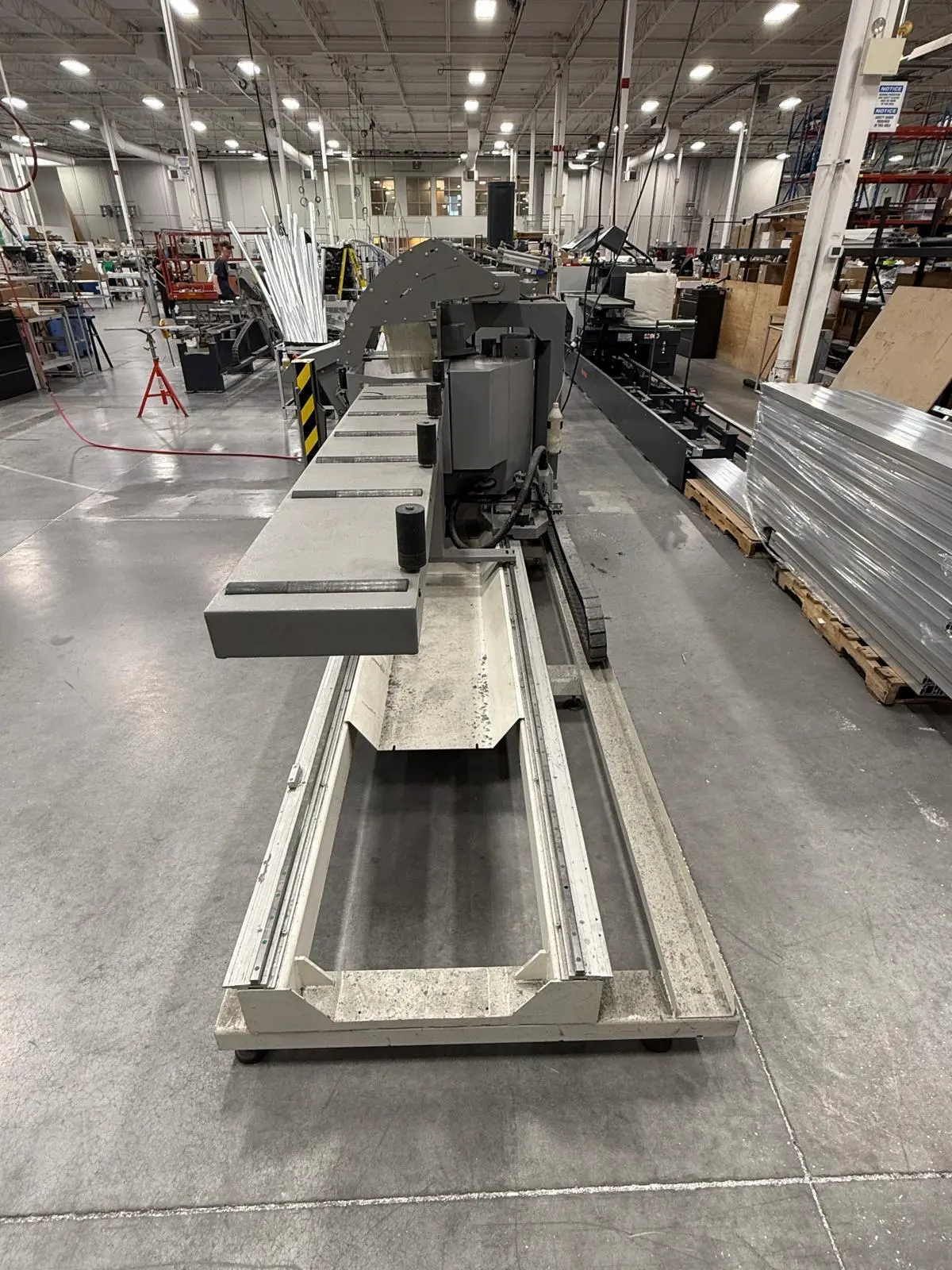

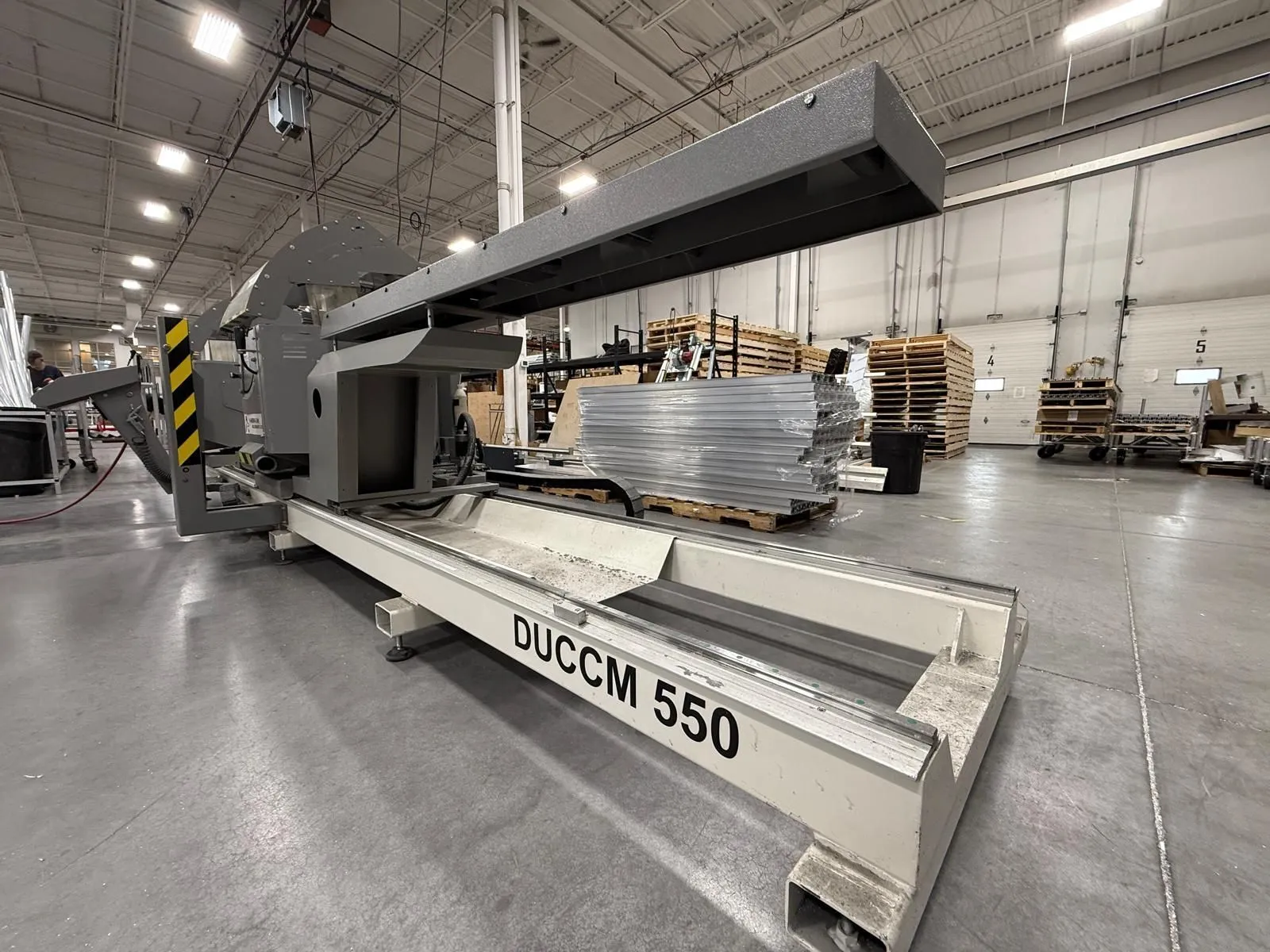

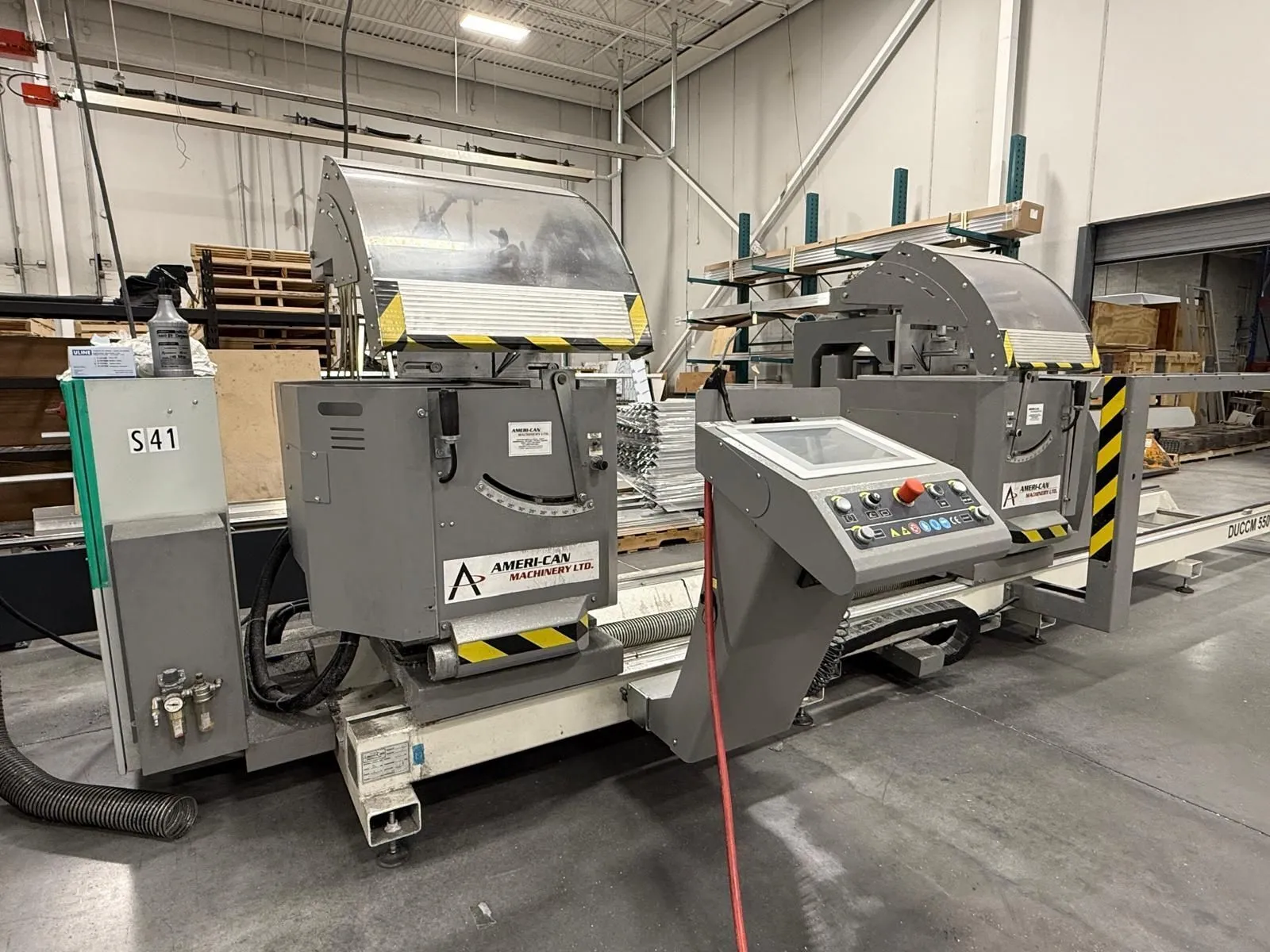

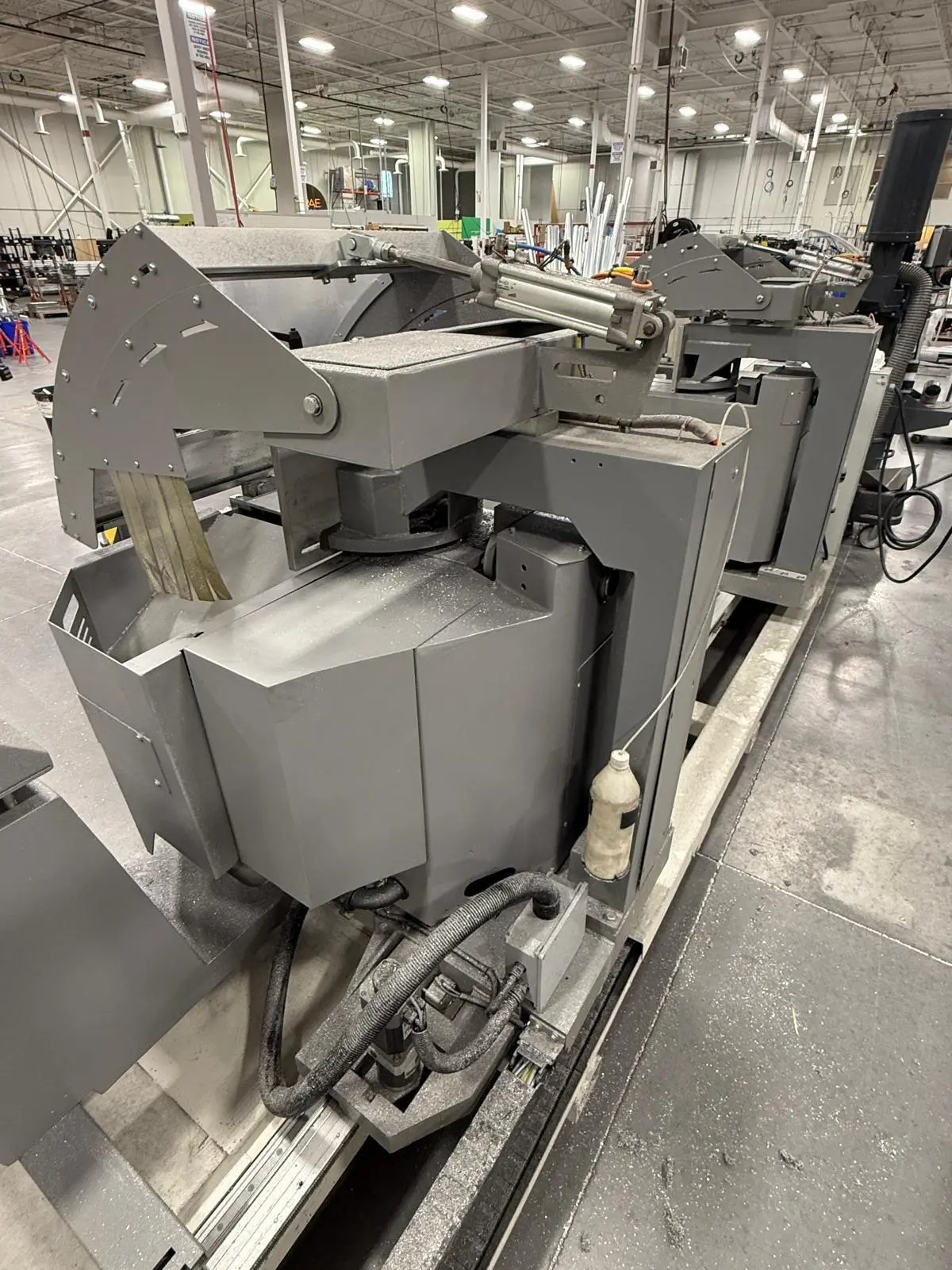

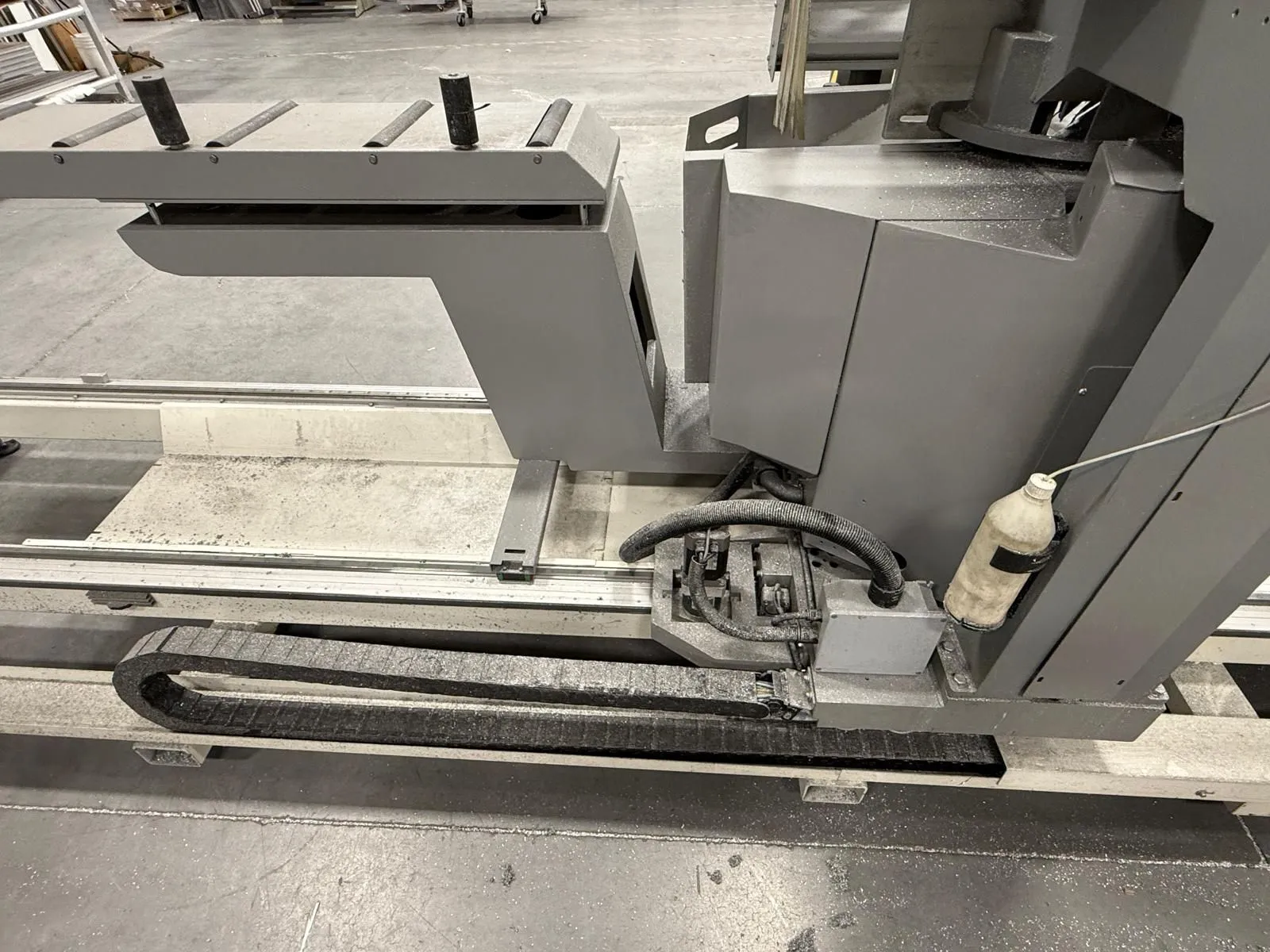

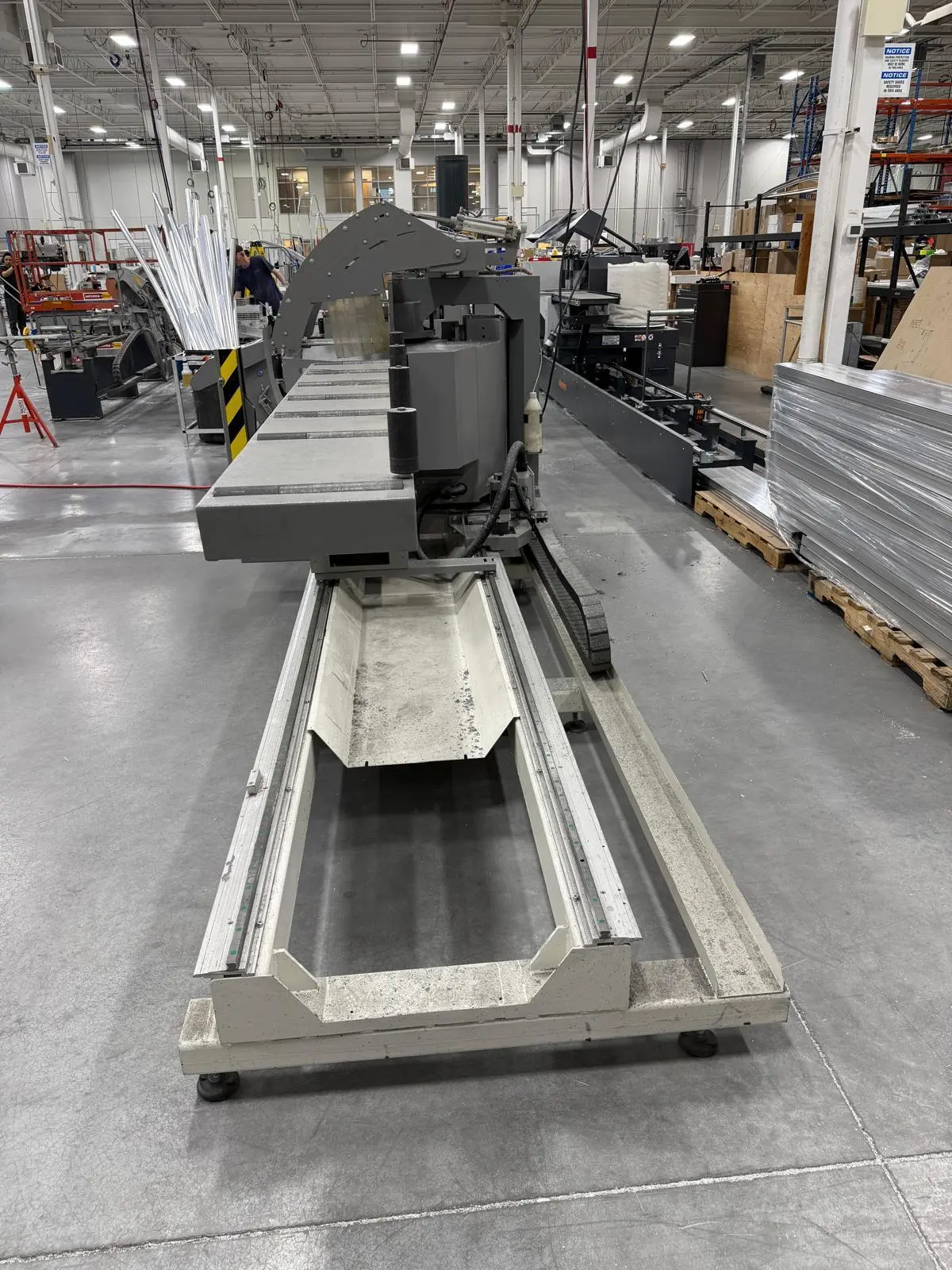

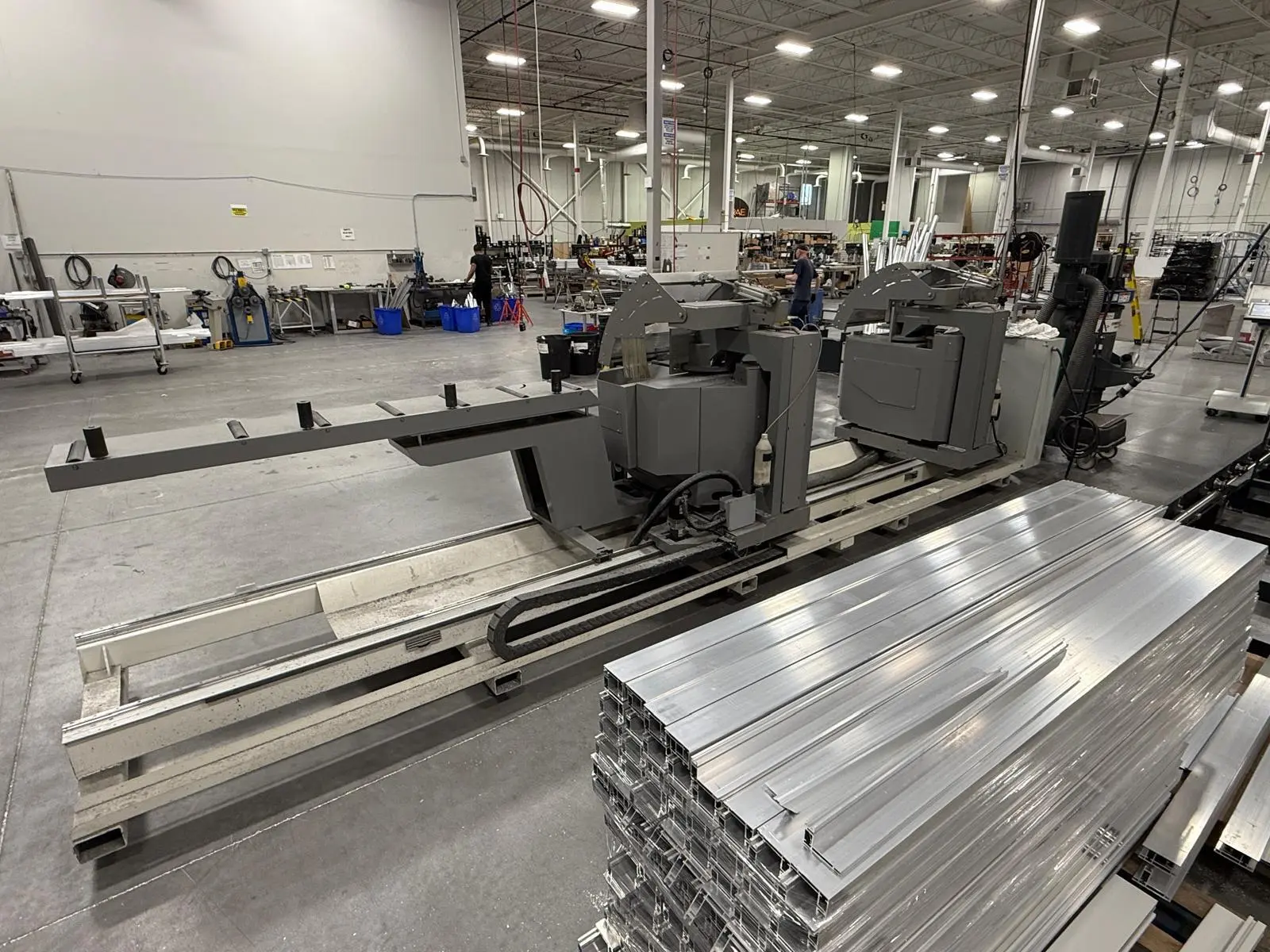

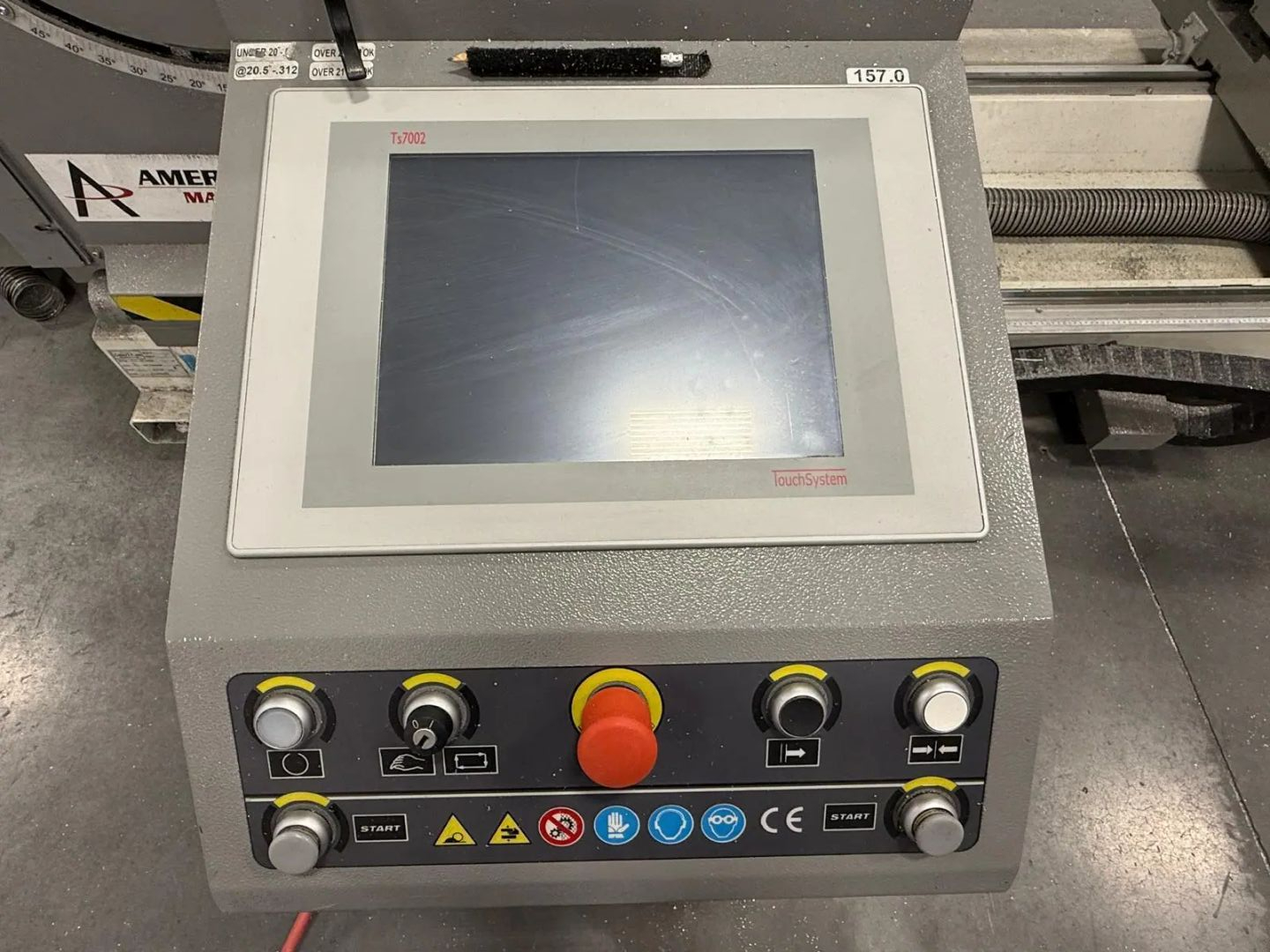

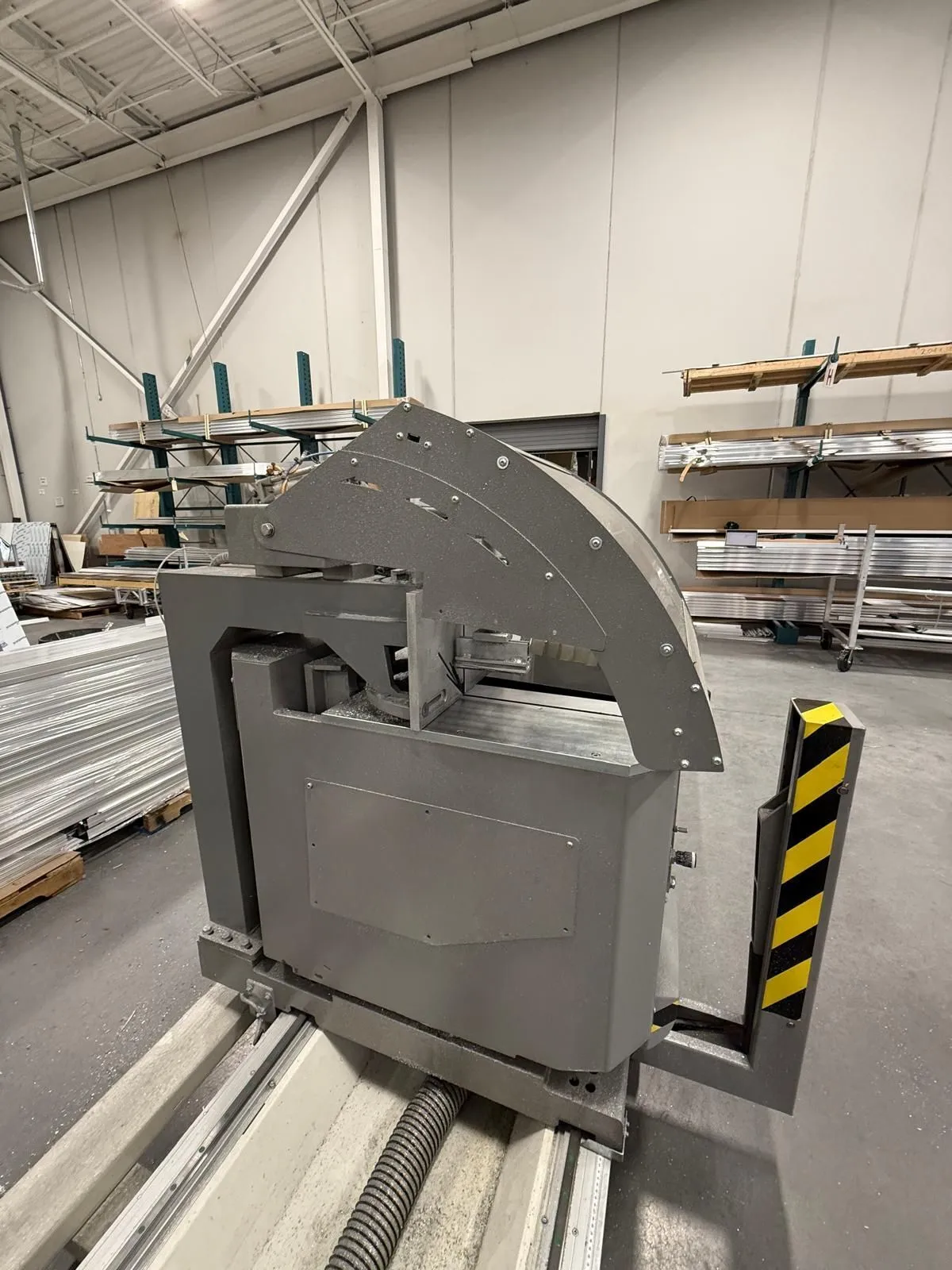

THE 2017 MEPAL ITALIA REMIX DUCCM 550 IS A CNC DOUBLE COMPOUND MITRE SAW DESIGNED FOR PRECISION CUTTING OF ALUMINUM PROFILES, PVC, AND LIGHT ALLOYS. THIS 4-METER CONFIGURATION FEATURES A HYDRO-PNEUMATIC UP-CUT SYSTEM WITH TWO 21.6-INCH (550 MM) TCT CARBIDE-TIPPED BLADES POWERED BY DUAL 4 HP (3 KW) MOTORS. THE MACHINE OPERATES ON 220V 60HZ 3-PHASE POWER. IT PROVIDES A CUTTING CAPACITY RANGING FROM A MINIMUM OF 16.5 INCHES (420 MM) TO A MAXIMUM OF 157 INCHES (4,000 MM). ANGLE CAPABILITIES INCLUDE EXTERNAL MITRE SETTINGS FROM 90 TO 140 DEGREES, INTERNAL MITRES FROM 90 TO 20 DEGREES, AND INWARD COMPOUND TILTING FROM 90 TO 45 DEGREES. THE HEAD CONFIGURATION CONSISTS OF A FIXED LEFT HEAD AND A MOTORIZED MOVABLE RIGHT HEAD DRIVEN BY A BRUSHLESS MOTOR. CONTROL IS MANAGED VIA A WINDOWS-BASED CNC INTERFACE SUPPORTING CUT LIST PROGRAMMING AND AUTOMATIC POSITIONING. WORKHOLDING IS SECURED BY DOUBLE PNEUMATIC VERTICAL CLAMPS ON EACH HEAD, SUPPORTED BY INTEGRATED 8-FOOT (2.5 M) ROLLER SUPPORTS. ADDITIONAL TECHNICAL FEATURES INCLUDE A PNEUMATIC MIST SPRAY LUBRICATION SYSTEM, FULL BLADE GUARDS, AN ENCLOSED CUTTING AREA, AND AN EMERGENCY STOP SYSTEM. THE UNIT HAS A PHYSICAL FOOTPRINT OF 264 X 83 X 70 INCHES AND A TOTAL WEIGHT OF 4,200 LBS.
