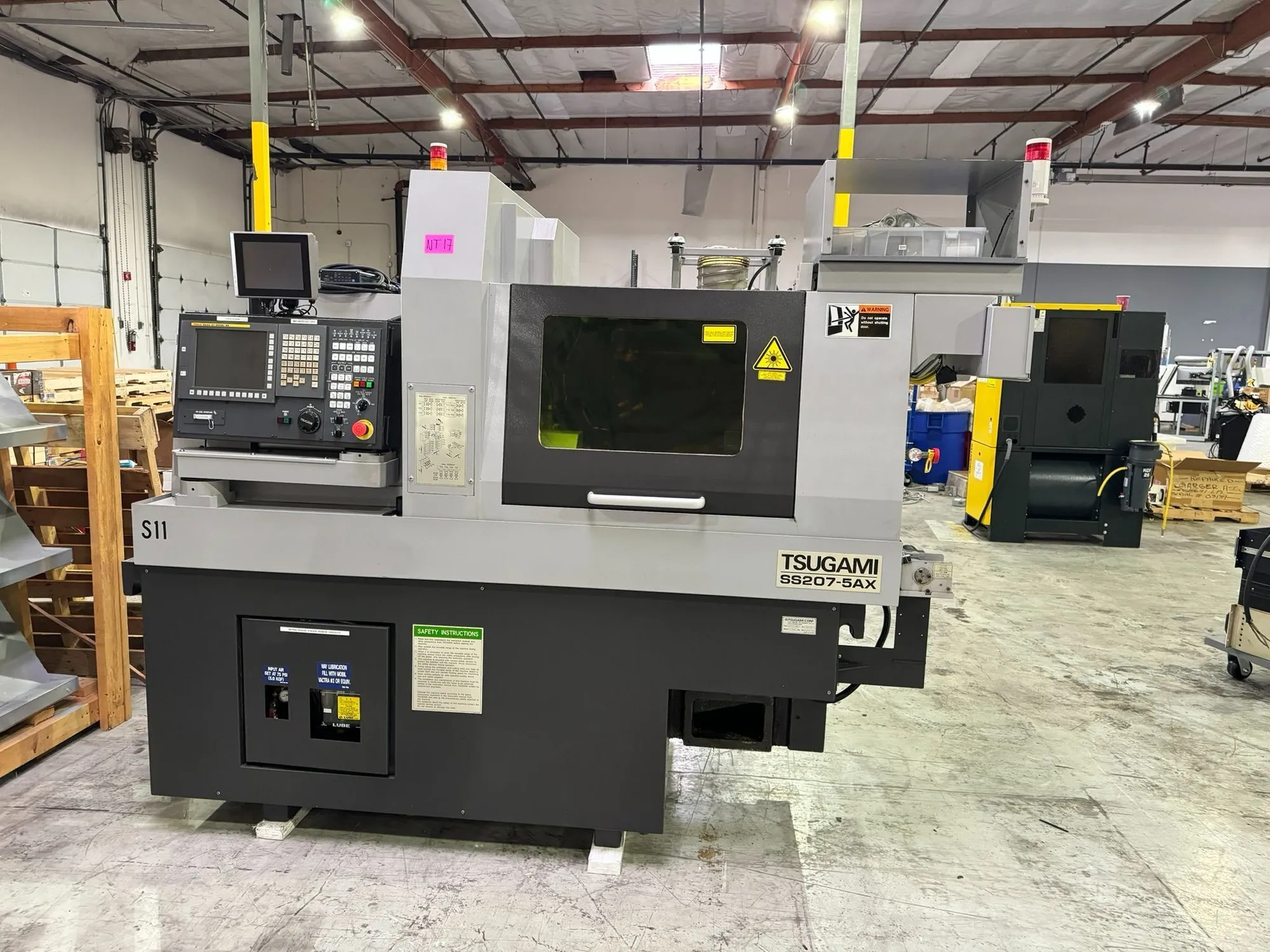

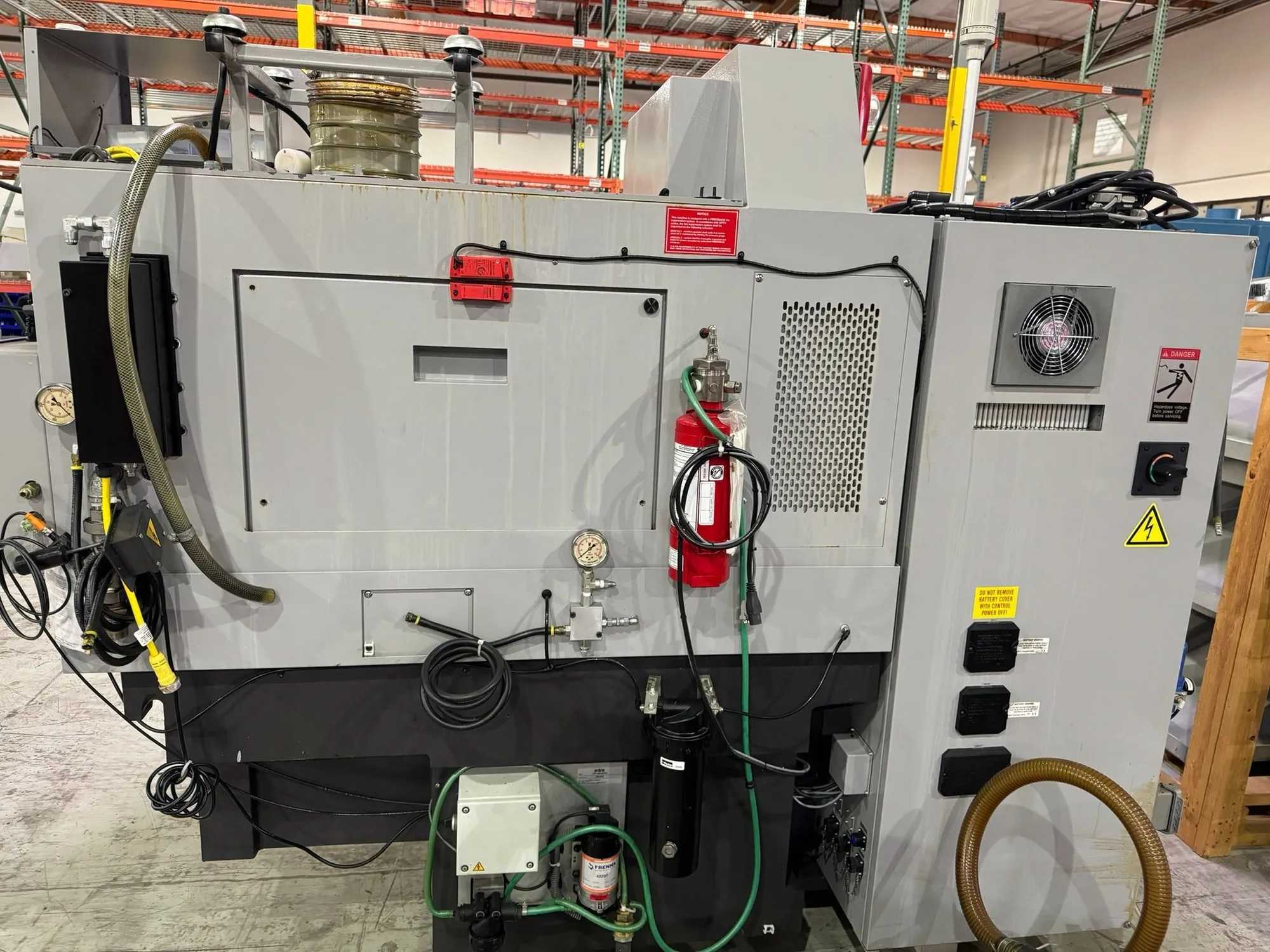

2017 Tsugami SS207-5AX Swiss Lathe With Bar Feeder & High Speed Spindle

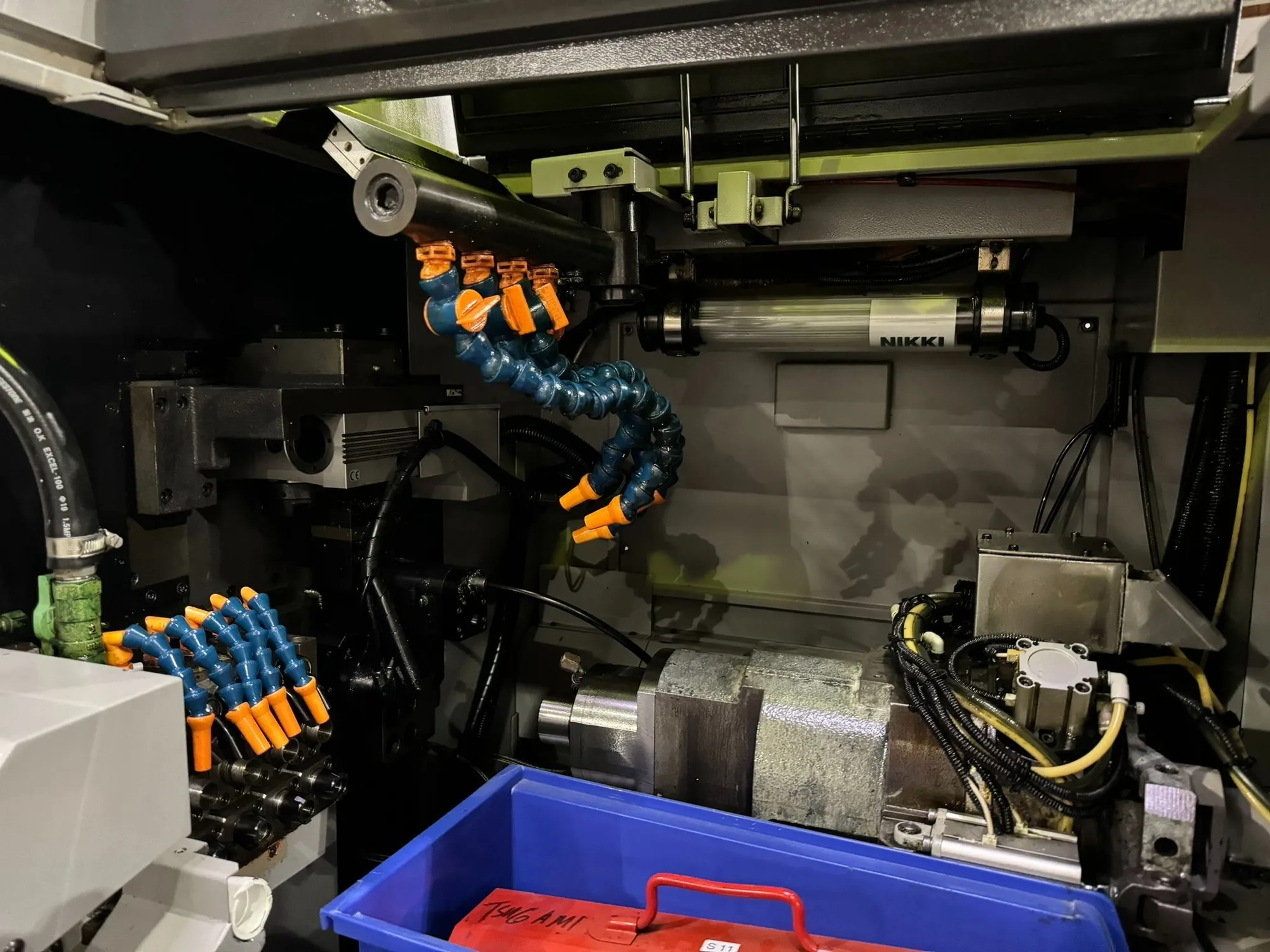

The 2017 Tsugami SS207-II with IMG 250LS Laser is a 5-axis Swiss-type automatic screw machine featuring a 20 mm (0.787 in) maximum machining diameter and a 2.2 kW main spindle capable of speeds from 200 to 10,000 RPM. Designed for precision manufacturing, it offers a maximum machining length of 8.26 inches (210 mm), rapid traverse rates of 32 m/min, and a back spindle operating from 200 to 10,000 RPM with 3.2 inches (80 mm) front ejection capacity. The machine integrates a B1 axis tool spindle with servo-controlled positioning from 0 to 110 degrees, utilizing ER16 collets for the main spindle and ER11 for the sub-spindle. Tooling capacity includes eight 1/2-inch turning tool positions, three live tool positions, four ID positions for the main spindle, eight ID positions for the sub-spindle, and two long drill positions. The integrated 250W water-cooled fiber laser system operates at a 1070 nm wavelength with a 2 to 20 kHz frequency range and cutting speeds up to 500 mm/sec within a Class 1 enclosure. Laser cutting supports tube outer diameters from 0.080 to 0.787 inches with a maximum wall thickness of 0.039 inches. Auxiliary systems feature variable gas pressure control up to 350 PSI, high-pressure coolant up to 1,000 PSI, an FMB Micromag 12-foot bar feeder, a 60,000 RPM NSK high-speed face drill, and a rear work collection system. The unit weighs 7,260 lbs with an input power requirement of 6 kVA.
