2018 FANUC M-10IA/10MS ARTICULATED ROBOT, 10KG PAYLOAD, 1101MM REACH, R-30IB PLUS CONTROL

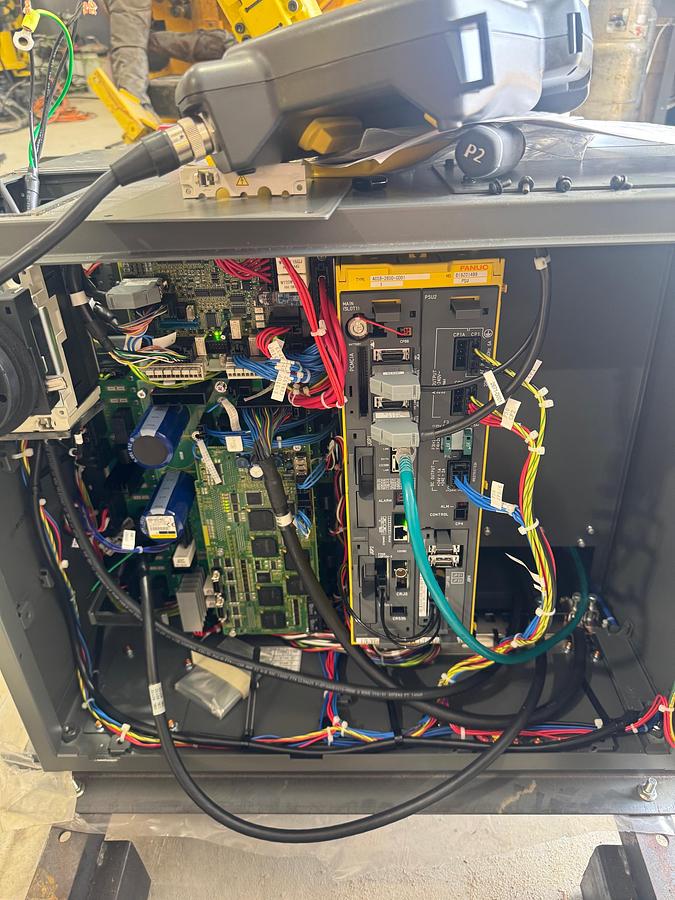

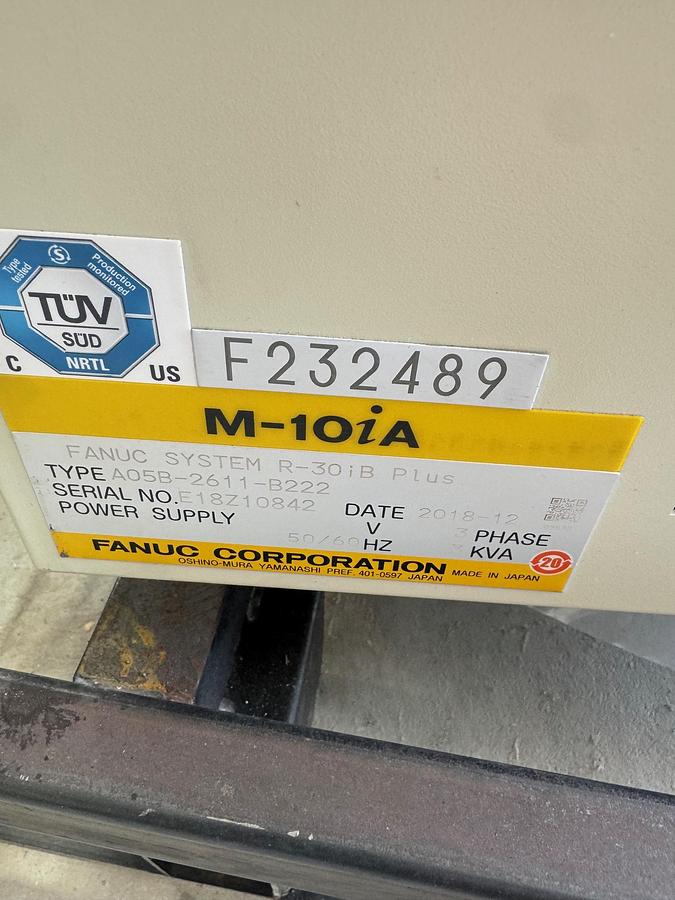

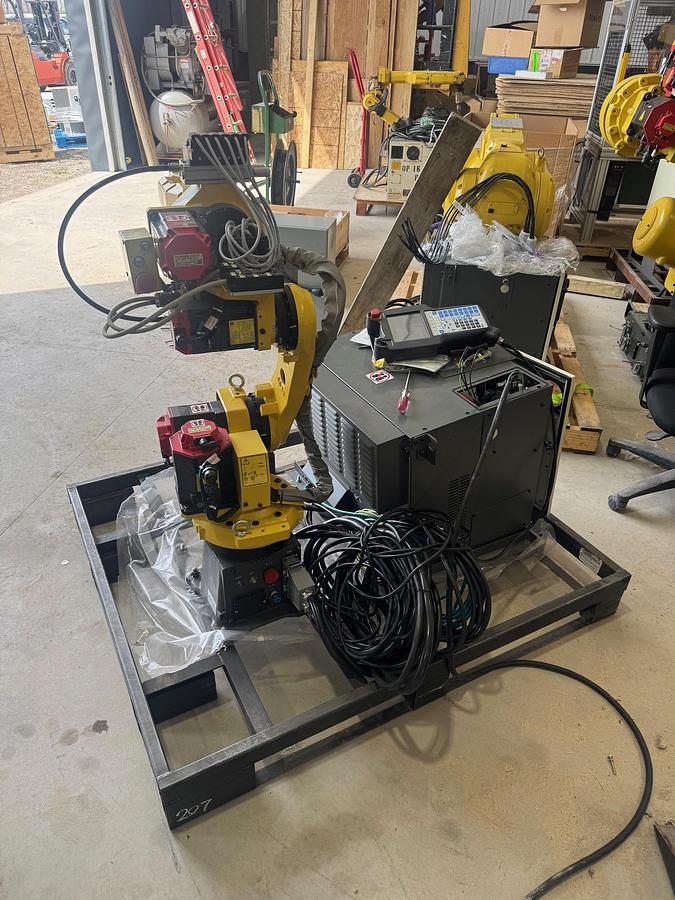

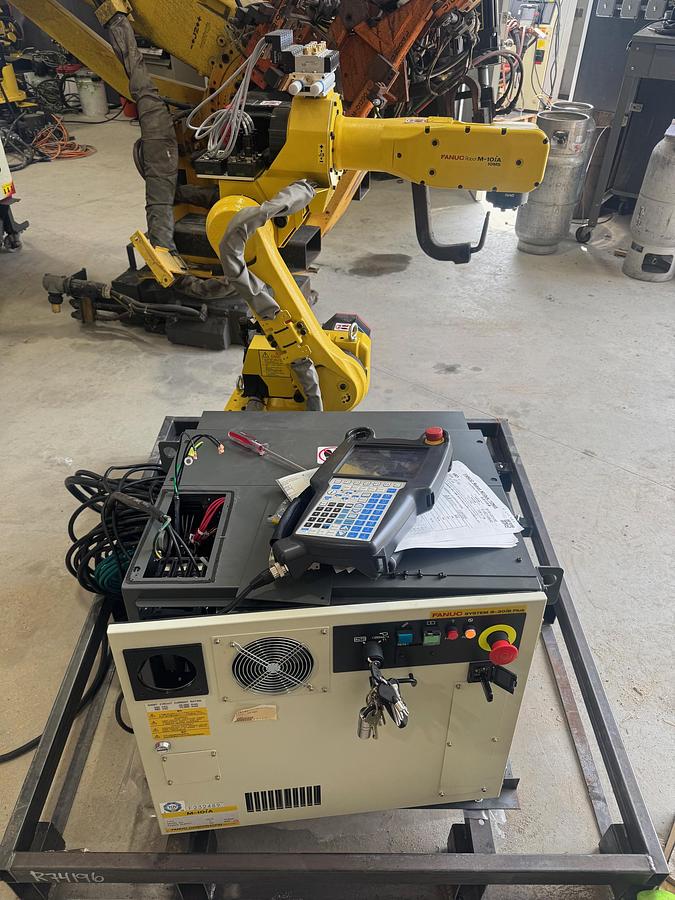

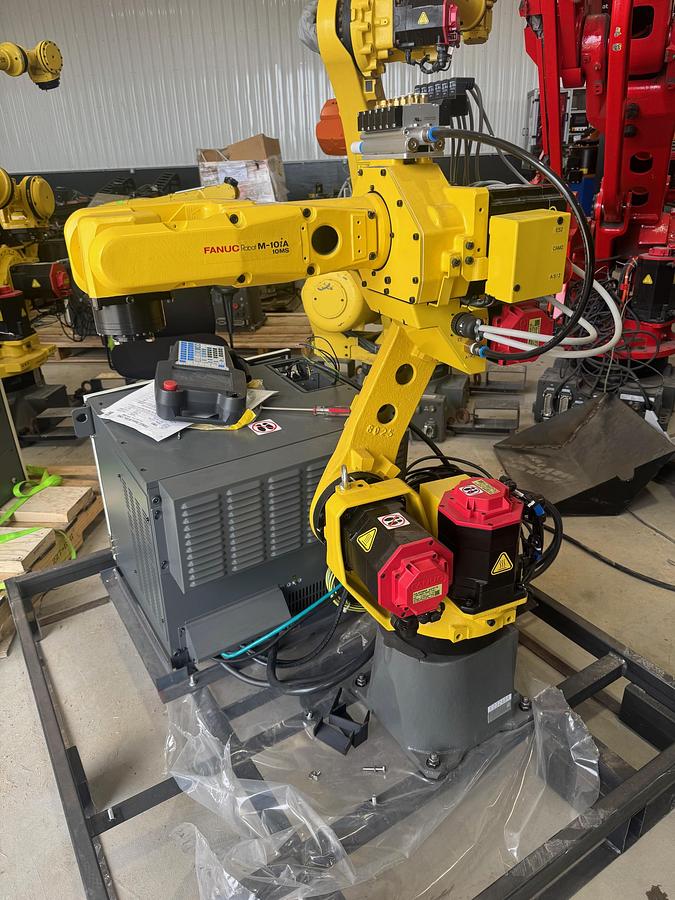

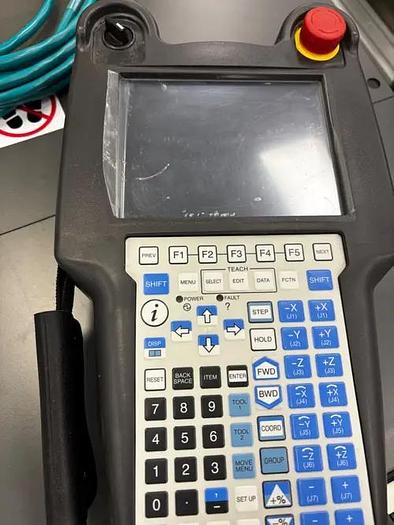

THE 2018 FANUC M-10IA/10MS IS A HIGH-SPEED, SIX-AXIS ARTICULATED ROBOT WITH A SHORT-ARM DESIGN FEATURING A HIGH-INERTIA WRIST. IT IS ENGINEERED FOR APPLICATIONS INCLUDING MATERIAL HANDLING, BONDING, SEALING, PACKAGING, AND CUTTING. THE ROBOT HAS A PAYLOAD CAPACITY OF 10 KG, A HORIZONTAL REACH OF 1101 MM, AND A REPEATABILITY OF ±0.08 MM. THE UNIT HAS A MASS OF 130 KG AND IS DESIGNED FOR FLOOR MOUNTING. AXIS MOTION SPEEDS ARE J1 AT 260°/S, J2 AT 280°/S, J3 AT 315°/S, J4 AT 420°/S, J5 AT 420°/S, AND J6 AT 720°/S. THE MOTION RANGE FOR THE AXES IS J1 +340° TO -360°, J2 ±250°, J3 ±441°, J4 ±380°, J5 ±280°, AND J6 ±720°. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB PLUS CONTROLLER, A COLOR TEACH PENDANT, AND CONNECTION CABLES. INTEGRATED CONNECTIVITY OPTIONS INCLUDE CAMERA, ASI, ES, AND AIR CONNECTIONS.
