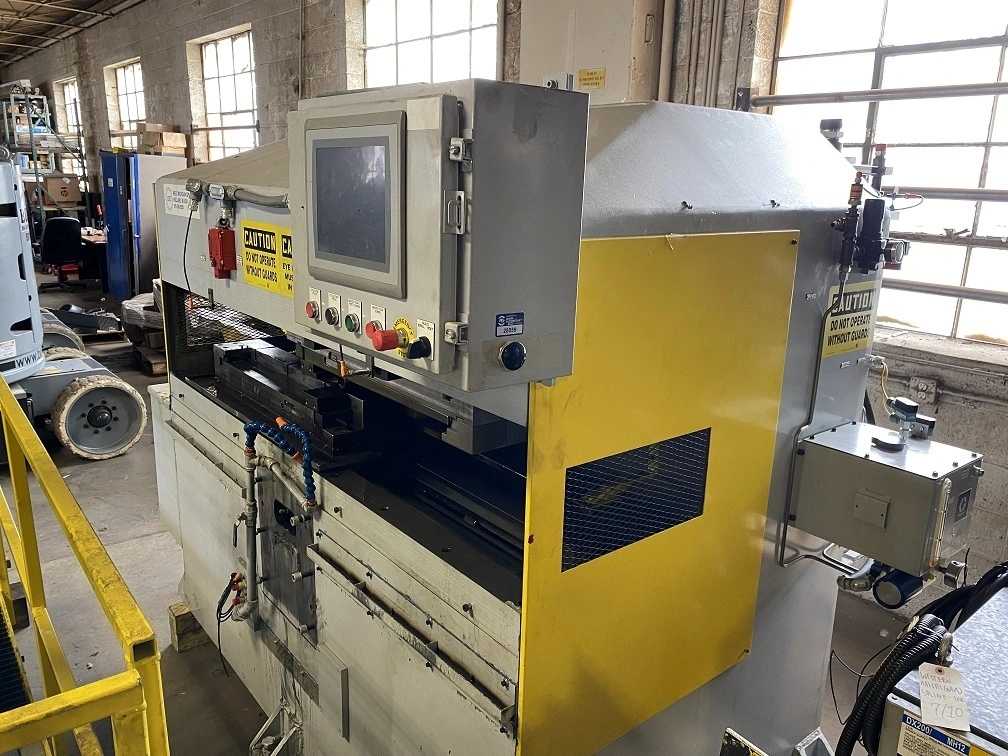

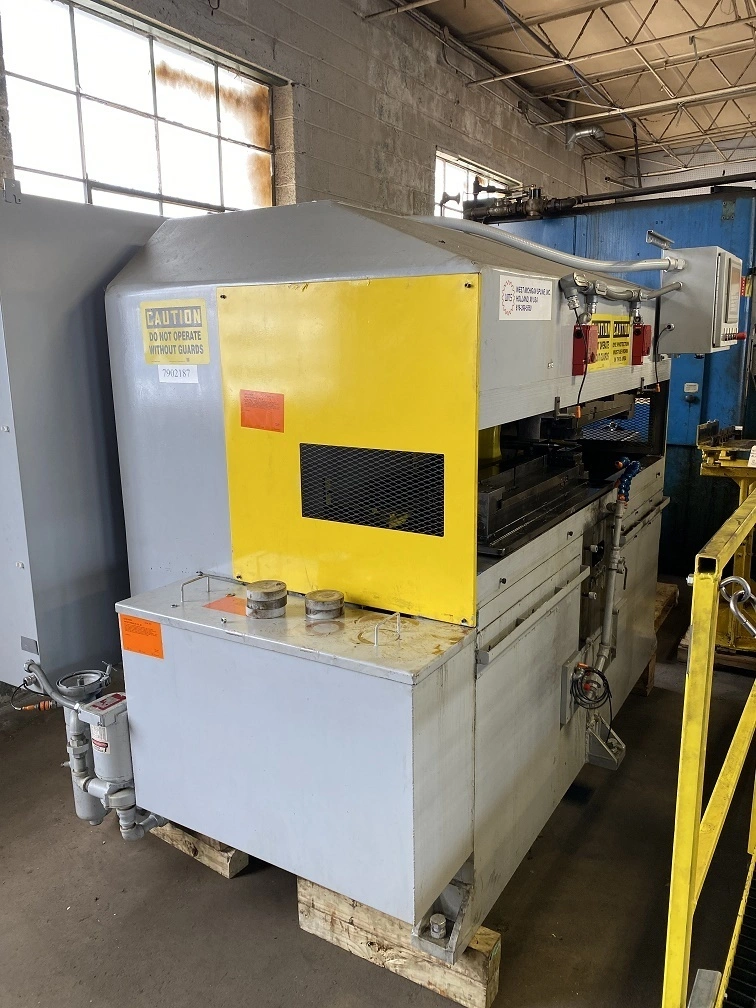

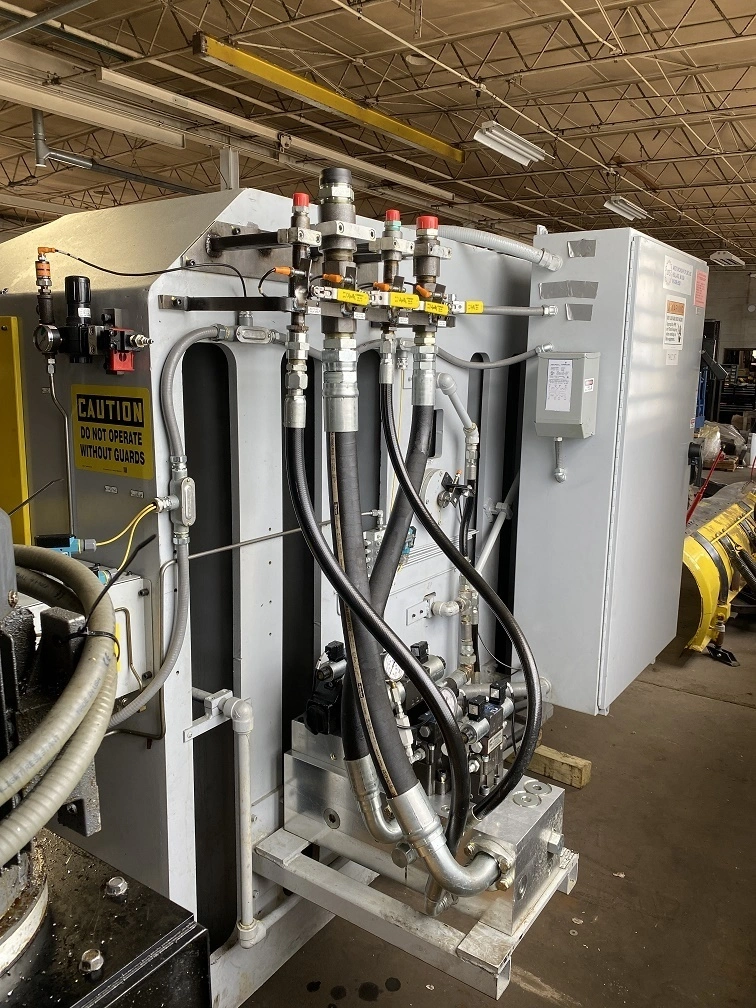

2018 West Michigan 24 Spline Roller - 24" Rack Size, 1.5" OD, 5.0" Rack Box Depth, 5.5" Opening

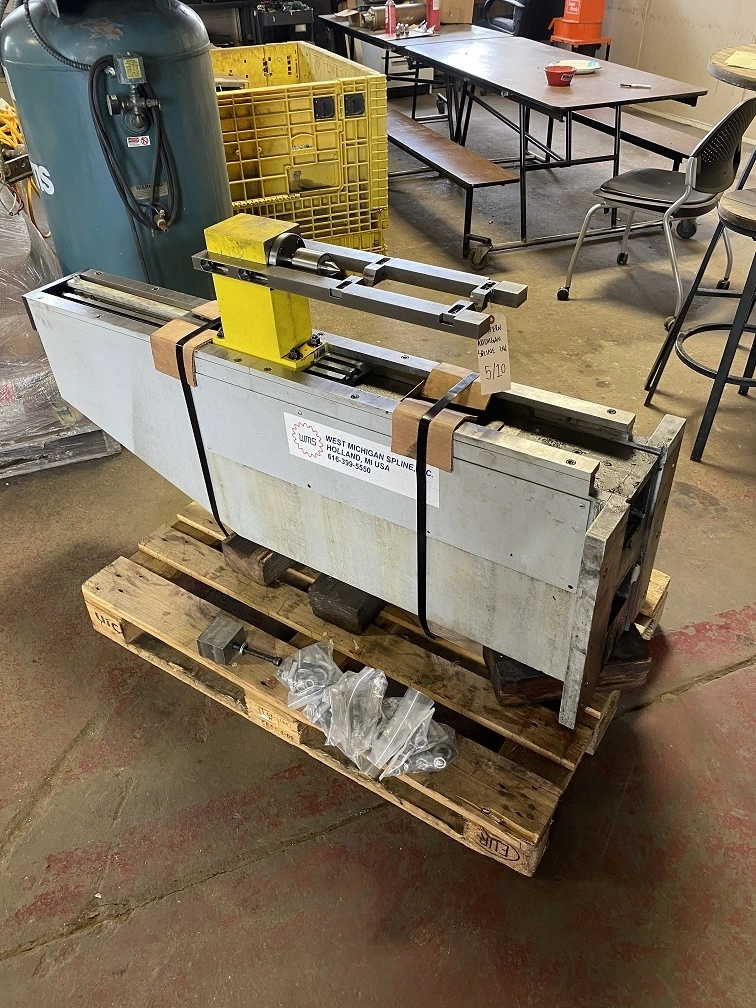

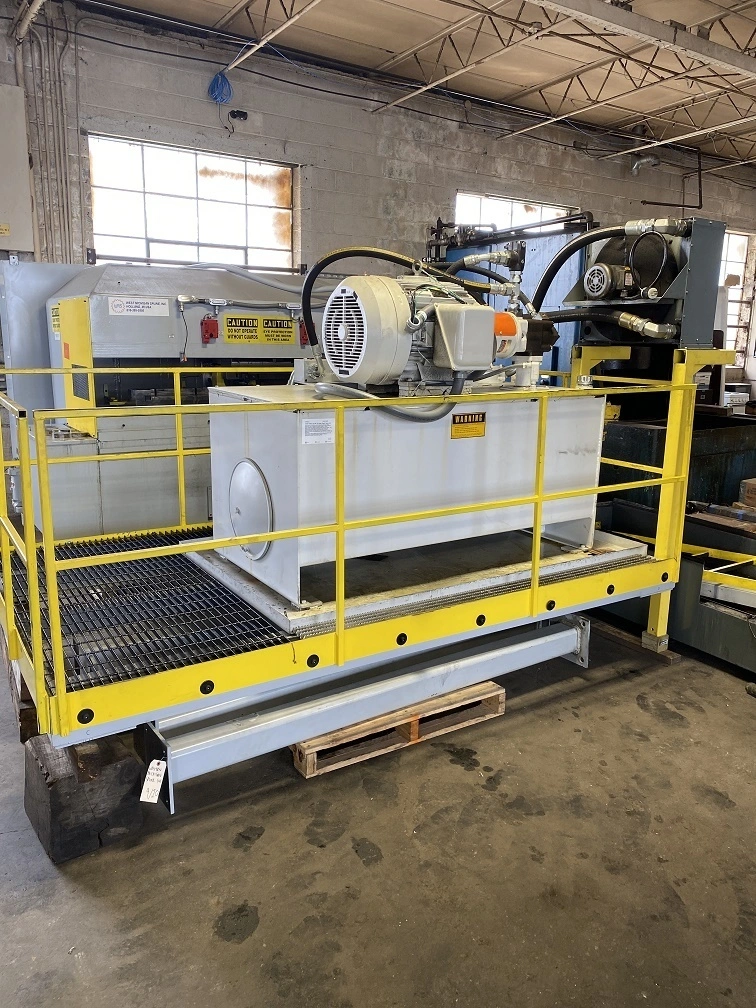

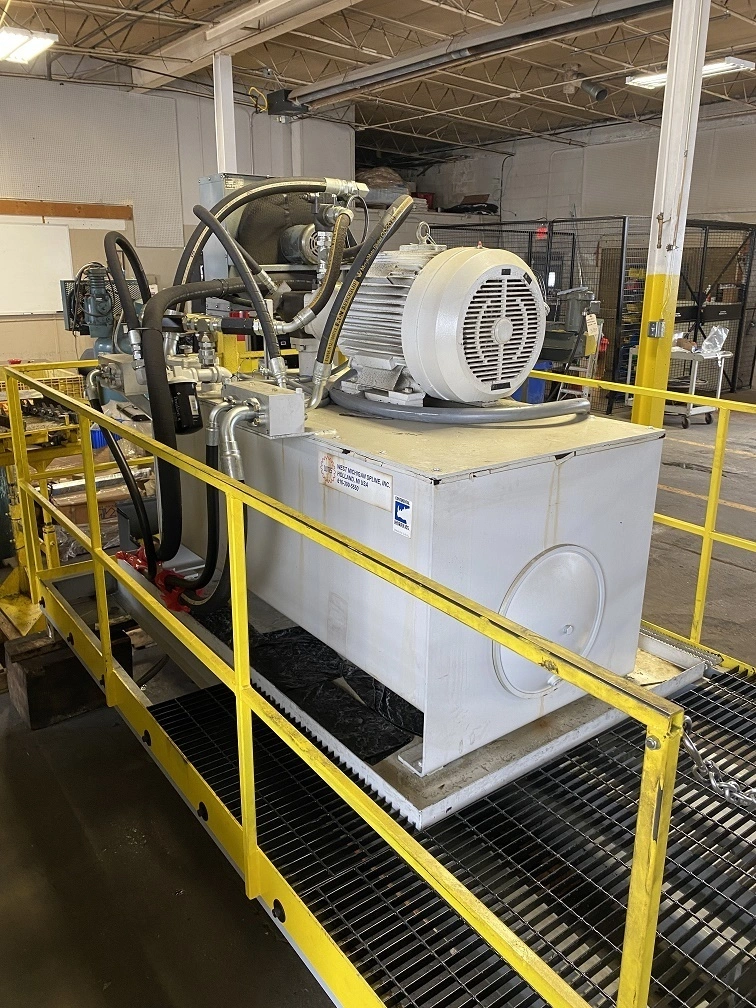

The 2018 West Michigan Model 24 Spline Roller is designed for cold forming splines and threads without tie bars. Key specifications include a 24-inch rack size, a 1.5-inch outer diameter (OD), a maximum rack box depth of 5.0 inches, and an opening of 5.5 inches. The machine features one-piece welded construction requiring no shimming for straightness, and it operates across various lengths with no induced taper. It comes equipped with an under-arm support with tailstock, an integrated coolant system, and a hydraulic tank reservoir with a 50-gallon capacity. The overall machine dimensions are approximately 120 inches long by 72 inches wide by 161 inches tall. System weights are approximately 25,000 lbs for the machine itself and 5,700 lbs for the hydraulic tank and stand assembly.
