2019 BYSTRONIC BYSTAR FIBER 4020 LASER, 10KW, 157X79IN TABLE, BYTRANS 4020, FUME EXTRACTOR

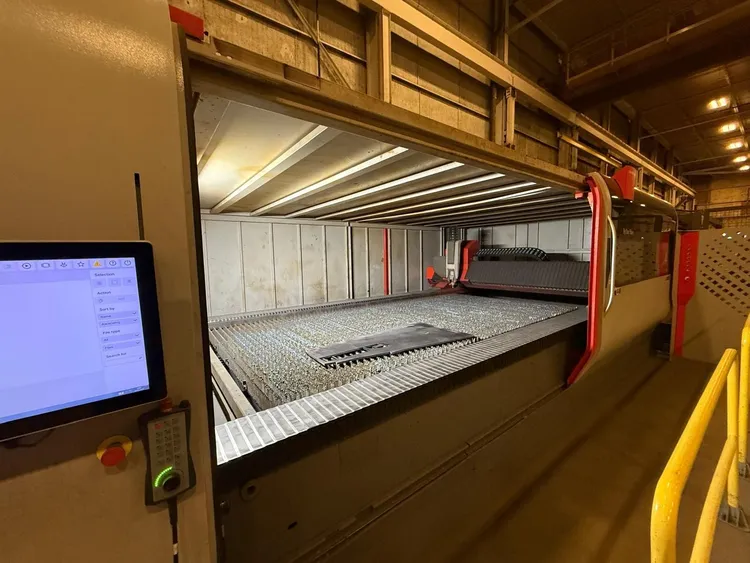

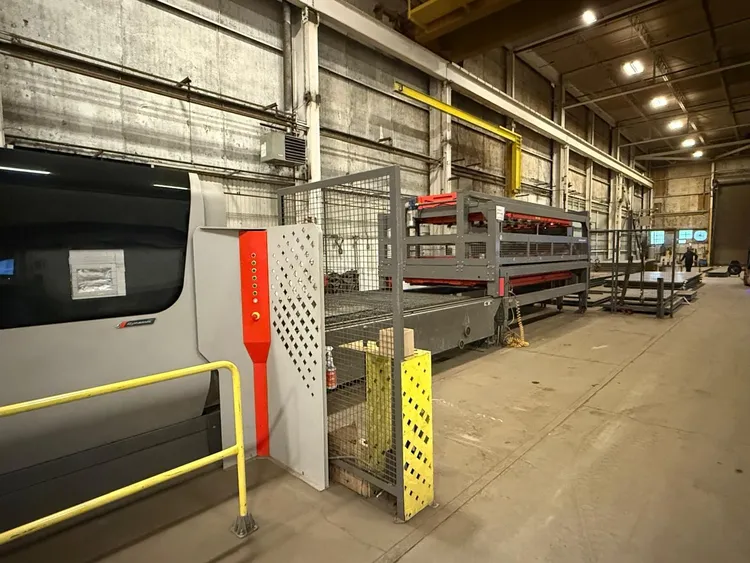

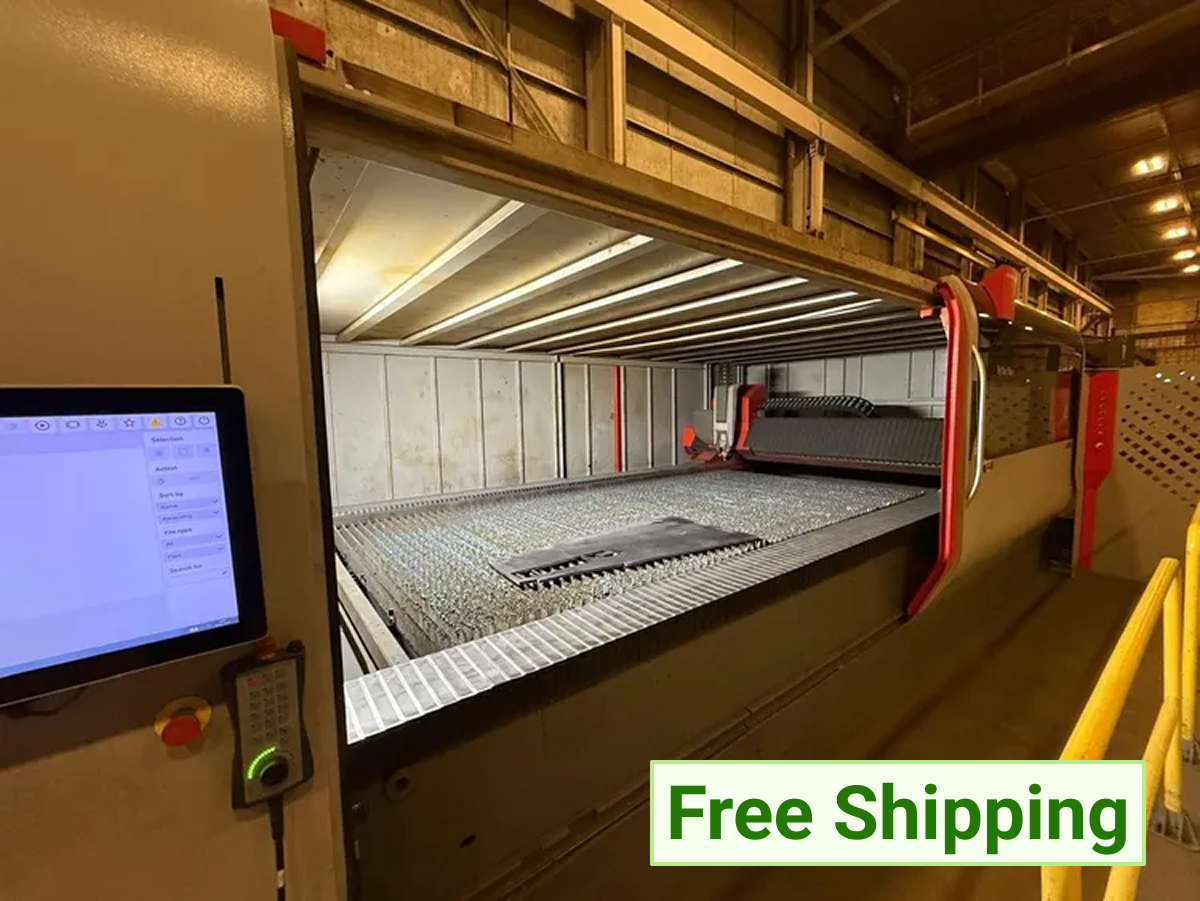

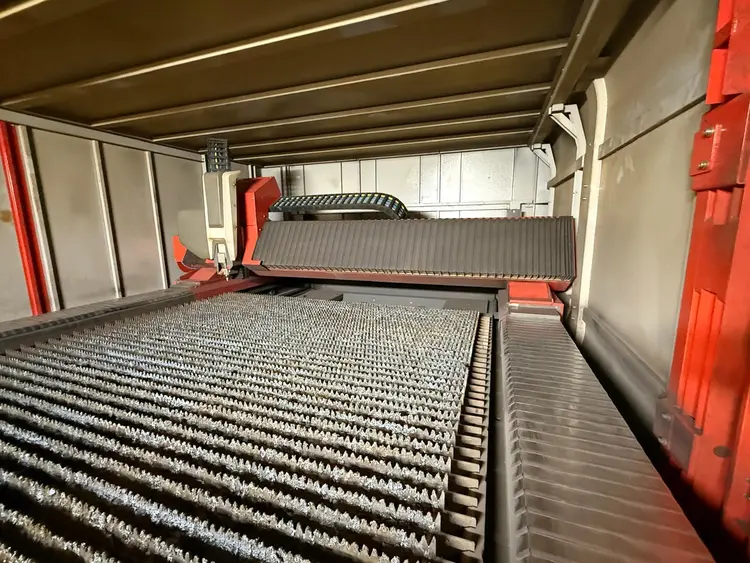

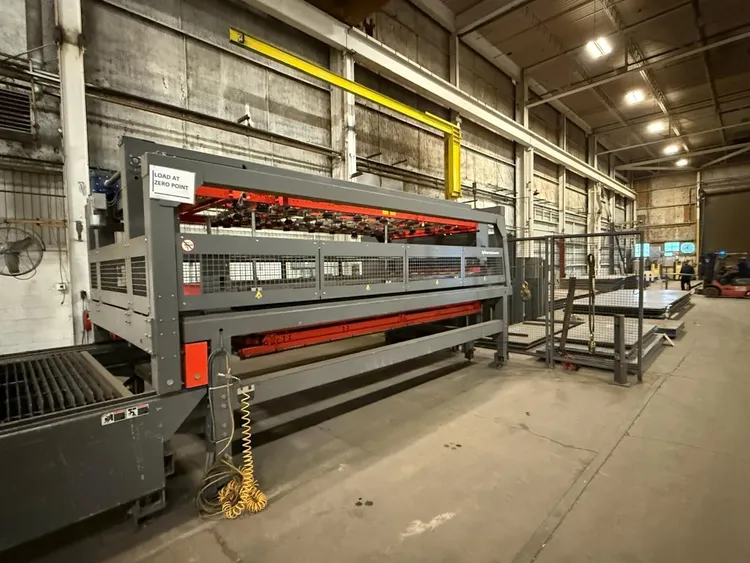

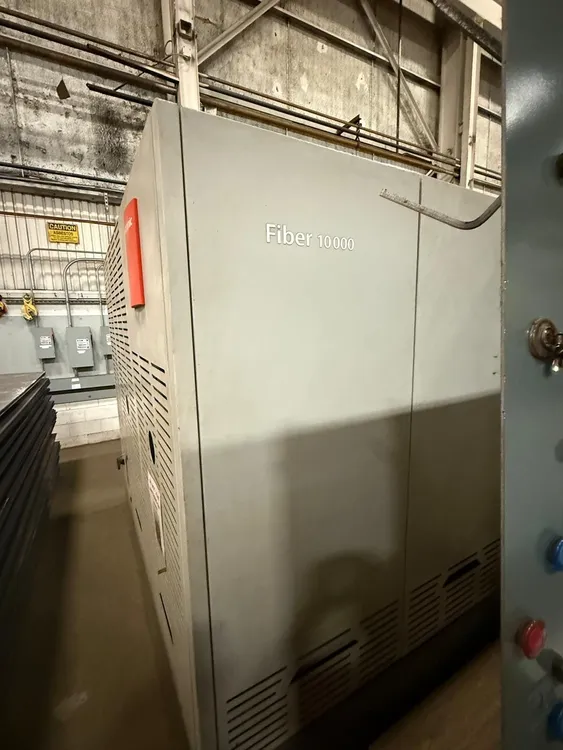

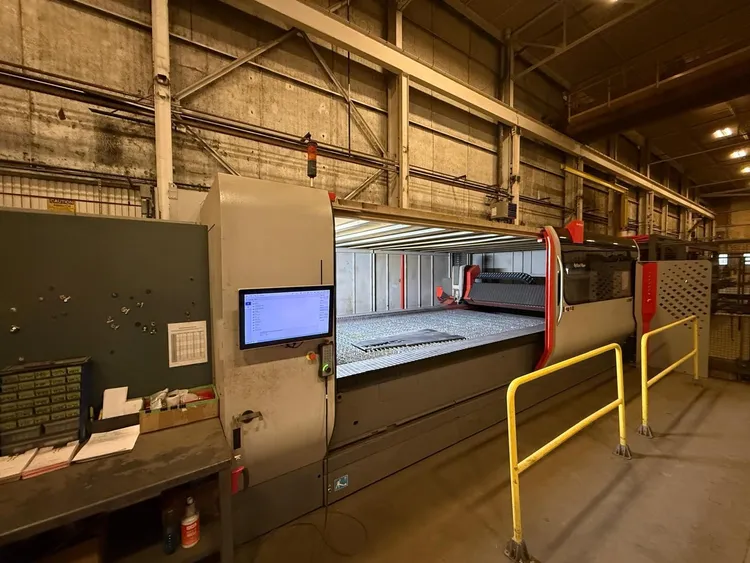

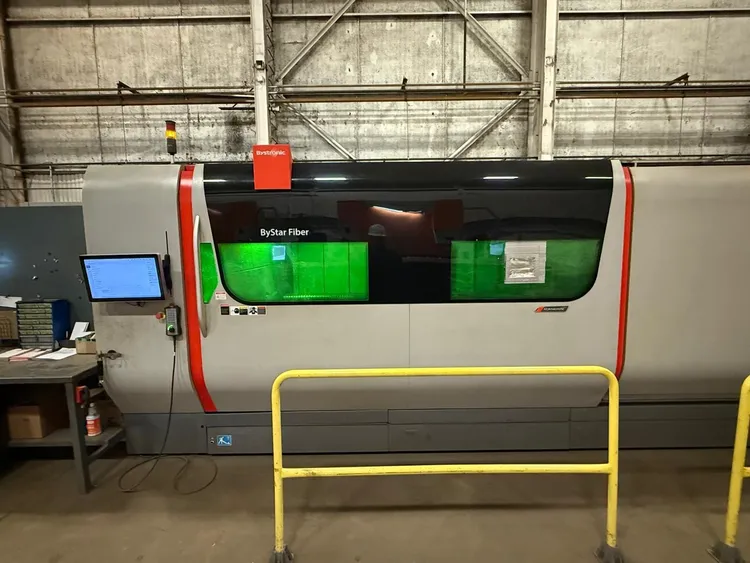

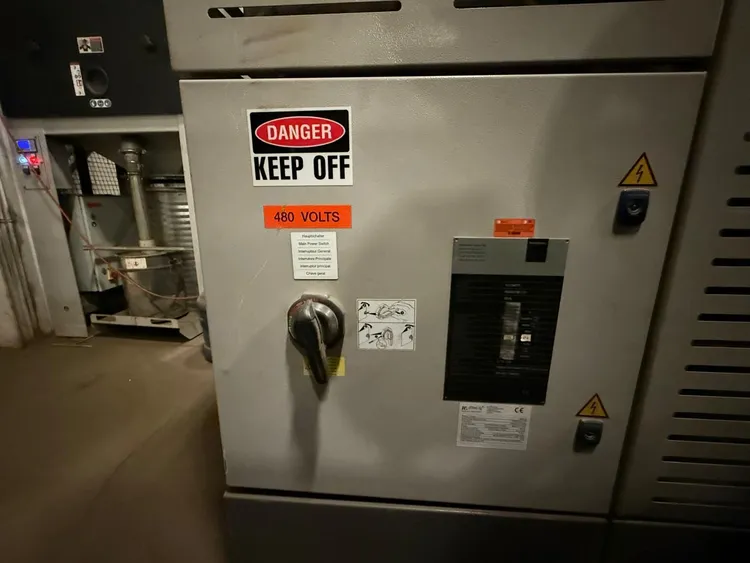

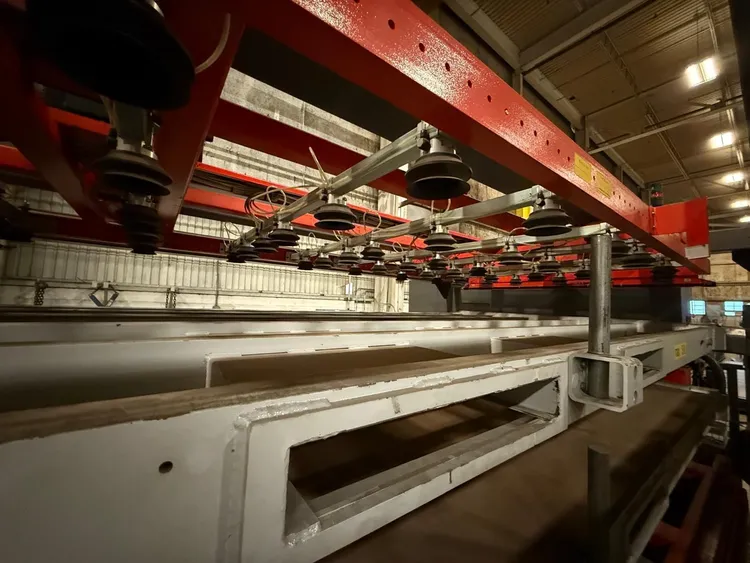

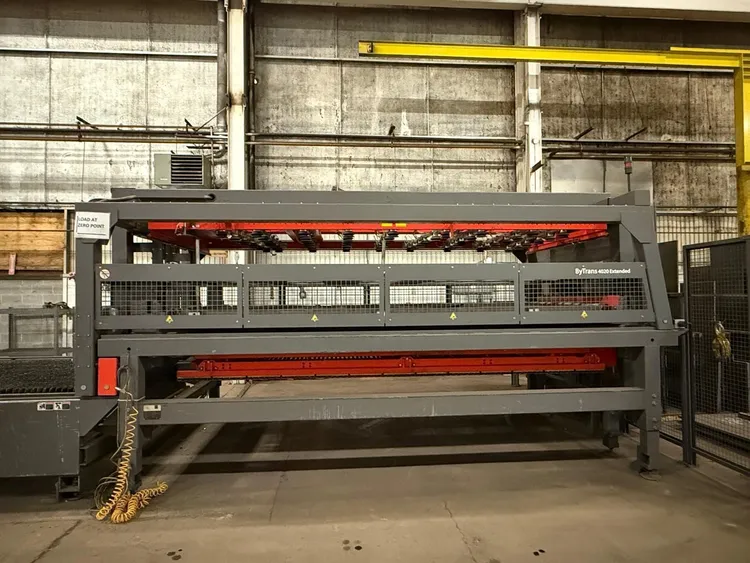

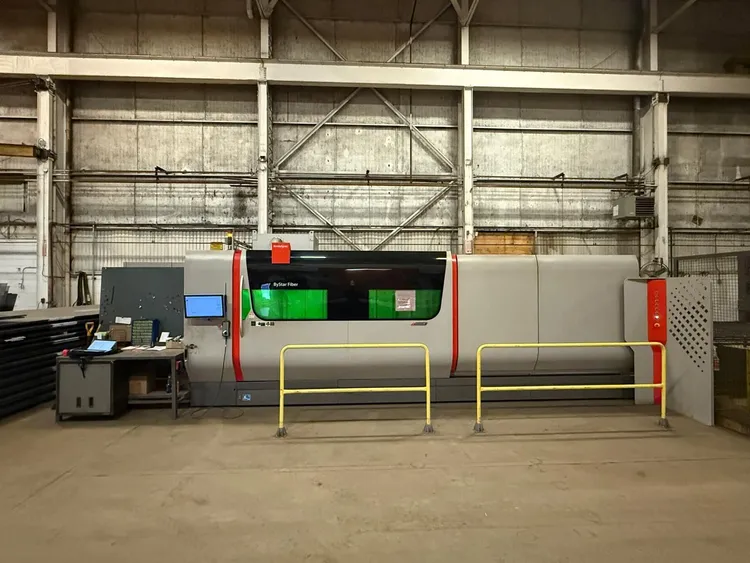

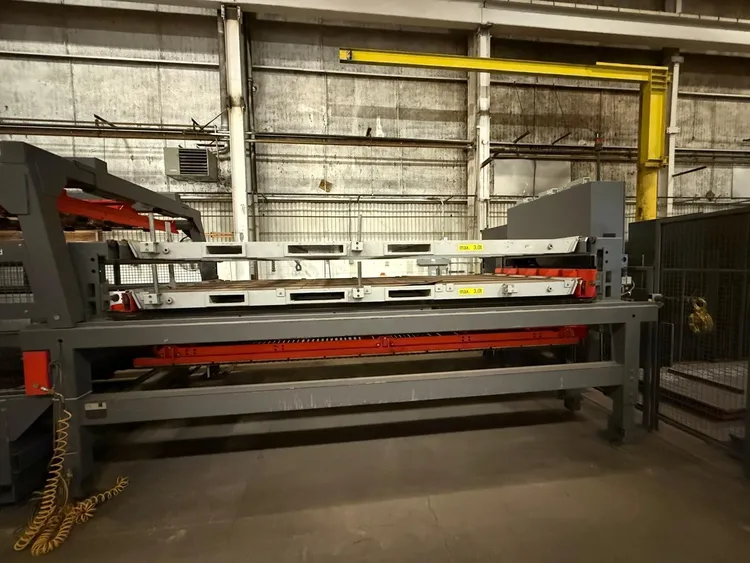

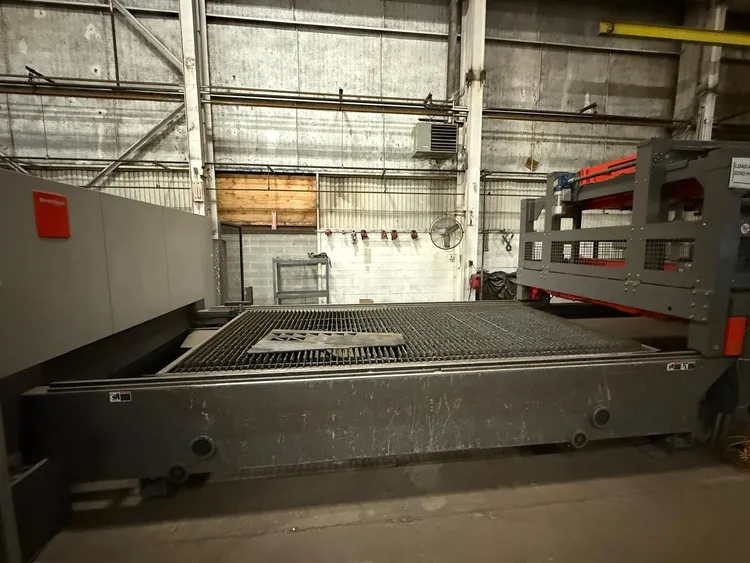

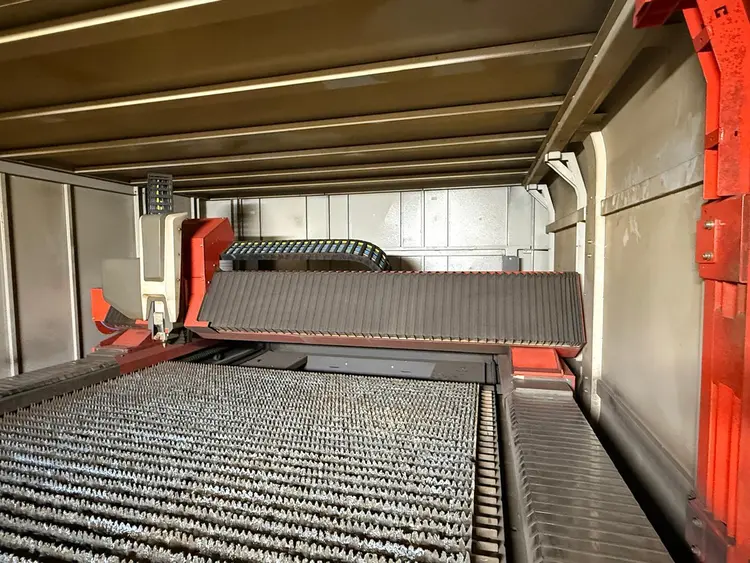

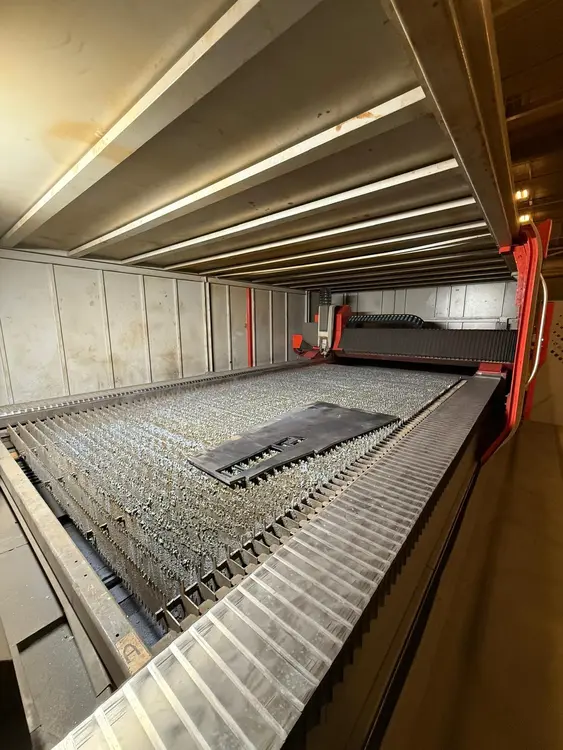

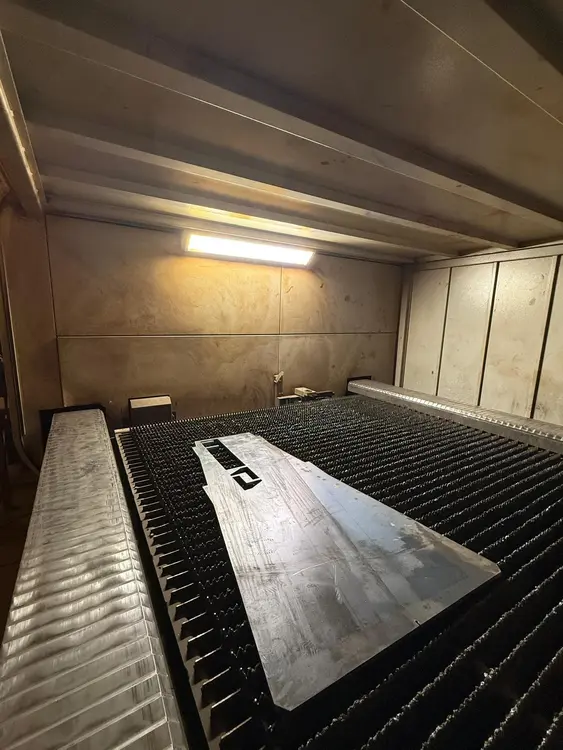

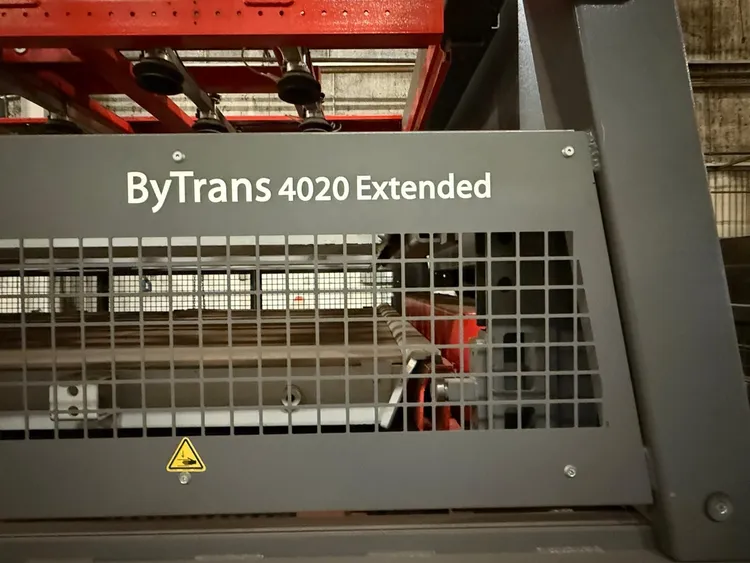

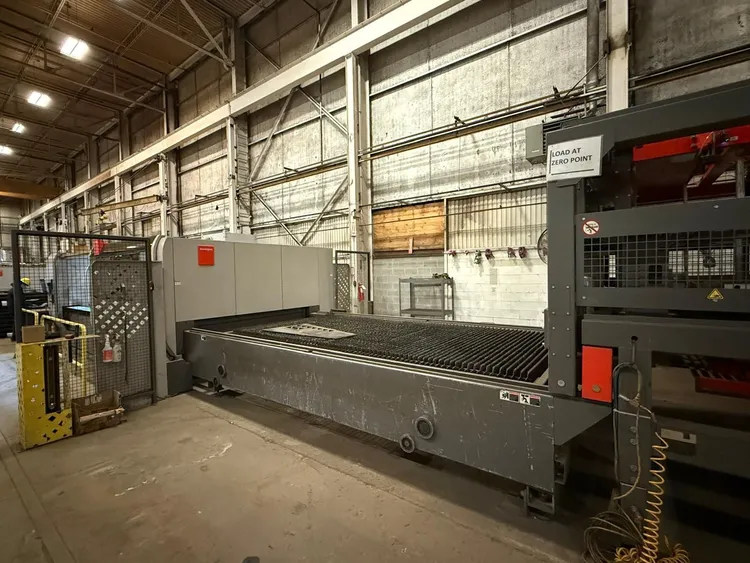

THE 2019 BYSTRONIC BYSTAR FIBER 4020 IS A HIGH-PERFORMANCE CNC FIBER LASER CUTTING SYSTEM DESIGNED FOR LARGE-FORMAT INDUSTRIAL APPLICATIONS. IT FEATURES A 10,000 W (10 KW) FIBER LASER SOURCE WITH A WAVELENGTH RANGE OF 1060–1080 NM. THE MACHINE PROVIDES A GENEROUS WORK AREA AND CUTTING TABLE SIZE OF 157 IN X 79 IN (4,000 X 2,000 MM). THIS SYSTEM IS EQUIPPED WITH AN INTEGRATED AUTOMATION PACKAGE INCLUDING THE BYTRANS 4020 EXTENDED AUTOMATIC SHEET LOADING SYSTEM AND A FUME EXTRACTOR FOR EFFICIENT OPERATION. ELECTRICAL SPECIFICATIONS INCLUDE A 3-PHASE 480 V, 60 HZ POWER SUPPLY WITH A MAX POWER CONSUMPTION OF 51 KVA, A 41 A RATED CURRENT, AND AN 80 A FUSE RATING. THE UNIT HAS AN IP54 (TYPE 1) ENCLOSURE RATING AND A POWER FACTOR OF 0.75–0.9. THE MAIN MACHINE DIMENSIONS ARE 20' X 16' X 8' WITH THE LOADER MEASURING 17' X 16' X 11', RESULTING IN OVERALL SYSTEM DIMENSIONS OF 52' X 16' X 11' AND A TOTAL WEIGHT OF APPROXIMATELY 30,000 LBS.
