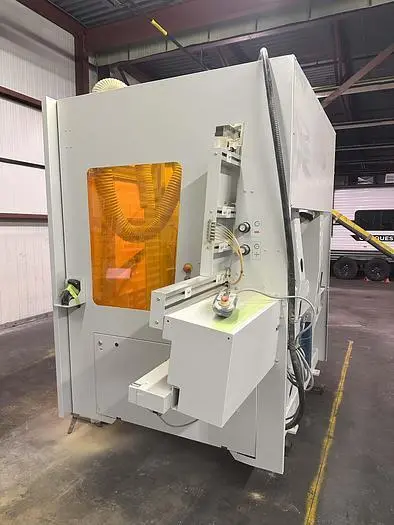

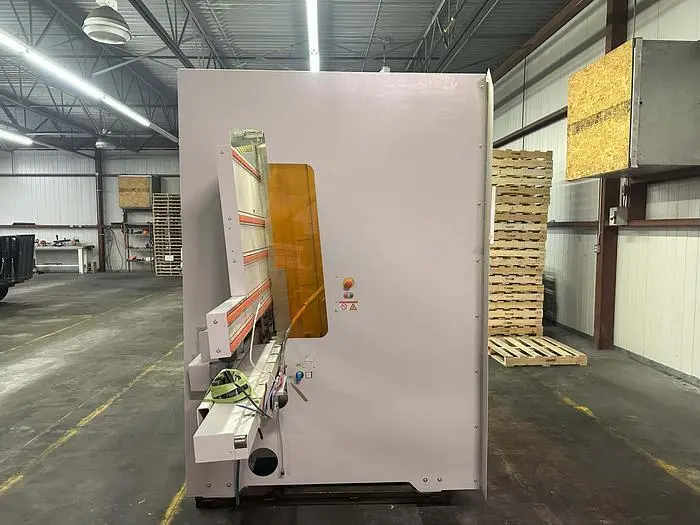

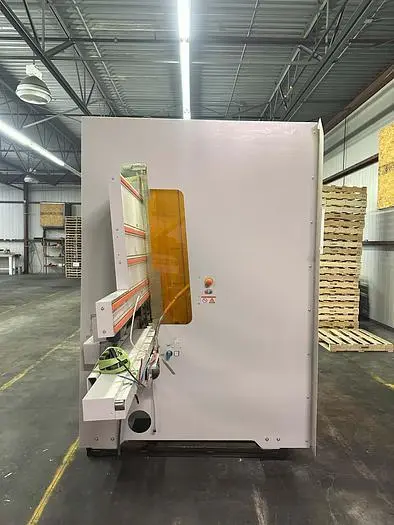

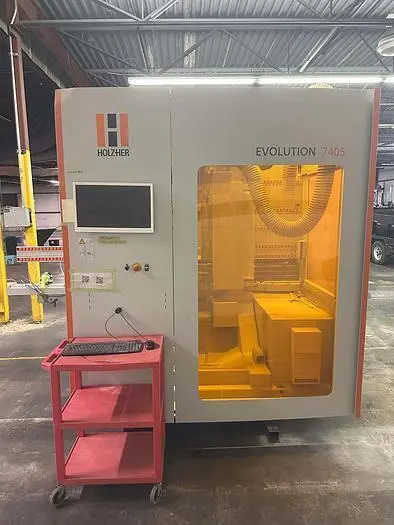

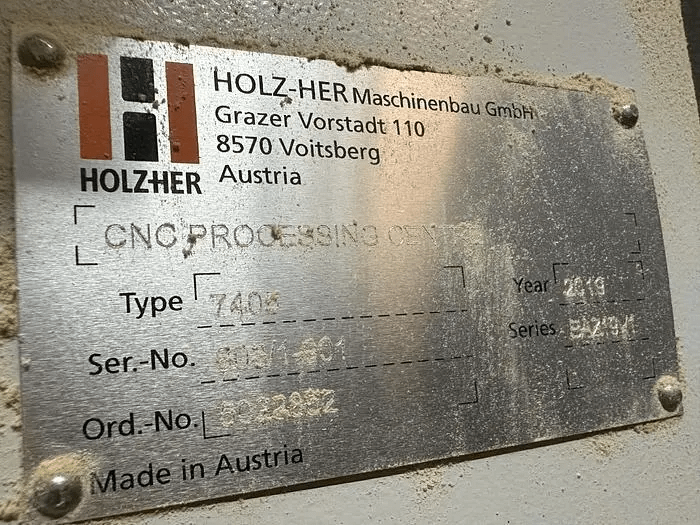

2019 HOLZ-HER EVOLUTION 7405 WOOD CNC MACHINING CENTER, 8 KW, 24.000 RPM, 6 TOOL POSITIONS

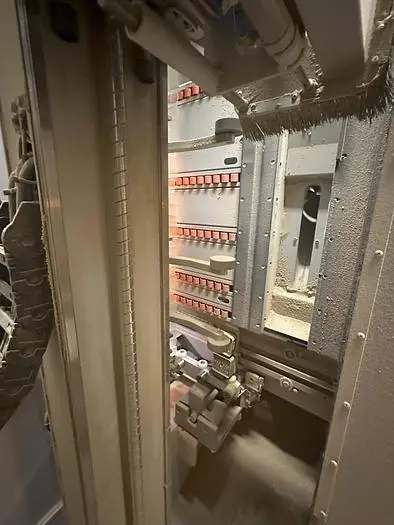

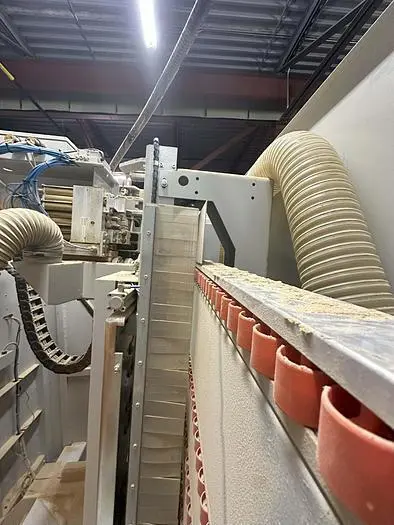

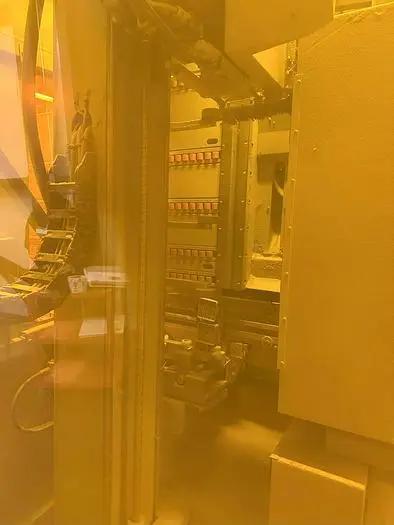

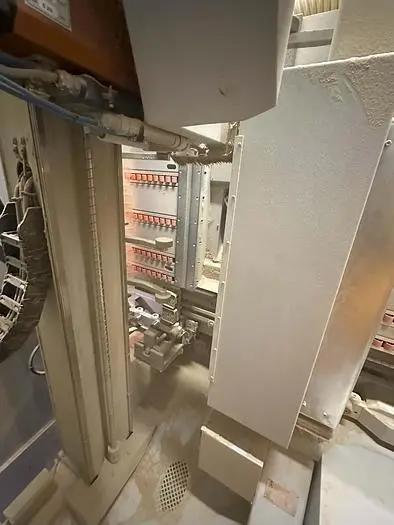

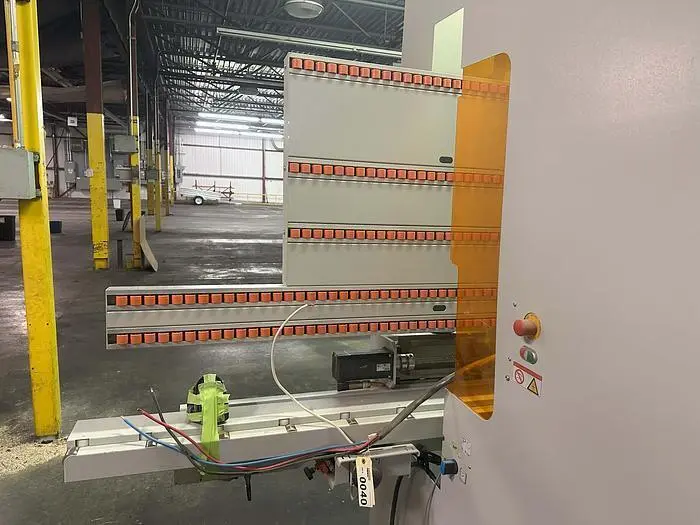

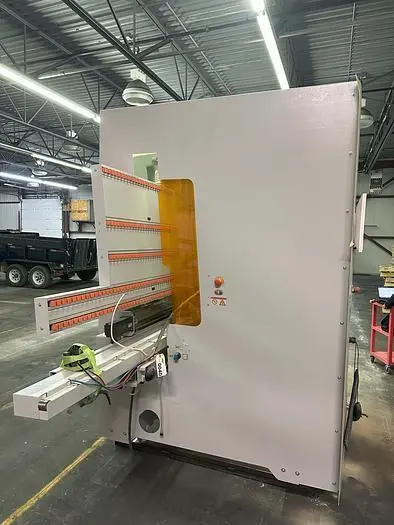

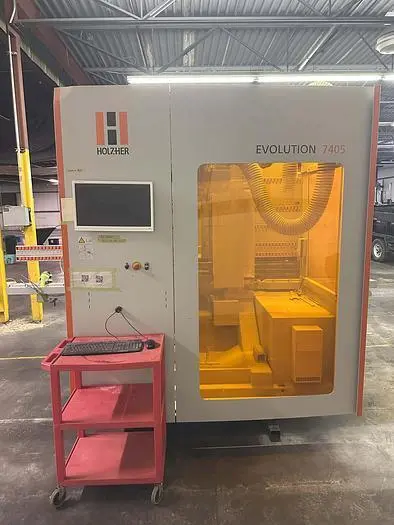

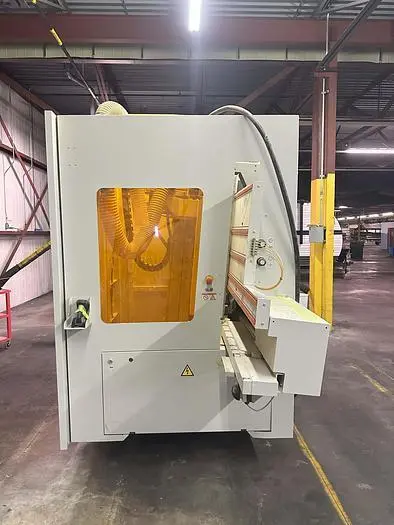

THE 2019 HOLZ-HER EVOLUTION 7405 IS A WOOD CNC MACHINING CENTER FEATURING PRECISION DIRECT DRIVES AND SOLID DESIGN. IT OPERATES WITH AN 8 KW SPINDLE AND A MAXIMUM SPEED OF 24,000 RPM, AND INCLUDES 6 TOOL POSITIONS. THE MACHINE IS EQUIPPED WITH A STANDARD DRILLING UNIT AND CUTTER UNIT, AND CAN OPTIONALLY INCLUDE AN XL-DRILLING HEAD WITH UP TO 22 DRILLING SPINDLES. STANDARD FEATURES INCLUDE 15 DRILLING SPINDLES FOR 5 IN-LINE HOLES IN X AND Y DIRECTIONS, 6 HORIZONTAL DRILLS, AND AN INTEGRATED GROOVING SAW. IT HANDLES GENEROUS MACHINING DIMENSIONS, ACCOMMODATING WORKPIECES UP TO 920 MM IN HEIGHT AND 2,500 MM IN LENGTH WITHOUT ADDITIONAL SUPPORTS. IT OFFERS FULLY AUTOMATIC WORKPIECE THICKNESS ADAPTATION FOR MATERIAL FROM 8 MM TO 70 MM. THE SYSTEM IS CONTROLLED BY CAMPUS V7 MACHINE CONTROL, UTILIZING A UNIQUE AUTOMATIC VACUUM CLAMPING CONCEPT, AND ACHIEVES A VECTOR SPEED OF 68 M/MIN WHILE MAINTAINING A COMPACT FOOTPRINT OF LESS THAN 5 M². OPTIONAL PACKAGES INCLUDE THE DOOR PACKAGE FOR COMPLETE MACHINING OF DOOR LEAVES UP TO 70 MM THICK, AND THE XCUT PACKAGE FOR OPTIMUM STRIP PROCESSING.
