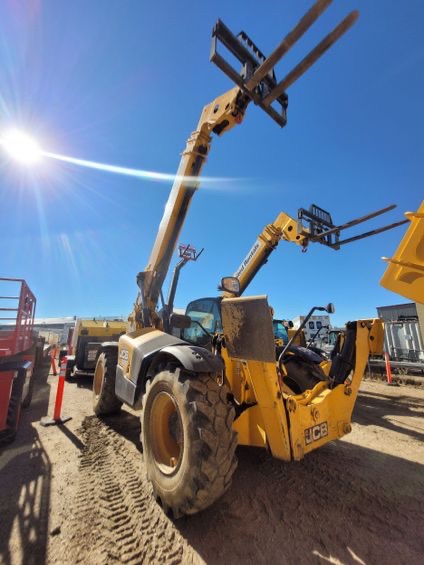

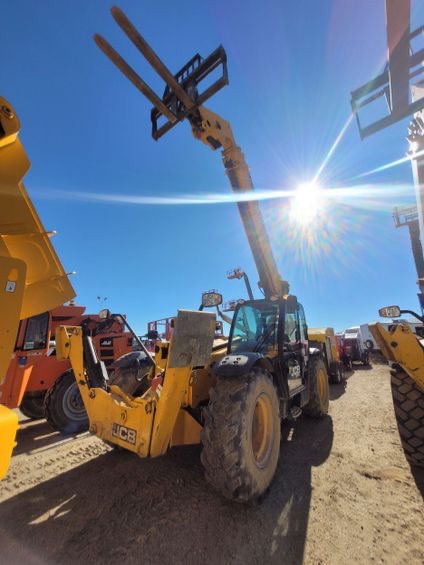

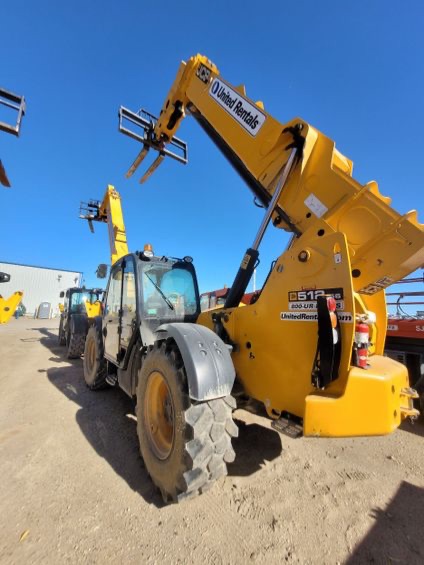

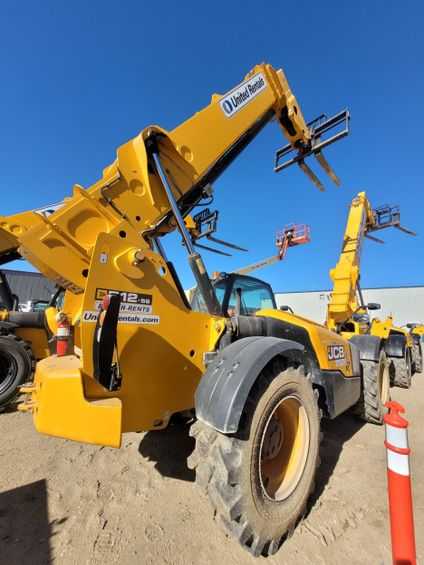

2019 JCB 512-56 TELEHANDLER, 12K LBS CAP, 56FT MAX LIFT, 42FT MAX REACH

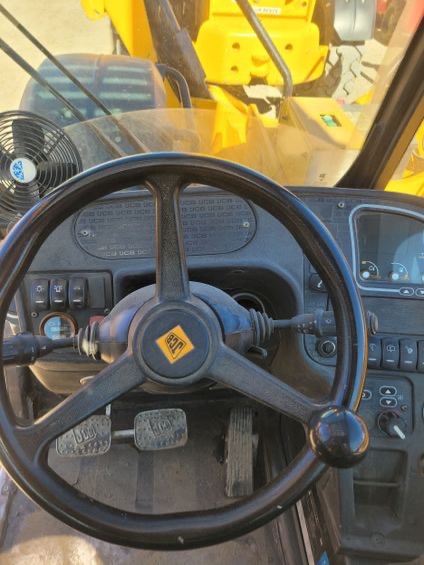

THE JCB 512-56 IS A HIGH-CAPACITY TELESCOPIC HANDLER DESIGNED FOR DEMANDING CONSTRUCTION AND INDUSTRIAL APPLICATIONS. IT IS POWERED BY A JCB ECOMAX ENGINE, WITH OPTIONS FOR 74 HP (55 KW) OR 109 HP (81 KW), PROVIDING HIGH TORQUE AT LOW ENGINE SPEEDS. THE MACHINE FEATURES A MAXIMUM LIFT CAPACITY OF 12,000 LBS AND A MAXIMUM LIFT HEIGHT OF 56 FEET. ITS REACH PERFORMANCE INCLUDES A MAXIMUM FORWARD REACH OF 42 FEET AND A REACH OF 8 FEET 2 INCHES AT MAXIMUM LIFT HEIGHT. THE 512-56 UTILIZES A 4-SPEED POWERSHIFT TRANSMISSION WITH PERMANENT FOUR-WHEEL DRIVE AND THREE STEER MODES: FRONT-WHEEL, ALL-WHEEL, AND CRAB STEER. STRUCTURALLY, THE TELEHANDLER IS BUILT ON A ONE-PIECE FULLY WELDED CHASSIS WITH A TOUGH INVERTED U-SHAPED BOOM PRESSING. STANDARD FEATURES INCLUDE A 12V ELECTRIC SYSTEM WITH A 130 AH BATTERY, SERVO-ASSISTED HYDRAULIC MULTI-DISC BRAKES, AND A 3.5-INCH COLOR TFT DASH DISPLAY. THE HYDRAULIC SYSTEM OPERATES AT A PRESSURE OF 3,770 PSI WITH A PUMP FLOW OF 29 GAL/MIN. FOR STABILITY AND PRECISION, THE UNIT IS EQUIPPED WITH WIDE-SET STABILIZERS, FRAME SWAY CONTROL OF 10 DEGREES, AND AN AUTOMATIC REAR AXLE STABILIZATION SYSTEM. DIMENSIONS INCLUDE AN OVERALL HEIGHT OF 8 FEET 10 INCHES, AN OVERALL WIDTH OF 8 FEET 1 INCH, AND AN UNLADEN WEIGHT OF APPROXIMATELY 30,635 LBS. THE OPERATOR ENVIRONMENT IS DESIGNED WITH A SINGLE-LEVER PROPORTIONAL JOYSTICK AND EXTENSIVE GLAZING FOR ALL-AROUND VISIBILITY.
