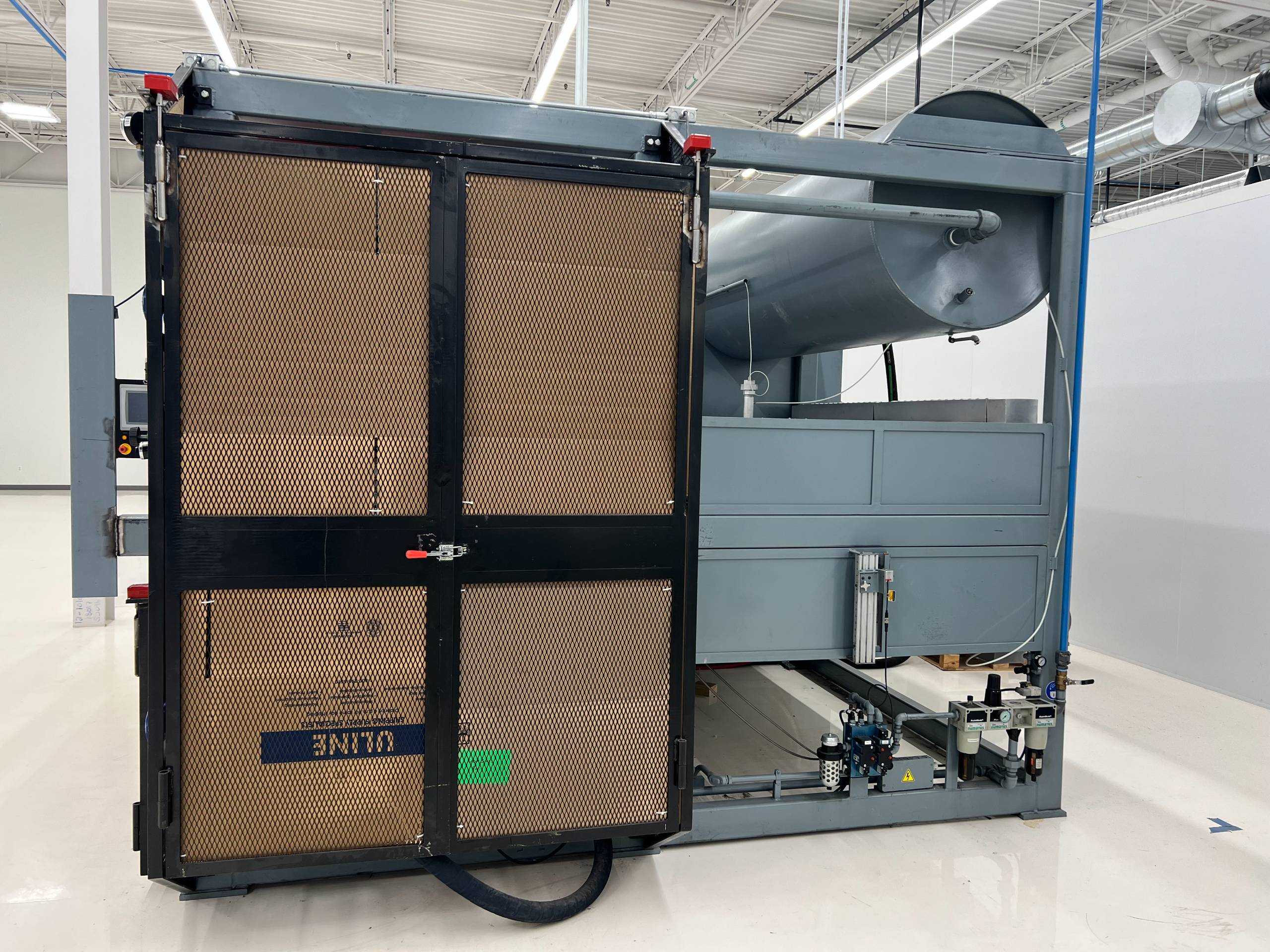

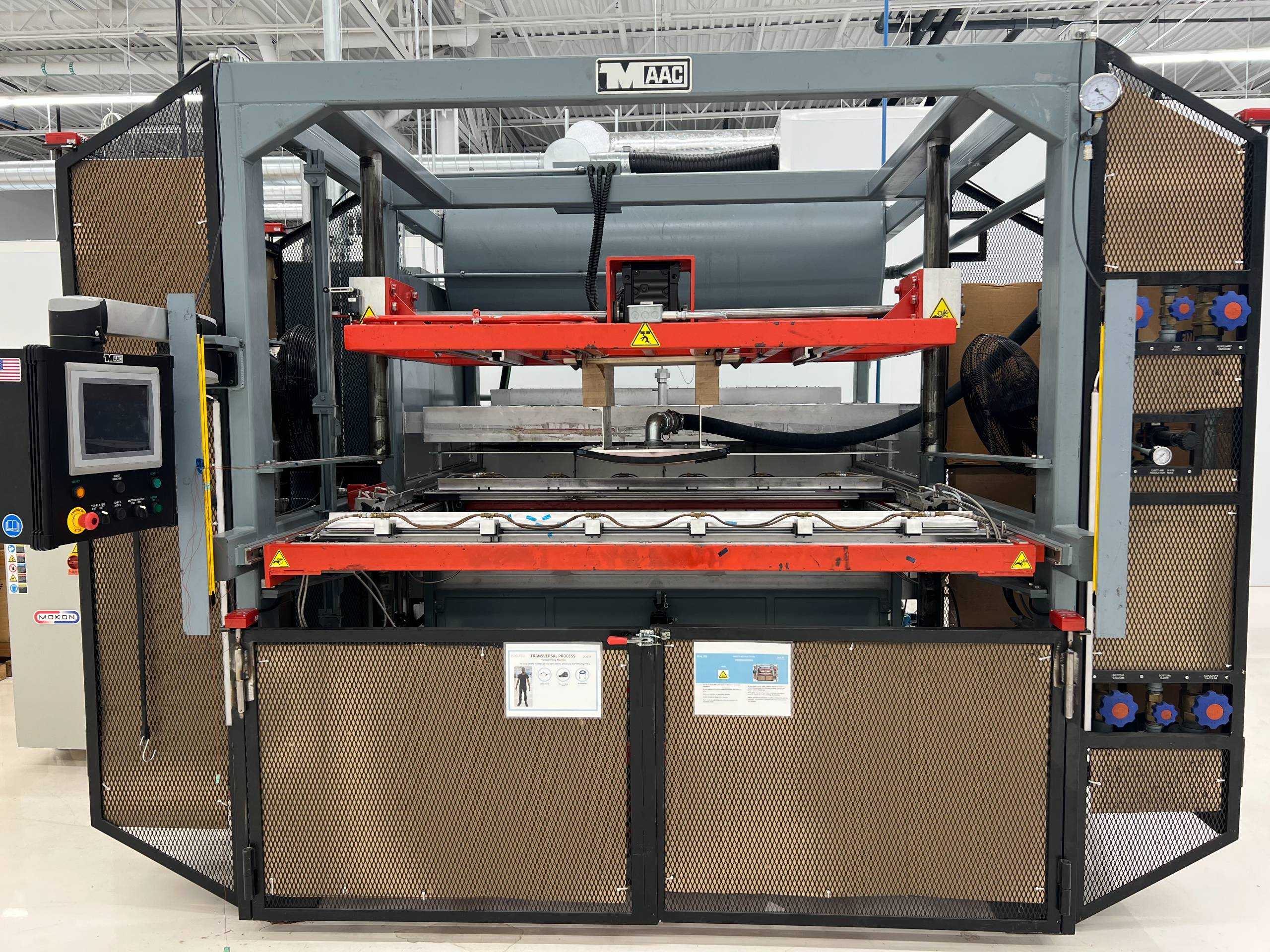

2019 MAAC C64S THERMOFORMING MACHINE

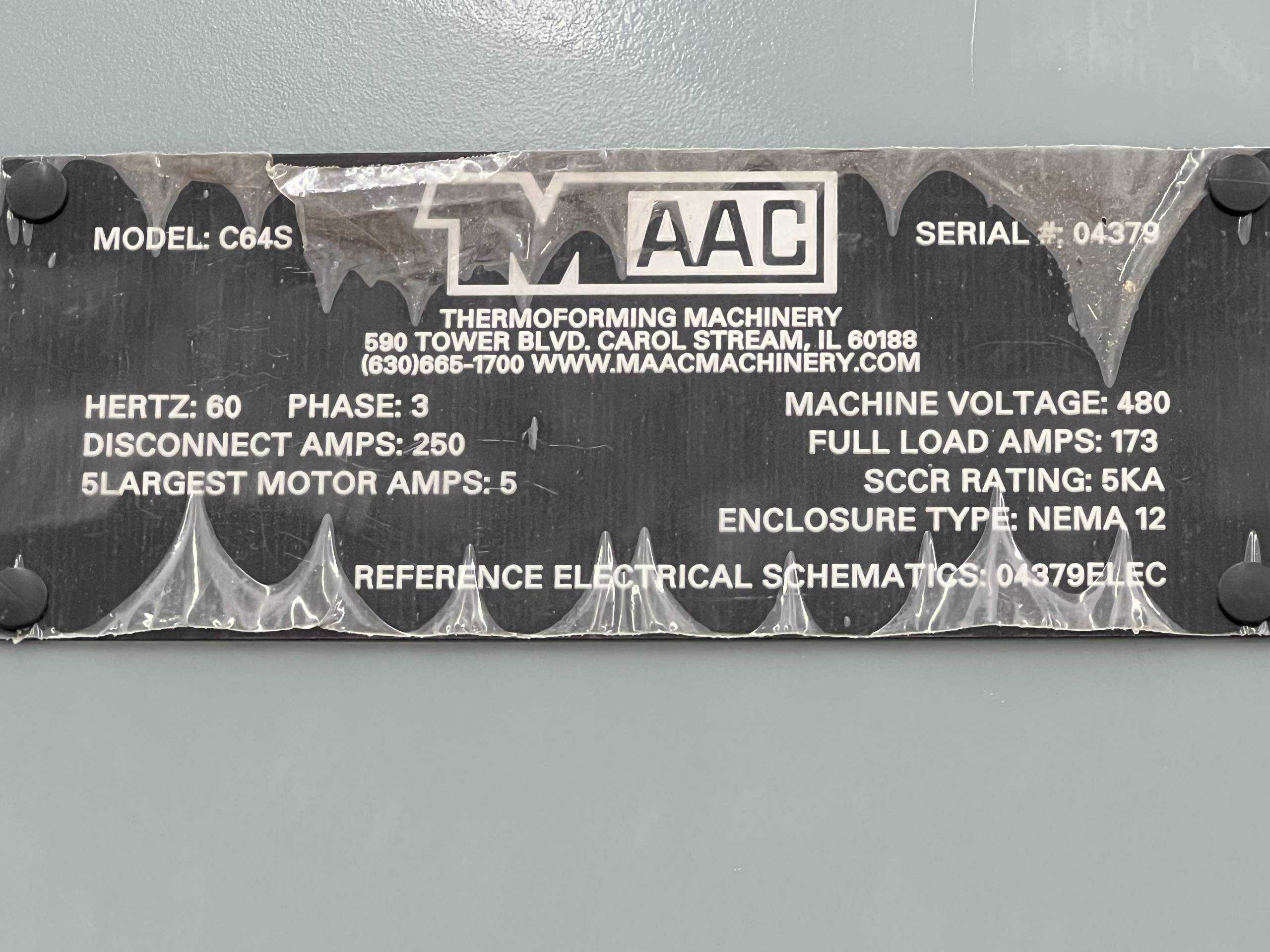

MAXIMUM MOLD SIZE: 72 IN X 48 IN MAXIMUM CLAMP FRAME OPENING: 74 IN X 50 IN AIR REQUIREMENTS PRESSURE: 80 PSI CONSUMPTION PER CYCLE: APPROXIMATELY 1 TO 4 CUBIC FEET VACUUM SYSTEM VACUUM TANK: ONE 405-GALLON CARBON STEEL VACUUM TANK TANK FEATURES: EQUIPPED WITH SAFETY VALVES AND DRAIN PLUGS VACUUM VALVES: ALL ARE 2" PISTON TYPES, AIR PILOT ACTUATED SYSTEM COMPONENTS: THREE (3) VACUUM VALVES TWO (2) AIR VALVES QUARTZ OVENS (TOP & BOTTOM, 2 ½” × 10” ELEMENTS) WITH 46 PLC-CONTROLLED ZONES (23 UPPER, 23 LOWER). SPECIAL PROGRAM: TWO-STAGE GLOBAL HEAT CONTROL ("BLAST" AT 100%, THEN PREDETERMINED ZONE PROFILE) — REDUCES HEATING TIME BY UP TO 33%. ENERGY-SAVING MODE: “INSTANT ON” & “INSTANT OFF” — CUTS ENERGY USE BY ~50%. SAFETY & BUILD: PROTECTIVE BOTTOM OVEN SCREEN, FULLY INSULATED WALLS, PNEUMATICALLY CONTROLLED INSULATED DOOR. SWITCHING: SOLID STATE RELAYS. ELECTRICAL REQUIREMENTS: VOLTAGE: 480 HZ: 60 PHASE: 3 LARGEST MOTOR AMPS: 5 FULL LOAD AMPS: 173 SCCR RATING: 5KA FULL SPEC SHEET ATTACHMENT BELOW
