2020 ABB IRB 1200-5/0.9 ARTICULATED ROBOT, 5KG PAYLOAD, 901MM REACH, IRC5 CONTROL

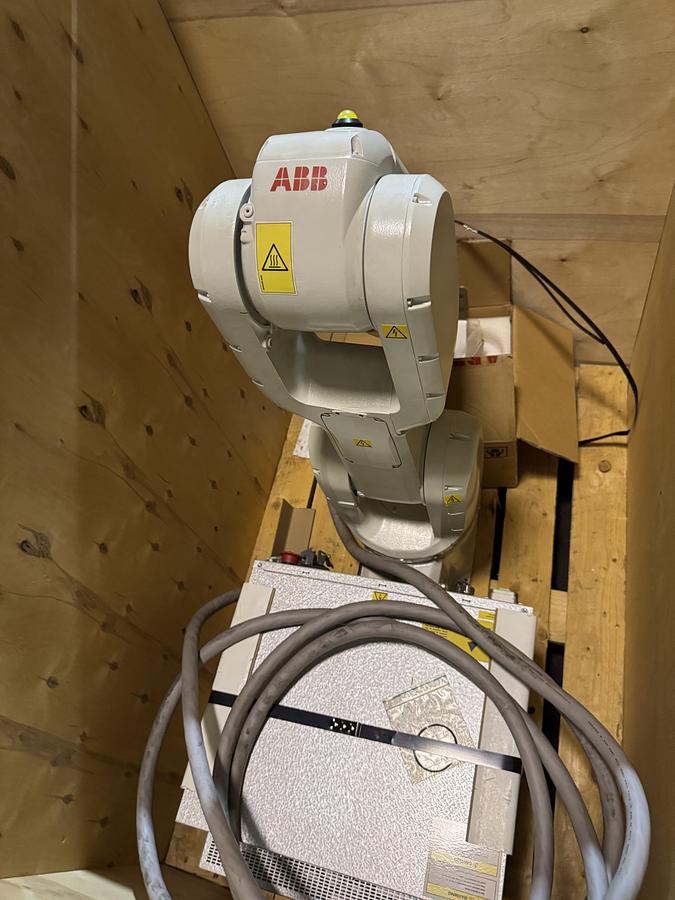

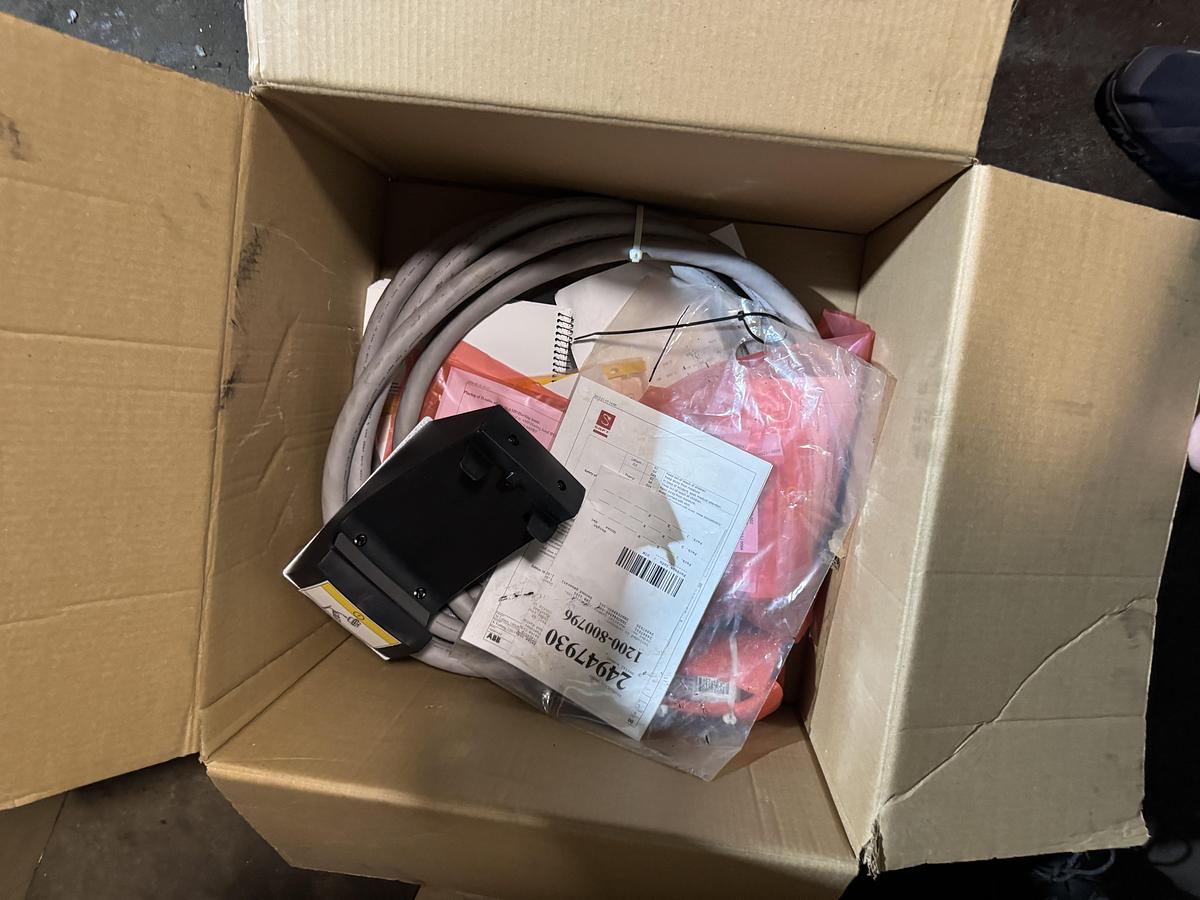

THE 2020 ABB IRB 1200-5/0.9 IS A SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HIGH-SPEED PRECISION TASKS INCLUDING MATERIAL HANDLING, MACHINE TENDING, ASSEMBLY, AND DISPENSING. IT FEATURES A 5 KG PAYLOAD CAPACITY, A 901 MM REACH, AND A REPEATABILITY OF 0.06 MM. THE UNIT HAS A MASS OF 54 KG AND SUPPORTS MOUNTING IN FLOOR, INVERTED, OR ANGLED ORIENTATIONS. AXIS MOTION SPEEDS ARE 288 DEG/S FOR J1, 240 DEG/S FOR J2, 405 DEG/S FOR J5, AND 600 DEG/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±170 DEG, J2 +130 DEG TO -100 DEG, J3 +70 DEG TO -200 DEG, J4 ±270 DEG, J5 ±130 DEG, AND J6 ±360 DEG. THIS MODEL CARRIES AN IP40 STANDARD RATING AND IS EQUIPPED WITH FOUR AIR DUCTS, 10 CUSTOMER SIGNALS, AND ETHERNET CAPABILITIES FOR INTEGRATION. THE SYSTEM INCLUDES AN ABB IRC5 CONTROLLER, A TEACH PENDANT, AND ROBOT CONNECTION CABLES.
