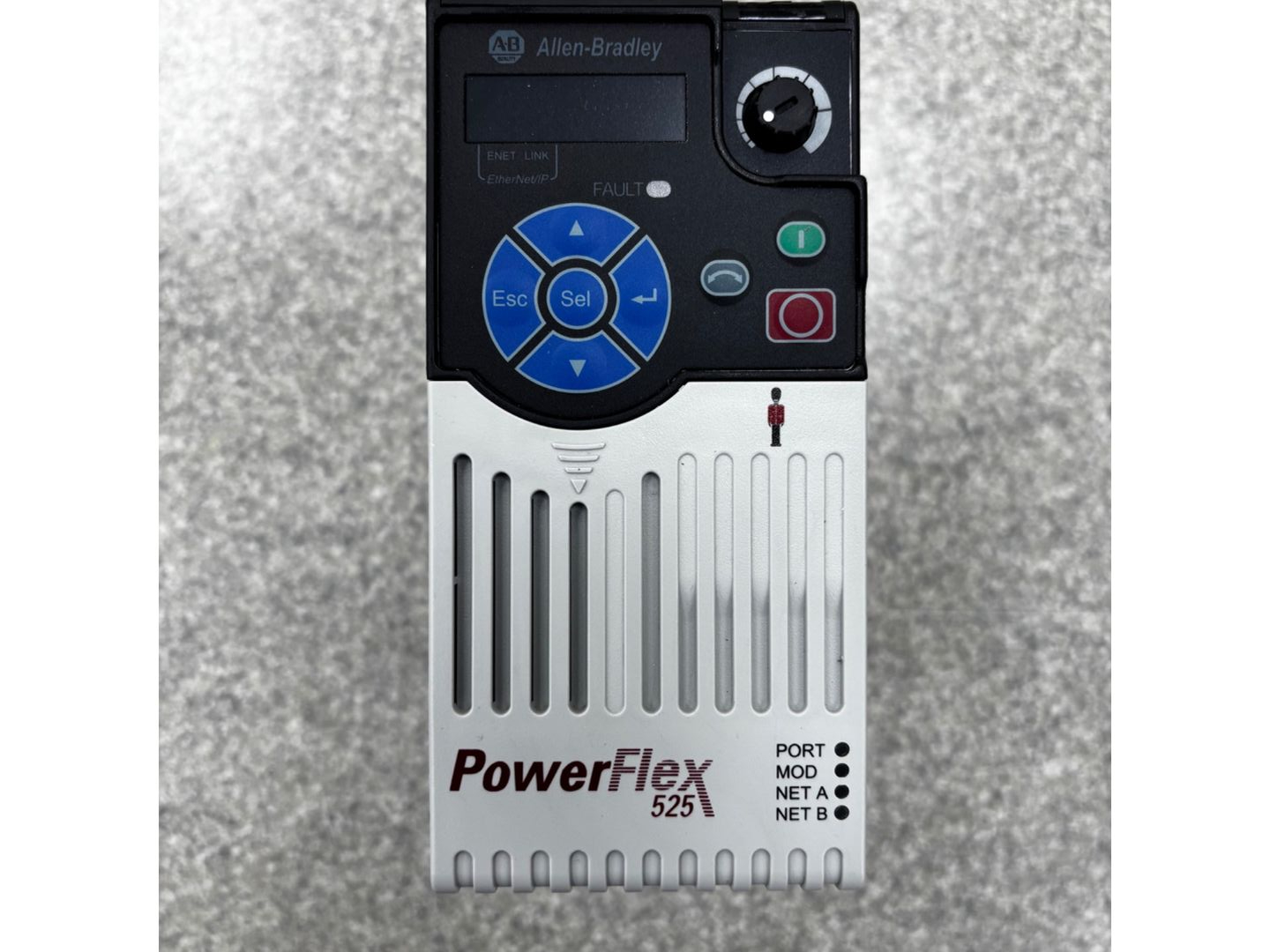

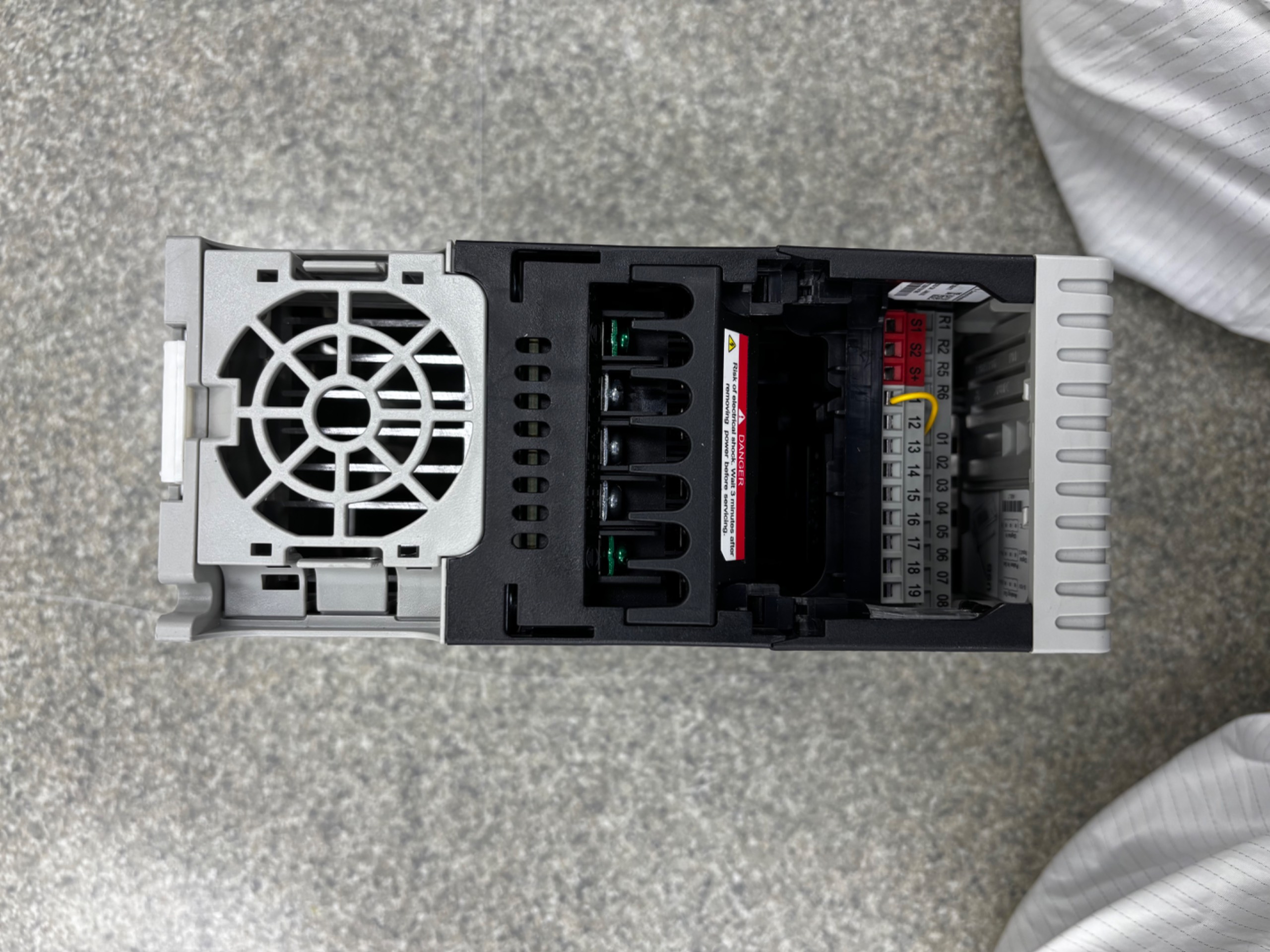

2020 ALLEN BRADLEY 25B-D1P4N104 AC VFD DRIVES

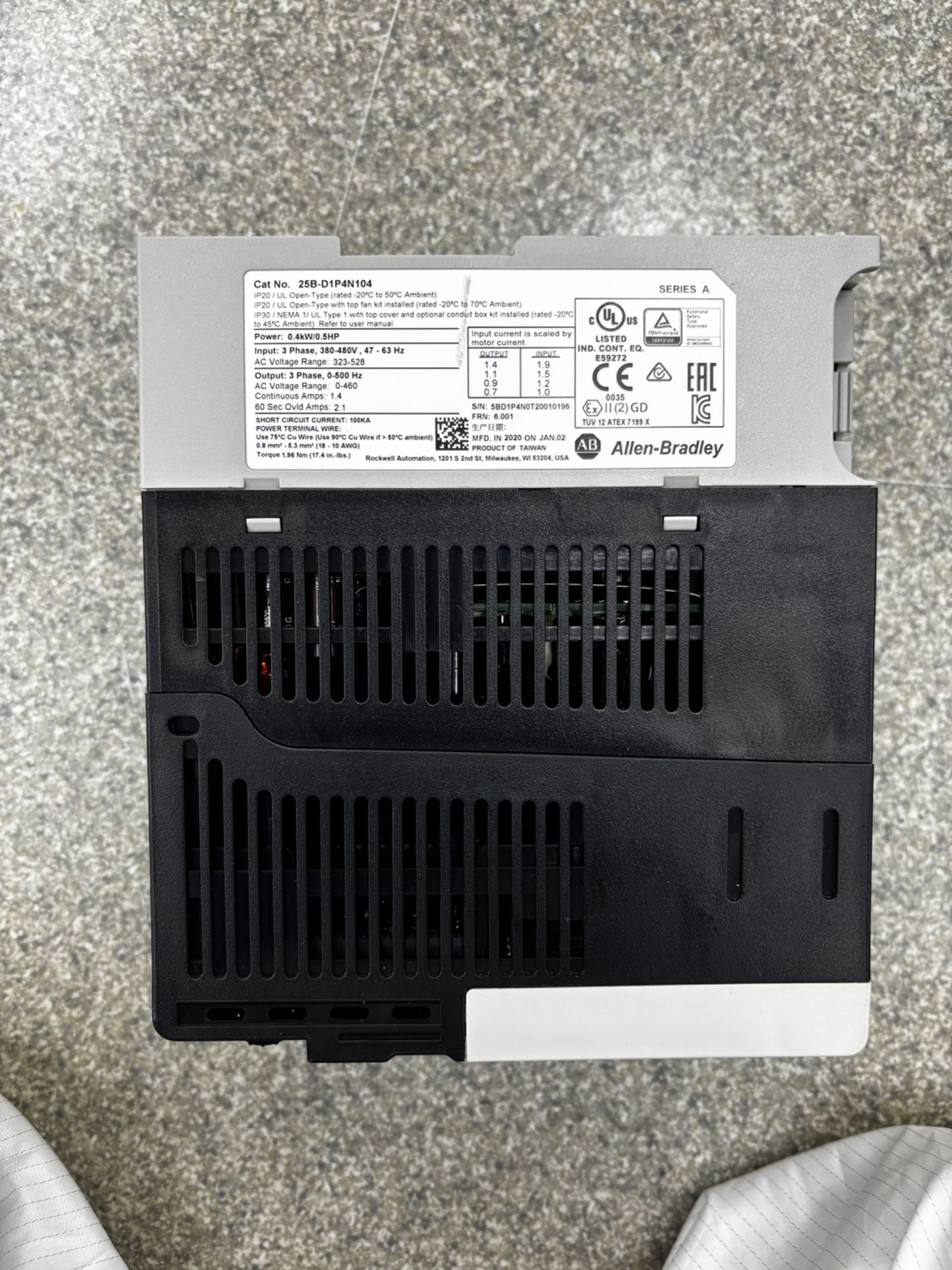

• POWER RATING: 0.4 KW (0.5 HP) • INPUT SPECIFICATIONS: 3-PHASE, 380–480 VAC, 47–63 HZ (AC VOLTAGE RANGE 323–528 V) • OUTPUT SPECIFICATIONS: 3-PHASE, 0–500 HZ (AC VOLTAGE RANGE 0–460 V) • CONTINUOUS CURRENT: 1.4 A • OVERLOAD CURRENT (60 SEC): 2.1 A • SHORT-CIRCUIT CURRENT RATING: 100 KA • PROTECTION RATING: IP20/UL OPEN-TYPE (–20 °C TO 50 °C AMBIENT); IP30/NEMA 1/UL TYPE 1 (–20 °C TO 45 °C AMBIENT) • SERIES: A • FIRMWARE REVISION (FRN): 6.001
