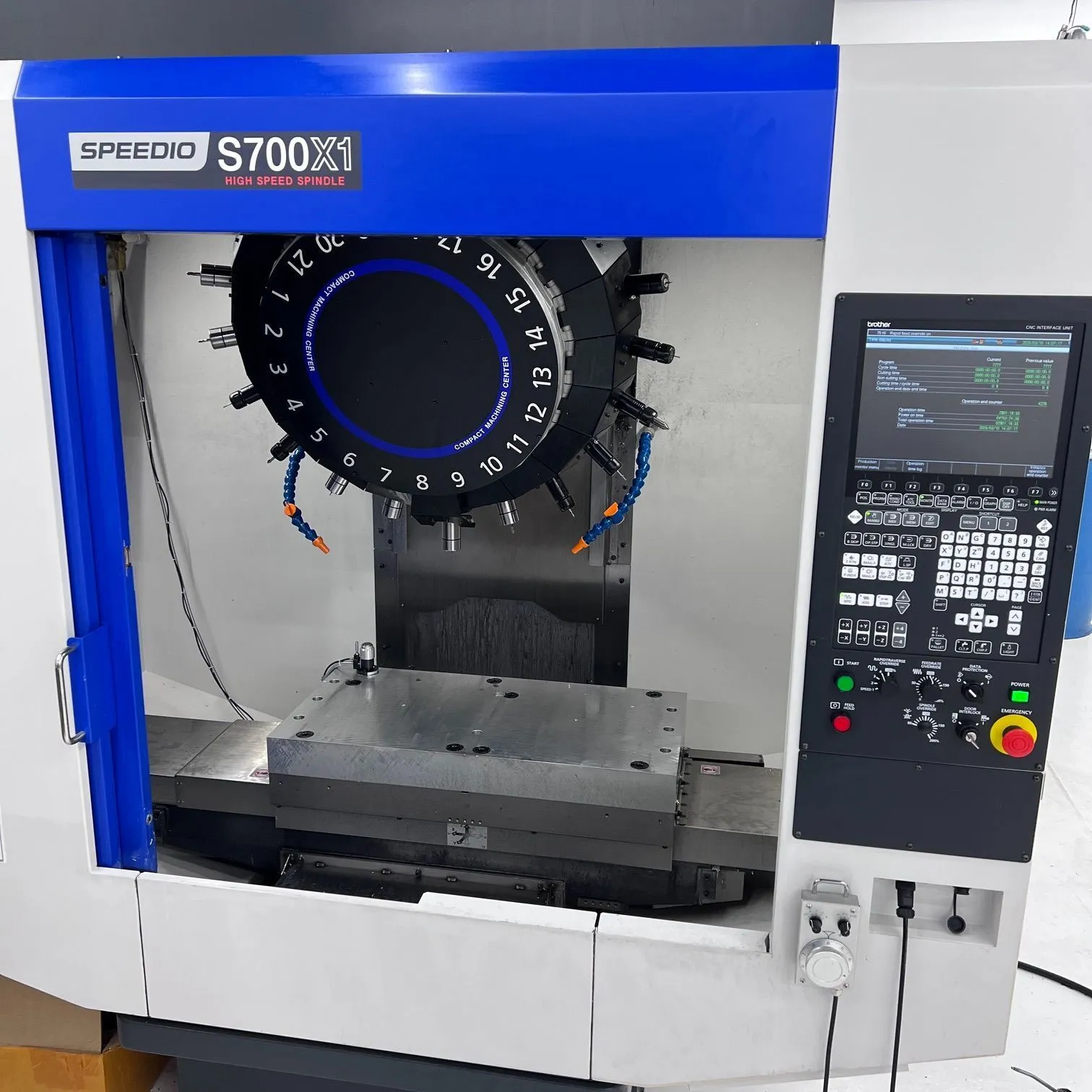

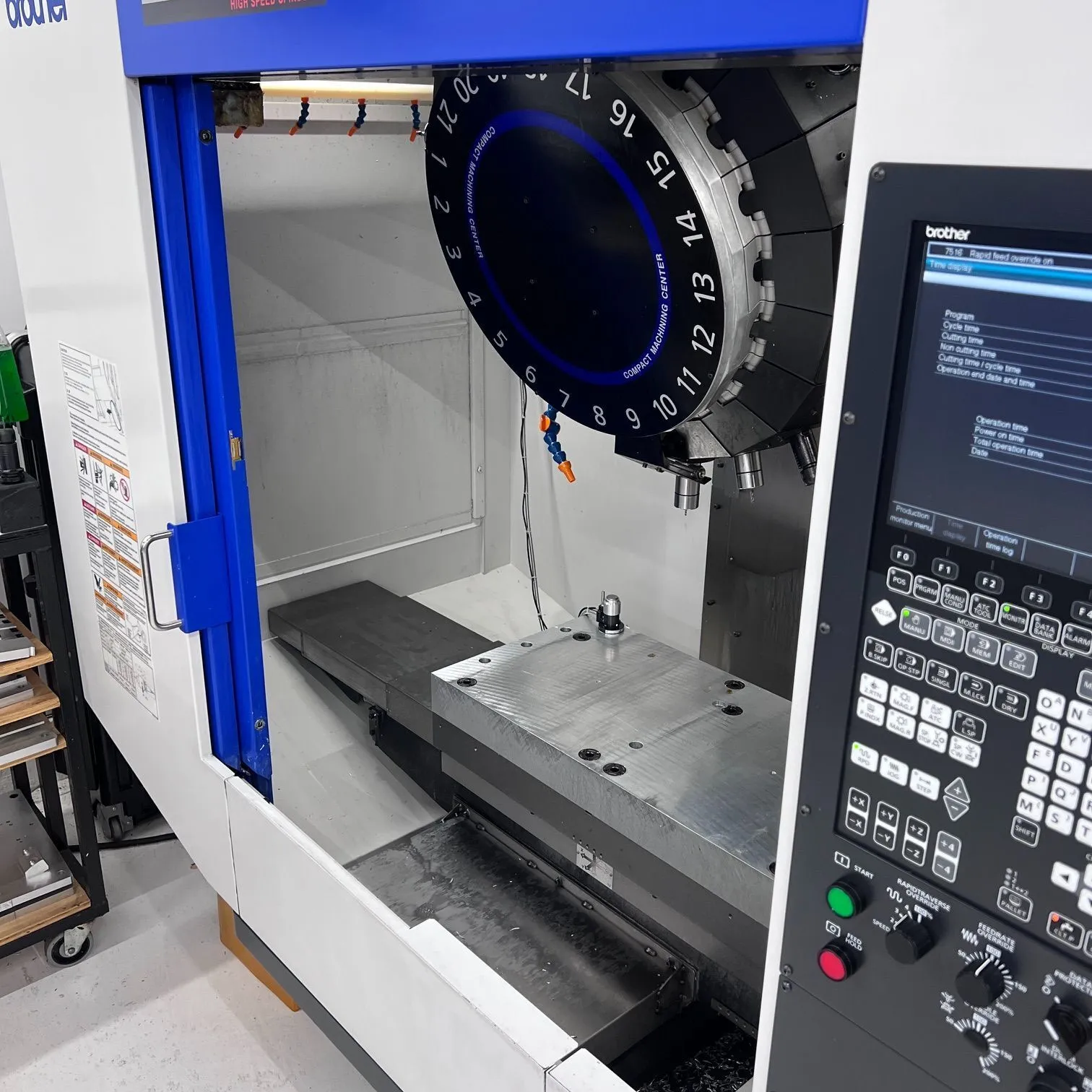

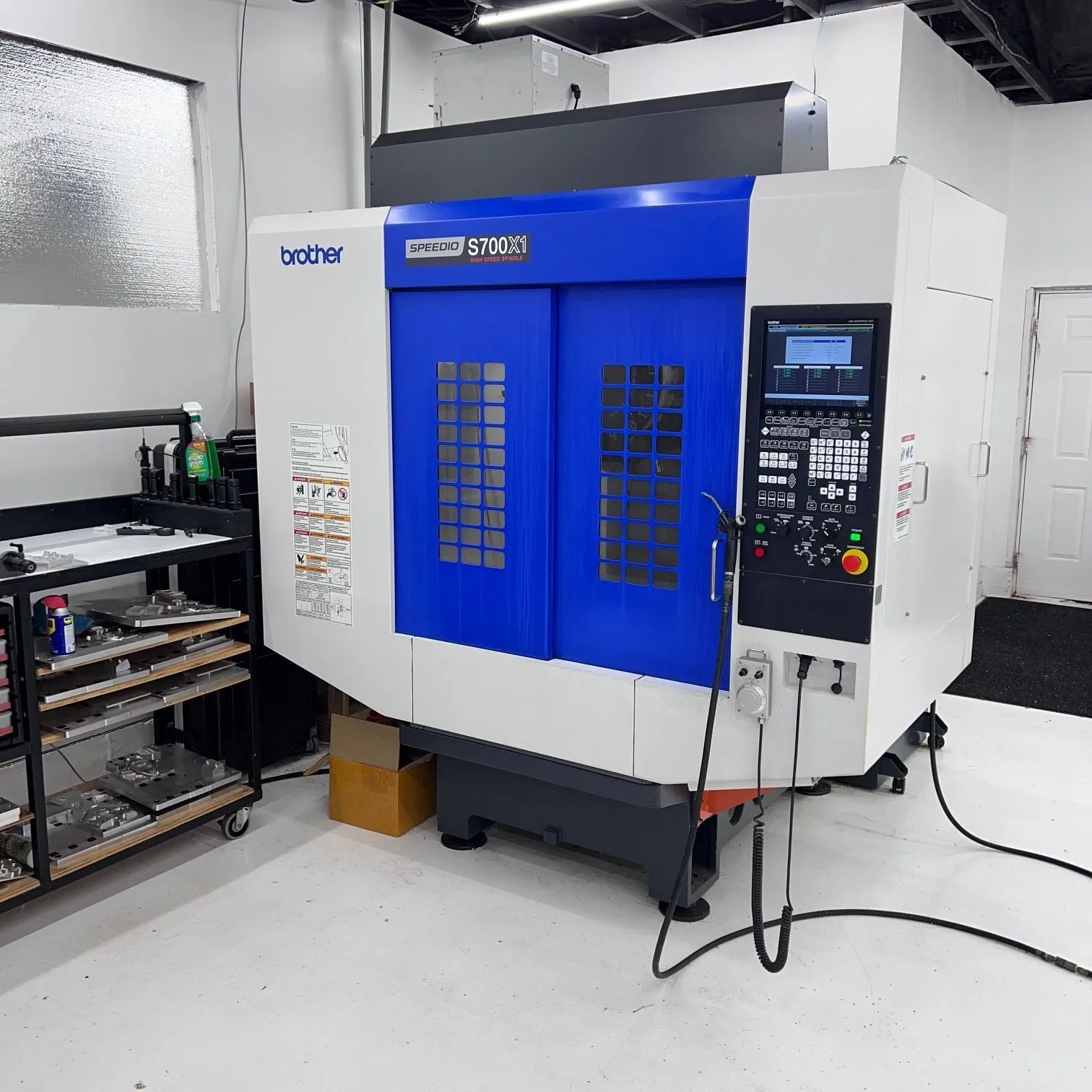

2020 Brother Speedio S700X1 27K RPM CNC Drilling & Tapping Center with Mist Collector

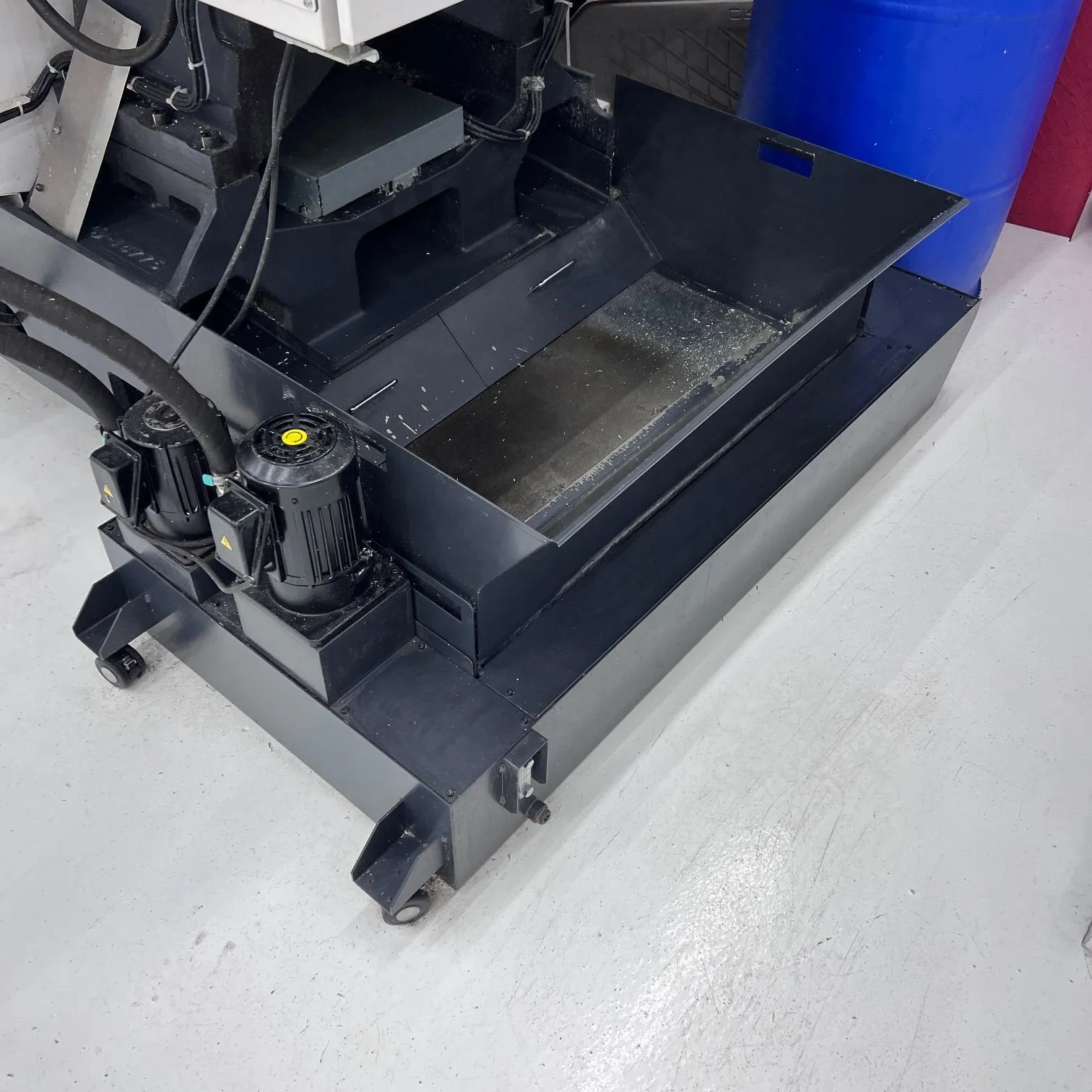

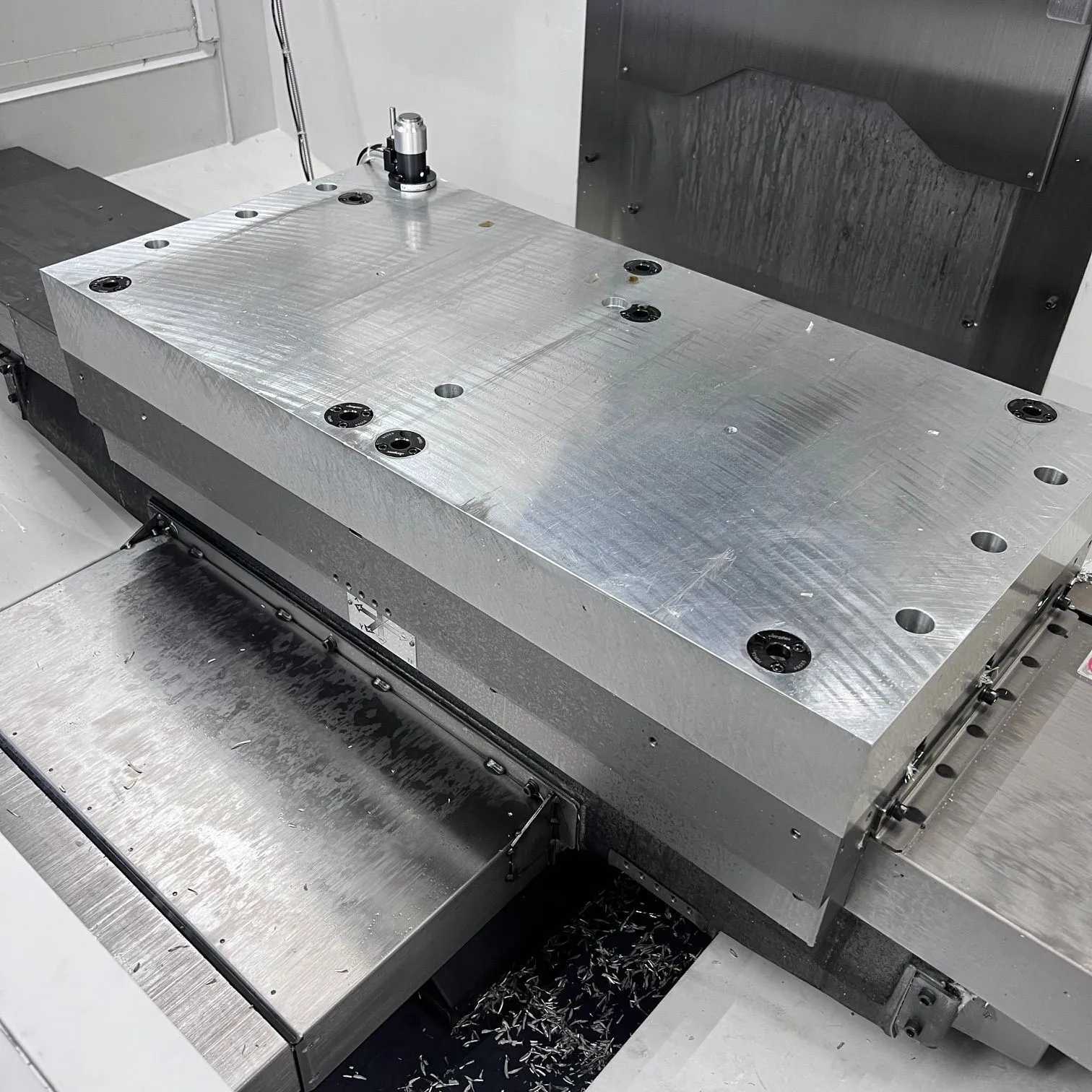

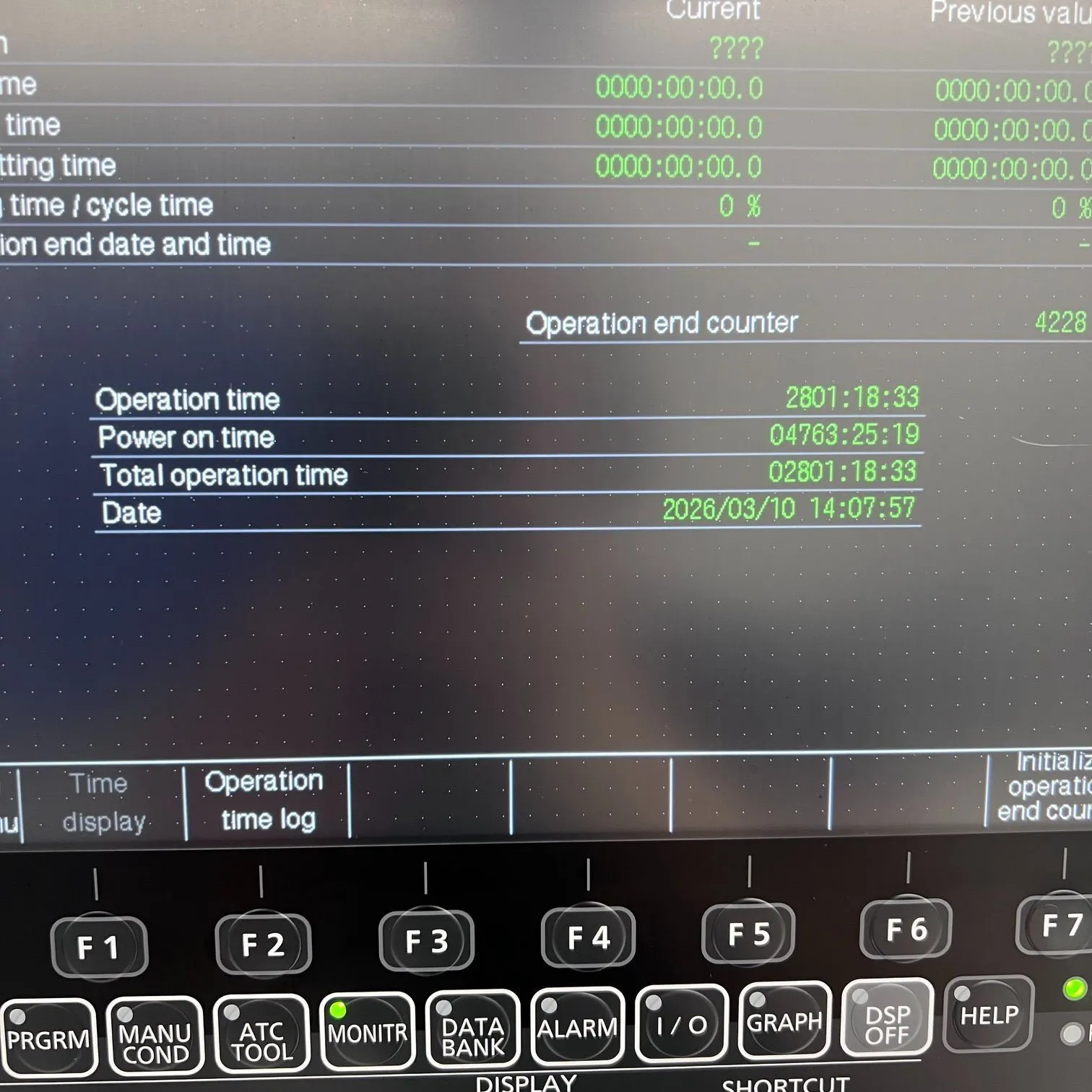

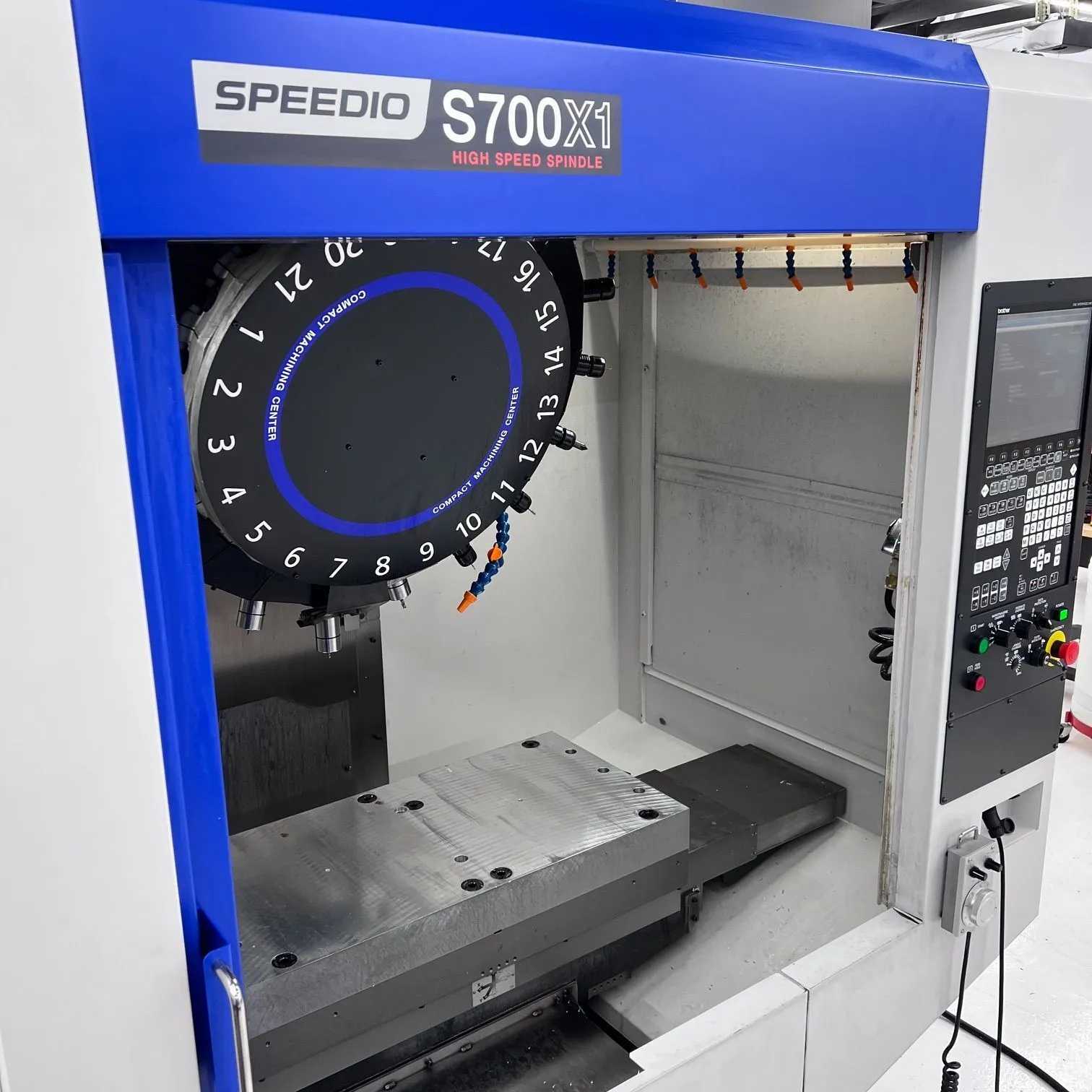

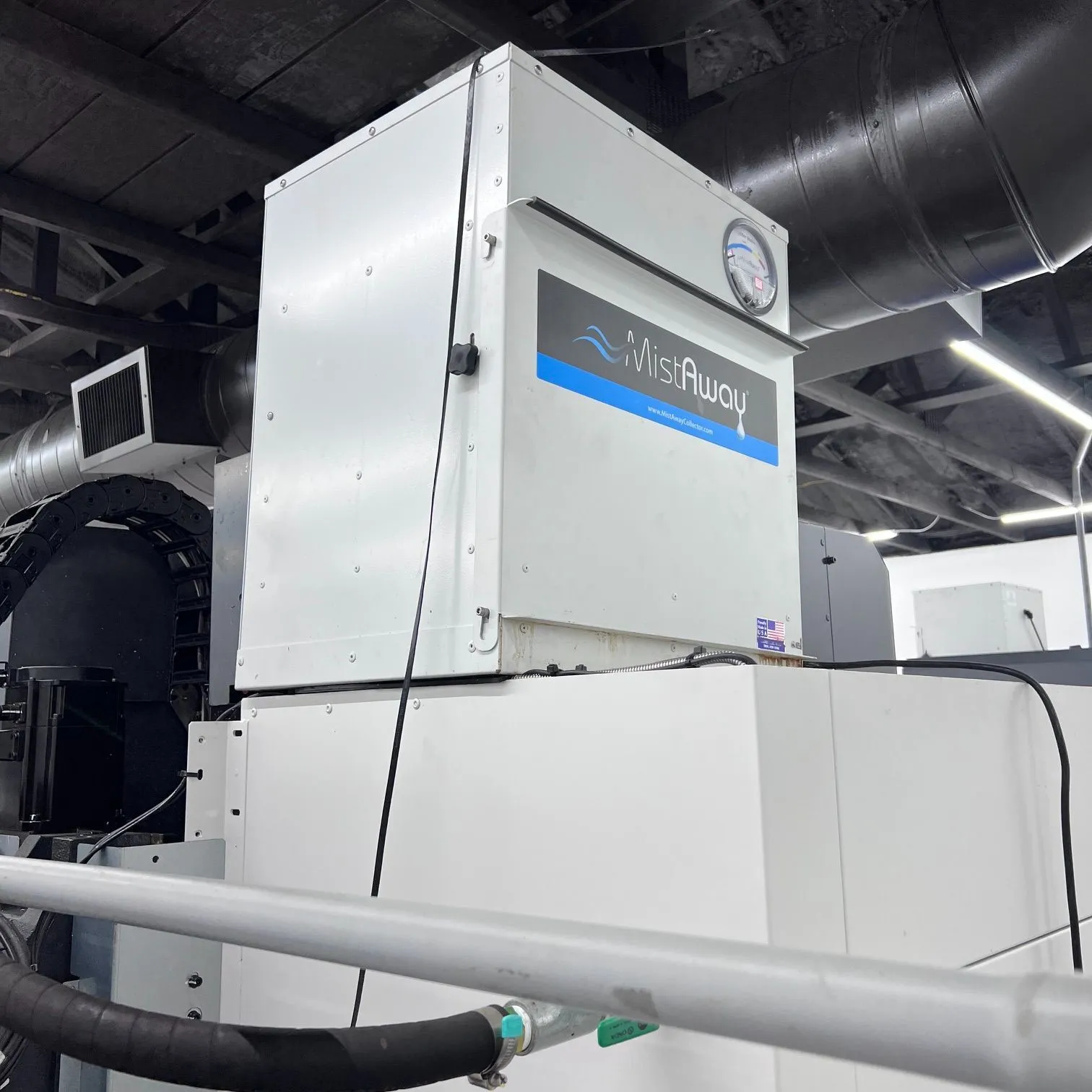

The 2020 Brother Speedio S700X1 is a CNC drilling and tapping center built in March 2020 with 2,800 spindle hours. The machine features axis travels of 27.6 inches on X, 15.7 inches on Y, and 11.8 inches on Z, with a table measuring up to 31.5 inches by 15.7 inches. It is powered by a 13.5 HP (11.8 / 8.4 HP rated) motor driving a 27,000 RPM spindle with a BT30 taper. Automatic tool changes are handled by a 21-tool drum ATC. Rapid traverse rates reach 1,969 IPM along the X and Y axes and 2,205 IPM along the Z axis. Control is provided by the Brother C00 control system with a built-in PLC. Standard and auxiliary equipment includes High Accuracy Mode BII, a manual pulse generator, spindle taper air blast, an automatic grease lubrication system, a 150L coolant tank with chip shower, a shower gun, a safety door interlock system, and a 2-light work light kit. Additional included accessories comprise a Metrol TM26D-01 tool setter with a 60 mm rise, a top cover, and a Mistaway MA700C coolant mist collector rated at 700 CFM.
