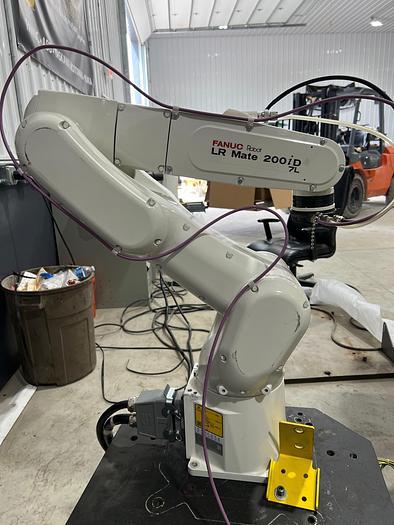

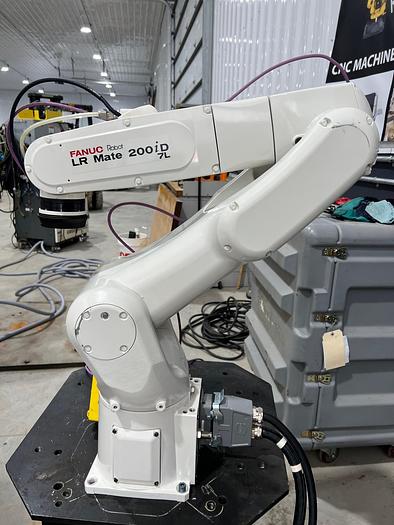

2020 FANUC LR MATE 200ID/7L ARTICULATED ROBOT, 7KG PAYLOAD, 911MM REACH, R-30IB MATE PLUS

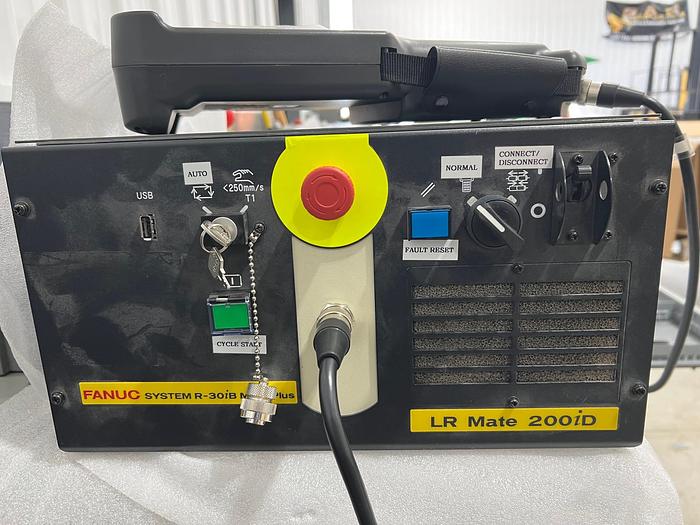

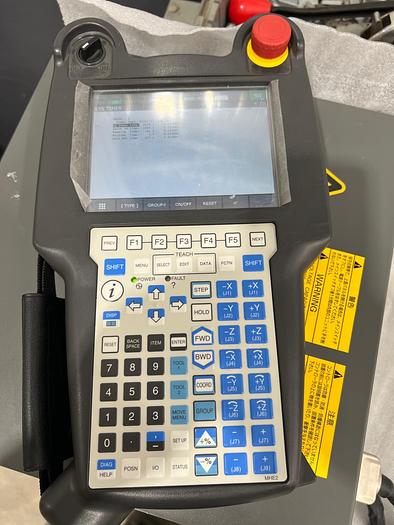

THE 2020 FANUC LR MATE 200ID/7L IS A HIGH-PERFORMANCE, SIX-AXIS ARTICULATED ROBOT DESIGNED FOR VERSATILE INDUSTRIAL APPLICATIONS INCLUDING ASSEMBLY, MACHINE TENDING, MATERIAL HANDLING, AND PICKING AND PACKAGING. AS THE LONG-REACH MODEL IN ITS SERIES, IT FEATURES A 911 MM HORIZONTAL REACH AND A 7 KG PAYLOAD CAPACITY. THE MECHANICAL UNIT HAS A MASS OF 27 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING. IT PROVIDES A REPEATABILITY OF ±0.03 MM AND HIGH-SPEED MOTION ACROSS ALL AXES: J1 AT 370°/S, J2 AT 310°/S, J3 AT 410°/S, J4 AT 550°/S, J5 AT 545°/S, AND J6 AT 1000°/S. THE MOTION RANGE FOR THE AXES IS J1 +340°/-360°, J2 ±245°, J3 ±420°, J4 ±380°, J5 ±250°, AND J6 ±720°. THE SYSTEM IS EQUIPPED WITH AN R-30IB MATE PLUS COMPACT CONTROLLER, A COLOR I-PENDANT, AND STANDARD CONNECTION CABLES.
