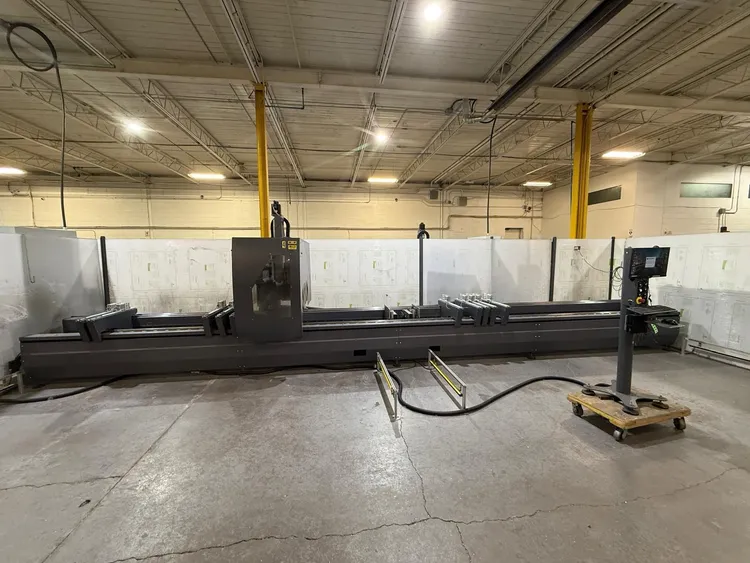

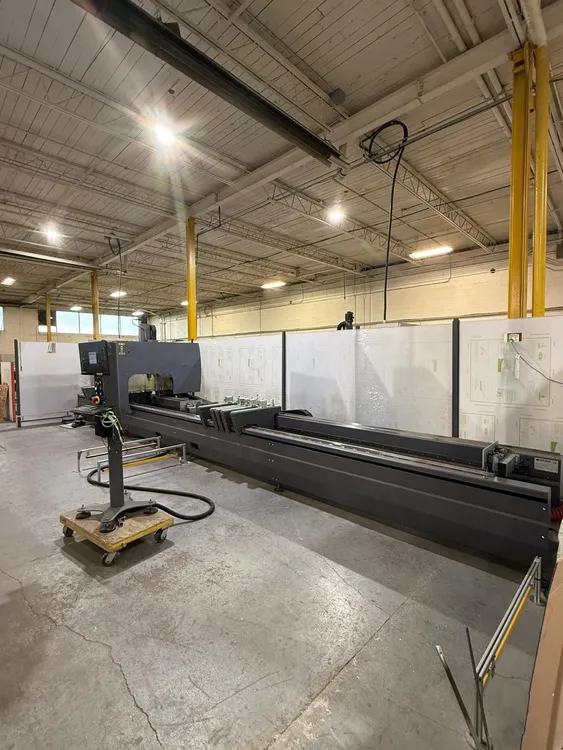

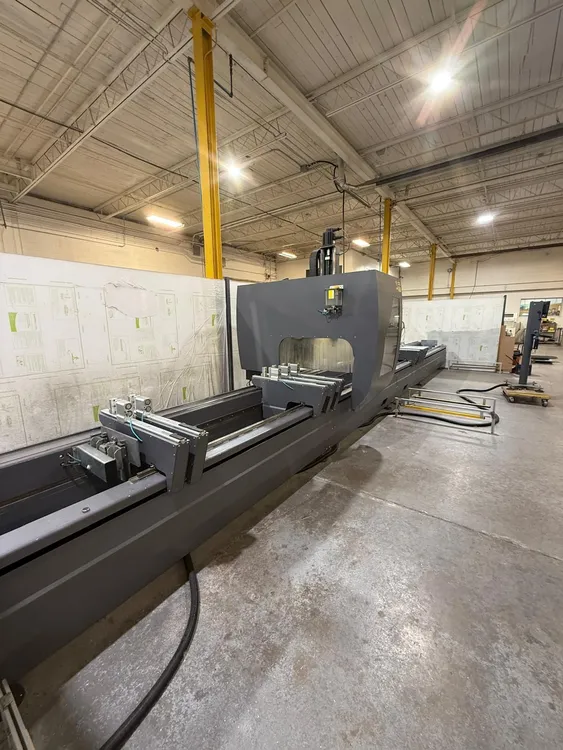

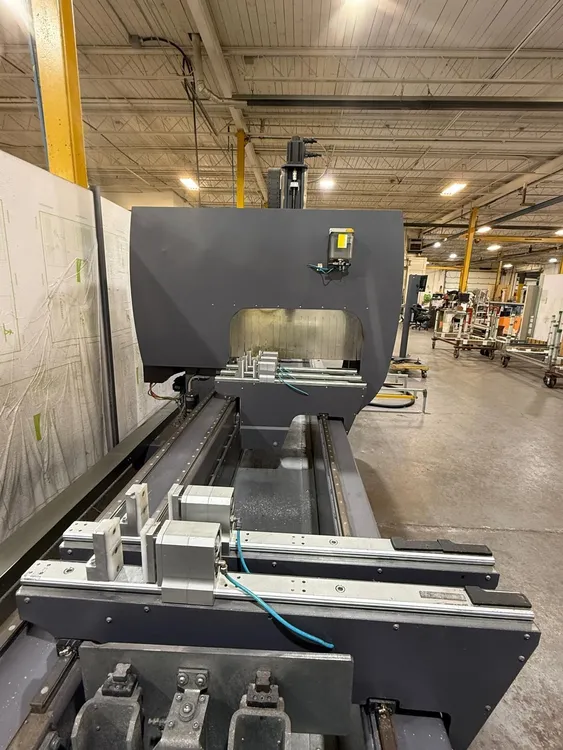

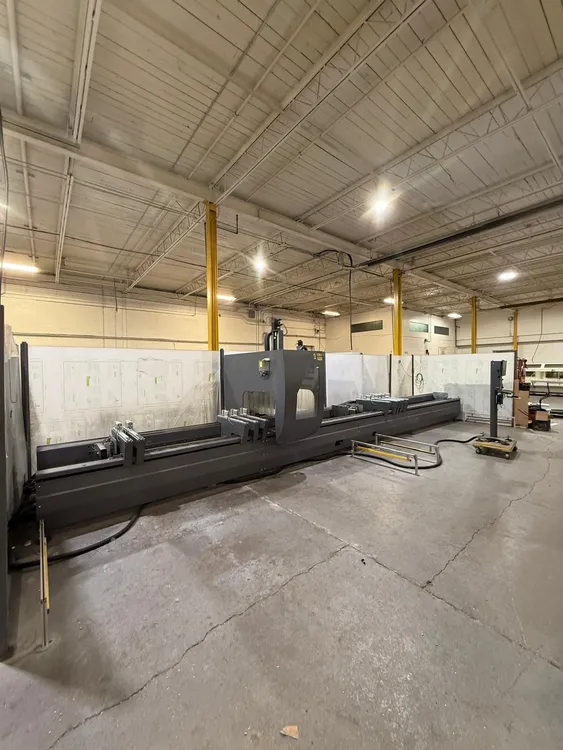

2020 ITALMAC PEGASO 9MT 4A CNC MACHINING CENTER 4-AXIS

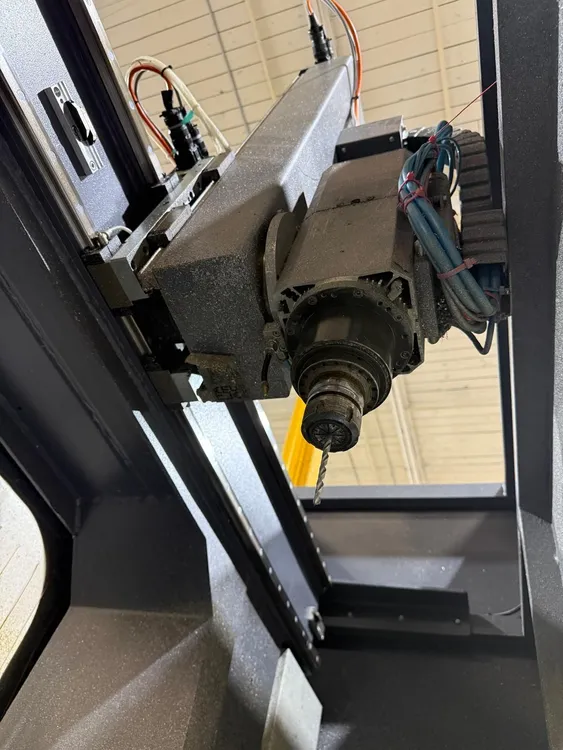

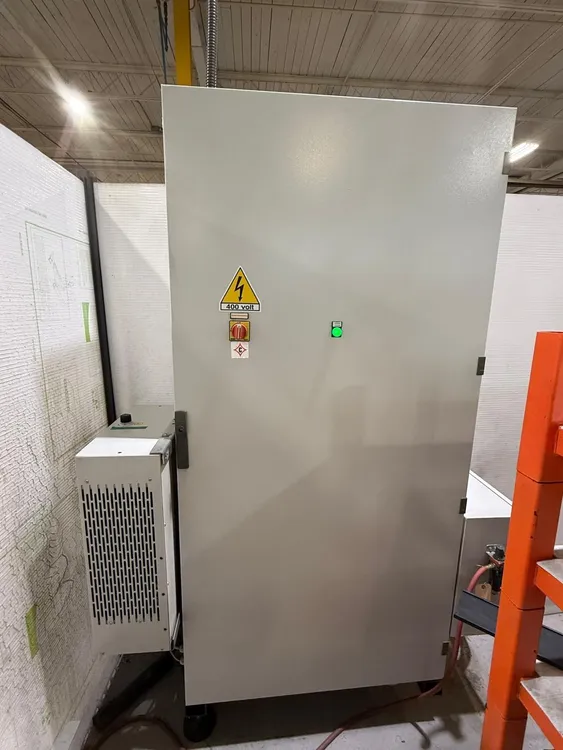

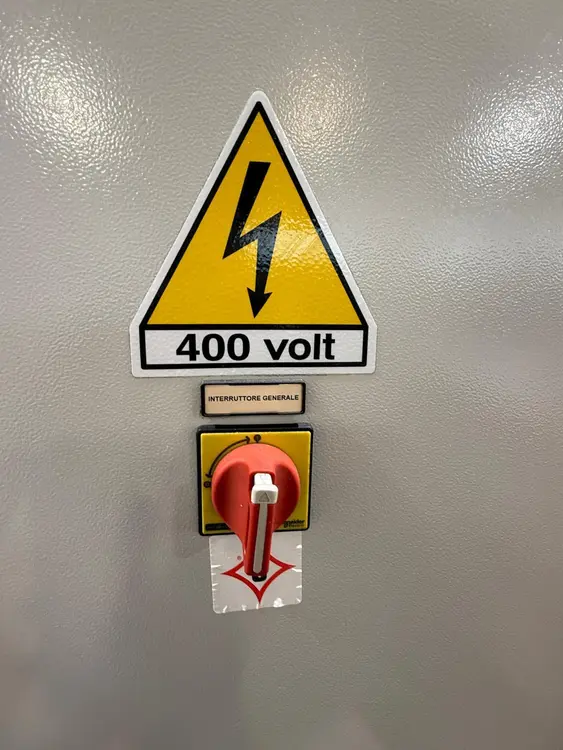

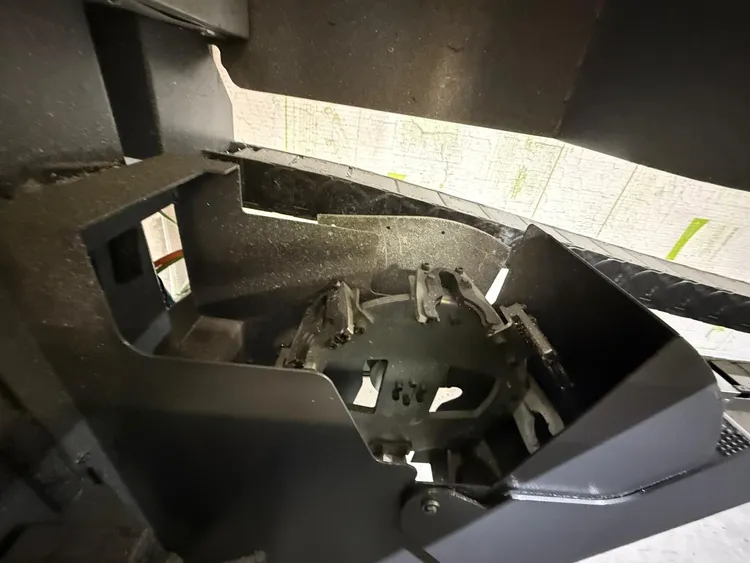

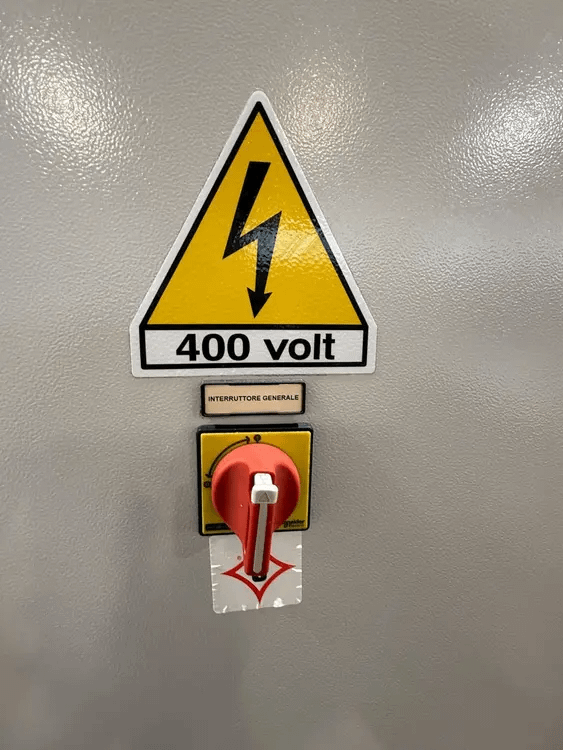

THE 2020 ITALMAC PEGASO 9MT 4A IS A 4-AXIS CNC MACHINING CENTER DESIGNED FOR ALUMINUM AND LIGHT ALLOY PROCESSING. THE MACHINE FEATURES AN X-AXIS TRAVEL OF 9,470 MM, A Y-AXIS TRAVEL OF 1,325 MM, AND A Z-AXIS TRAVEL OF 600 MM. AXIS ROTATION CAPABILITIES INCLUDE A-AXIS ROTATION (AROUND X) FROM –120° TO +120° AND C-AXIS ROTATION (AROUND Z) FROM –240° TO +240°. THE MAXIMUM AXIS SPEEDS ARE 100 M/MIN FOR THE X-AXIS, 60 M/MIN FOR THE Y-AXIS, AND 30 M/MIN FOR THE Z-AXIS. IT IS EQUIPPED WITH AN HSK F63 TOOL TAPER SPINDLE CAPABLE OF A MAXIMUM SPEED OF 24,000 RPM. THE MACHINE OPERATES ON 400 VOLTS, 60 HZ, WITH A 15 KW POWER REQUIREMENT AND A 20 AMP DRAW. IT INCLUDES 15 POSITIONS FOR THE TOOL HOLDER, FIXED ON THE CARRIAGE.
