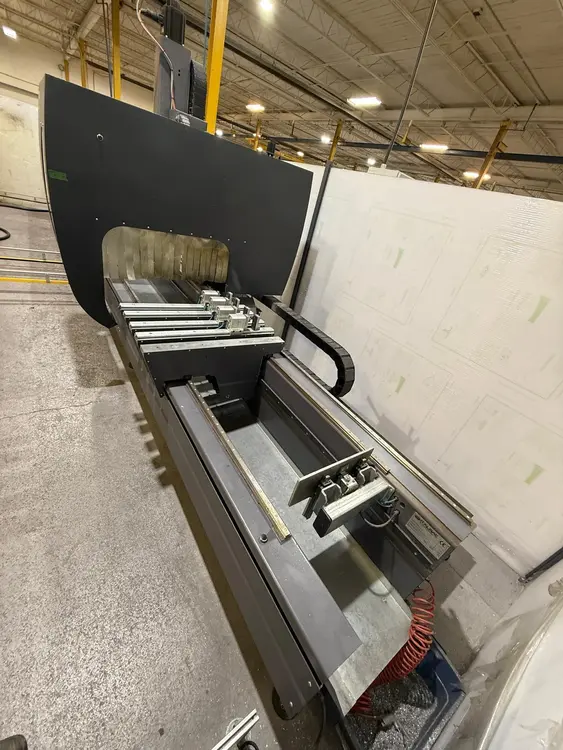

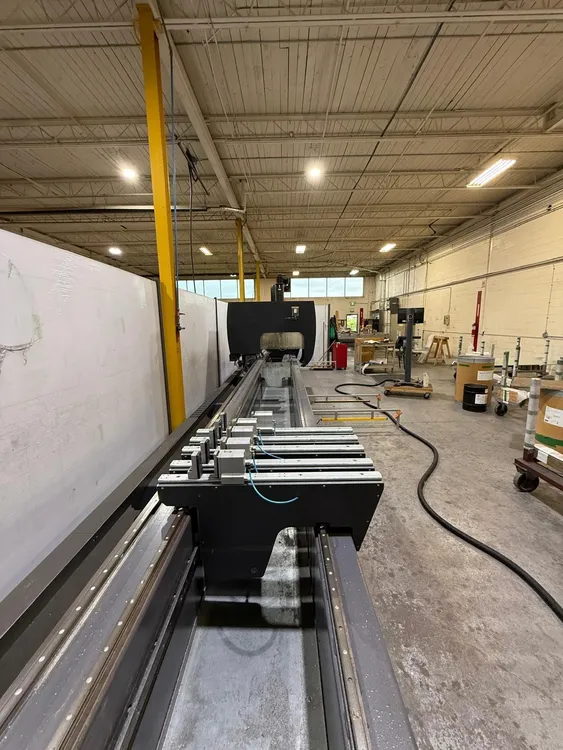

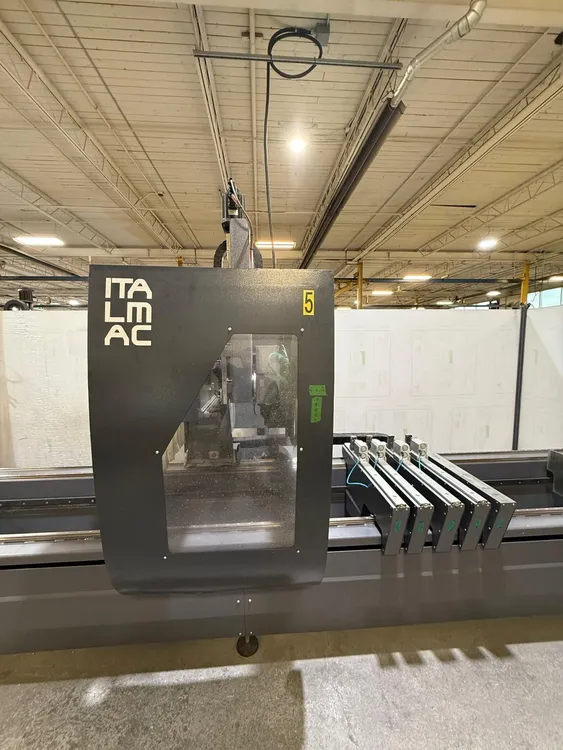

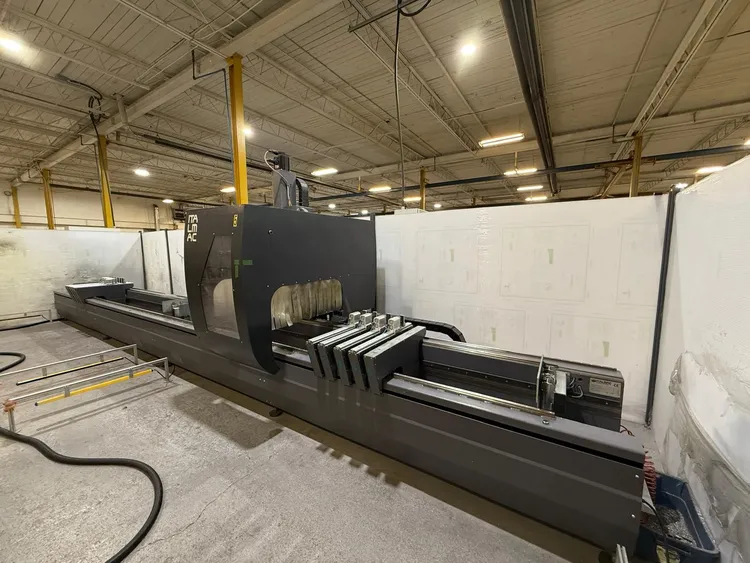

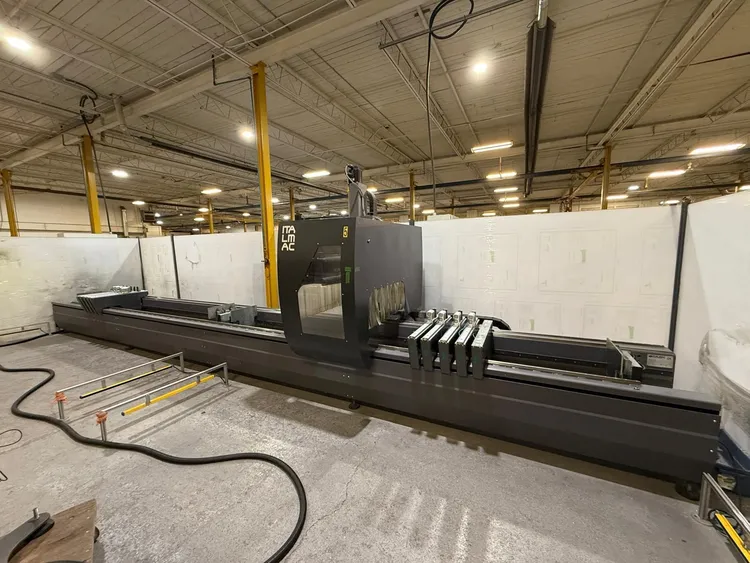

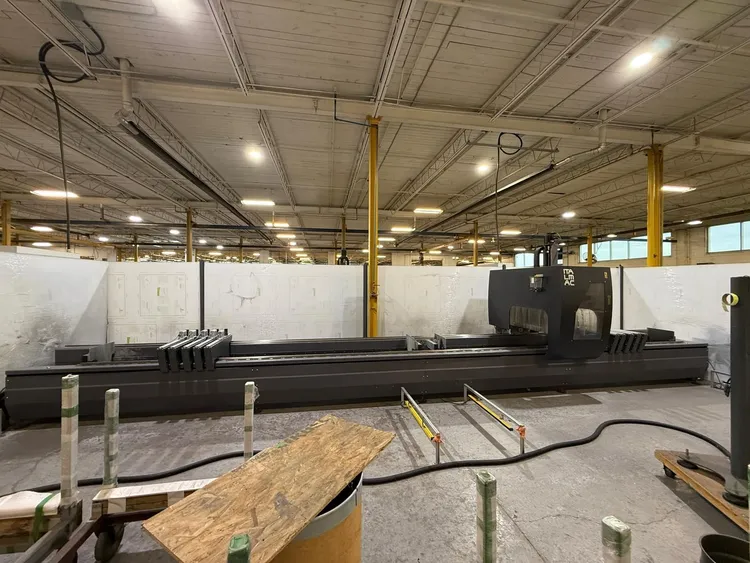

2020 ITALMAC PEGASO 9MT 4A CNC MACHINING CENTER 4-AXIS

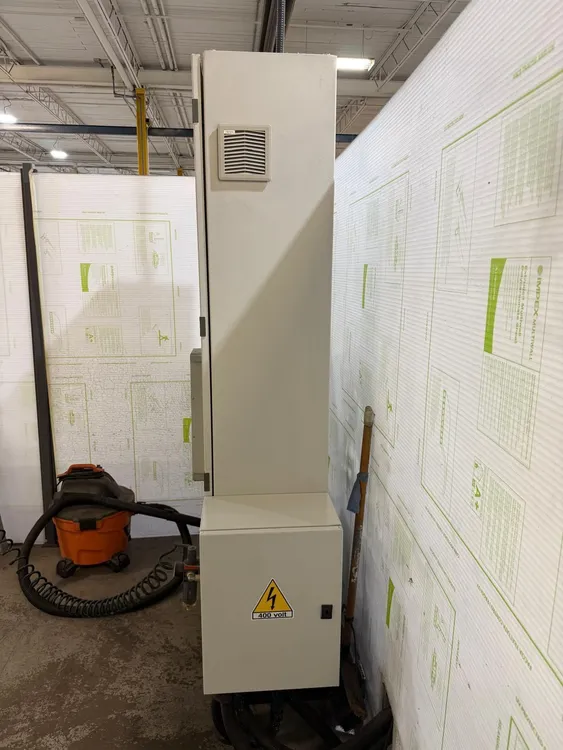

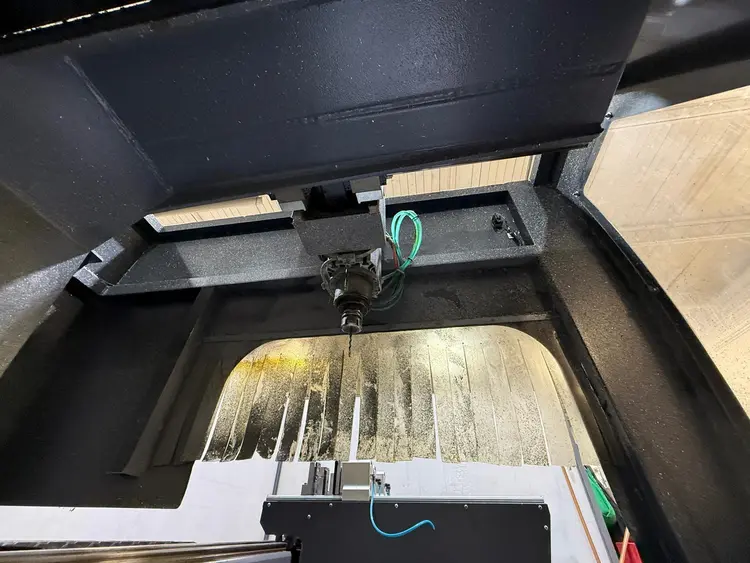

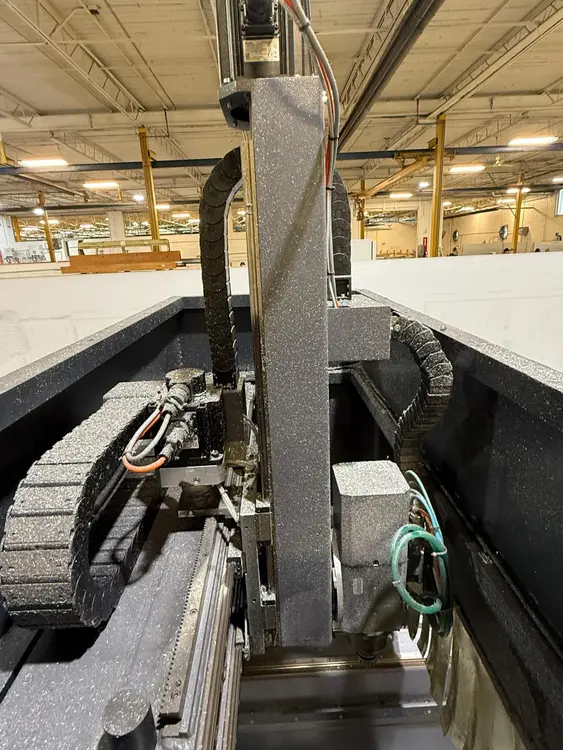

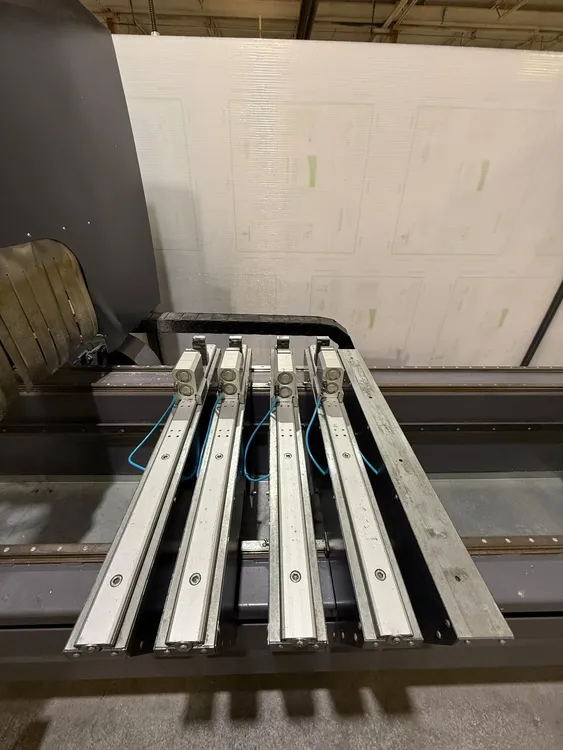

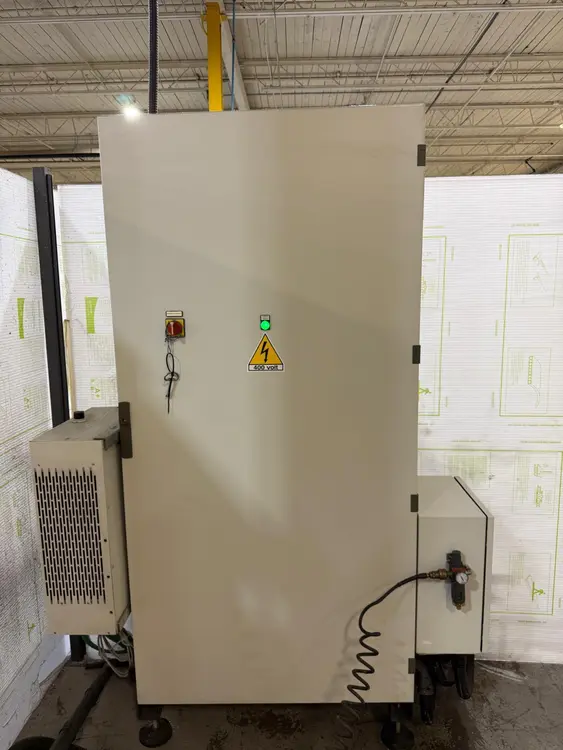

THE 2020 ITALMAC PEGASO 9MT 4A IS A 4-AXIS CNC MACHINING CENTER FEATURING AN X-AXIS LONGITUDINAL TRAVEL OF 9,470 MM (372.8 IN), A Y-AXIS CROSS TRAVEL OF 1,325 MM (52.2 IN), AND A Z-AXIS VERTICAL TRAVEL OF 600 MM (23.6 IN). THE MACHINE IS EQUIPPED WITH AN A-AXIS ROTATION RANGING FROM -120° TO +120° (OR -90° TO +90° DEPENDING ON THE SOURCE) AND A C-AXIS ROTATION FROM -240° TO +240° (OR -185° TO +185° DEPENDING ON THE SOURCE). AXIS SPEEDS ARE X 100 M/MIN, Y 60 M/MIN, AND Z 30 M/MIN. THE ELECTRIC SPINDLE POWER IS 10 OR 12 KW, WITH AN ADJUSTABLE ELECTRO SPINDLE SPEED UP TO 24,000 RPM. THE MACHINE INCLUDES A 15-POSITION TOOL HOLDER FIXED ON THE CARRIAGE (EXPANDABLE UP TO 30) AND 10 AUTOMATIC STANDARD CLAMPS FOR THE MODEL 9.0 VERSION. ITS DIMENSIONS ARE 11,800 X 3,100 X 2,500 MM, AND IT WEIGHS 5,400 KG. POWER REQUIREMENTS ARE 400 VOLT 60 HZ 15 KW 20 AMP.
