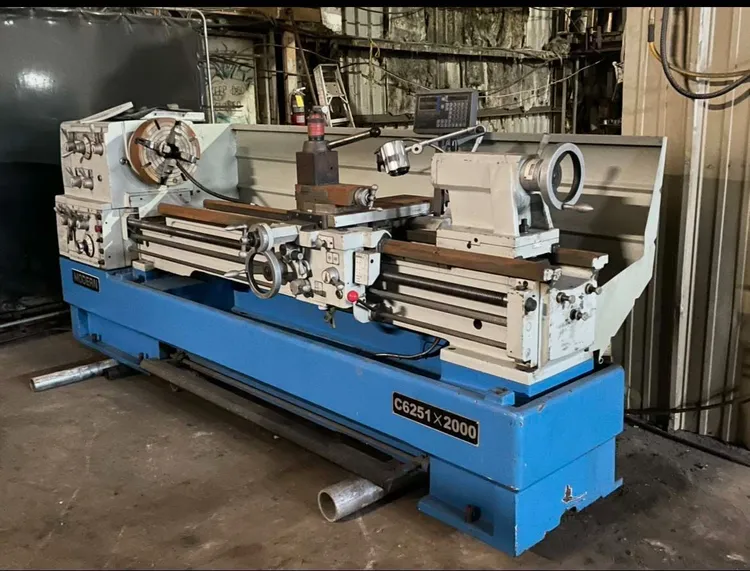

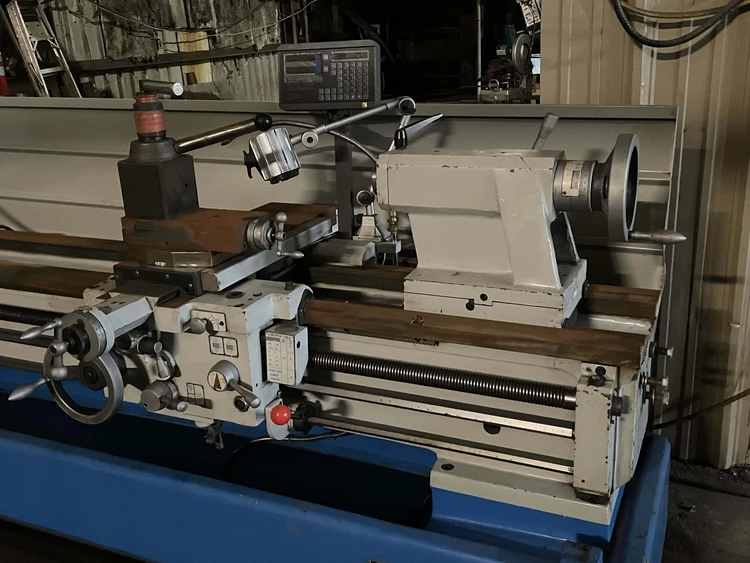

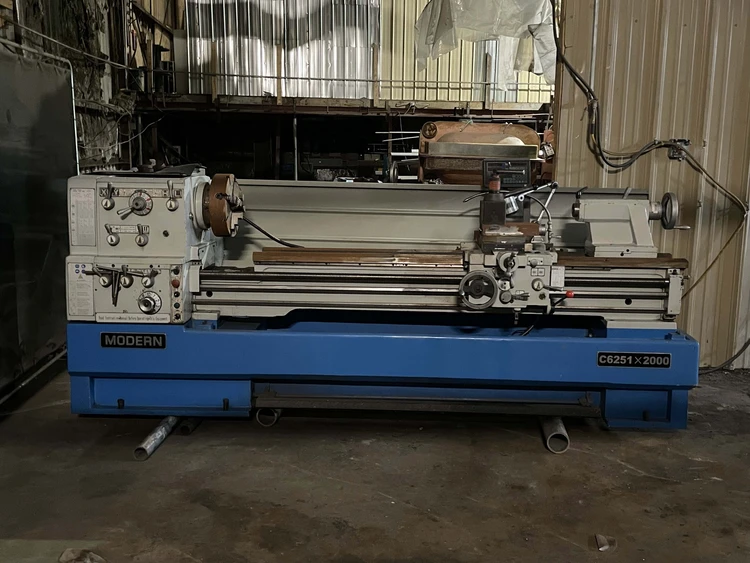

2020 MODERN C6251 LATHE

THE 2020 MODERN C6251 LATHE IS A GAP BED PRECISION ENGINE LATHE. KEY SPECIFICATIONS INCLUDE A DISTANCE BETWEEN CENTERS OF 2000MM (80") AND A SWING OVER THE BED OF 510MM (20"). THE SWING IN THE GAP IS 735MM (29") WITH A GAP LENGTH OF 200MM (8"). THE SPINDLE BORE IS 80MM (3-1/8") WITH A D1-8 SPINDLE NOSE AND A NO. 7 MORSE TAPER. IT FEATURES A 7.5KW (10HP) MAIN MOTOR AND OFFERS 12 SPINDLE SPEED CHANGES RANGING FROM 25 TO 1600 R/MIN. THE WIDTH OF THE BED IS 350MM (13-3/4"). TRAVEL OF THE CROSS SLIDE IS 316MM (12-15/16") AND THE COMPOUND REST TRAVEL IS 130MM (5-1/8"). LONGITUDINAL FEEDS RANGE FROM 0.059-1.646MM/REV (0.0022"-0.0612"/REV), AND THE MACHINE CAN CUT METRIC THREADS FROM 0.2-14MM AND INCH THREADS FROM 2-112 T.P.L. THE OVERALL DIMENSIONS FOR THE 2000MM MODEL ARE APPROXIMATELY 334CM X 115CM X 143CM (L×W×H).
