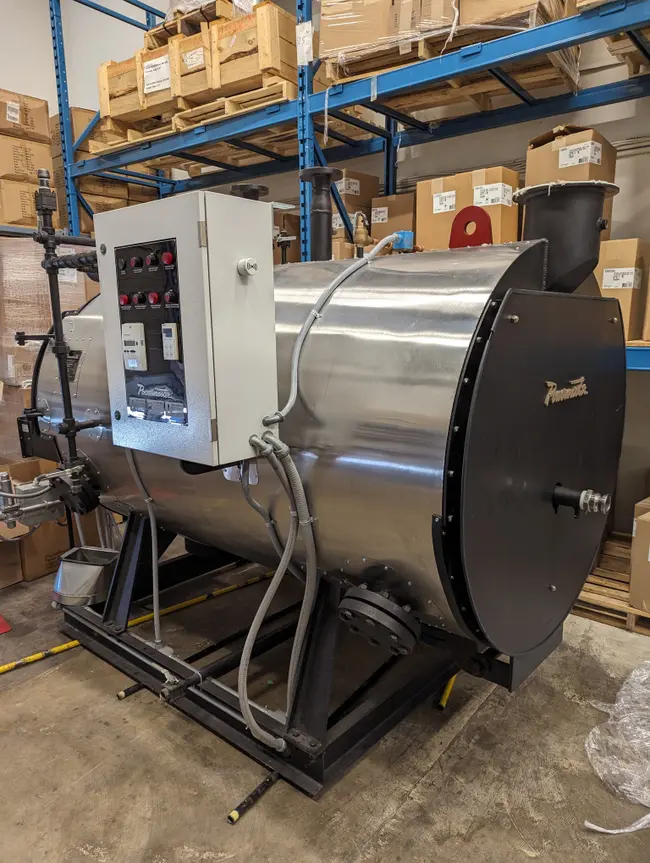

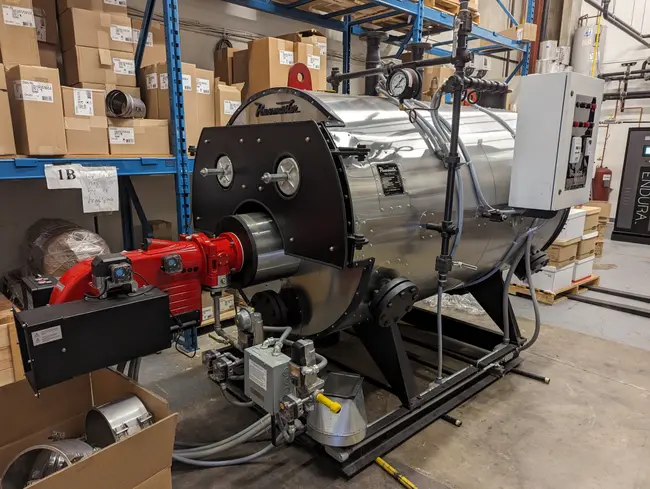

2020 POWERMASTER SWB 30 HP FIRE TUBE BOILER WITH 2020 WEISHAUPT BURNER

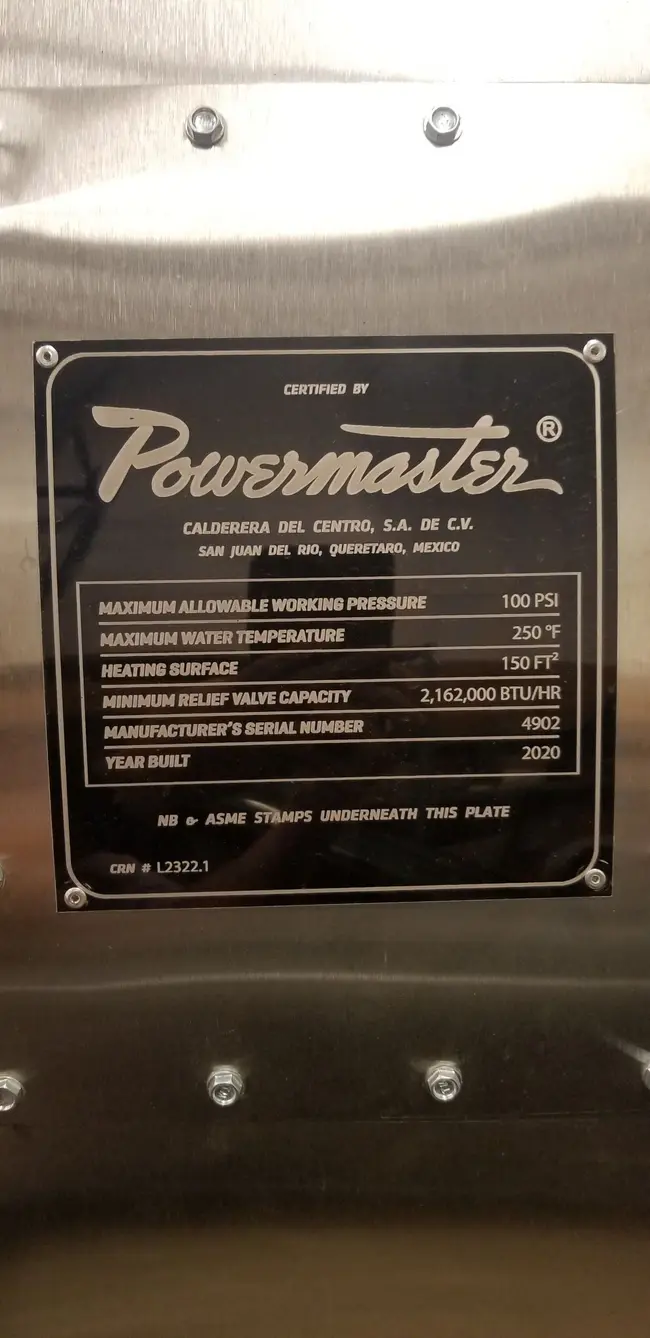

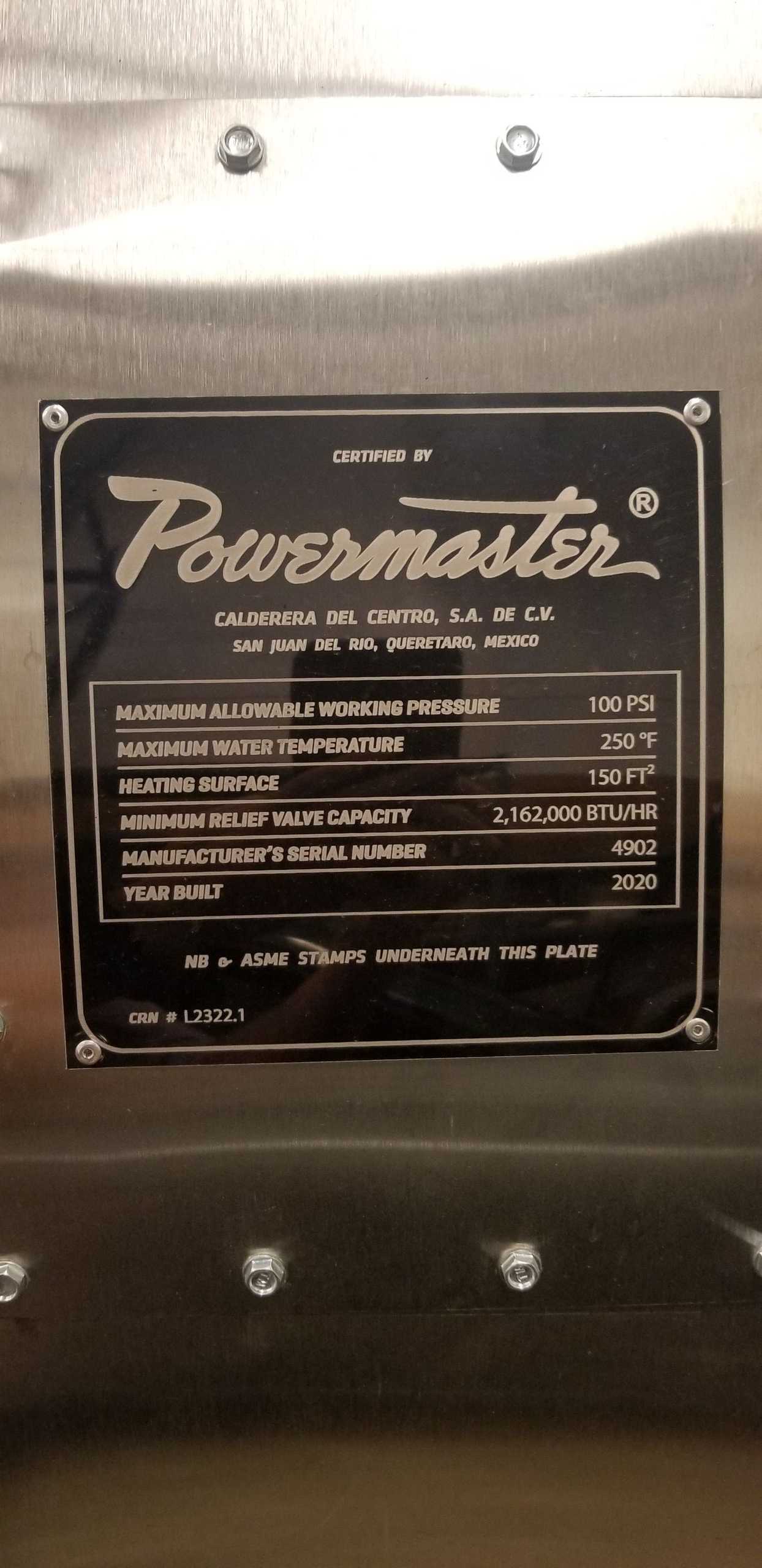

2020 POWERMASTER SWB 30 HP FIRETUBE HOT WATER BOILER WITH 2020 WEISHAUPT BURNER. BOILER RATING: 30.0 BHP, BOILER INPUT (NATURAL GAS): 1004 FT^3/HR, BOILER OUTPUT: 1,004,000 MBH, TRIM PRESSURE: 30 PSIG, GAS PRESSURE REQ.: 5""WC TO 2 PSI, ELECTRICAL REQ.: 575/60/3 3 AMPS, TURNDOWN 5:1. WEIGHTS & CLEARANCES: REC. CLEARANCE: 24"" SIDES/REAR, 36"" FRONT, EMPTY WEIGHT: 4154 LBS, FLOODED WEIGHT: 7306 LBS. CONNECTION SIZES: GAS INLET: 0.75"", RELIEF VALVE: 0.75"" NPT, HW INLET & OUTLET: 2.5"" NPT, STACK 9"". FITTED & BEP TESTED TRIM: C/W 30' OF VENTING, C/W ISOLATION GATE VALVES, SIEMENS VENTLESS GAS TRAIN. STANDARD BOILER FEATURES: PARALLEL POSITIONING COMBUSTION PLATFORM, MAXIMUM WATER TEMP. OF 250F, EASY TO SERVICE SWING-OUT BURNER, MAXIMUM ALLOWABLE WORKING PRESSURE: 100 PSI, HEATING SURFACE: 150^2, MINIMUM RELIEF VALVE CAPACITY: 2,162,000 BTU/HR, LESS THAN 120 RUN-TIME HOURS. 2020 WEISHAUPT WM-G10/2-A, ZM-LN (S/N: 40589041) NATURAL GAS WM-SERIES MONARCH BURNER. 1000 BTU/CU-FT, 250-2150 MBTUH, INLET PRESSURE: 2 PSI MAX, MANIFOLD PRESSURE: 4.28"" WC, MOTOR 1.34HP, 575V, 60HZ, 3PH, 1.7FLA.
