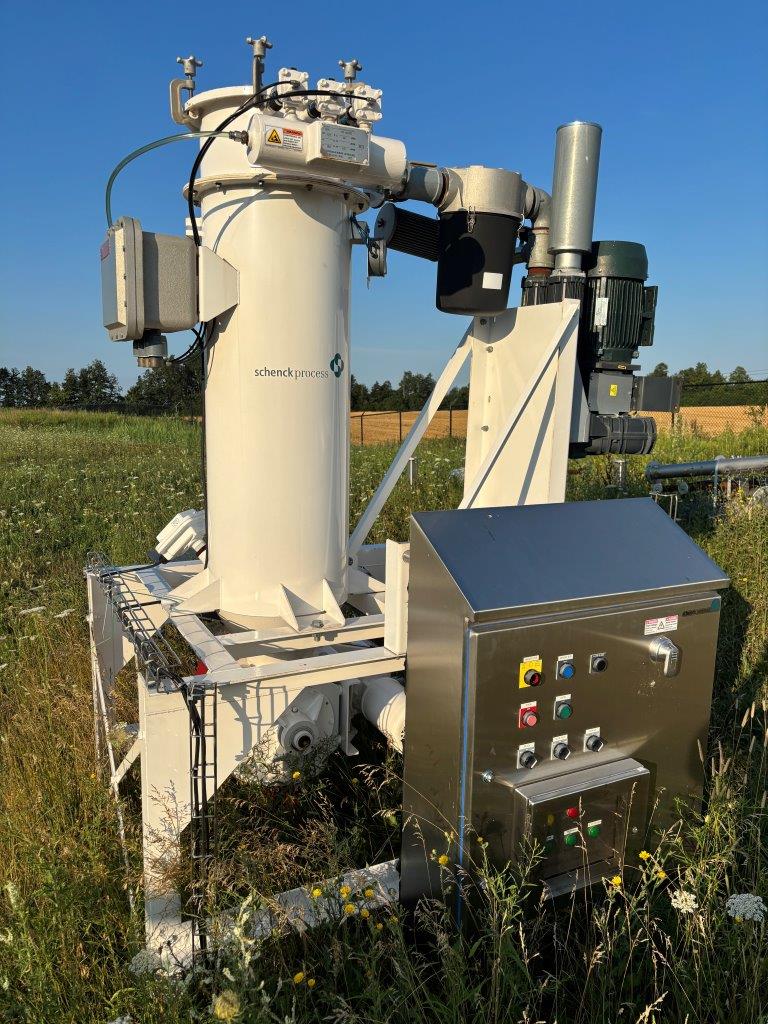

2020 SCHENCK PROCESS FILTER ASSEMBLY

COMPLETE WITH: -10 HP-575V-60-3 REGENERATIVE BLOWER. 3" NPT INLET AND OUTLET CONNECTIONS. CLASS I, GROUP D, CLASS II GROUPS F & G EXPLOSION PROOF MOTOR. BLOWER CASTINGS ARE ANODIZED FOR CORROSION RESISTANCE AND IMPREGNATED WITH POLYESTER RESIN TO MINIMIZE LEAKAGE. -3" FPT INLINE FILTER WITH POLYESTER ELEMENT. -INDOOR INLET FILTER - EXPOSED POLYESTER ELEMENT -CALIBRATION OF SAFETY VALVE FOR VACUUM SERVICE. VALVE WILL BE SET AT 10" H2O BELOW THE MAXIMUM RATED VACUUM OF THE BLOWER -SILENCER - STEEL - MALE X ENDMOUNT - GAS THREADS -VACUUM GAUGE - 0-200" H2O - 2.5" DIAL 1/4" BACKMOUNT -SAFETY VALVE - 2" NPT -STAINLESS STEEL IDENTIFICATION TAG
