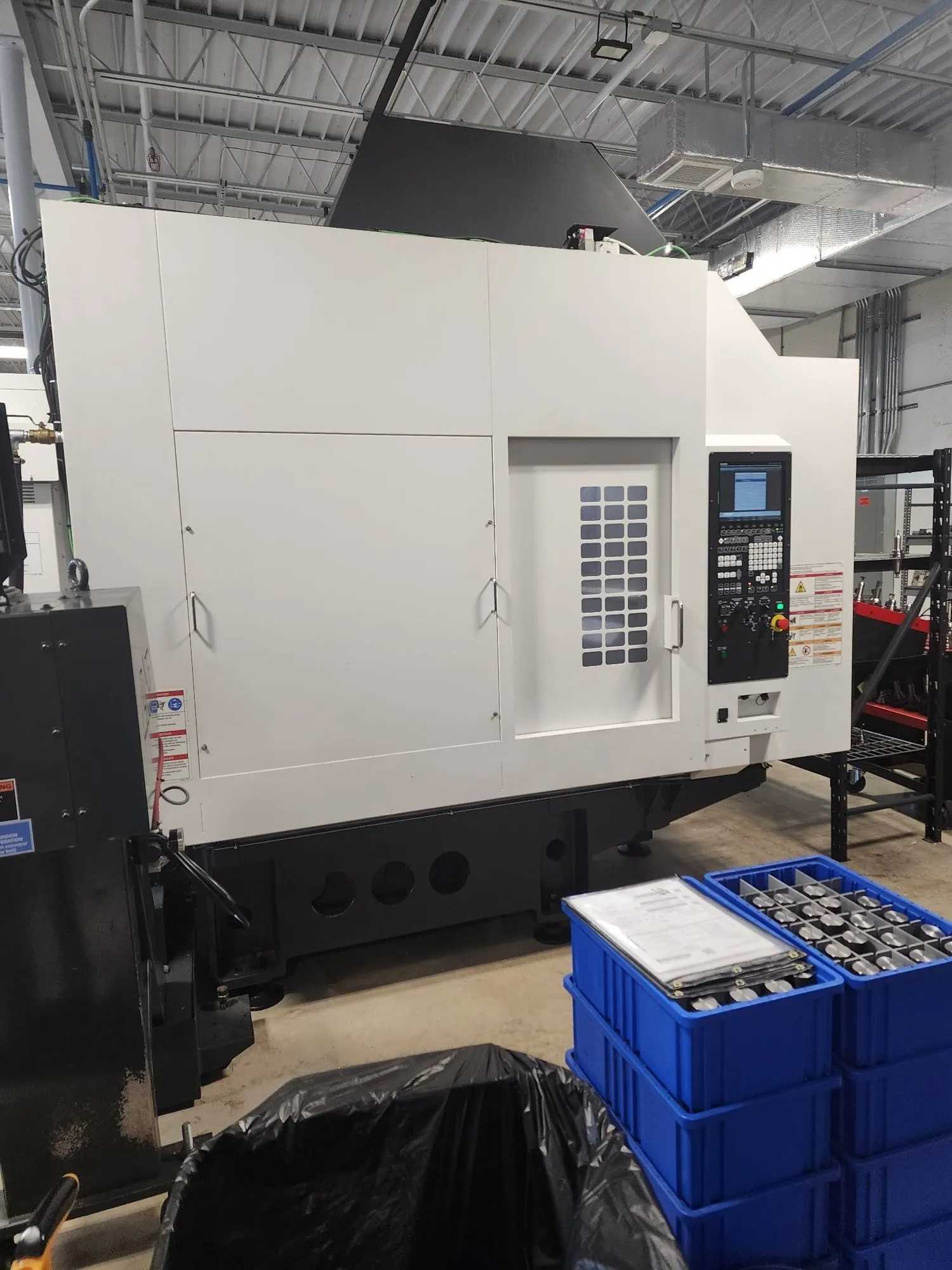

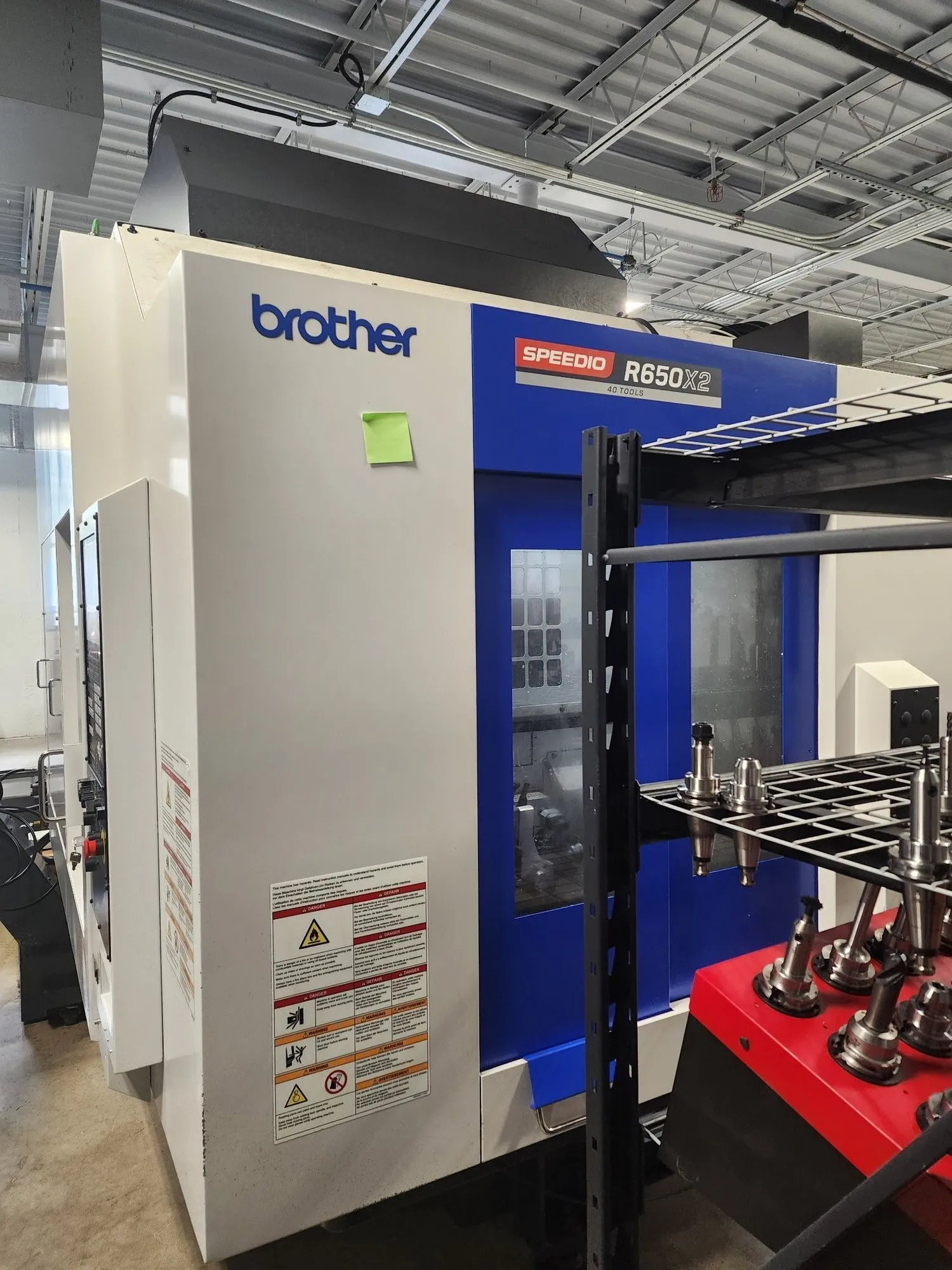

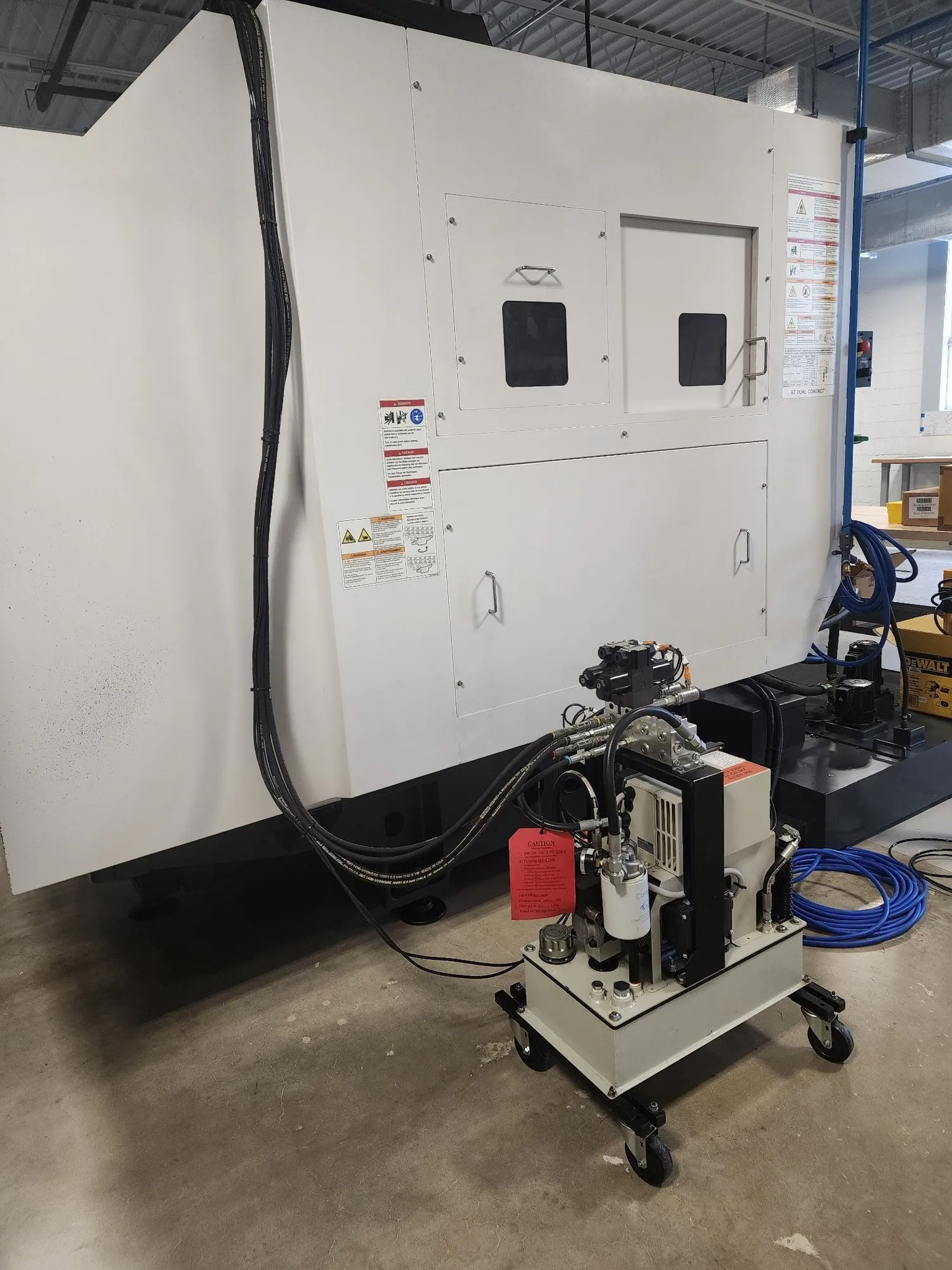

2021 Brother Speedio R650X2 CNC Machining Center With Upgrades, 17 HP, 16000 RPM

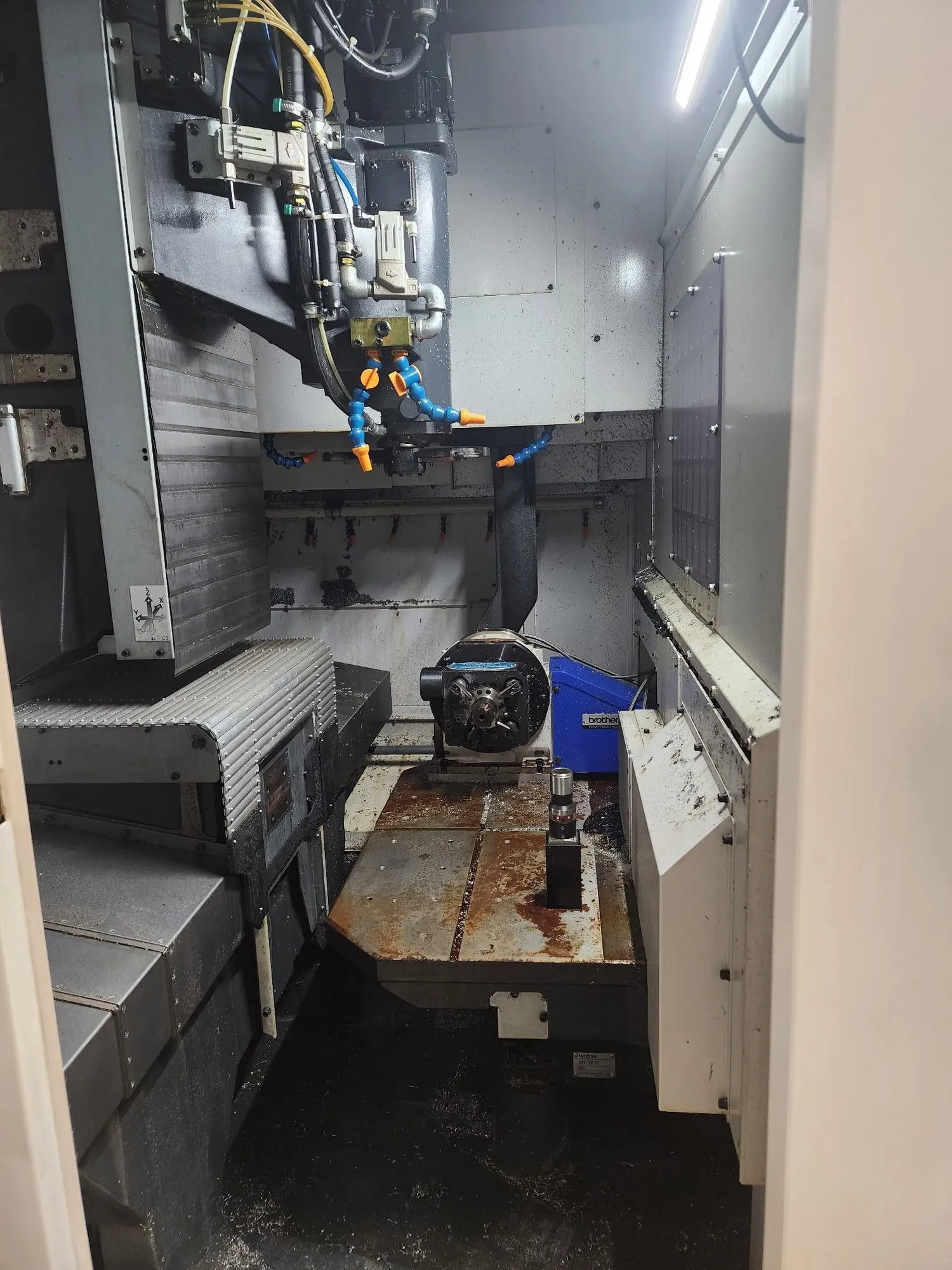

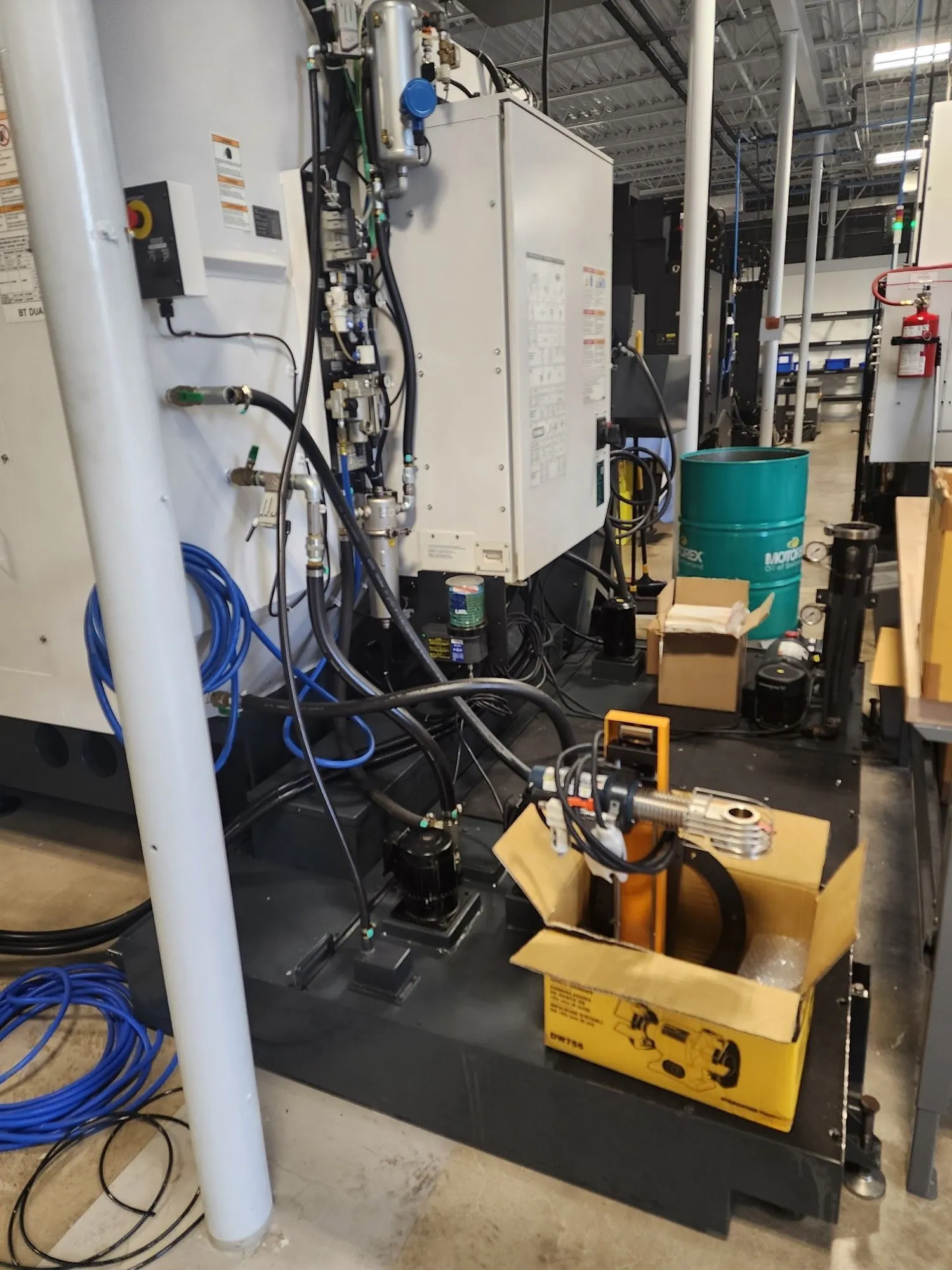

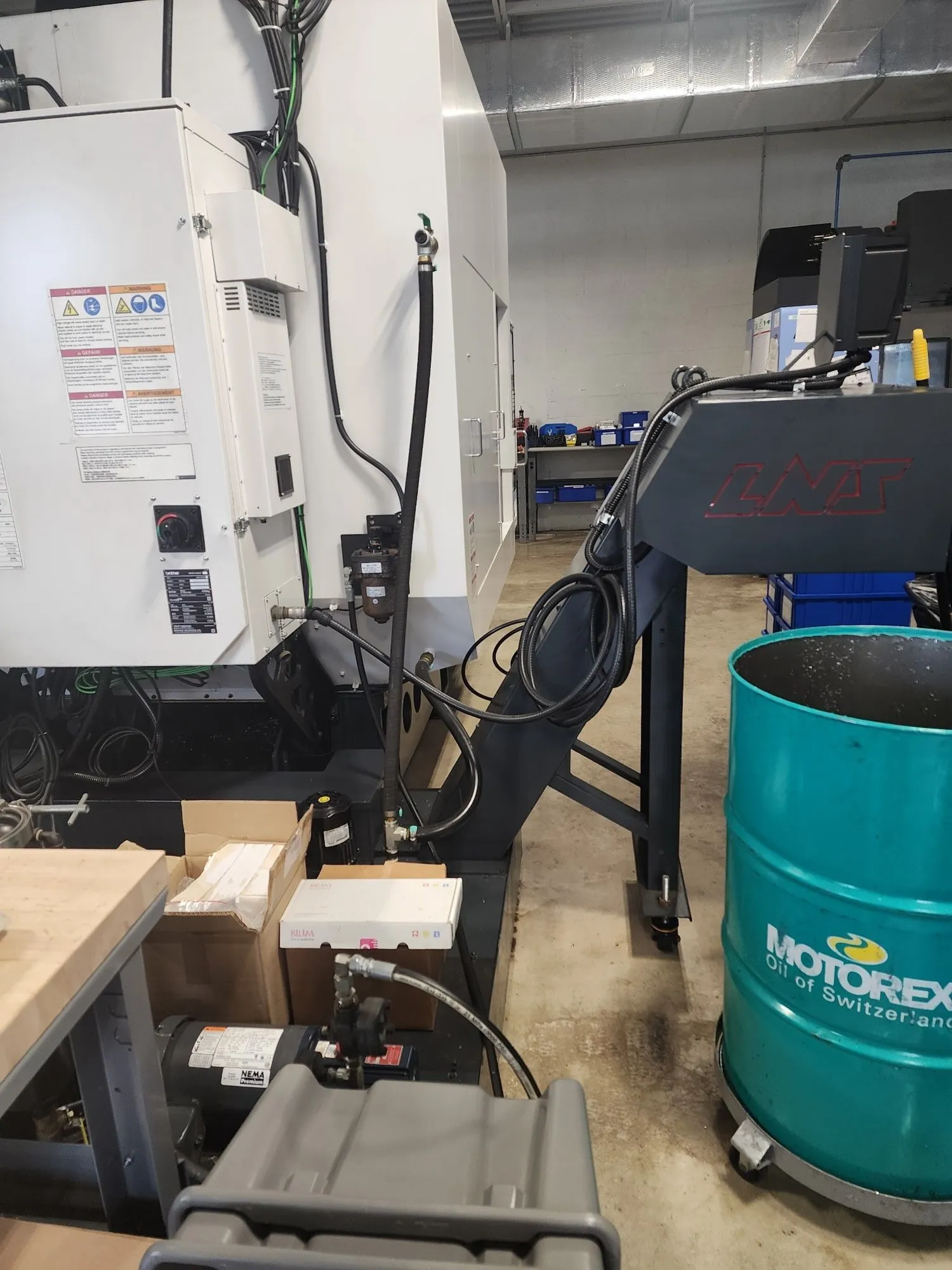

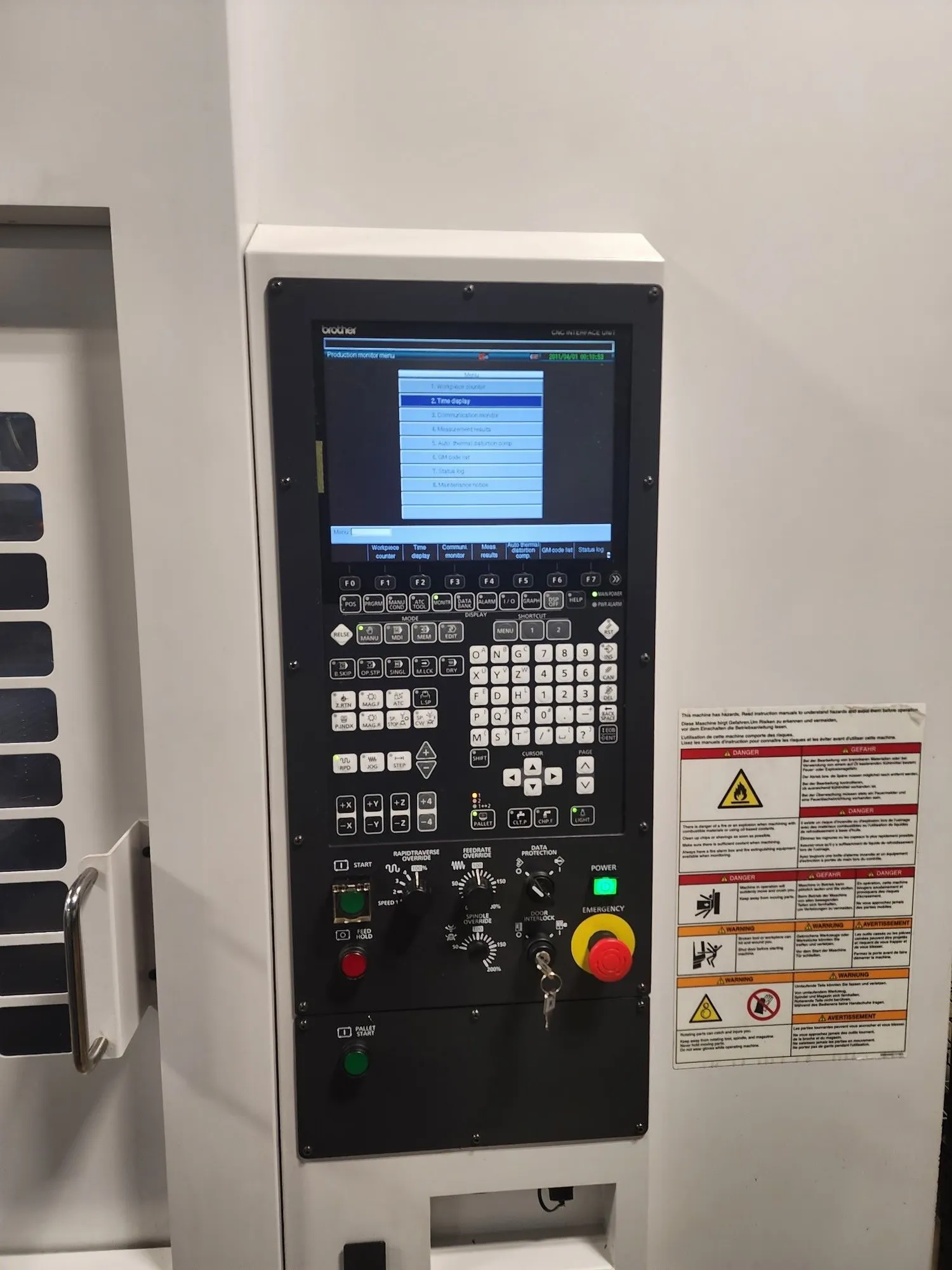

The 2021 Brother Speedio R650X2 is a high-efficiency, used CNC drilling and tapping center designed for high-speed precision machining applications. Equipped with a Brother CNC-C00 control featuring a built-in PLC, this machine includes a Brother T-200A rotary table and a 40-tool capacity high-speed Automatic Tool Changer (ATC) with a BT30/BBT-30 taper connection. Driven by a 17 HP (17.0 kW) low-inertia IPM main spindle motor with 9.8/6.5 HP continuous rating, the machine features a 16,000 RPM BBT CTSI spindle that supports rapid traverse rates of 1,969 IPM along the X, Y, and Z axes. Axis travel measurements include 25.6 inches in X, 16.7 inches (or 15.7 inches) in Y, and 17.1 inches in Z, operating over a worktable surface measuring 31.5 inches by 15.7 inches. Integrated auxiliary systems feature a 1,000 PSI high-pressure coolant pump, a 250-liter coolant tank capacity, a chip shower system, a dedicated tool washing system, an automatic grease lubrication system, and an integrated chip conveyor. In-process inspection and alignment are facilitated by a Blum probing system. The structural enclosure includes complete protective covers featuring a full ceiling cover paired with a safety door interlock system for optimized operation.
