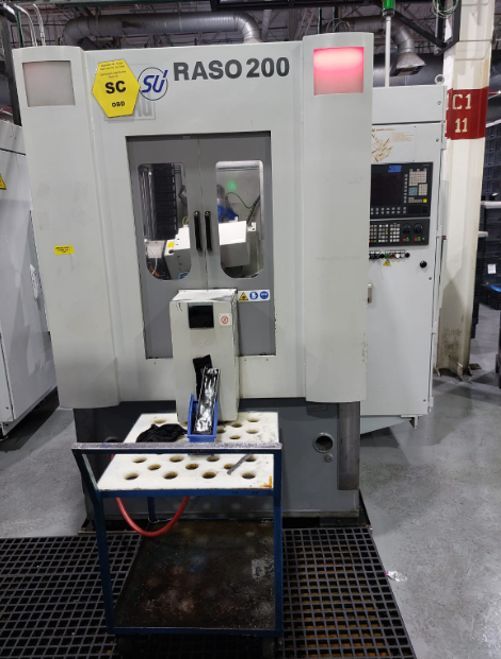

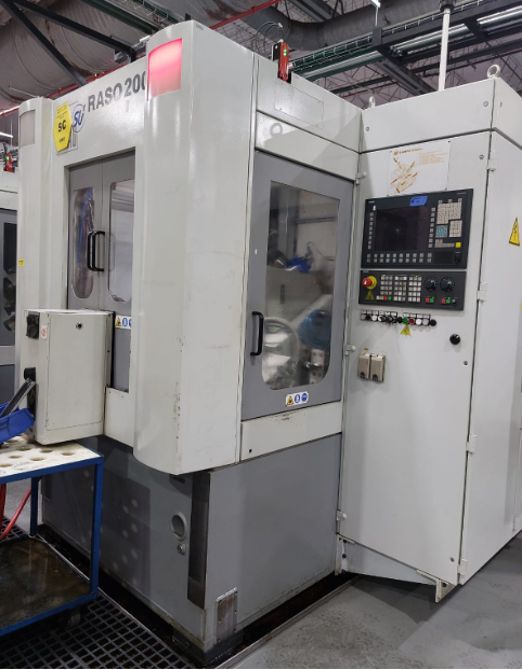

2021 EMAG SU RASO 200 SHAVING MACHINE

- WORKPIECE MIN./MAX. MODULE: 0.87 – 3.5 MM MAXIMUM FACE TO BE SHAVED (3 AXES – PLUNGE CYCLE ONLY): 42 MM MAXIMUM FACE TO BE SHAVED (5 AXES): 100 MM - WORKING AREA MIN./MAX. CENTER DISTANCE BETWEEN SHAVING CUTTER AND WORKPIECE: 110 / 202 MM - TOOL MIN./MAX. DIAMETER OF SHAVING CUTTER: 178 / 245 MM SHAVING CUTTER BORE DIAMETER: 63.5 MM (100 MM) MIN./MAX. SHAVING CUTTER WIDTH: 19 / 50.8 MM - ELECTRICAL INSTALLED POWER (WITH PUMP AND COOLANT FILTER): 24 KVA OPERATING VOLTAGE/FREQUENCY (STANDARD EXECUTION): 400 V ±10%, 50 HZ AUXILIARY CIRCUITS (STANDARD EXECUTION): 24 V DC NET MASS (ELECTRICAL CABINET INCLUDED): 4000 KG - MACHINE AXES DATA (WITHOUT LOADER) "X" AXIS – CROWNING DEVICE (CROWNING AND TAPERING) READING: 0.001 MM SPEED: 500 MM/MIN STROKE: ±12.5 MM / ±1.7 DEGREES "Z" AXIS – CUTTER HEAD RADIAL STROKE READING: 0.001 MM RAPID POSITIONING SPEED: 250 MM/MIN WORKING SPEED IN PLUNGE: 0.1 / 4 MM/MIN MINIMUM FEED: 0.01 MM STROKE: 92 MM "U" AXIS – CUTTER HEAD ANGULAR POSITIONING READING: 0.001 DEGREES SPEED: 720 DEGREES/MIN ROTATION: -25 / +45 DEGREES "SPINDLE" AXIS – SHAVING CUTTER ROTATION SPEED: ±(10 / 400) RPM
