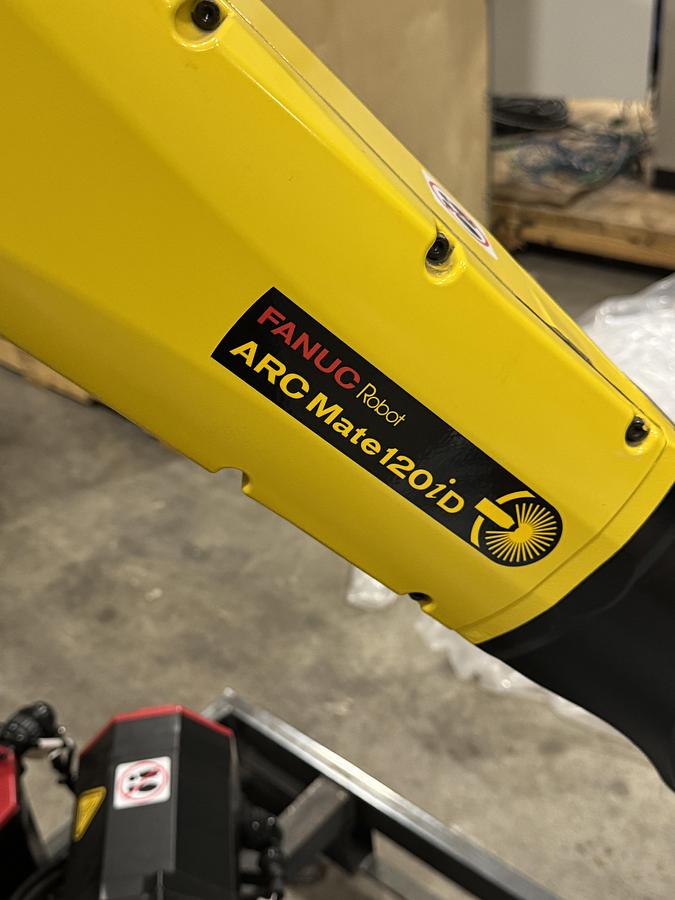

2021 FANUC Arc Mate 120ID Articulated Robot, 25kg Payload, 1831mm Reach, R-30iB Plus Control

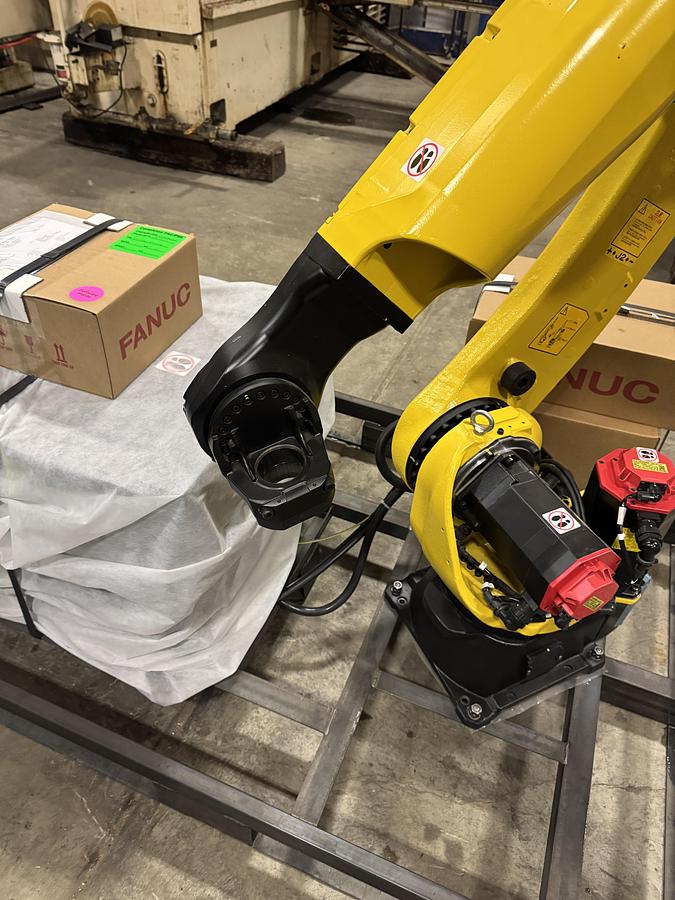

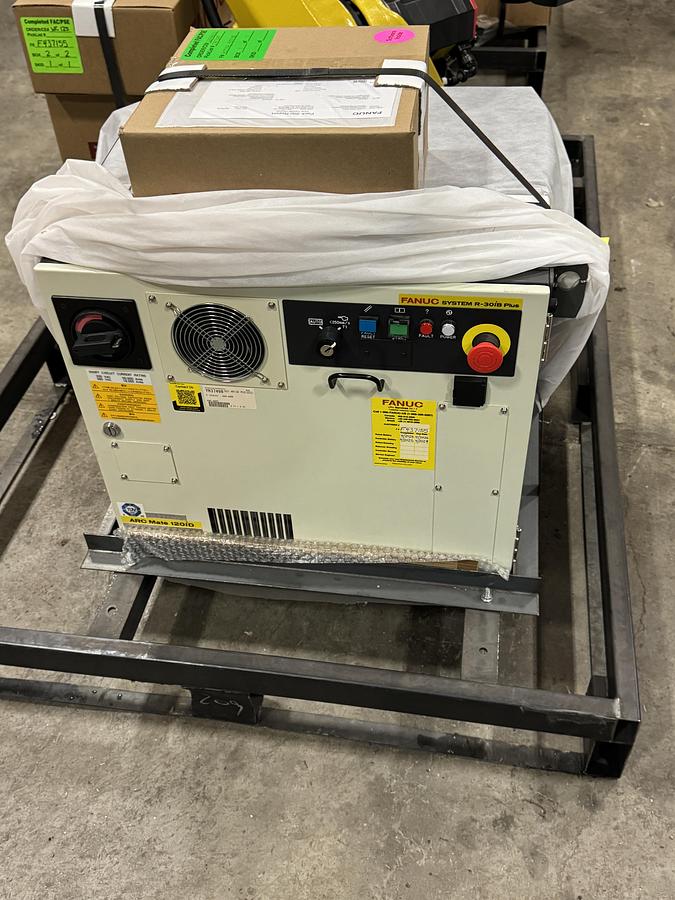

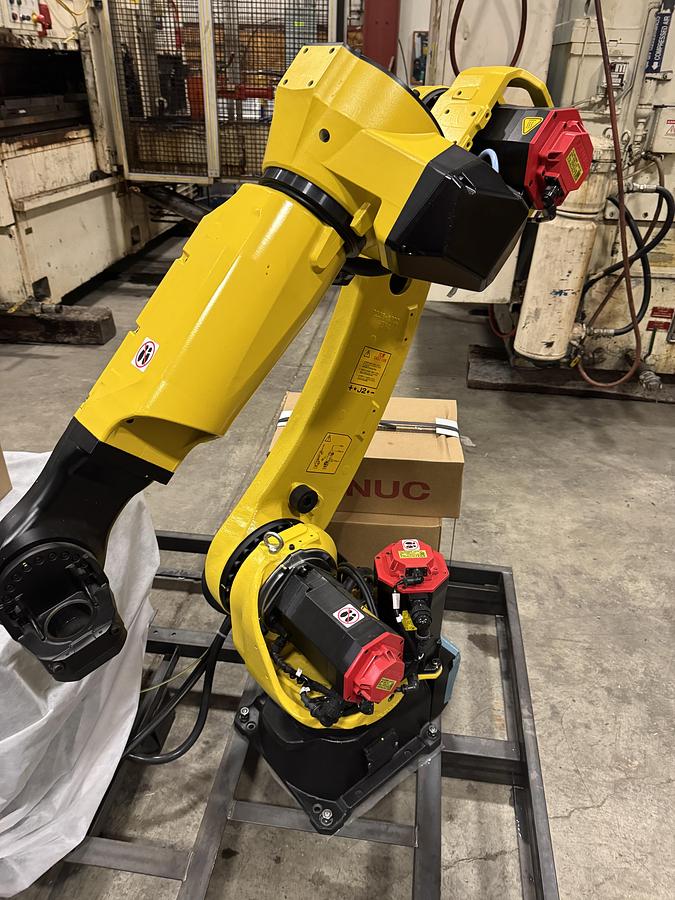

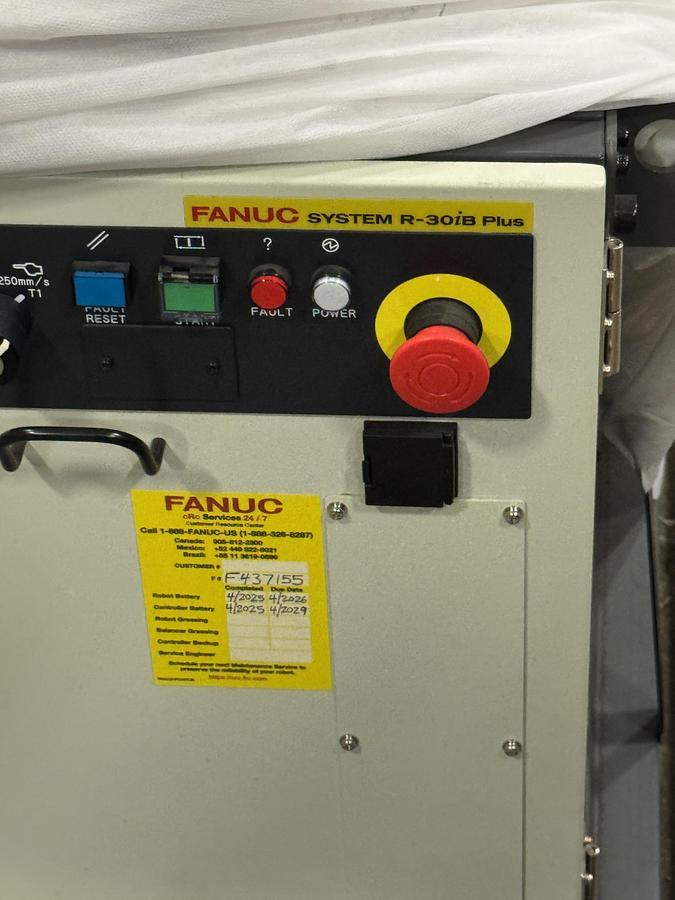

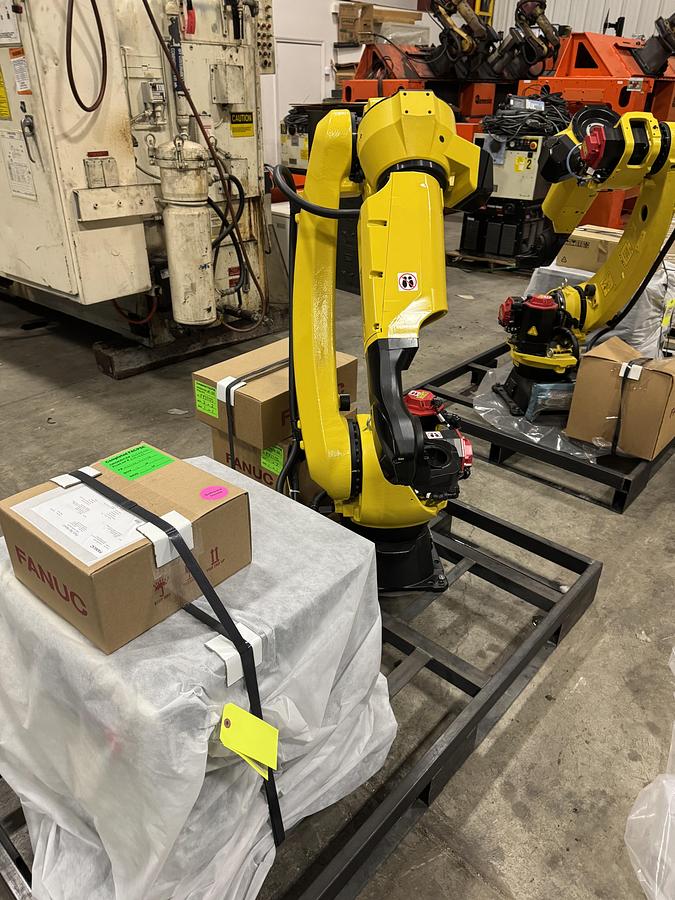

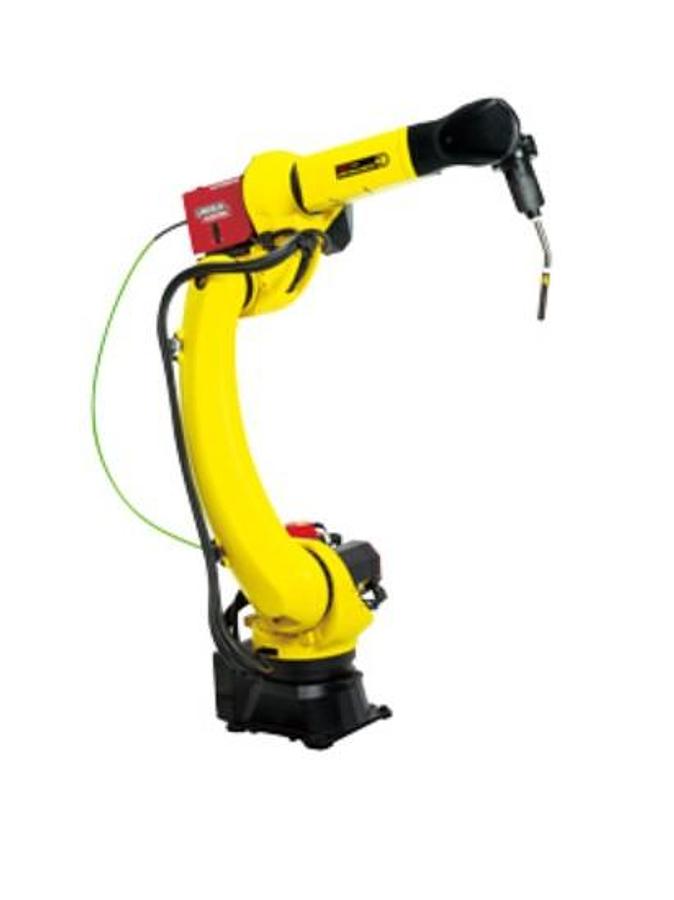

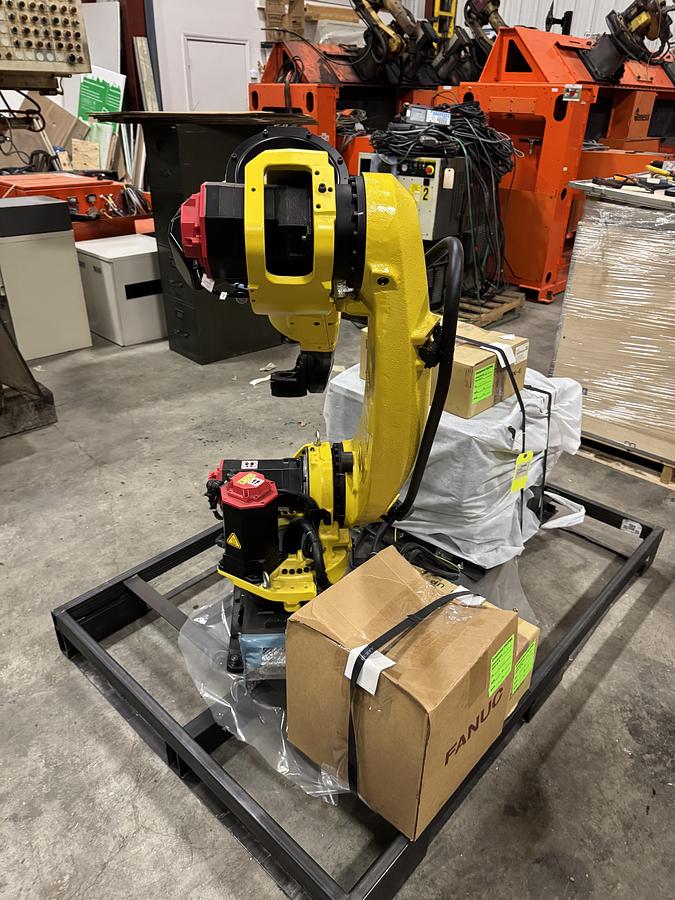

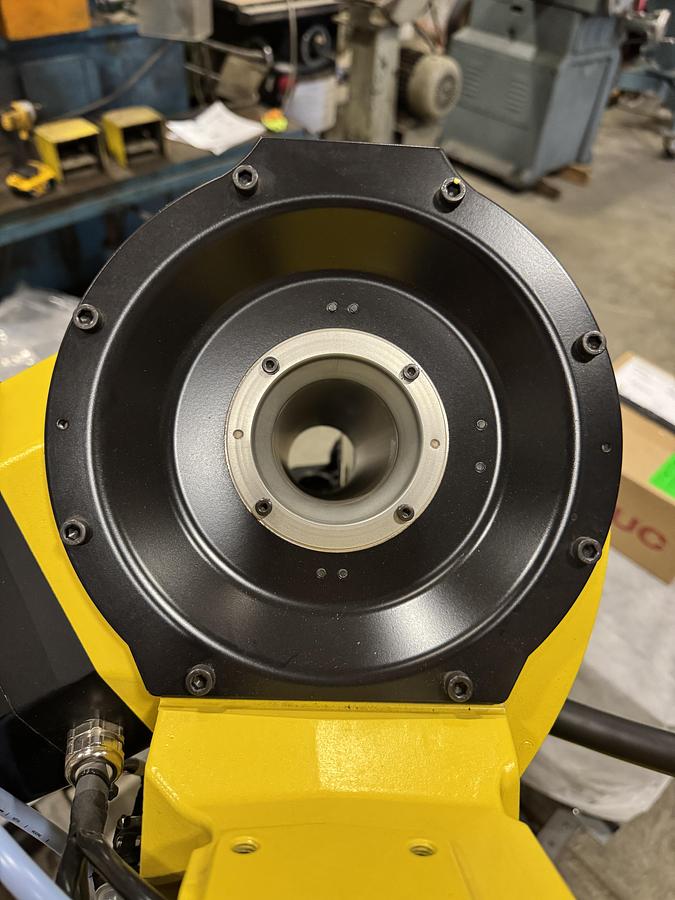

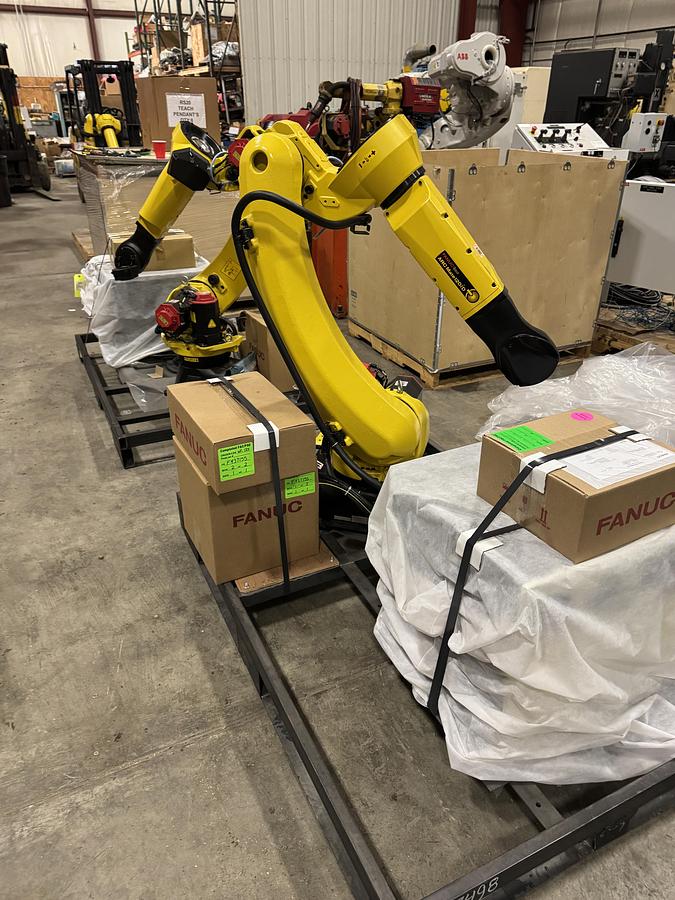

The 2021 FANUC Arc Mate 120ID is a six-axis articulated robot designed for applications such as arc welding, plasma cutting, water jet cutting, material handling, and inspection. It features a 25 kg payload capacity, a 1831 mm reach, and a repeatability of ± 0.02 mm. The robot mass is 250 kg and it supports floor, inverted, and angle mounting. Axis motion speeds are 210°/s for J1 and J2, 265°/s for J3, 420°/s for J4 and J5, and 700°/s for J6. The motion range for the axes is J1 ±340°, J2 ±260°, J3 ±458°, J4 ±400°, J5 ±360°, and J6 ±900°. The system is equipped with an R-30iB Plus controller, a teach pendant, and a hollow wrist design for internal cable routing.
