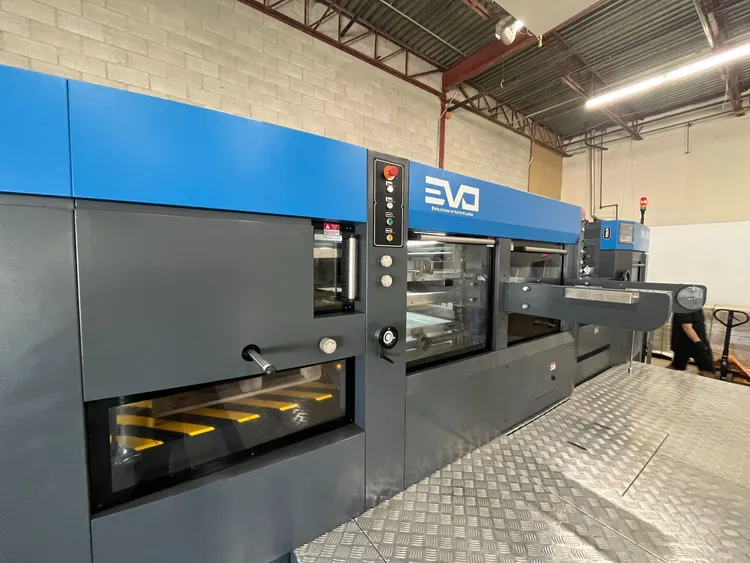

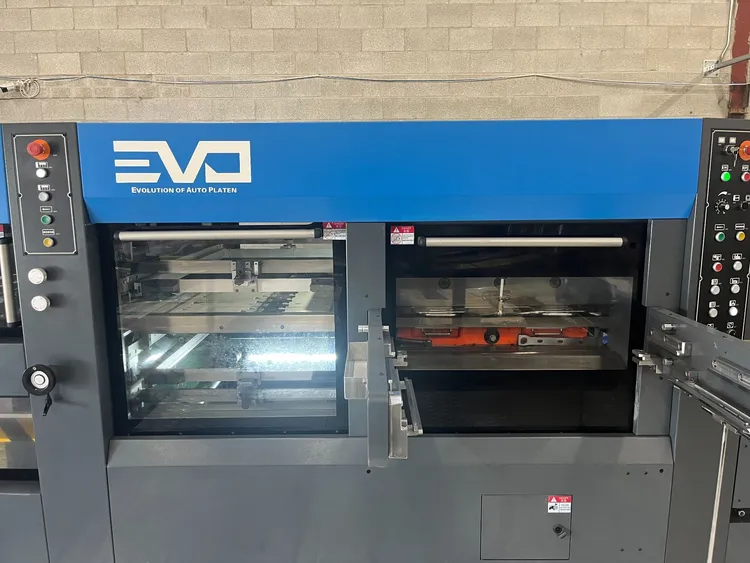

2021 SHM SH-1060SE DIE CUTTING/STRIPPING MACHINE, 8000 RPH, 1060X750MM MAX SHEET

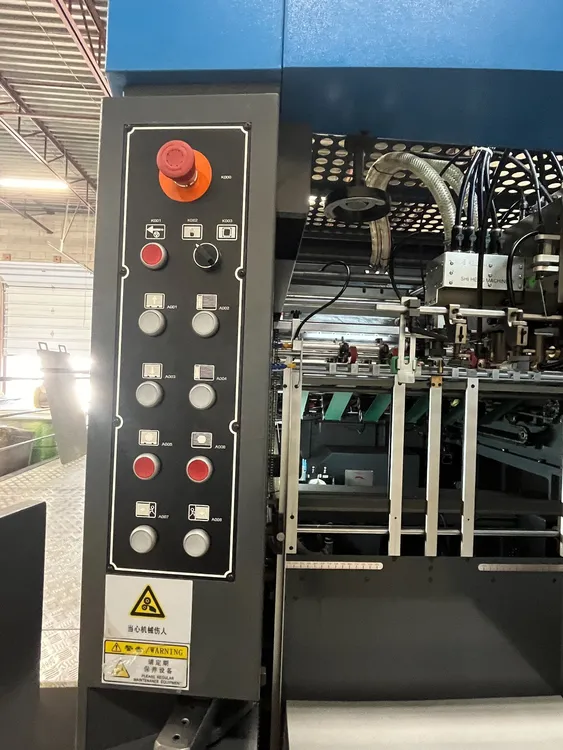

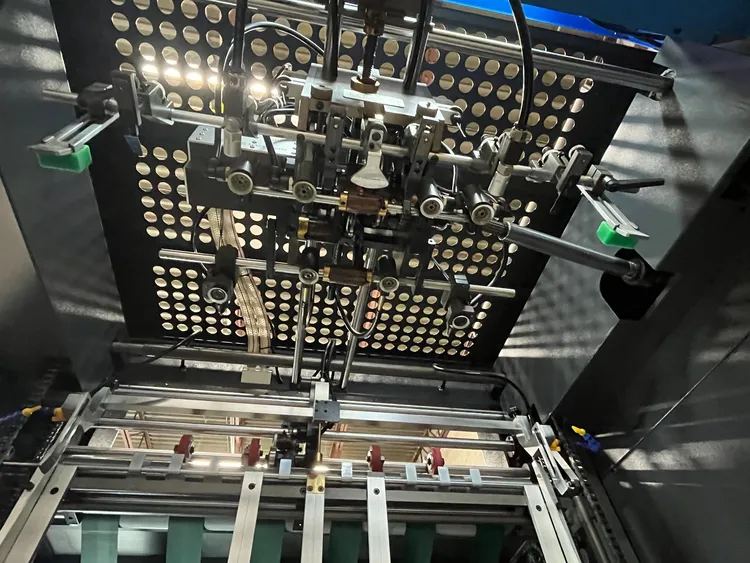

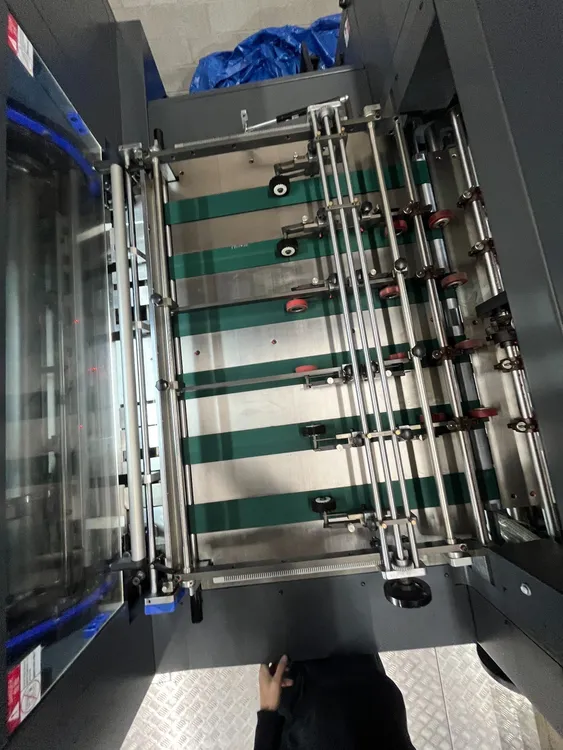

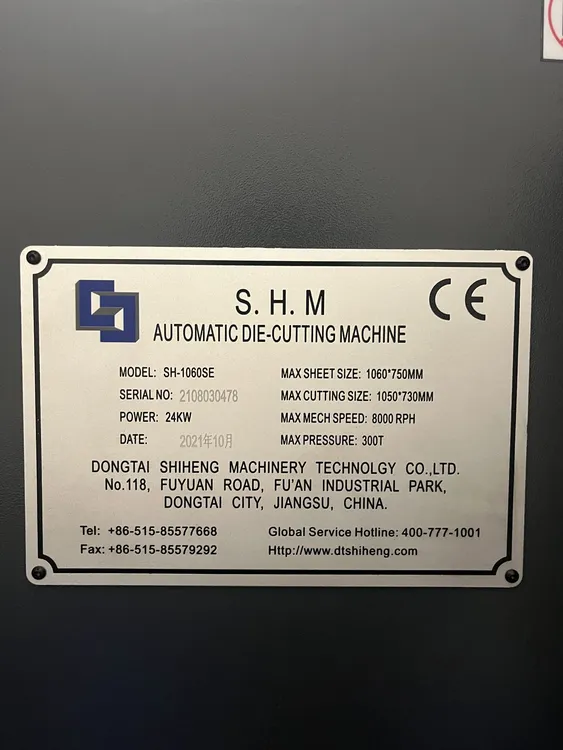

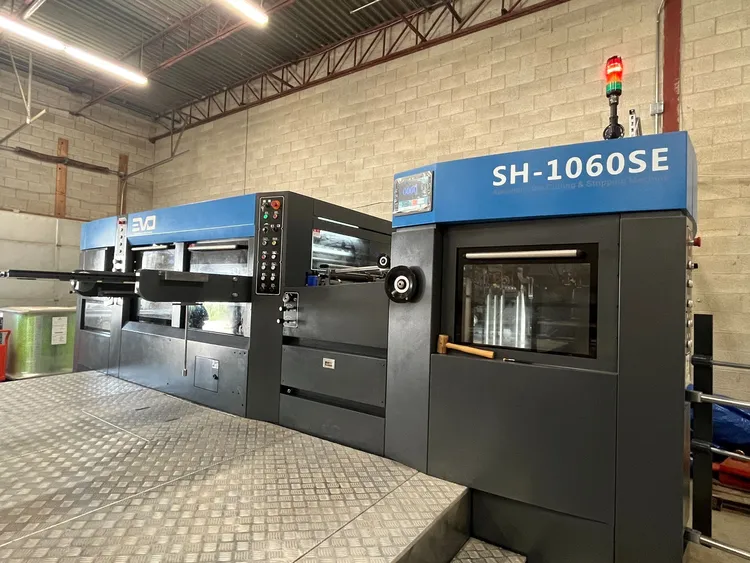

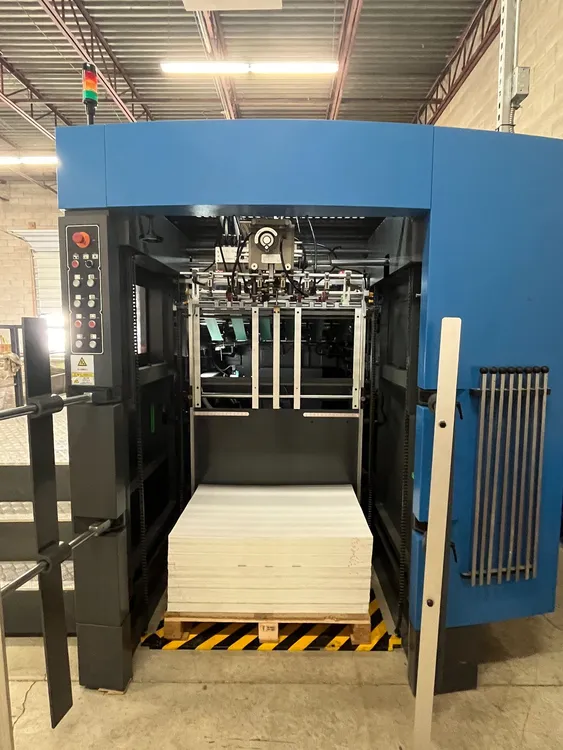

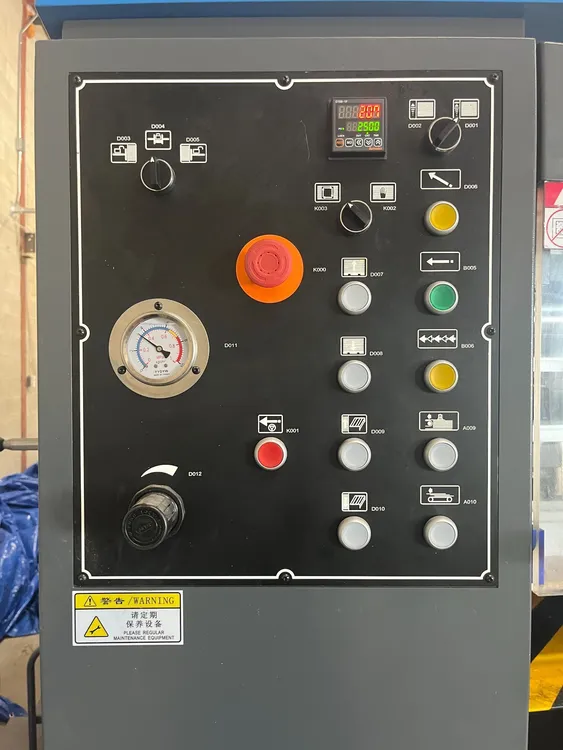

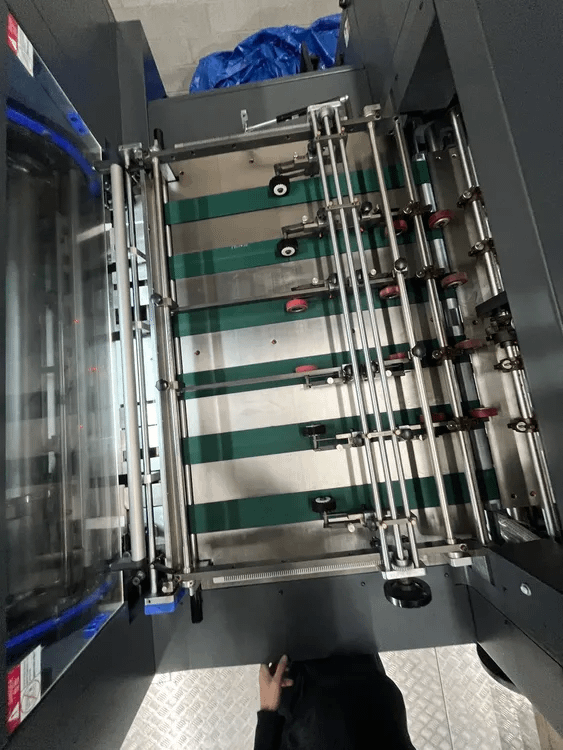

THIS IS A 2021 SHM SH-1060SE AUTOMATIC DIE CUTTING AND STRIPPING MACHINE MANUFACTURED BY SHI HENG MACHINERY. THE MACHINE OPERATES ON 380V/50HZ (3 PHASE) POWER AT 24KW. IT CAN HANDLE A MAXIMUM PAPER SIZE OF 1060 × 750 MM AND A MINIMUM PAPER SIZE OF 400 × 360 MM, WITH A MAXIMUM DIE CUTTING SIZE OF 1050 × 730 MM. IT IS SUITABLE FOR PAPER RANGING FROM 80-2000 GSM CARDBOARD AND CORRUGATED CARDBOARD UP TO 4 MM THICK, USING A MINIMUM BLADE SIZE OF 8MM. THE MAXIMUM DIE CUTTING SPEED IS 8000 REVOLUTIONS PER HOUR, WITH A PRECISION OF ±0.075MM AND A MAXIMUM WORKING PRESSURE OF 300T. THE MACHINE FEATURES A MAXIMUM FEEDING PILE HEIGHT OF 1700MM INCLUDING THE PALLET. STRIPPING FUNCTIONS INCLUDE 4 SIDE STRIPPING WITH GRIPPER SIDE WASTE, UTILIZING 3 STRIPPING CHASES (UPPER/LOWER FRAMES PULL OUT) AND A SECOND STRIPPING CHANNEL FOR GRIPPER-MARGIN WASTE, SUPPORTING PINS OR TOOLS. IT INCLUDES A NON-STOP FEEDER WITH A PRE-LOADING PLATFORM AND NON-STOP DELIVERY WITH BRUSH PUSH-DOWN, JOGGER DEVICE, AND AUXILIARY BELT TABLE. COMPONENTS INCLUDE MITSUBISHI/TOSHIBA INVERTERS, MITSUBISHI/PANASONIC PLC, MOSLER/EATON SWITCHES AND BREAKERS, AND TECO MOTORS WITH A BECKER VACUUM PUMP, MANAGED VIA A FULL-COLOR HMI TOUCHSCREEN. THE MACHINE DIMENSIONS ARE 240'' X 101'' X 110'' WITH A WEIGHT OF 17000 LBS.
