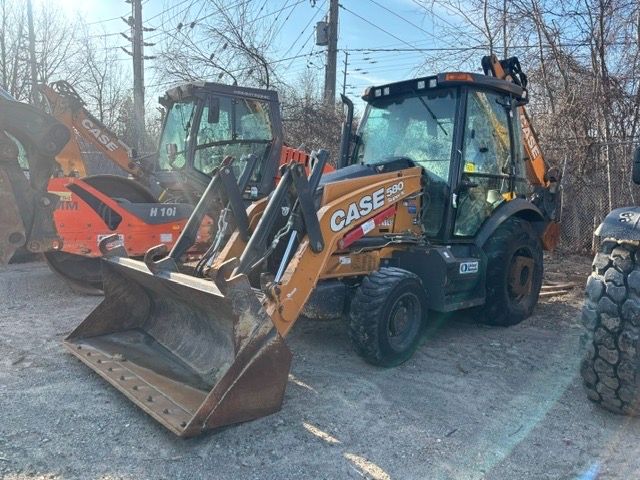

2022 Case 580 SN Backhoe Loaders

The 2022 Case 580 Super N is a backhoe loader equipped with a 3.4L 4-cylinder turbocharged FPT F5BFL413B engine, delivering a gross output of 97 HP and approximately 334 lb-ft of torque at 1400 RPM. The machine features a powershift or power shuttle transmission with 4 forward and 4 reverse gears and is available in 2WD or 4WD configurations. The hydraulic system utilizes a variable displacement axial piston pump providing a flow of 40 GPM at a maximum pressure of 3,450 PSI. The loader is equipped with an 82-inch wide bucket, offering a lift capacity of 8,400 lbs, a breakout force of approximately 10,947 lbf, and a maximum dump height of 106.8 inches. The backhoe component provides a maximum digging depth of 216 inches and extended reach capabilities depending on configuration. The electrical system is 12V with a 120-amp alternator and an 850 CCA battery. Fuel capacity is approximately 35 to 42 gallons.
