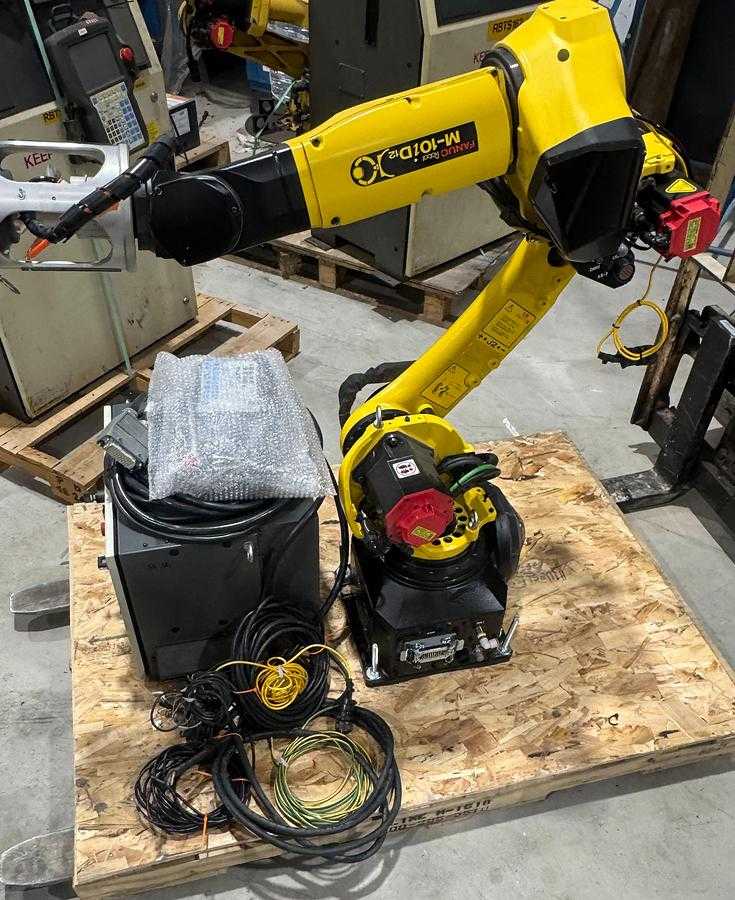

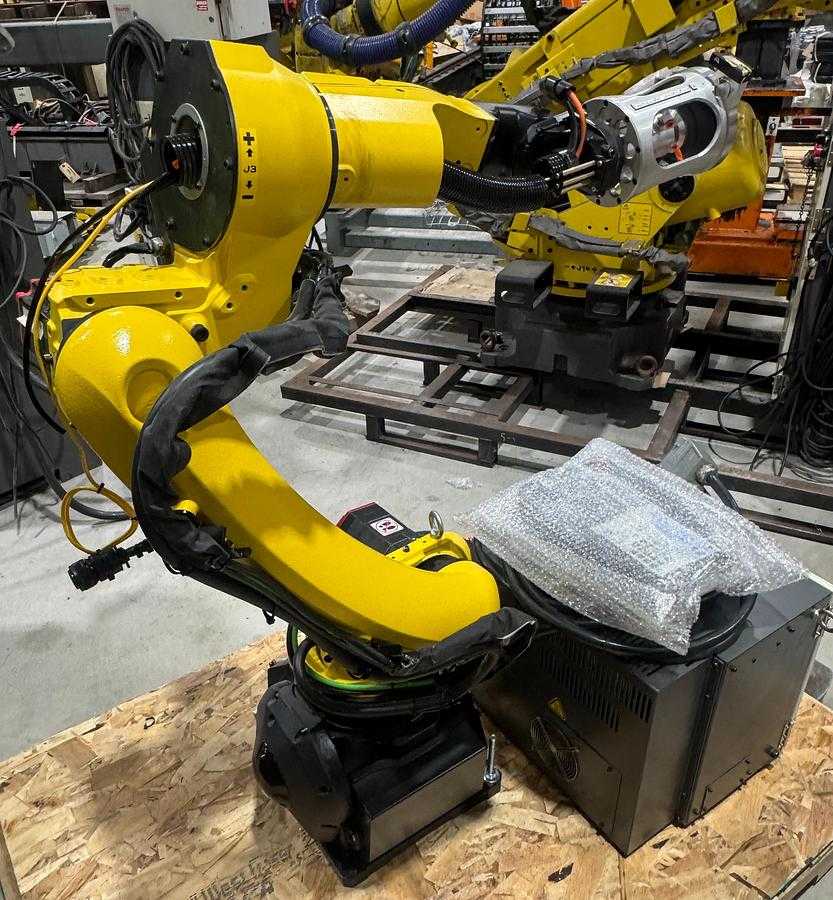

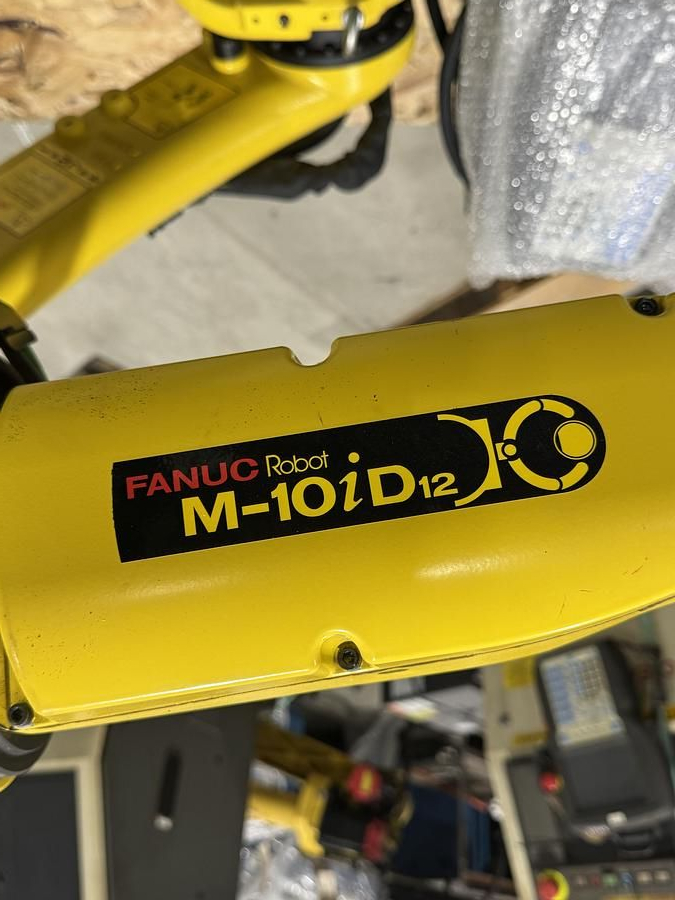

2022 FANUC M-10ID/12 Articulated Robot, 12kg Payload, 1441mm Reach, R-30iB Plus Control

The 2022 FANUC M-10ID/12 is a six-axis articulated industrial robot designed for high-speed precision applications such as assembly, load/transfer, dispensing, material removal, and palletizing. It features a 12 kg payload capacity, a 1441 mm reach, and a repeatability of ± 0.02 mm. The unit has a mass of 145 kg and supports floor, inverted, and angle mounting. Its slim design and hollow wrist assembly facilitate operation in confined workspaces while reducing cable interference. The robot achieves high throughput with maximum axis speeds of 260°/s for J1 and J3, 240°/s for J2, 430°/s for J4, 450°/s for J5, and 720°/s for J6. Motion ranges are J1 ±340°, J2 ±235°, J3 ±455°, J4 ±380°, J5 ±360°, and J6 ±900°. This system is equipped with a FANUC R-30IB PLUS controller, a color teach pendant, and connection cables. The internal cable routing through the J3 arm and J6 wrist enhances cable longevity and minimizes the risk of collision. The robot's rigid structure and advanced servo technology provide increased acceleration performance and optimized cycle times across various material handling operations.
