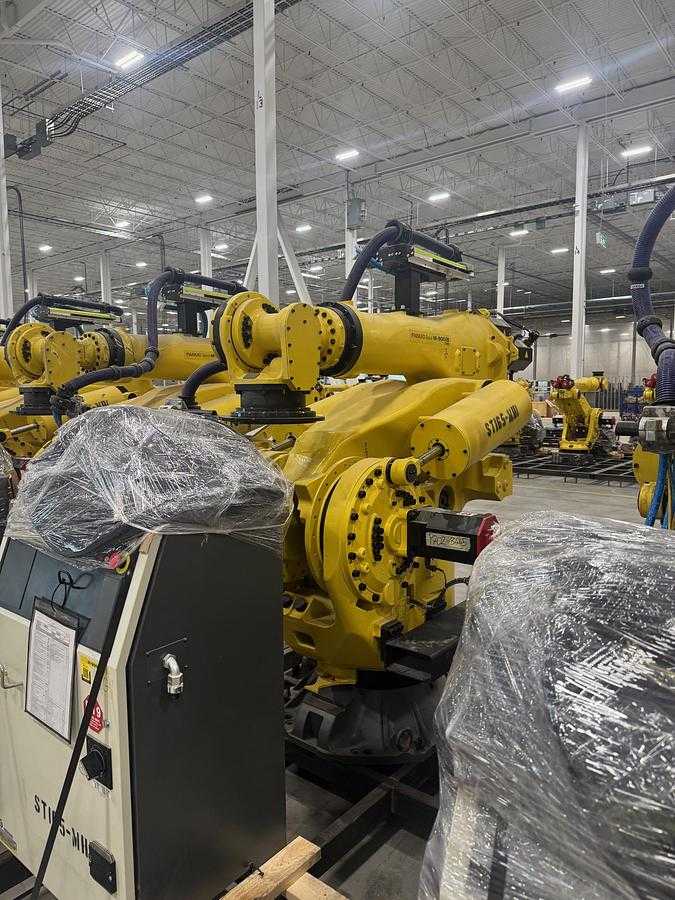

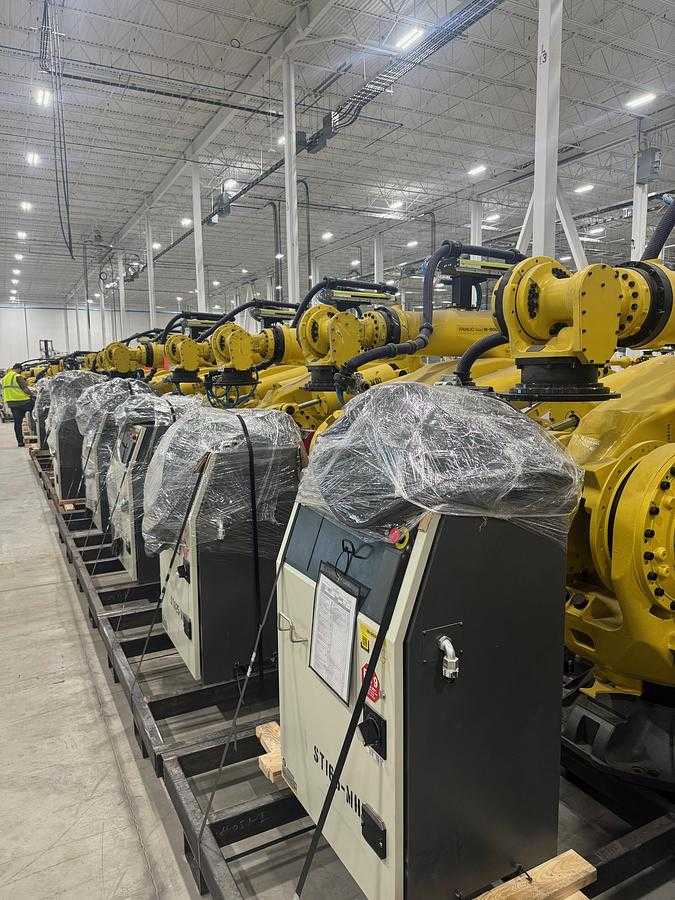

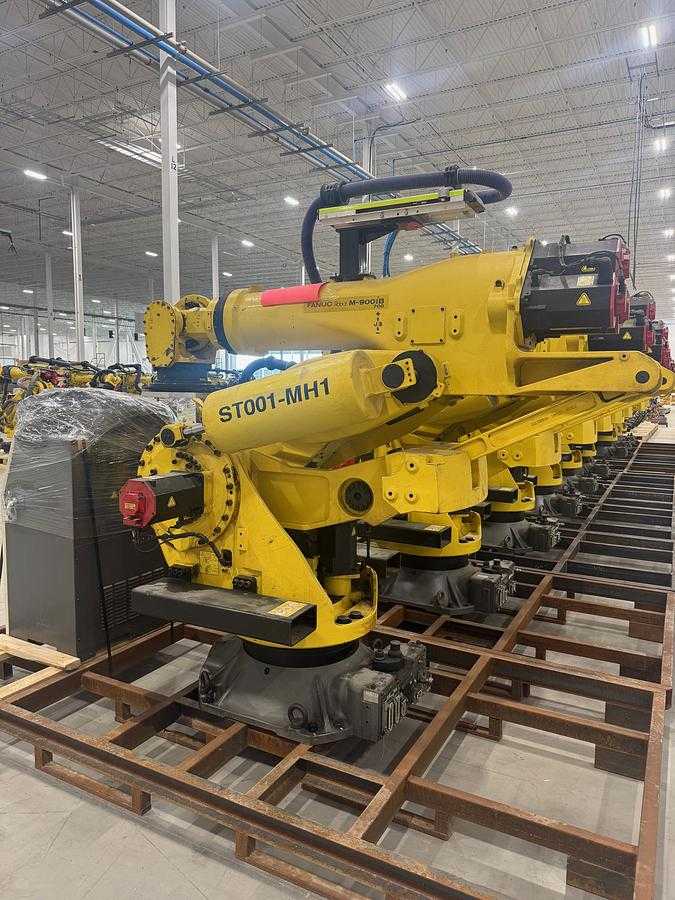

2022 FANUC M-900IB/700 ARTICULATED ROBOT, 700KG PAYLOAD, 2832MM REACH, R-30IB PLUS CONTROL

THE 2022 FANUC M-900IB/700 IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HEAVY LOADING, UNLOADING, AND TENDING APPLICATIONS IN THE METAL, AUTOMOTIVE, AND CONSTRUCTION INDUSTRIES. THIS MODEL FEATURES A 700 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 2832 MM, AND A REPEATABILITY OF ± 0.1 MM. THE ROBOT IS DESIGNED FOR FLOOR MOUNTING AND FEATURES A RIGID STRUCTURE SUITABLE FOR CONSTANT FORCE APPLICATIONS. AXIS MOTION RANGES ARE J1 AT 360°, J2 AT 154°, J3 AT 160°, J4 AT 720°, J5 AT 244°, AND J6 AT 720°. MAXIMUM MOTION SPEEDS ARE 80°/S FOR AXES J1, J2, AND J3, 100°/S FOR AXES J4 AND J5, AND 160°/S FOR AXIS J6. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB PLUS CONTROLLER AND PROVIDES A GENEROUS WORK ENVELOPE FOR HIGH-CAPACITY LIFTING TASKS.
