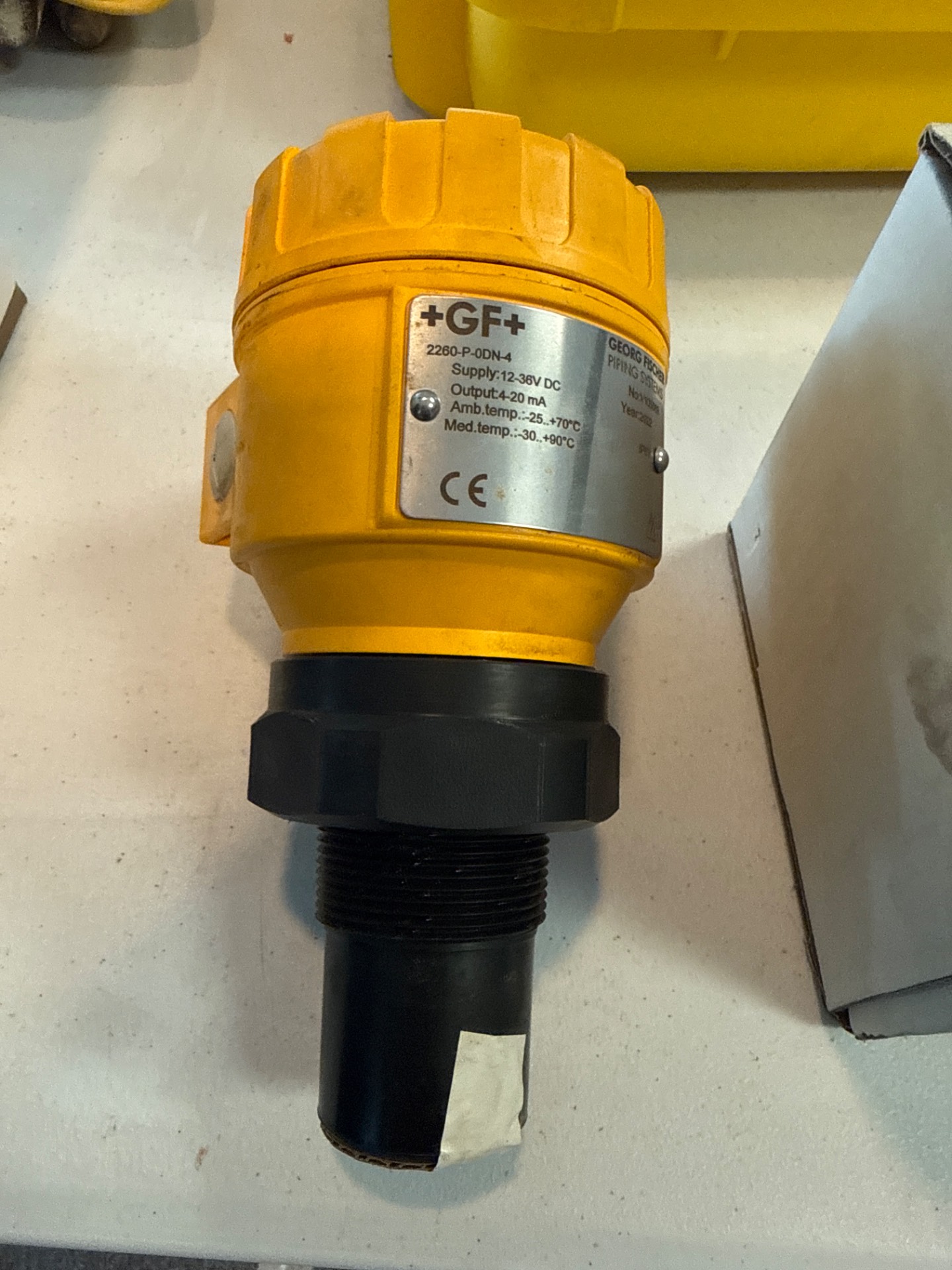

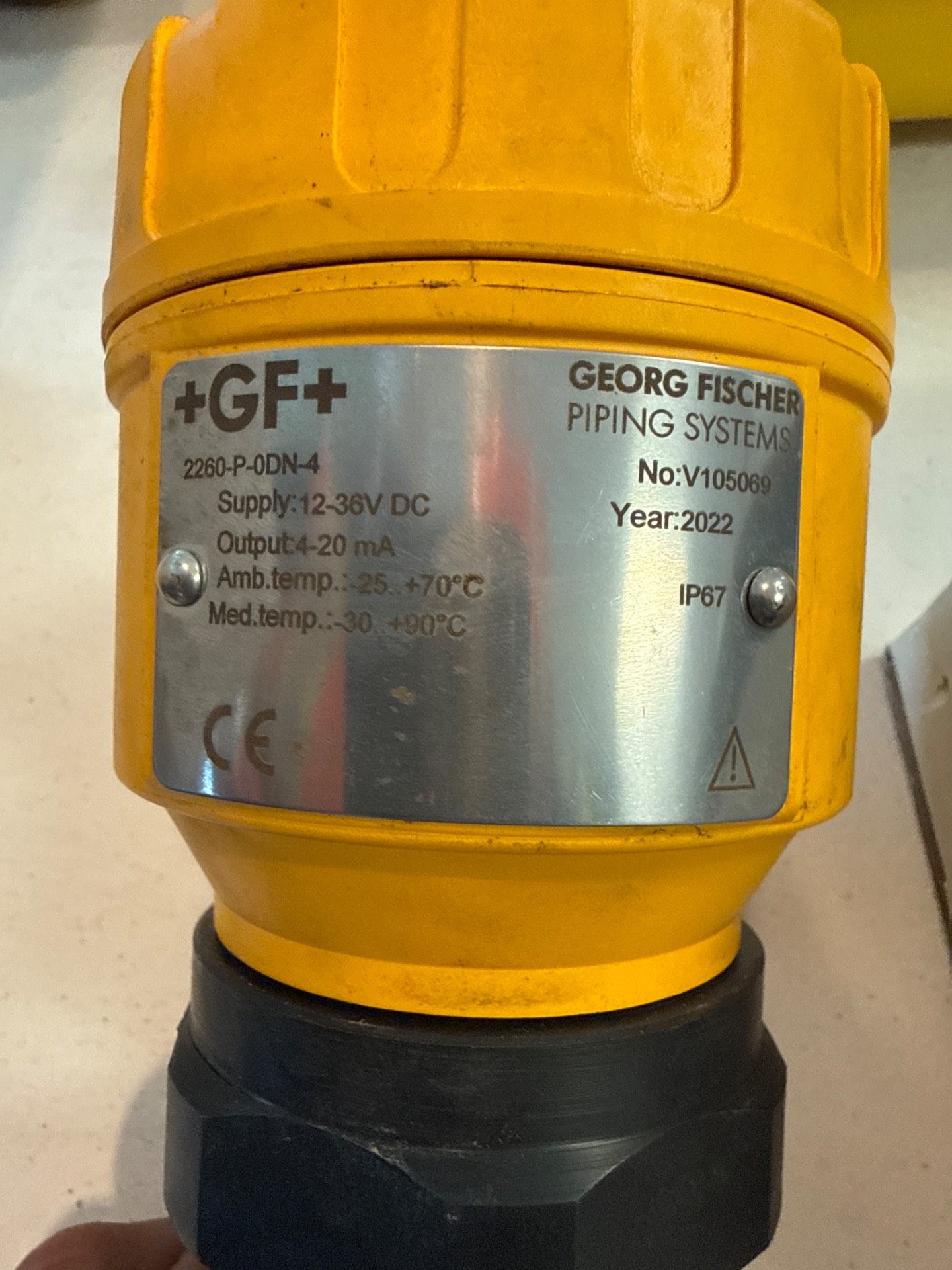

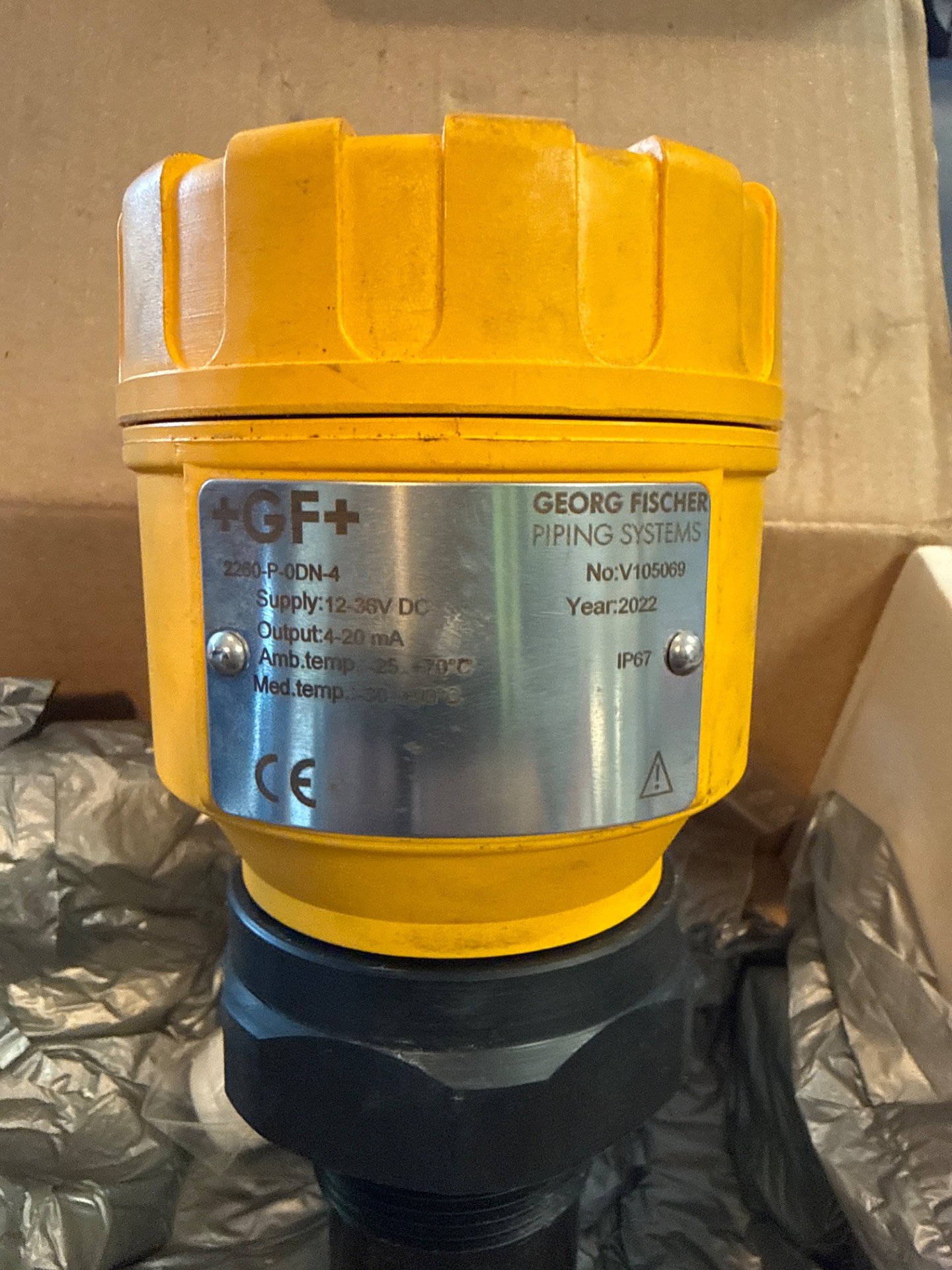

2022 GEORG FISCHER 2260-P-0DN-4 ULTRASONIC LEVEL TRANSMITTER 4-20MA, 12-36VDC, IP67

THE GEORG FISCHER SIGNET 2260-P-0DN-4 IS A RUGGED, HIGH-PERFORMANCE ULTRASONIC LEVEL TRANSMITTER DESIGNED FOR NON-CONTACT MEASUREMENT OF LIQUIDS IN SMALL TO MEDIUM-SIZED TANKS. THIS 2-WIRE COMPACT DEVICE FEATURES A POLYPROPYLENE (PP) SENSOR BODY AND EPDM SEALS, MAKING IT SUITABLE FOR A VARIETY OF CHEMICAL AND WATER TREATMENT APPLICATIONS. IT UTILIZES NON-CONTACT ULTRASONIC TRANSIT TIME TECHNOLOGY WITH AN 80 KHZ MEASURING FREQUENCY AND A NARROW 6-DEGREE BEAM ANGLE TO PROVIDE RELIABLE LEVEL, VOLUME, AND OPEN CHANNEL FLOW MEASUREMENTS. THE UNIT HAS A MEASURING RANGE OF 0.2 TO 4 METERS (0.65 TO 13.1 FEET) WITH AN ACCURACY OF ±0.2% OF THE MEASURED DISTANCE PLUS 0.05% OF THE RANGE.
