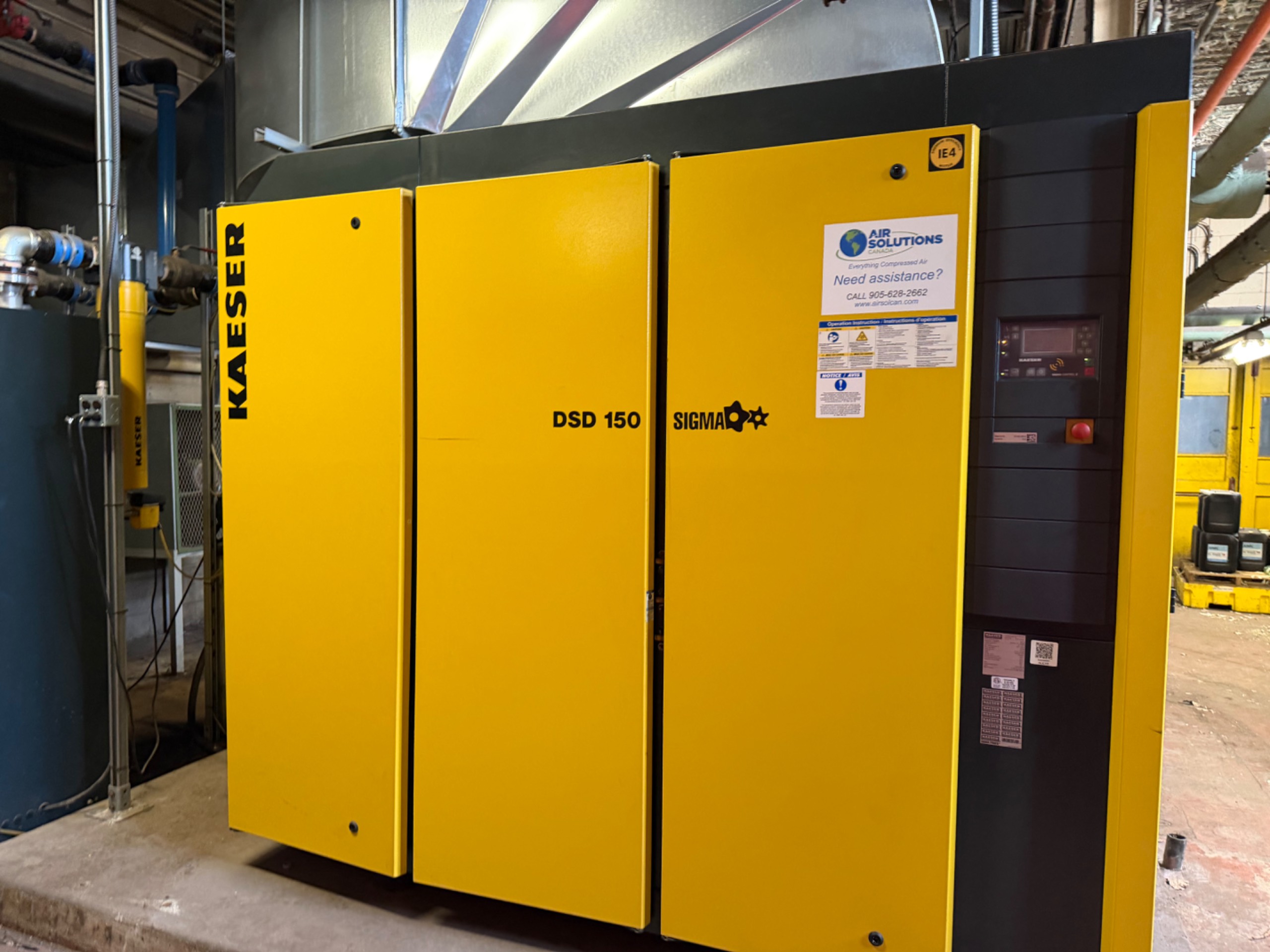

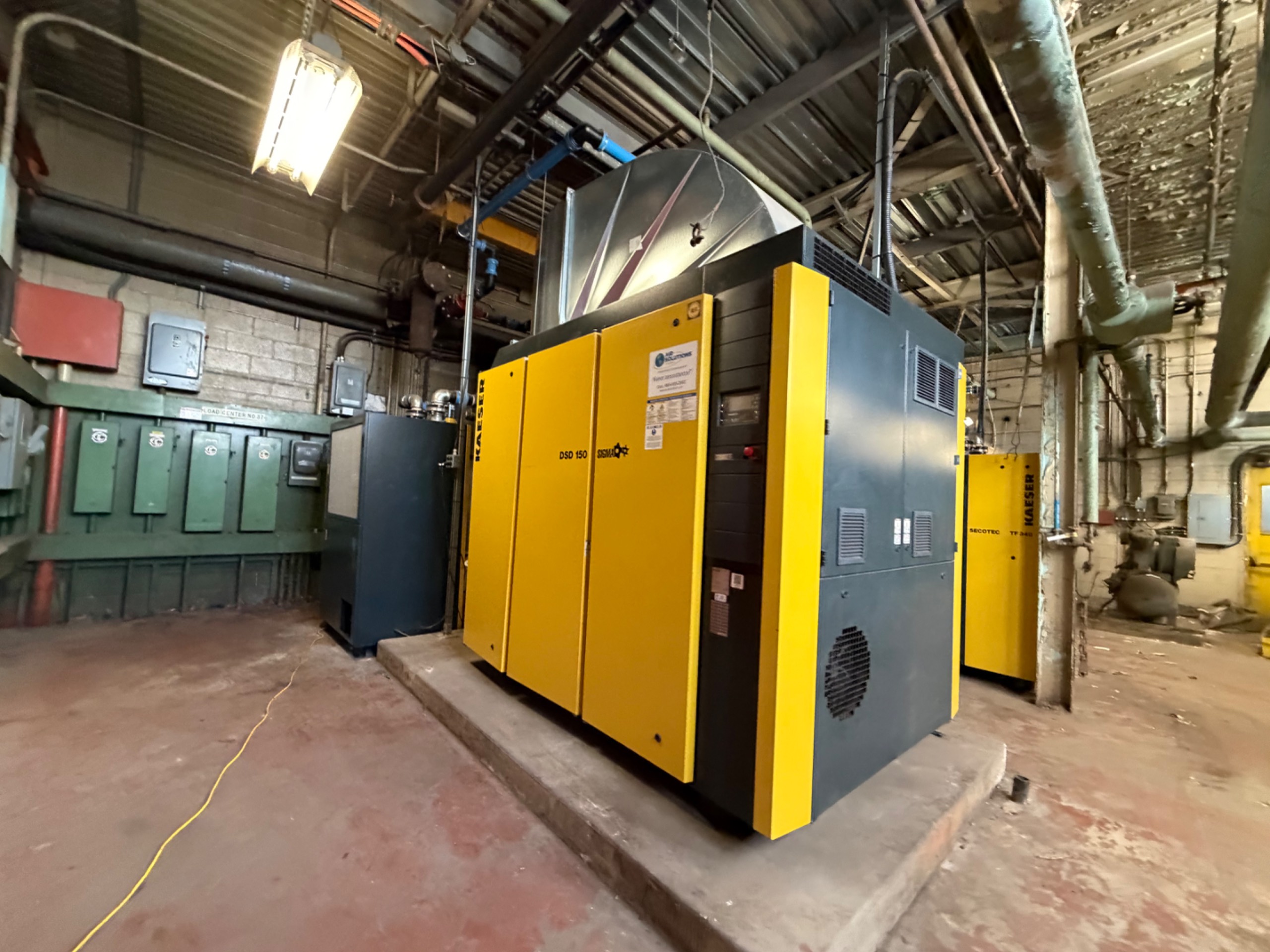

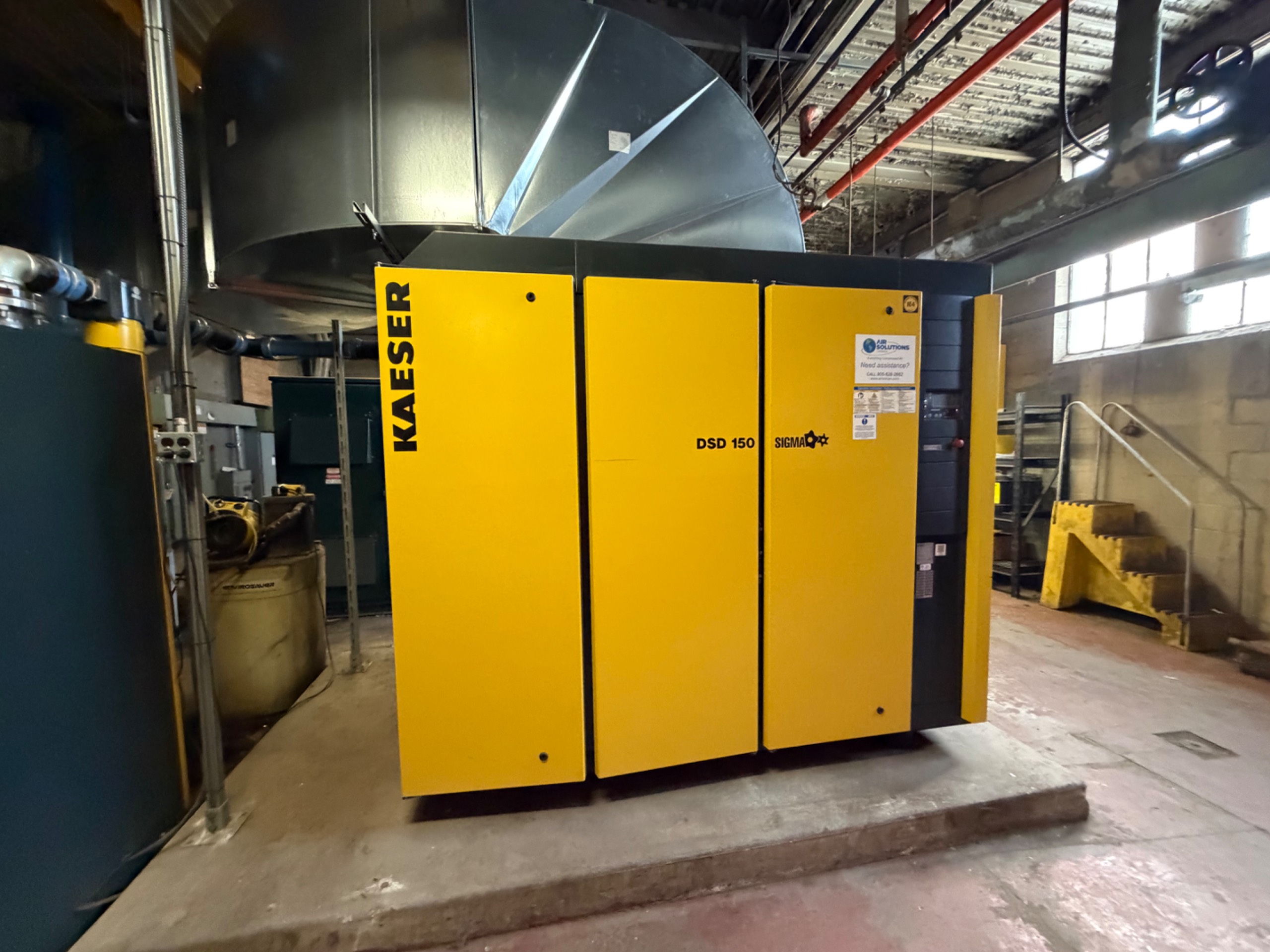

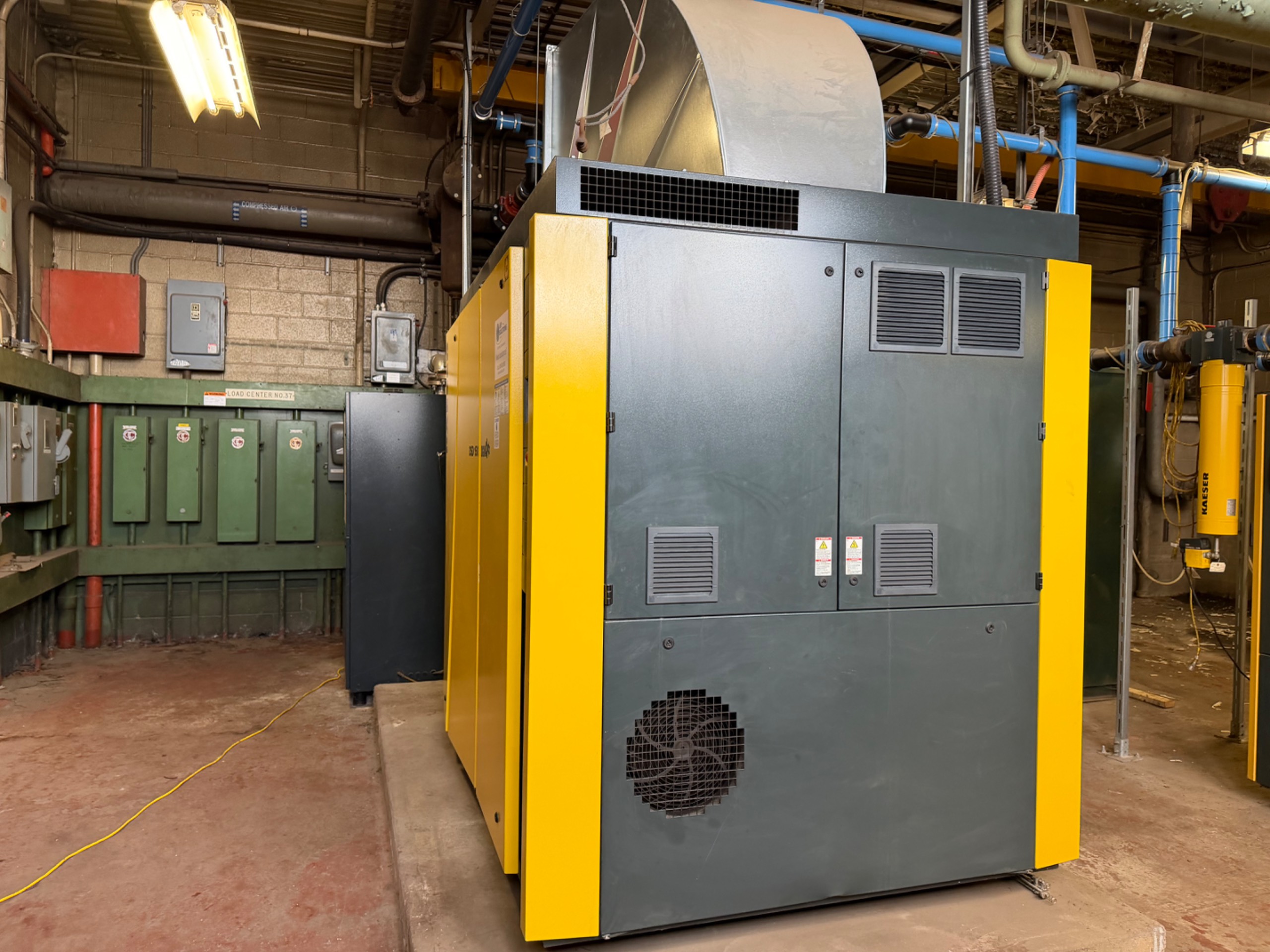

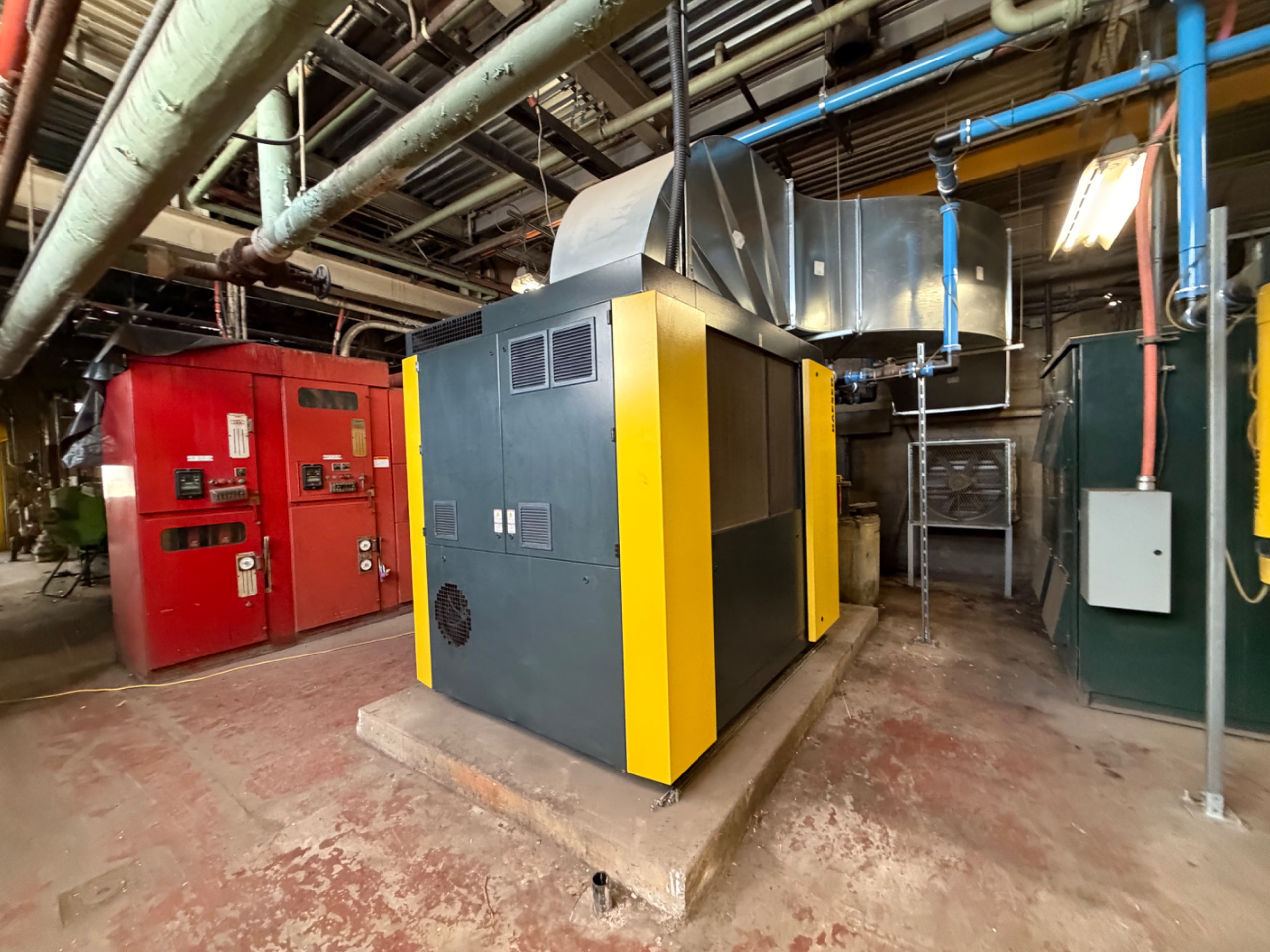

2022 KAESER DSD 150 ROTARY SCREW COMPRESSOR, 150HP, 717CFM, 125PSIG, 575V

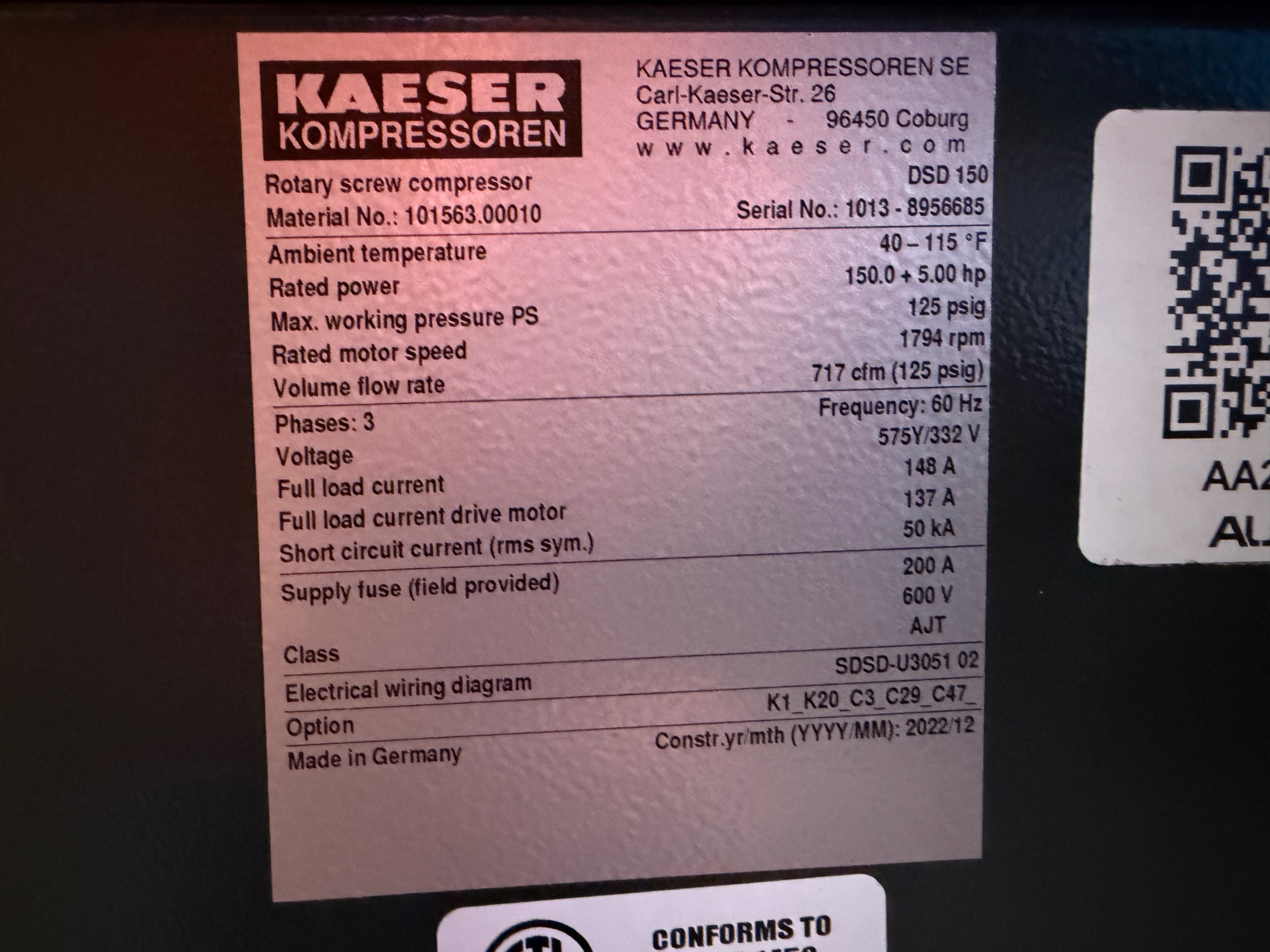

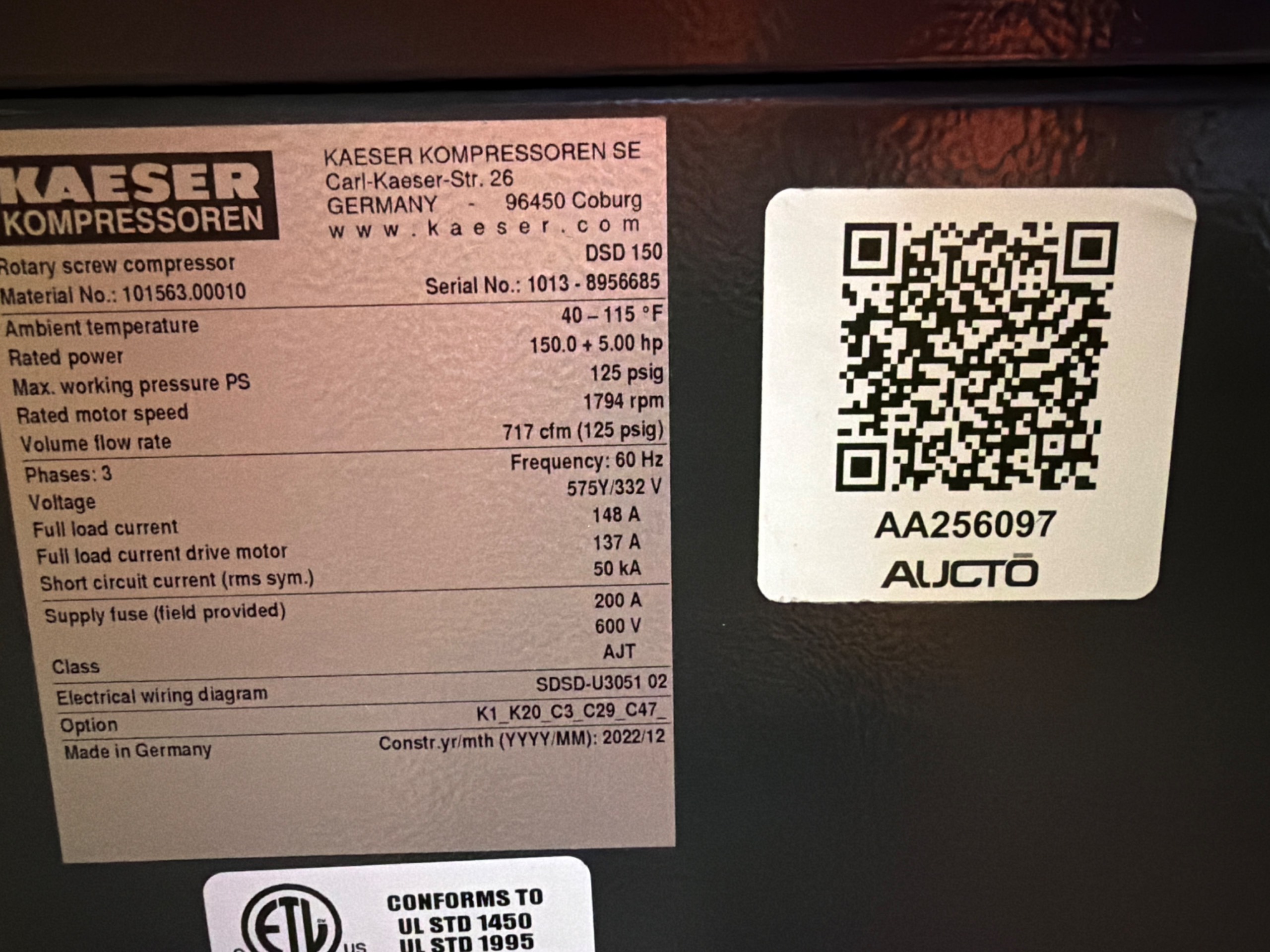

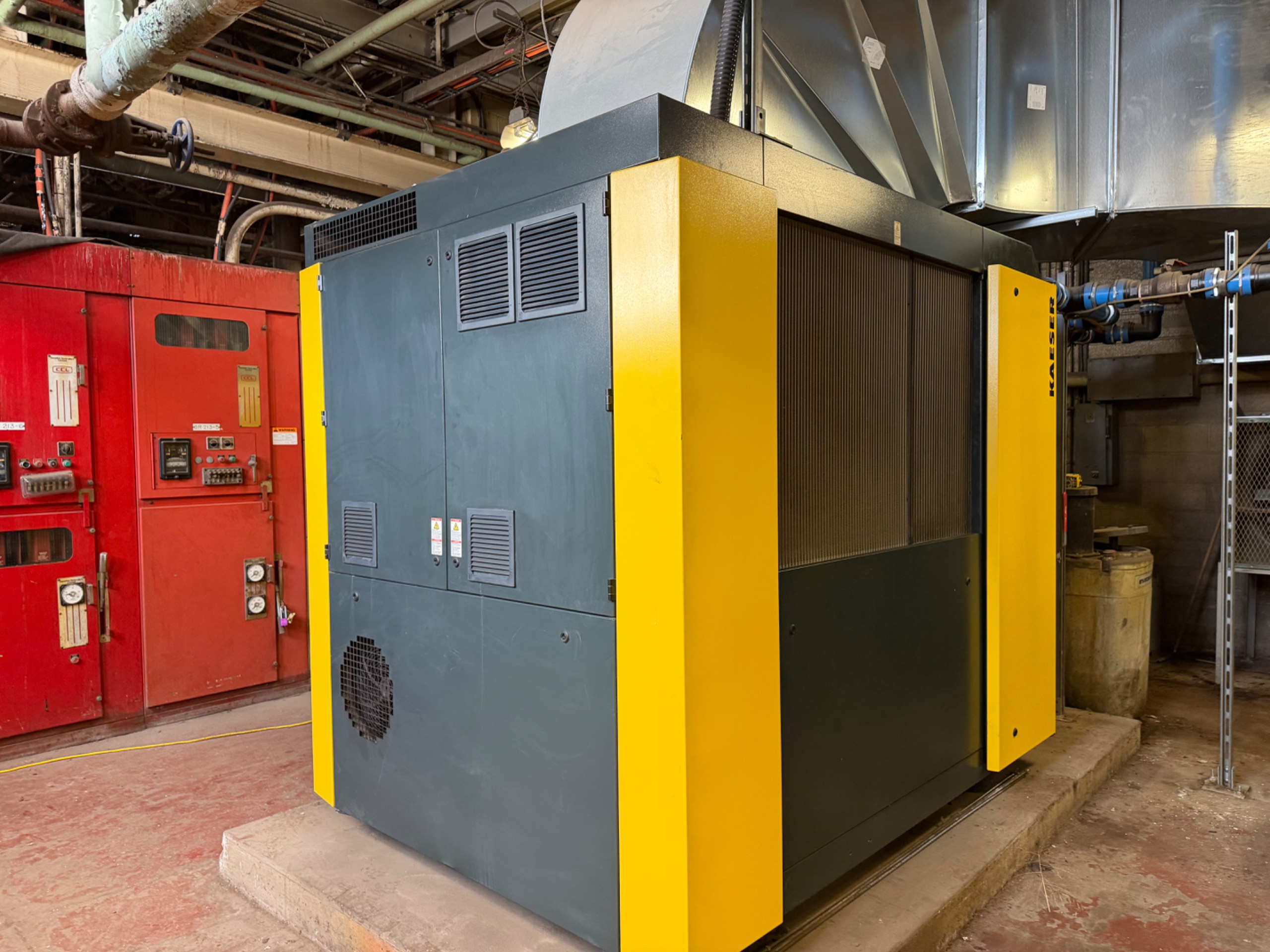

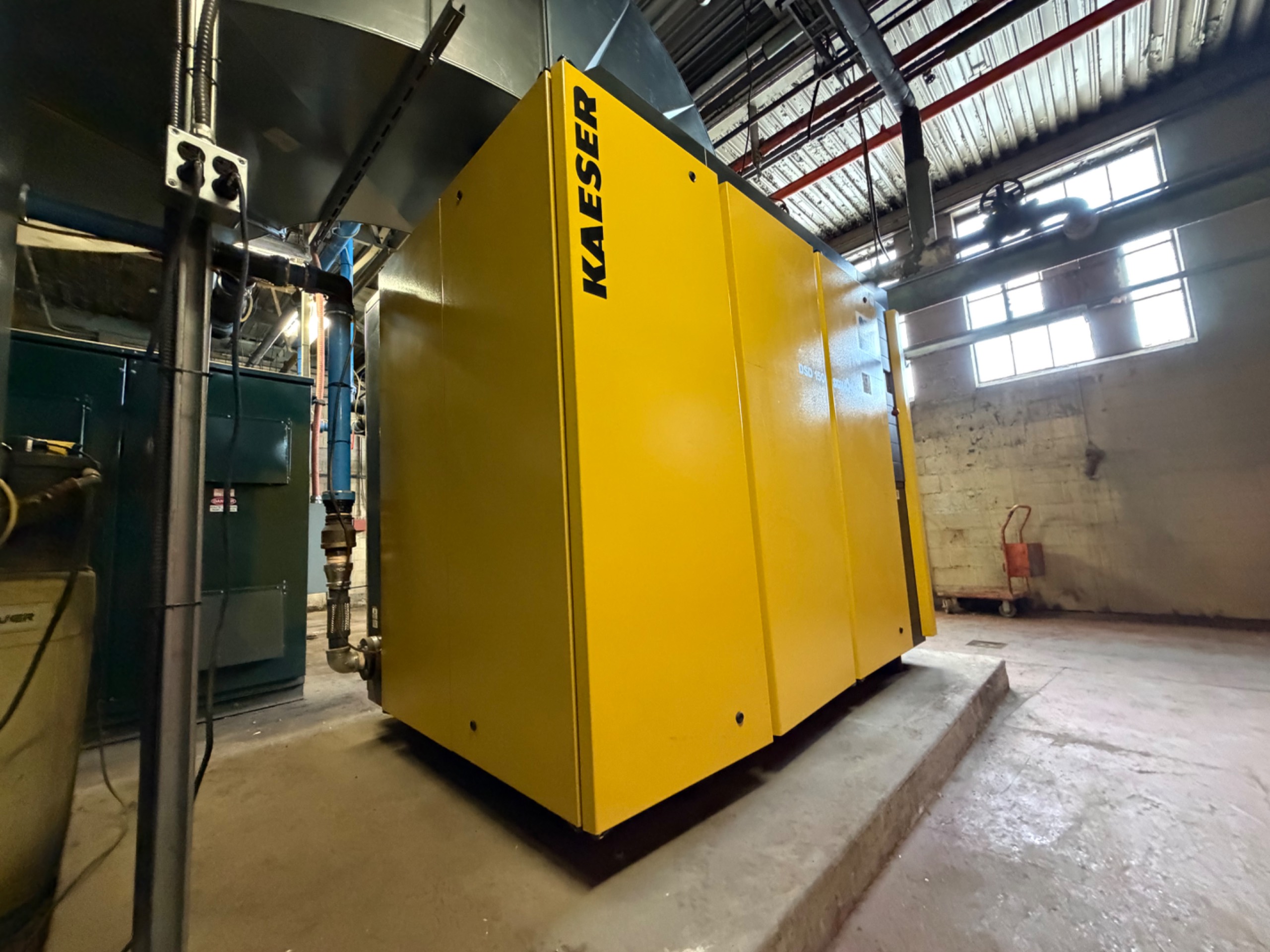

THE KAESER DSD 150 IS A HIGH-PERFORMANCE ROTARY SCREW COMPRESSOR DESIGNED FOR INDUSTRIAL APPLICATIONS REQUIRING A RELIABLE AND EFFICIENT COMPRESSED AIR SUPPLY. THIS UNIT FEATURES KAESER’S SIGNATURE SIGMA PROFILE AIREND, WHICH IS PRECISION-MACHINED TO OPTIMIZE SPECIFIC PERFORMANCE AND REDUCE ENERGY CONSUMPTION. POWERED BY A 150 HP PREMIUM EFFICIENCY, TOTALLY ENCLOSED FAN-COOLED MOTOR WITH CLASS F INSULATION, THE DSD 150 UTILIZES A 1:1 DIRECT DRIVE SYSTEM TO ELIMINATE TRANSMISSION LOSSES. IT DELIVERS A VOLUME FLOW RATE OF 717 CFM AT A MAXIMUM WORKING PRESSURE OF 125 PSIG. THE COMPRESSOR IS ENGINEERED FOR DURABILITY WITH A COOLING SYSTEM CAPABLE OF OPERATING IN AMBIENT TEMPERATURES RANGING FROM 40 TO 115 °F. IT INCORPORATES A THREE-STAGE FLUID SEPARATION SYSTEM TO ENSURE LOW FLUID CARRY-OVER OF 1-3 PPM AND FEATURES A SERVICE-FRIENDLY DESIGN WITH EXTERNAL LUBRICATION POINTS FOR THE MOTOR BEARINGS. THE ELECTRICAL CONFIGURATION IS RATED FOR 575V, 3-PHASE, 60 HZ OPERATION WITH A FULL LOAD CURRENT OF 148 A. MEASURING APPROXIMATELY 97 INCHES IN LENGTH, 68 INCHES IN WIDTH, AND 85 INCHES IN HEIGHT, THE UNIT IS ENCLOSED IN A SOUND-DAMPENING, POWDER-COATED CABINET THAT MAINTAINS A LOW NOISE LEVEL OF APPROXIMATELY 73 DB(A). ADVANCED MONITORING IS PROVIDED BY THE SIGMA CONTROL 2 SYSTEM, WHICH INCLUDES PT100 TEMPERATURE SENSORS FOR THE MOTOR WINDINGS TO PREVENT OVERHEATING AND ENSURE LONG-TERM OPERATIONAL RELIABILITY.
