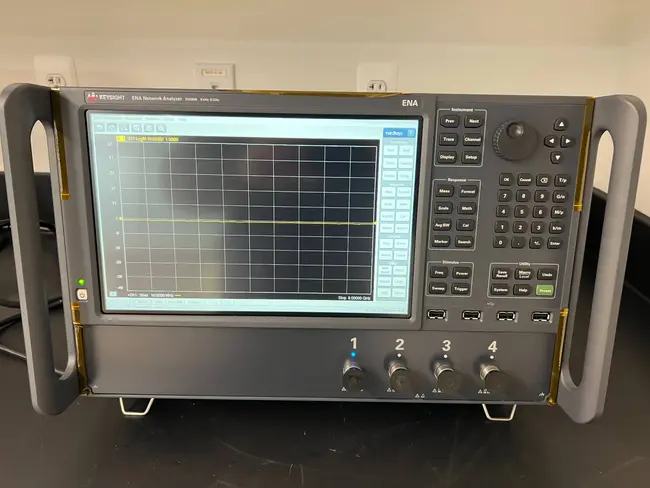

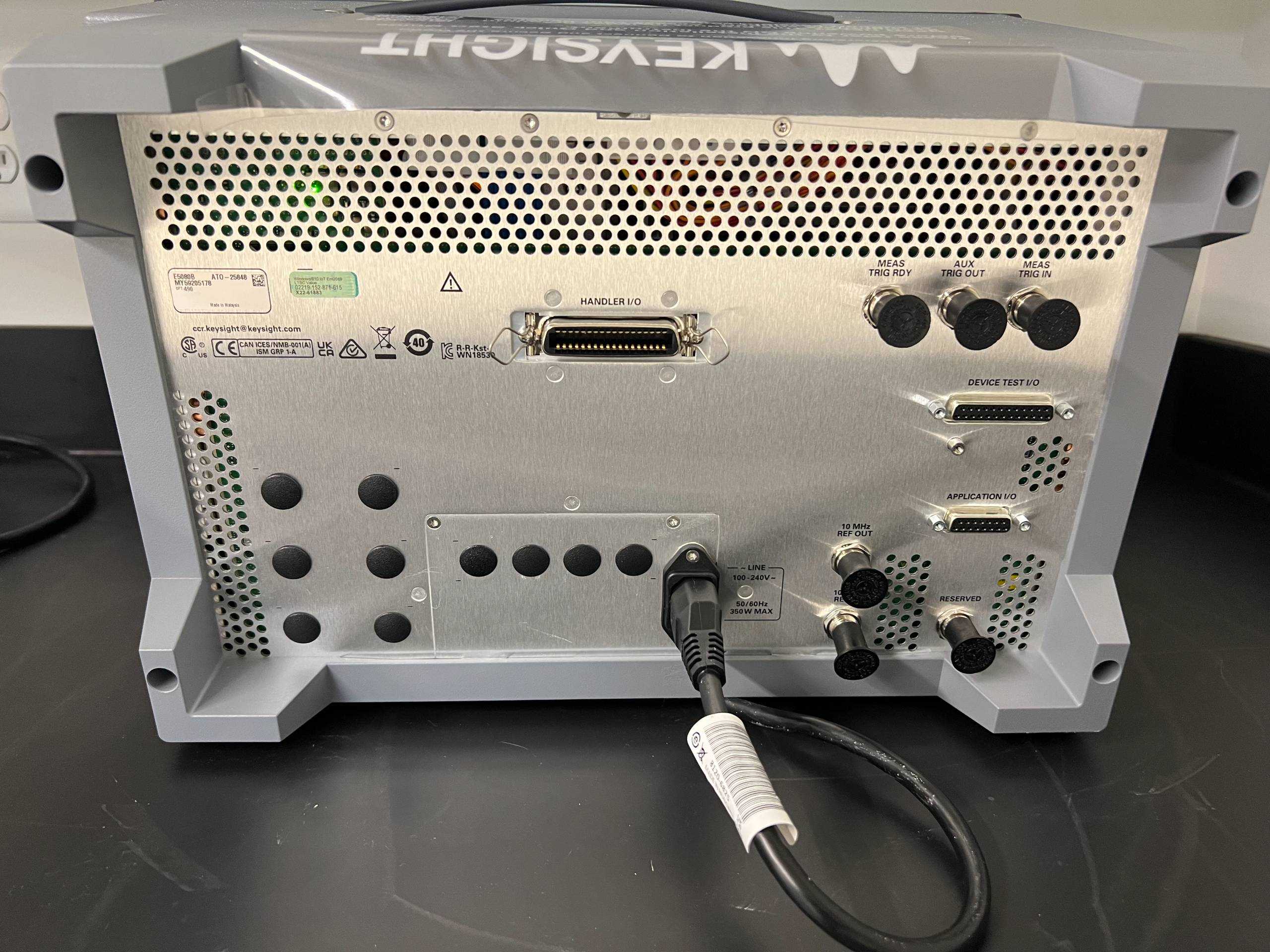

2022 KEYSIGHT TECHNOLOGIES E5080B-490 NETWORK ANALYZER

DYNAMIC RANGE (SYSTEM, AT TEST PORT, NO AVERAGING) SPEC/TYPICAL: 50 MHZ–3 GHZ: 140/150 DB; 3–5 GHZ: 140/149 DB; 5–6.5 GHZ: 140/148 DB; 6.5–9 GHZ: 136/146 DB; 9–14 GHZ: 133/142 DB; 14–16 GHZ: 130/140 DB; 16–20 GHZ: 126/137 DB. OUTPUT POWER (MAX AT TEST PORT) 10 MHZ–4.5 GHZ: +10 DBM (TYP. +13 DBM); 4.5–6.5 GHZ: +10 DBM (TYP. +12 DBM); 6.5–9 GHZ: +9 DBM (TYP. +12 DBM); 9–16 GHZ: +7 DBM (TYP. +10 DBM); 16–20 GHZ: +4 DBM (TYP. +7 DBM). TRACE NOISE (LOGMAG, DB RMS, AT MAX SPECIFIED POWER; 10 KHZ IF ≥10 MHZ) 100 KHZ–6 GHZ: 0.0015 (TYP. 0.0005); 6–10 GHZ: 0.002 (TYP. 0.0006); 10–20 GHZ: 0.003 (TYP. 0.001). MEASUREMENT SPEED (CYCLE TIME TO COMPLETE A SWEEP; DISPLAY OFF, 1 MHZ IF) EXAMPLE SPANS & POINT COUNTS: • 10 MHZ–9 GHZ, 201 PTS: 3.6 MS UNCORRECTED / 6.3 MS (2-PORT CAL) / 11.6 MS (4-PORT CAL) • 10 MHZ–20 GHZ, 201 PTS: 4.3 MS UNCORRECTED / 7.6 MS (2-PORT) / 14.2 MS (4-PORT) • 9–10 GHZ, 201 PTS: 1.6 MS UNCORRECTED / 2.2 MS (2-PORT) / 3.7 MS (4-PORT) (LARGER POINT COUNTS SCALE PER THE TABLE.) DIRECTIVITY (CORRECTED SYSTEM, USING N4691D ECAL; DB) 9 KHZ–10 MHZ: 46; 10 MHZ–500 MHZ: 46; 500 MHZ–2 GHZ: 47; 2–8 GHZ: 46; 8–20 GHZ: 43. (WITH 85052D MECH CAL: 42/42/38/36 DB OVER 9 KHZ–50 MHZ / 50 MHZ–2 GHZ / 2–8 GHZ / 8–20 GHZ.)
