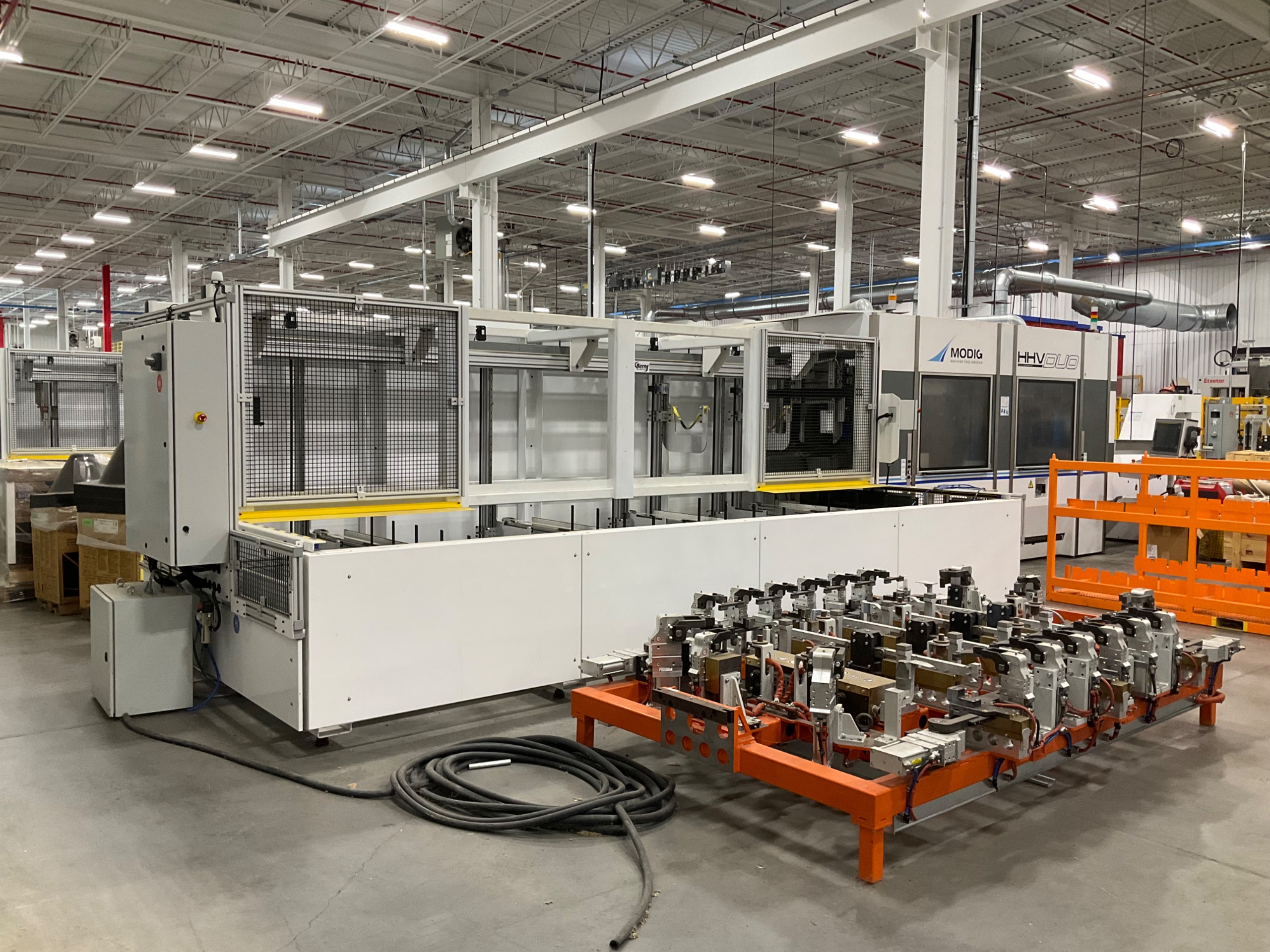

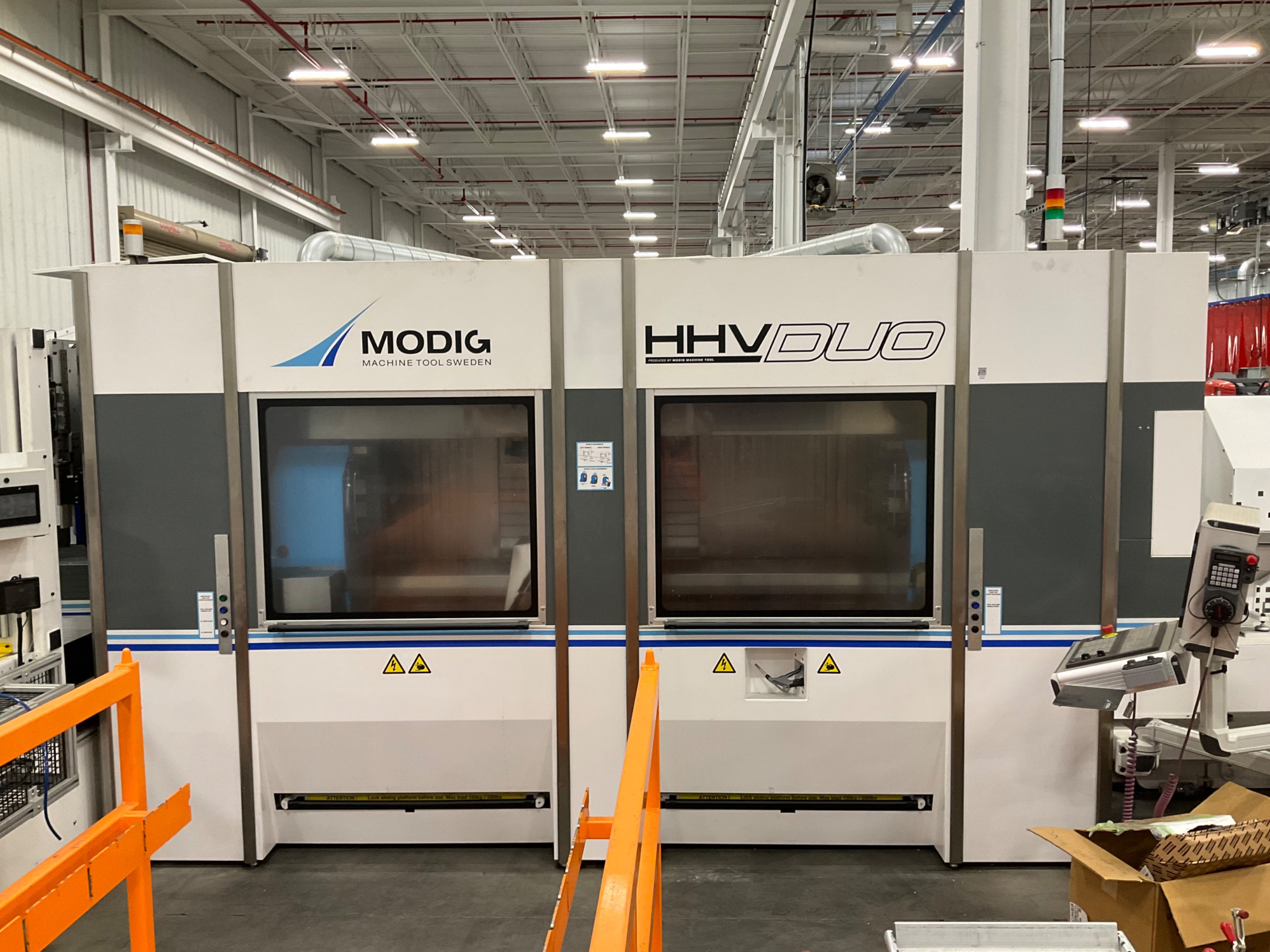

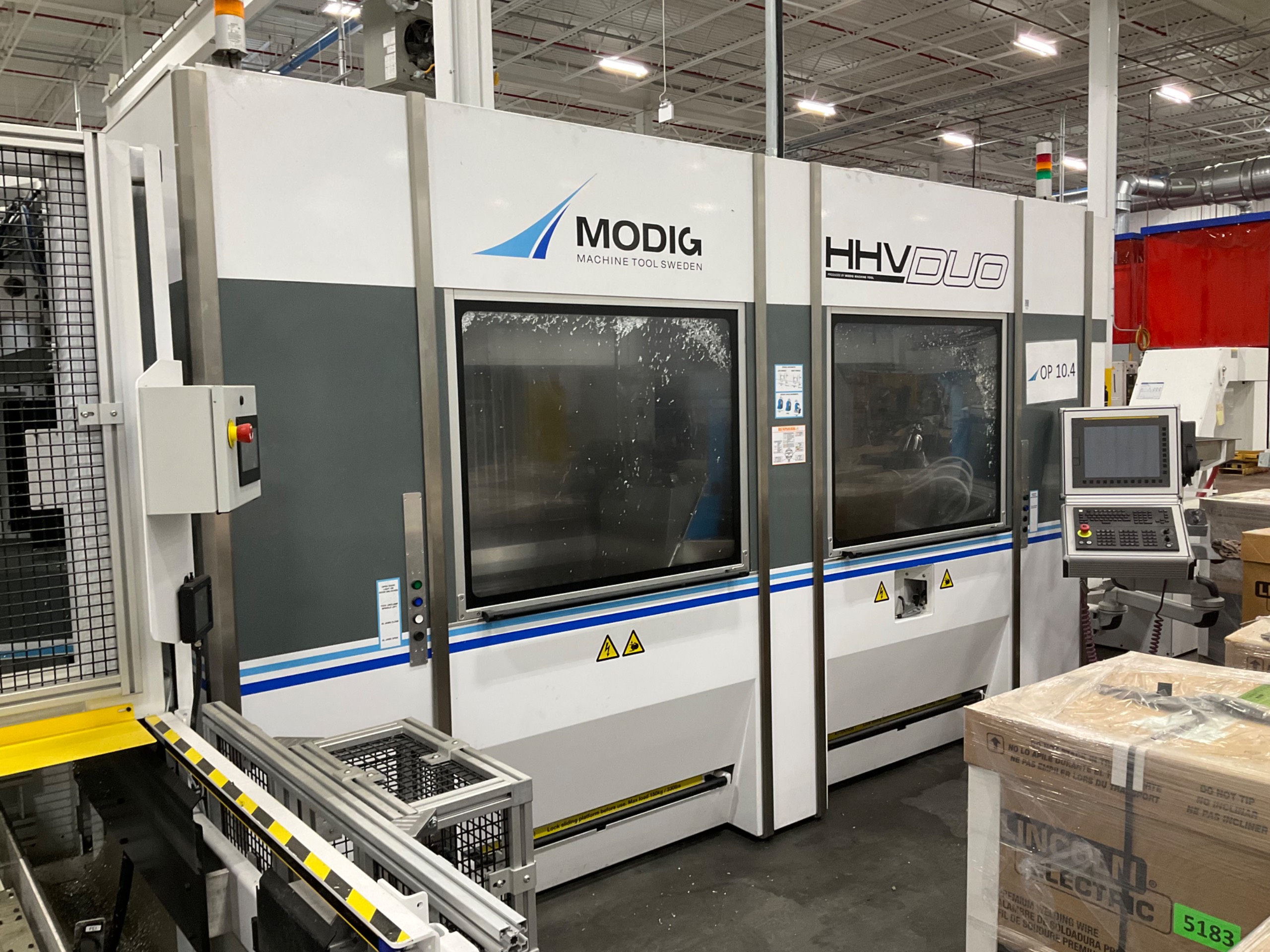

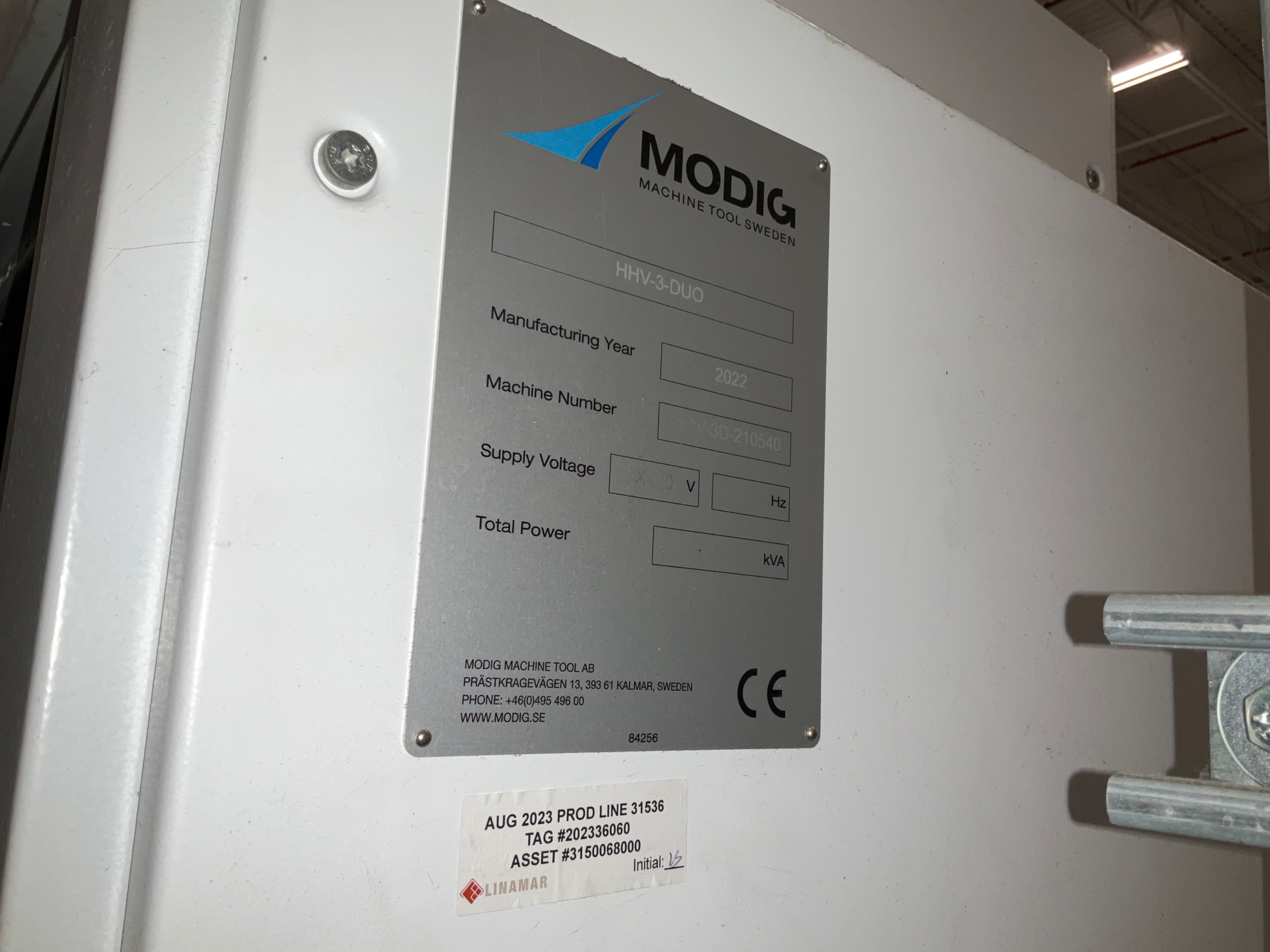

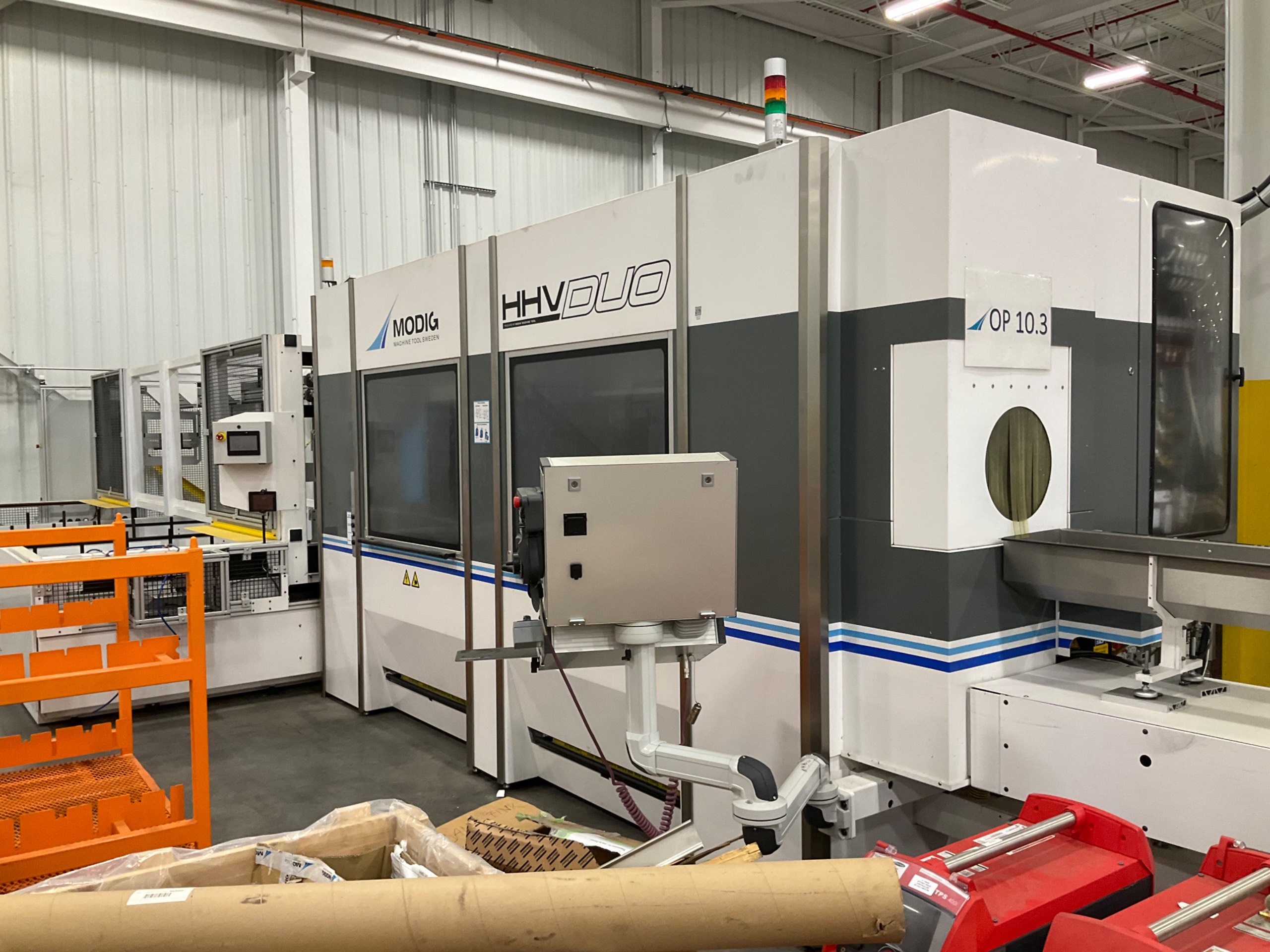

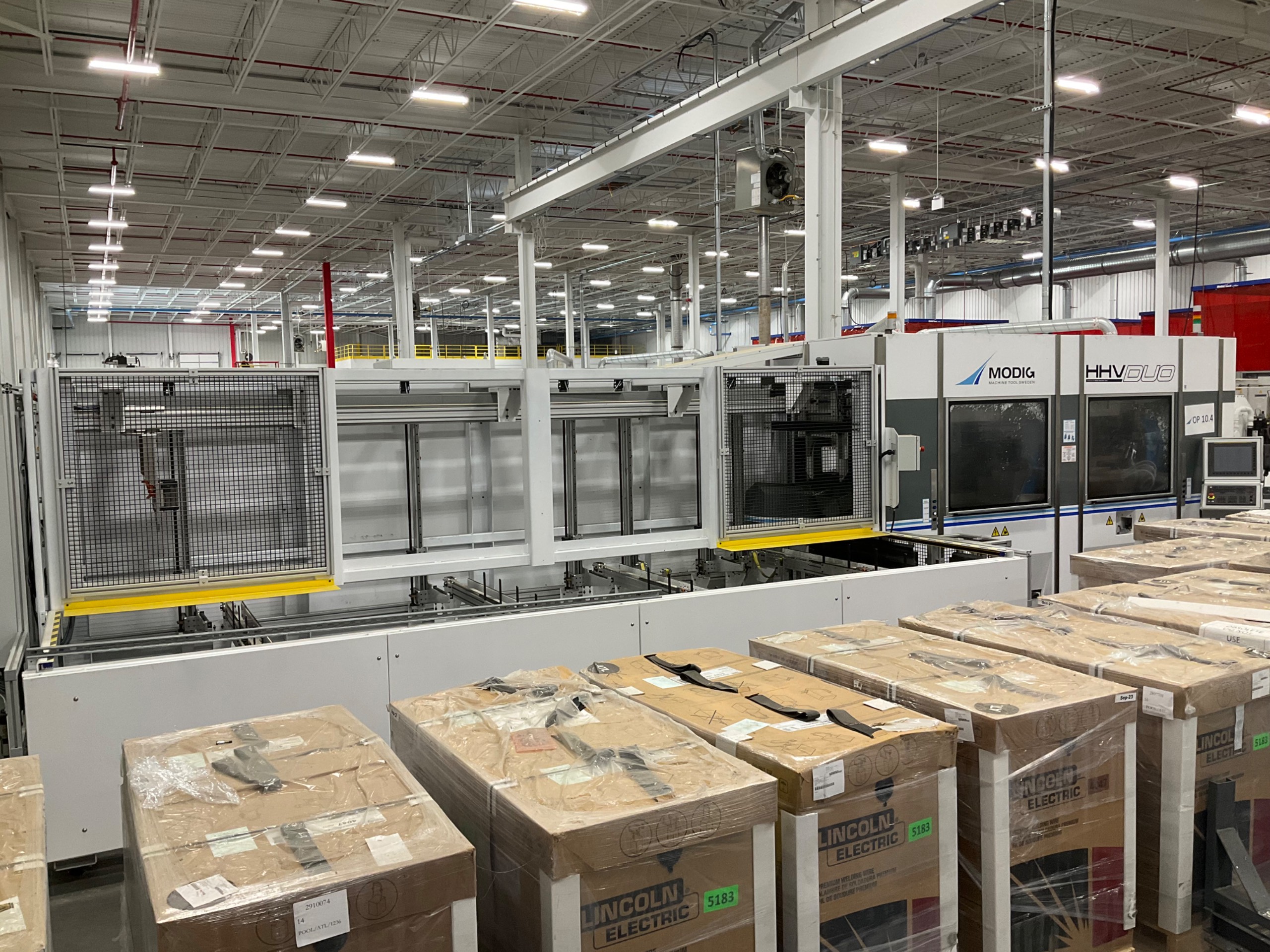

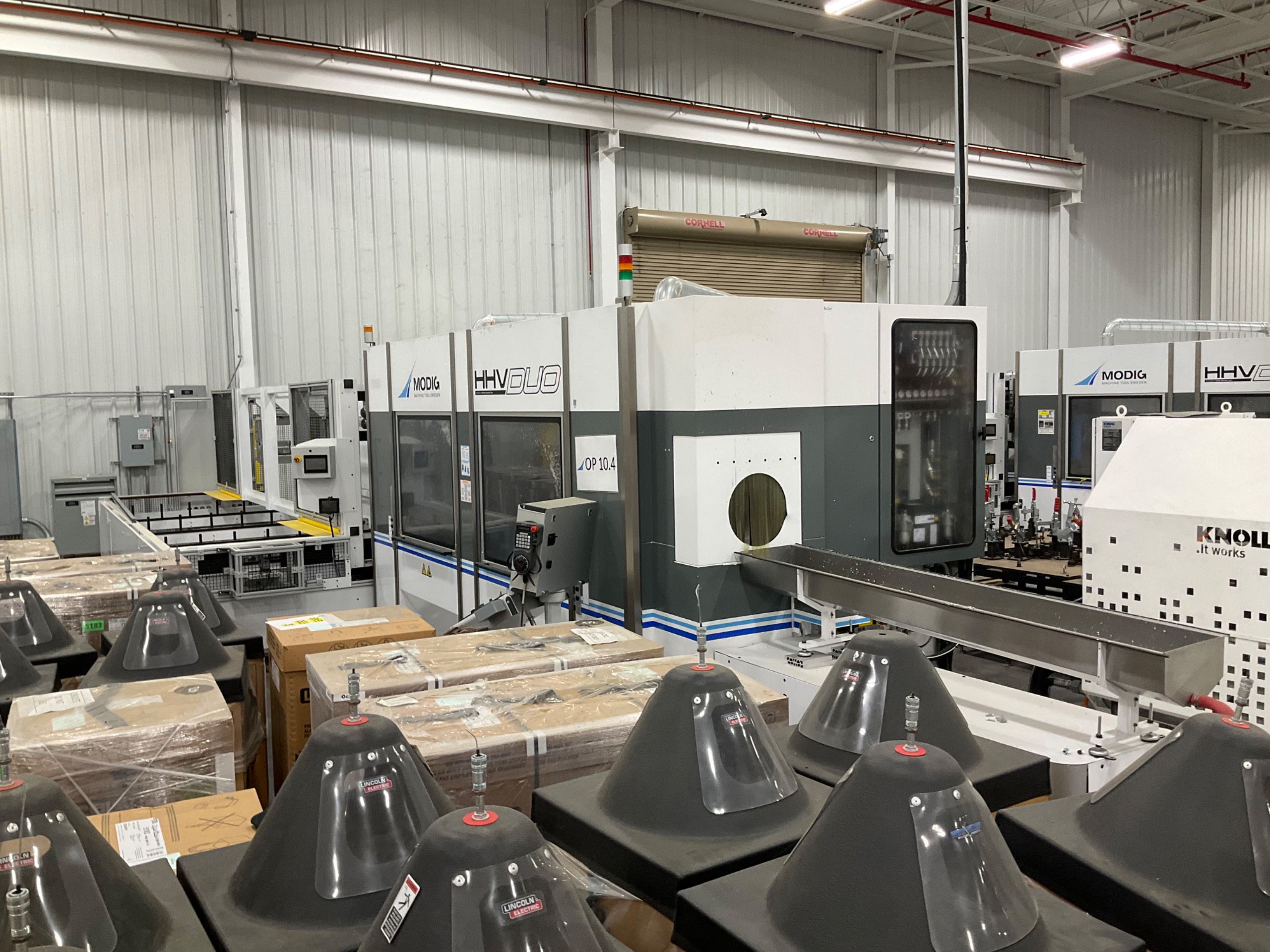

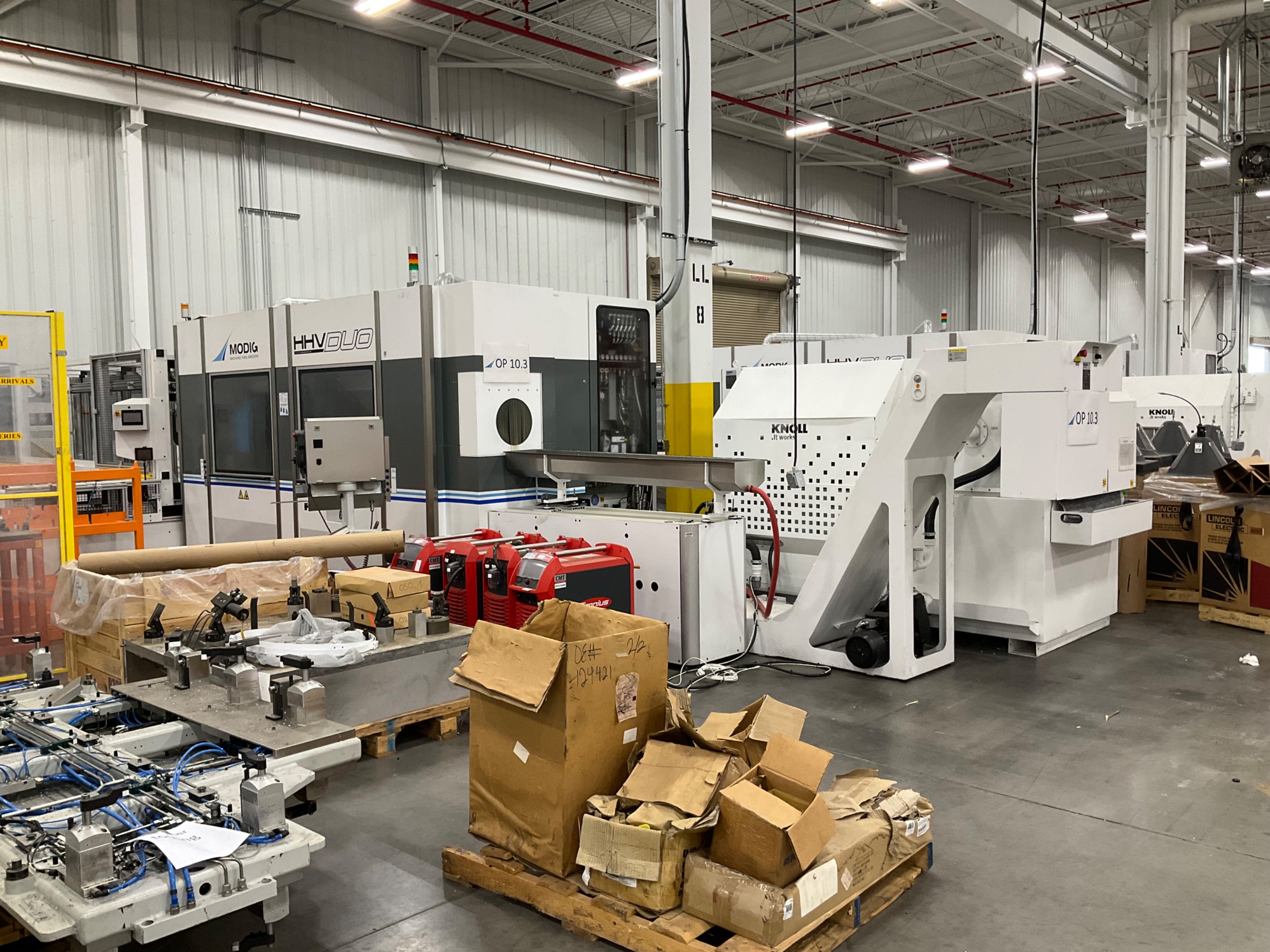

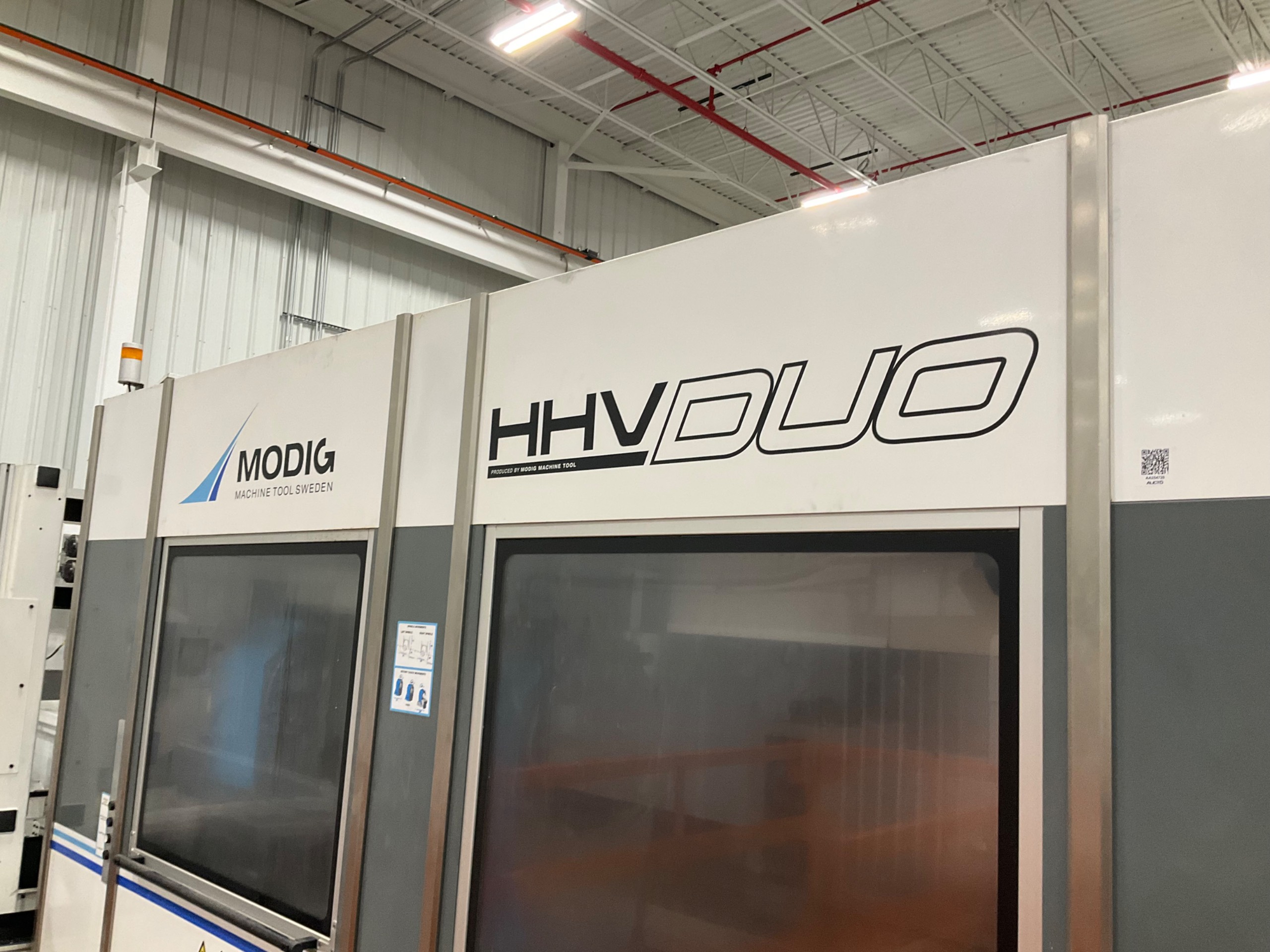

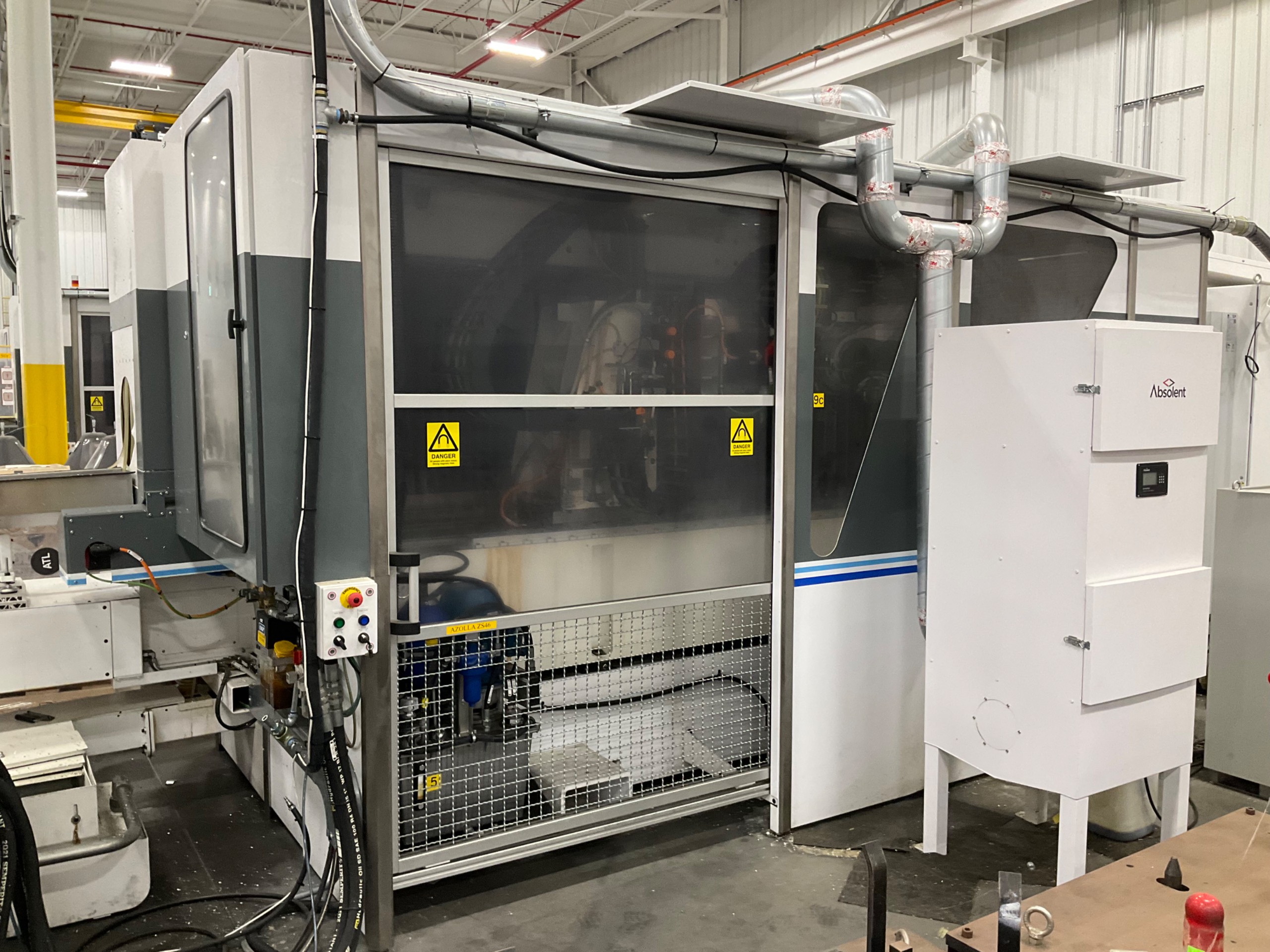

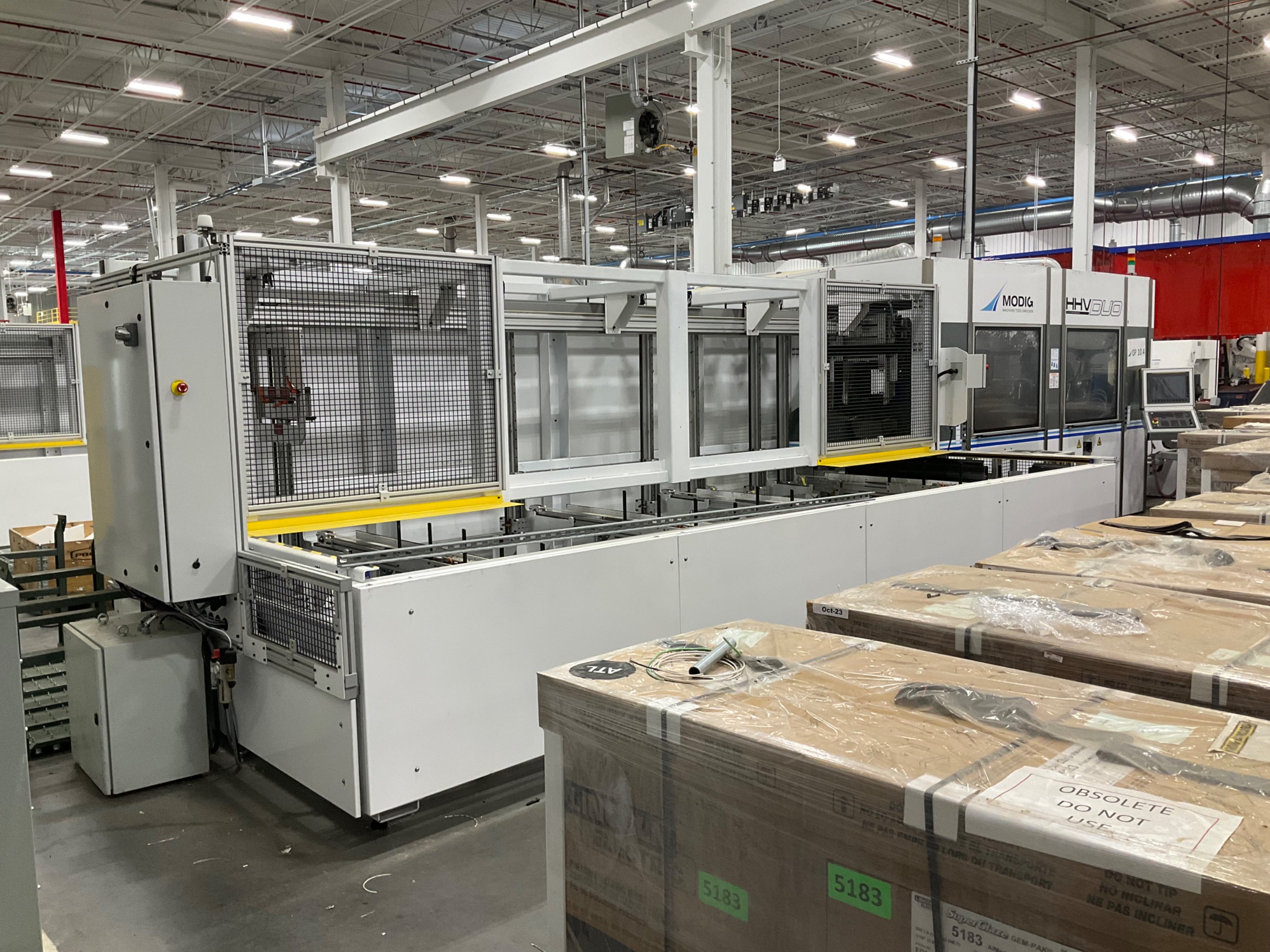

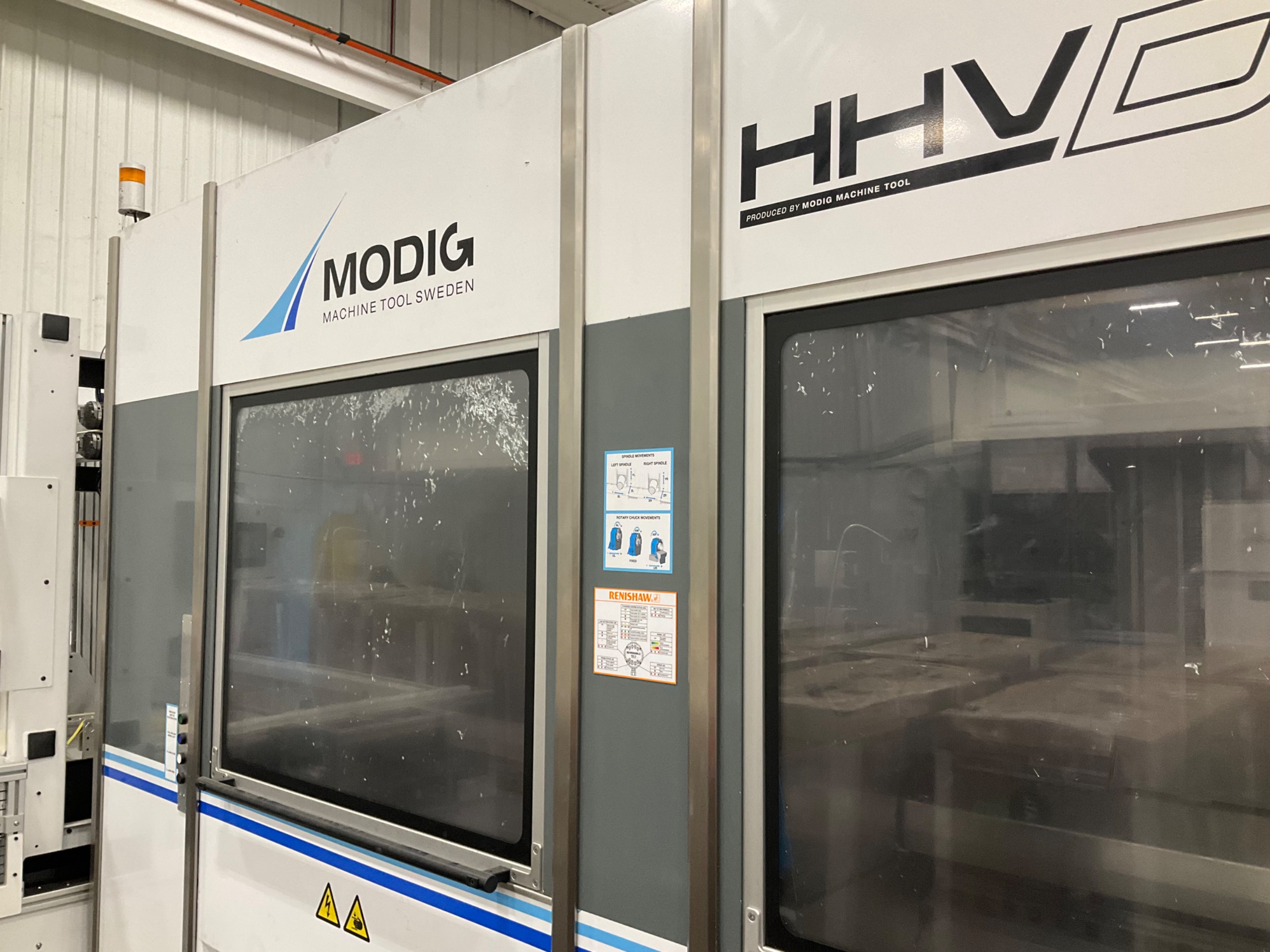

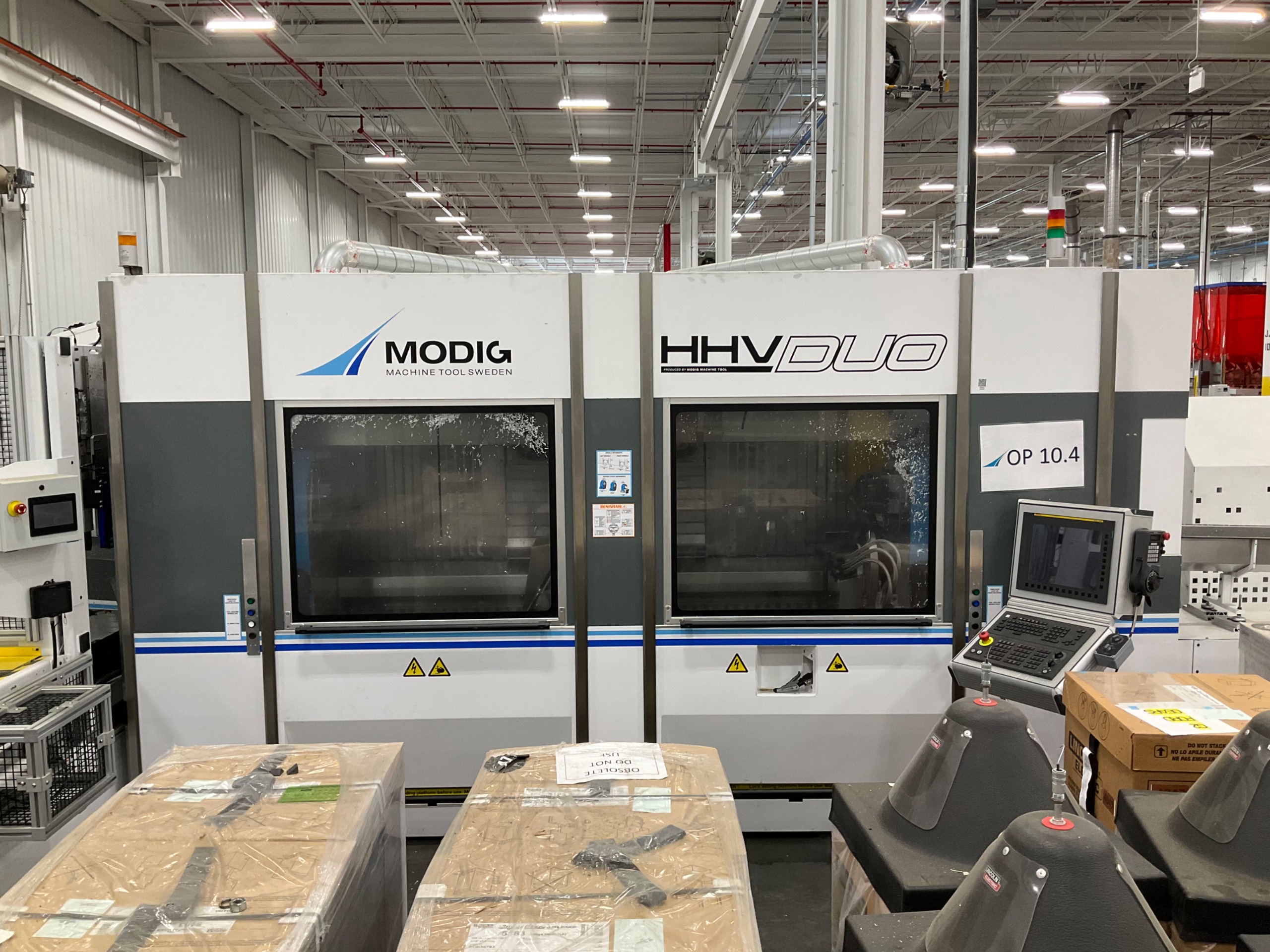

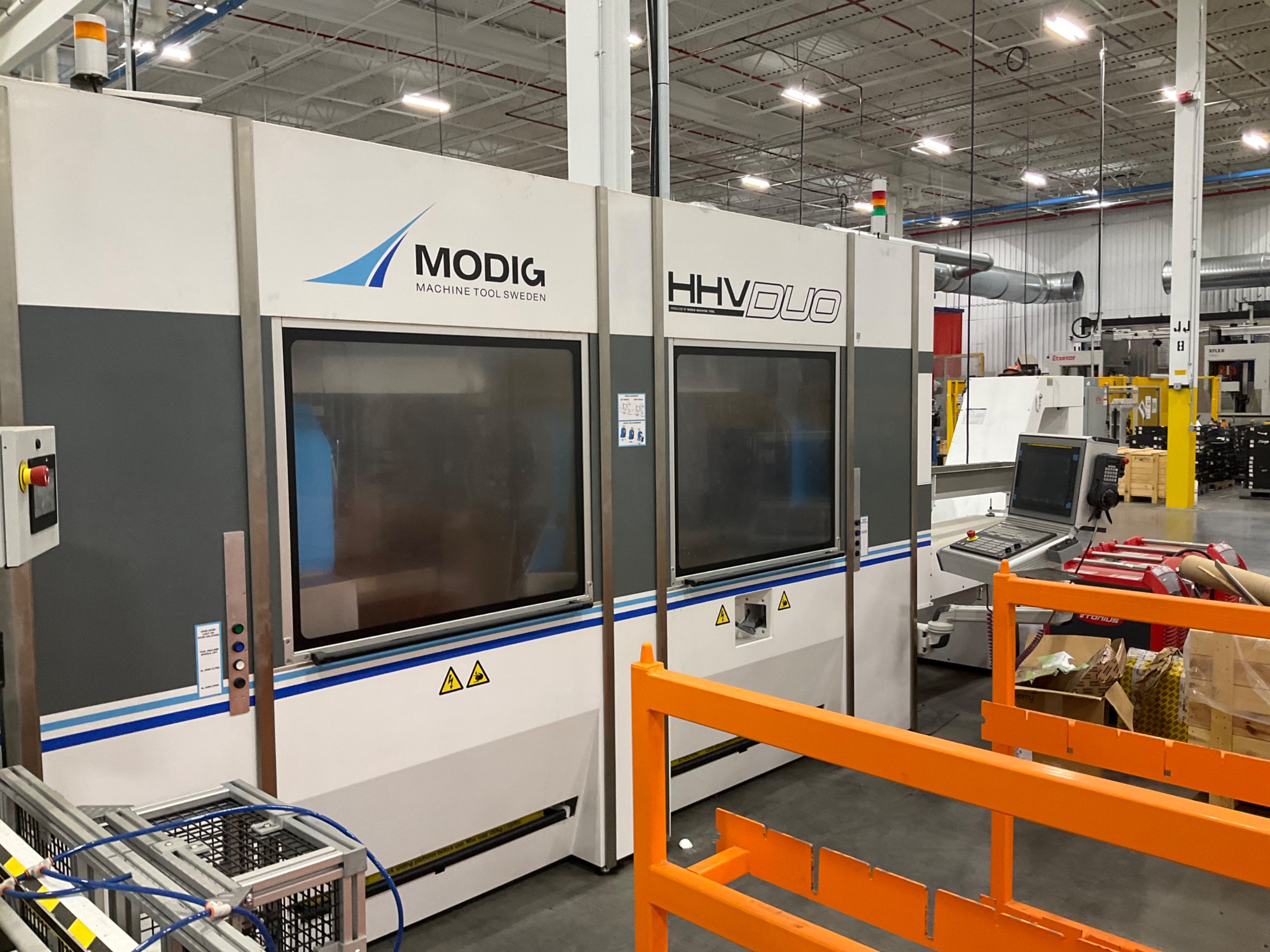

2022 MODIG HHV-3-DUO HORIZONTAL MACHINING CENTER

THE MODIG HHV DUO IS A HIGH-PERFORMANCE 2 × 4-AXIS HORIZONTAL MACHINING CENTER DESIGNED TO DELIVER MAXIMUM OUTPUT FOR INDUSTRIES SUCH AS AUTOMOTIVE, AEROSPACE, AND EXTRUSION MACHINING. WITH TWO SPINDLES (30,000 RPM, 59 FT-LBS TORQUE EACH) AND THREE ROTARY TABLES WITH QUICK-CHANGE JAWS (1 MIN CHANGEOVER), IT CAN COMPLETE PARTS IN A SINGLE SETUP WHILE CUTTING CYCLE TIMES BY 40–70%. ENGINEERED FOR SPEED AND PRECISION, THE HHV DUO OFFERS FEED RATES OF UP TO 60 M/SEC (2,400 IN/MIN), ACCELERATION OF 32 FT/SEC² (10 M/SEC²), AND A-AXIS TRAVEL ±190° (WITH AN OPTIONAL B-AXIS ±15°). WORK CAPACITY IS GENEROUS, HANDLING BARS UP TO 127 × 127 MM (5” × 5”) AND EXTRUSIONS UP TO 150 × 250 MM (6” × 10”). FOR TOOLING, EACH SPINDLE FEATURES A 12-TOOL CHANGER (HSK-63A, 8 SEC CHIP-TO-CHIP), SUPPORTING FLEXIBLE, HIGH-MIX PRODUCTION. TRAVELS INCLUDE X-AXIS 1,500 MM (60”), Y-AXIS 420 MM (20”), Z-AXIS 260 MM (10”), AND U1-AXIS 1,170 MM (46”), MAKING IT ADAPTABLE FOR BOTH SMALL AND LARGE EXTRUSIONS.
