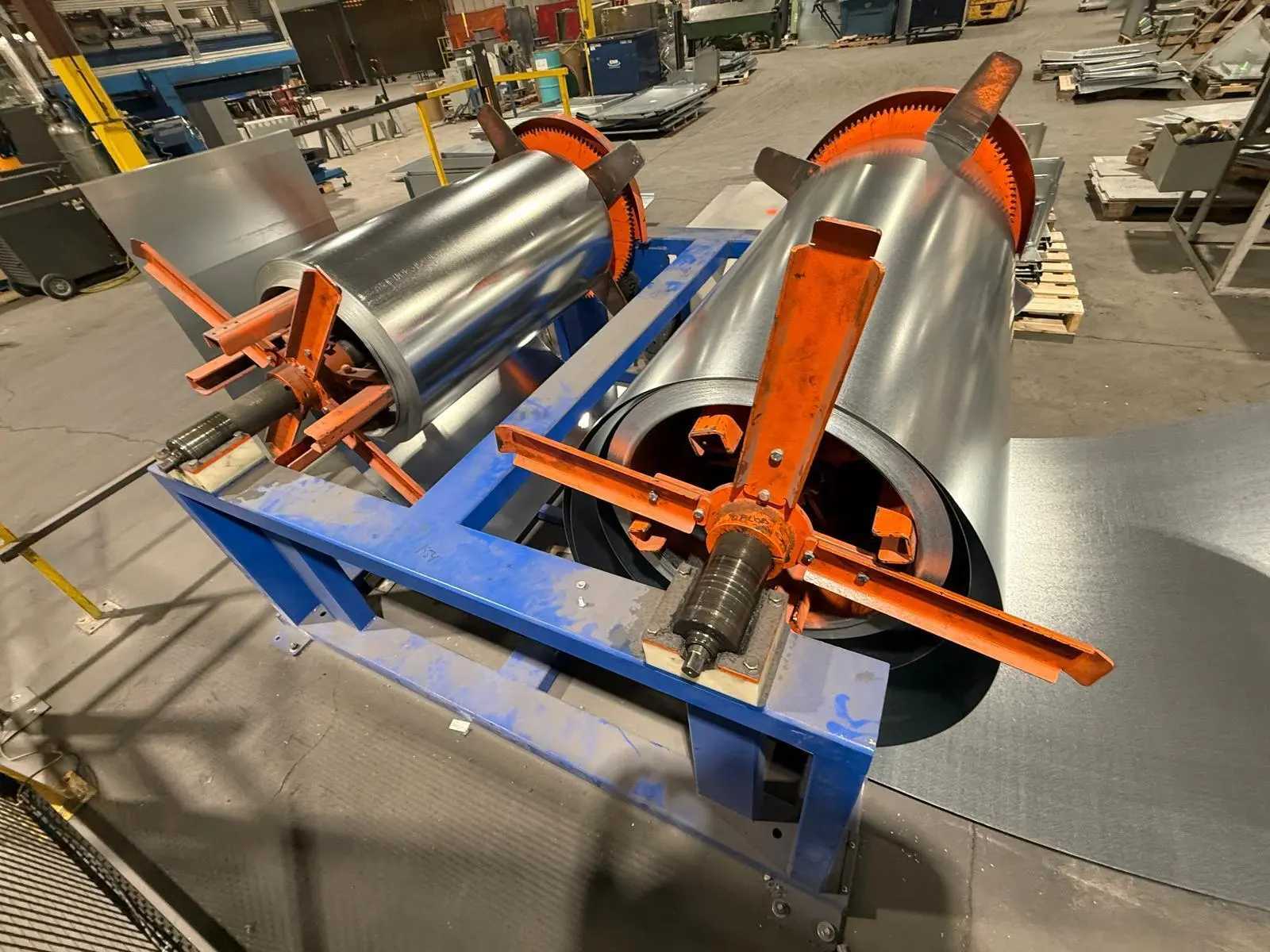

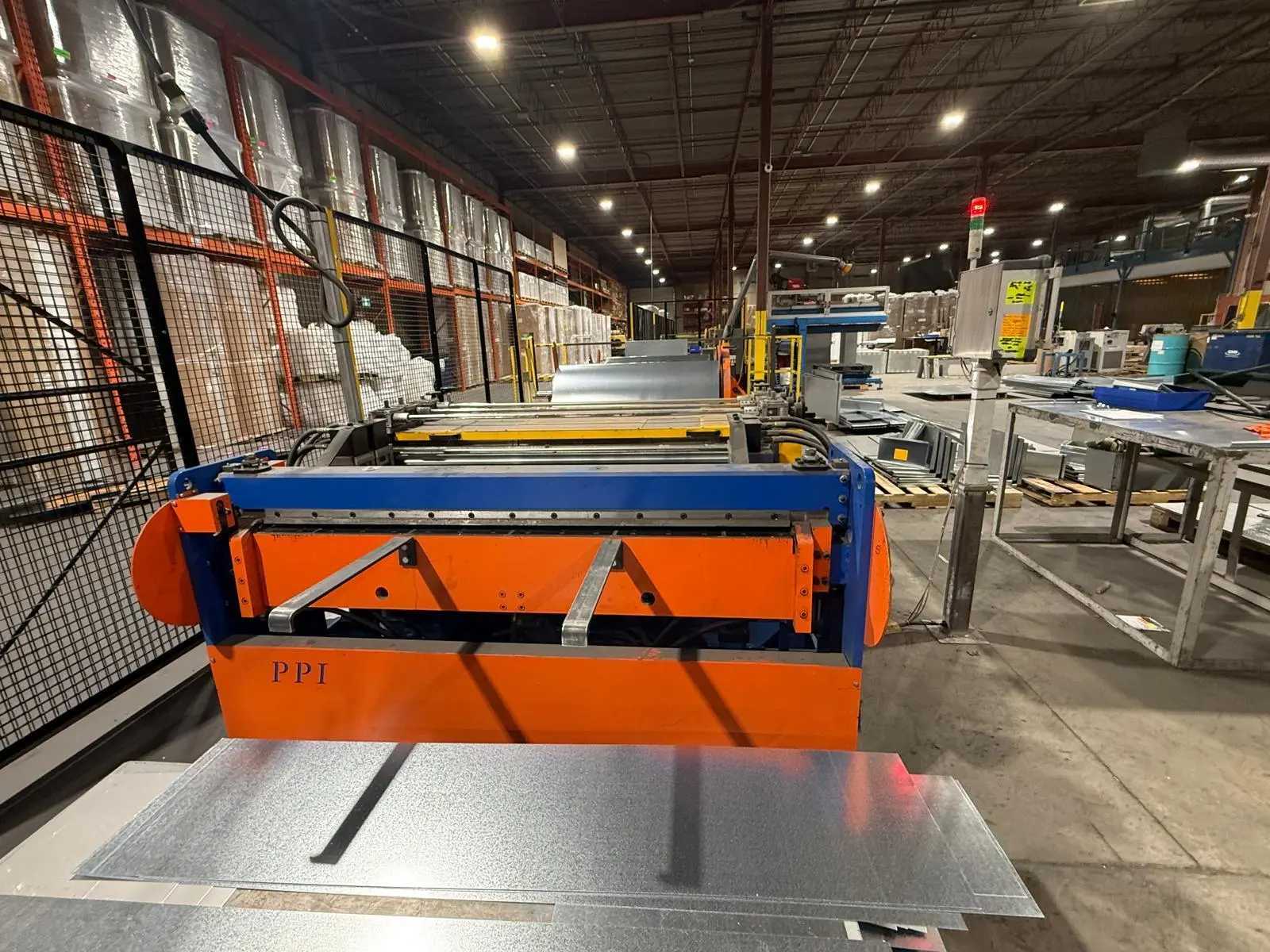

2022 Ppi Challenger Starter Uncoiler Line, 60" W, 18 GA, 12K lb Coil, 230/460V

The Ppi Challenger Starter Uncoiler Line is a 2022 model designed for efficient sheet metal fabrication, specifically capable of processing flat sheets, L-shape, and wrap-around style duct. The machine is engineered to produce duct blanks including flat blanks, “L” sections, and wrap duct blanks. It accommodates a maximum coil width of 60 inches and a material thickness capacity of up to 18 gauge. The coil line features two standard, motor and gear-driven un-coiler stations, each with a maximum coil capacity of approximately 12,000 lb. It includes beading capability, applying adjustable reinforcement beads on 12-inch centers, and supports notch styles for both slip and drive, and PPF/C ducts. The system operates on 230/460V, 60Hz, 3PH power. The machine’s dimensions are 20' x 8' x 6' with a listed weight of 18,000 lbs.
