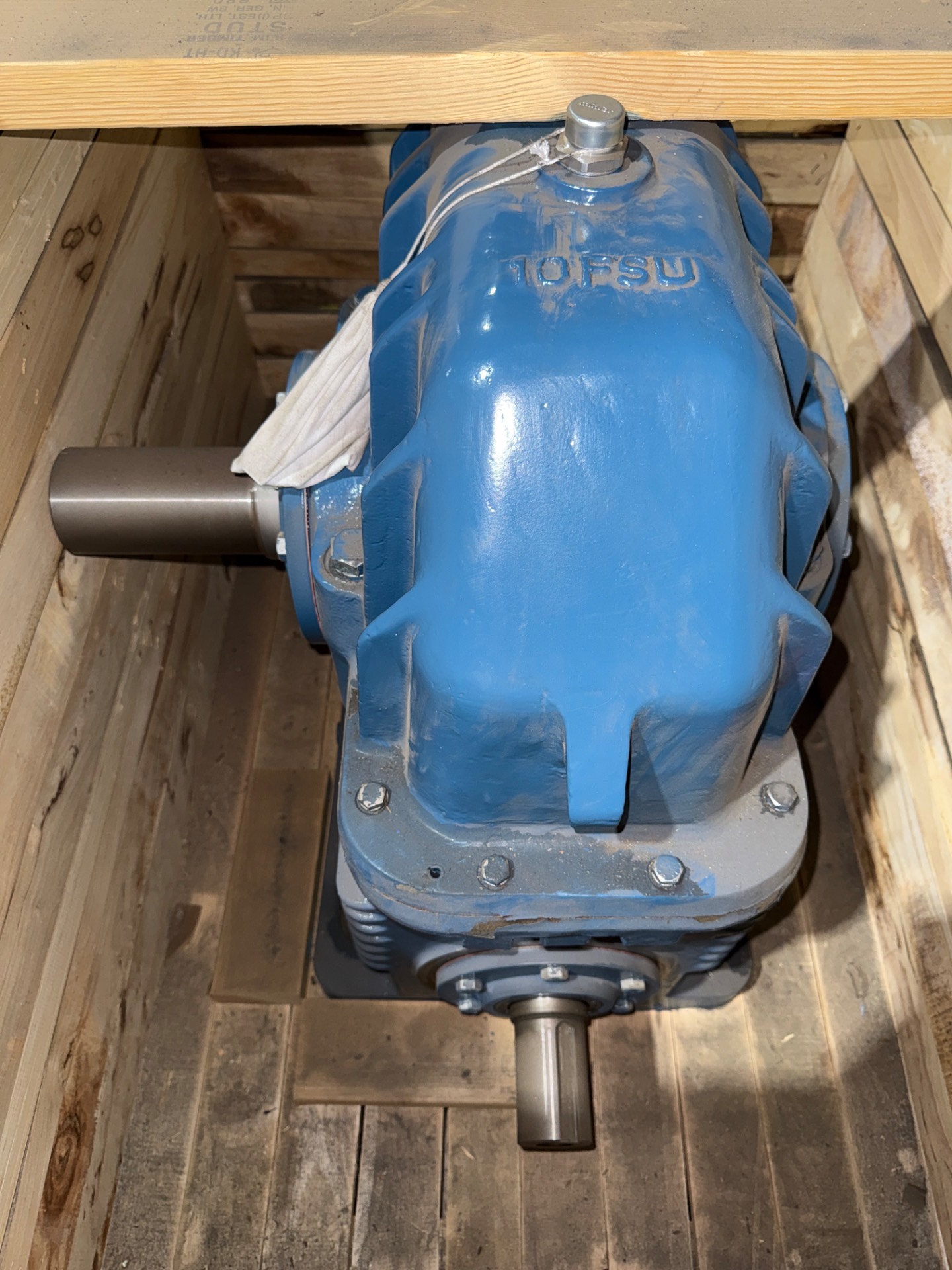

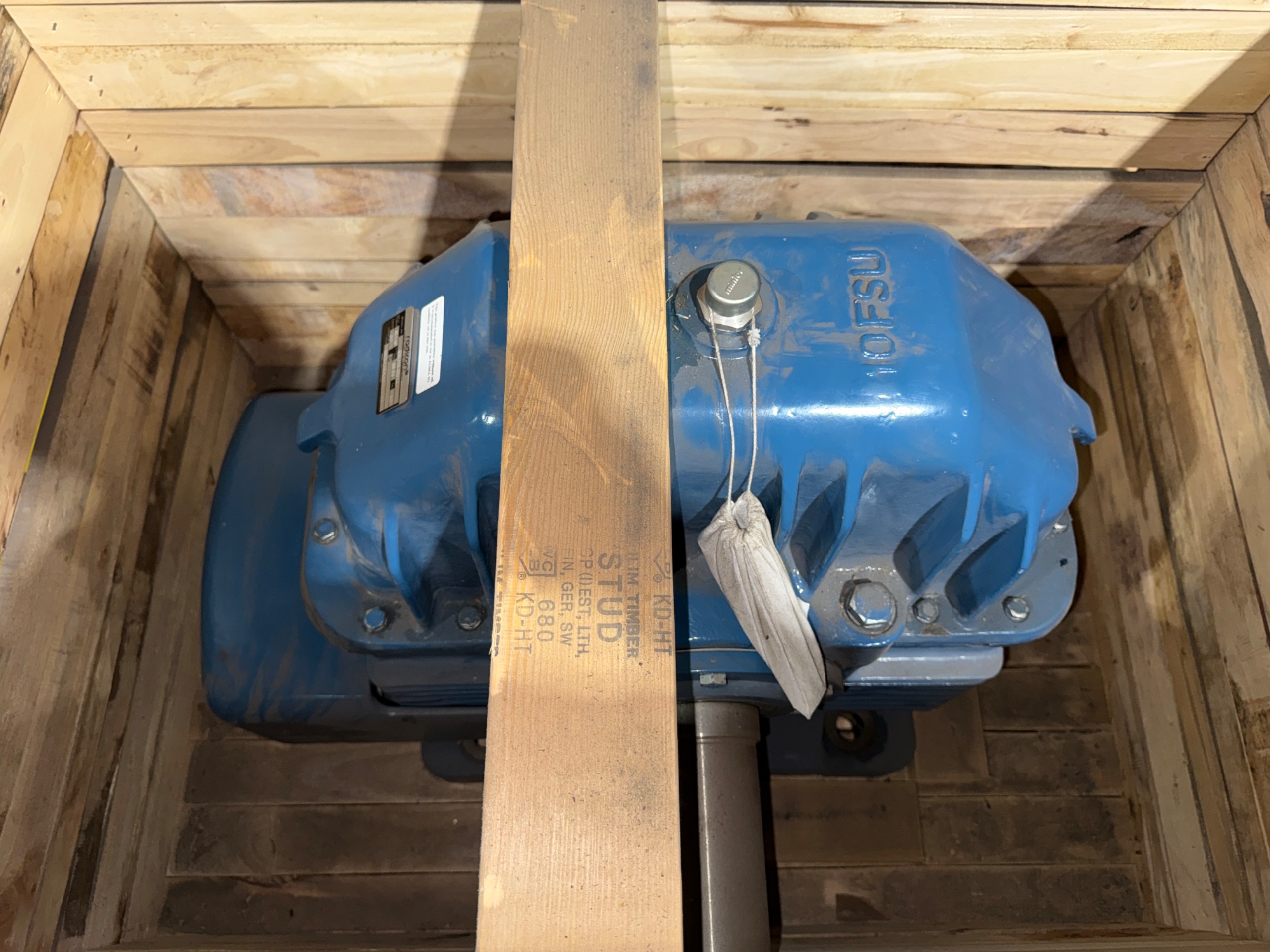

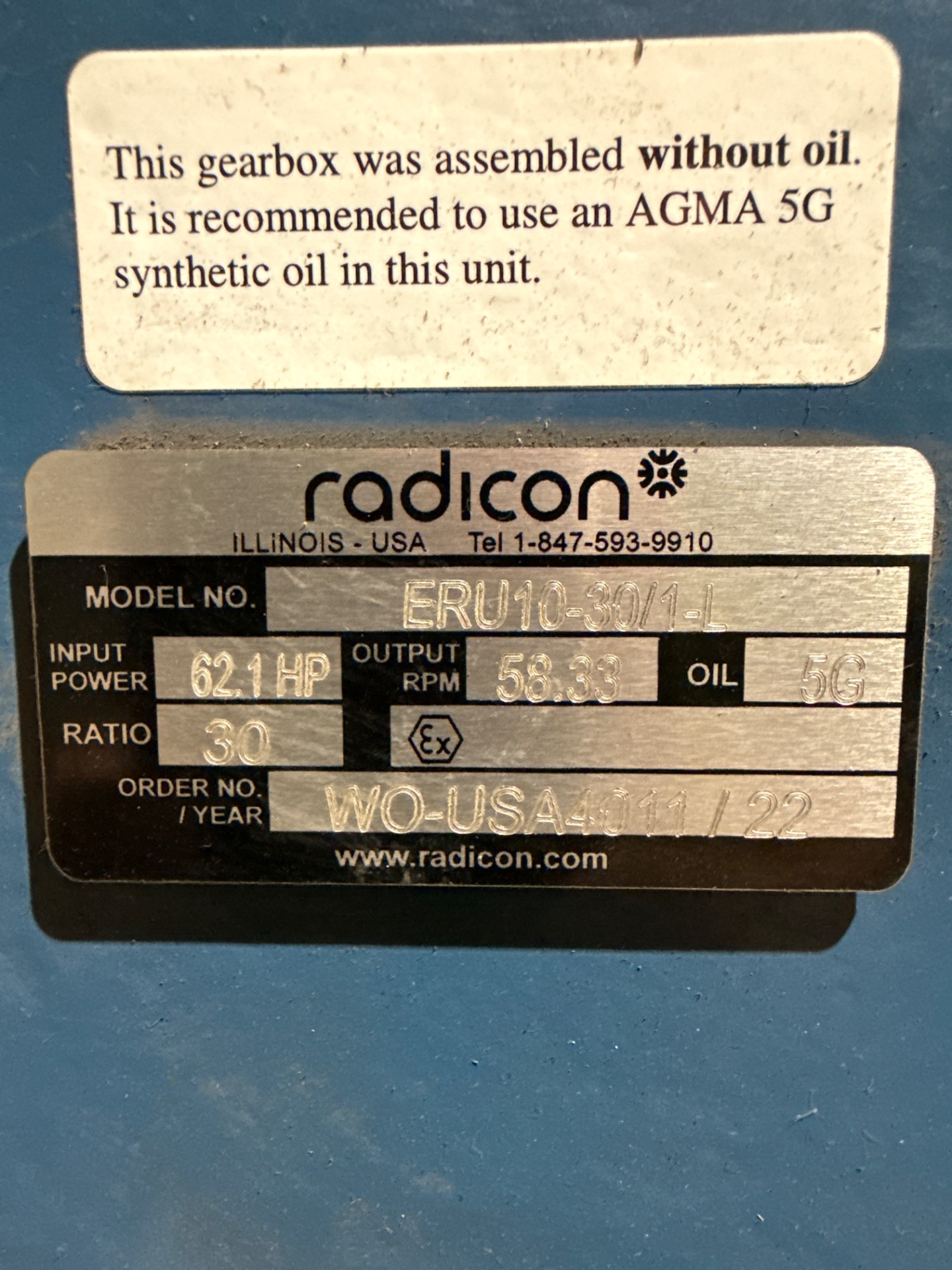

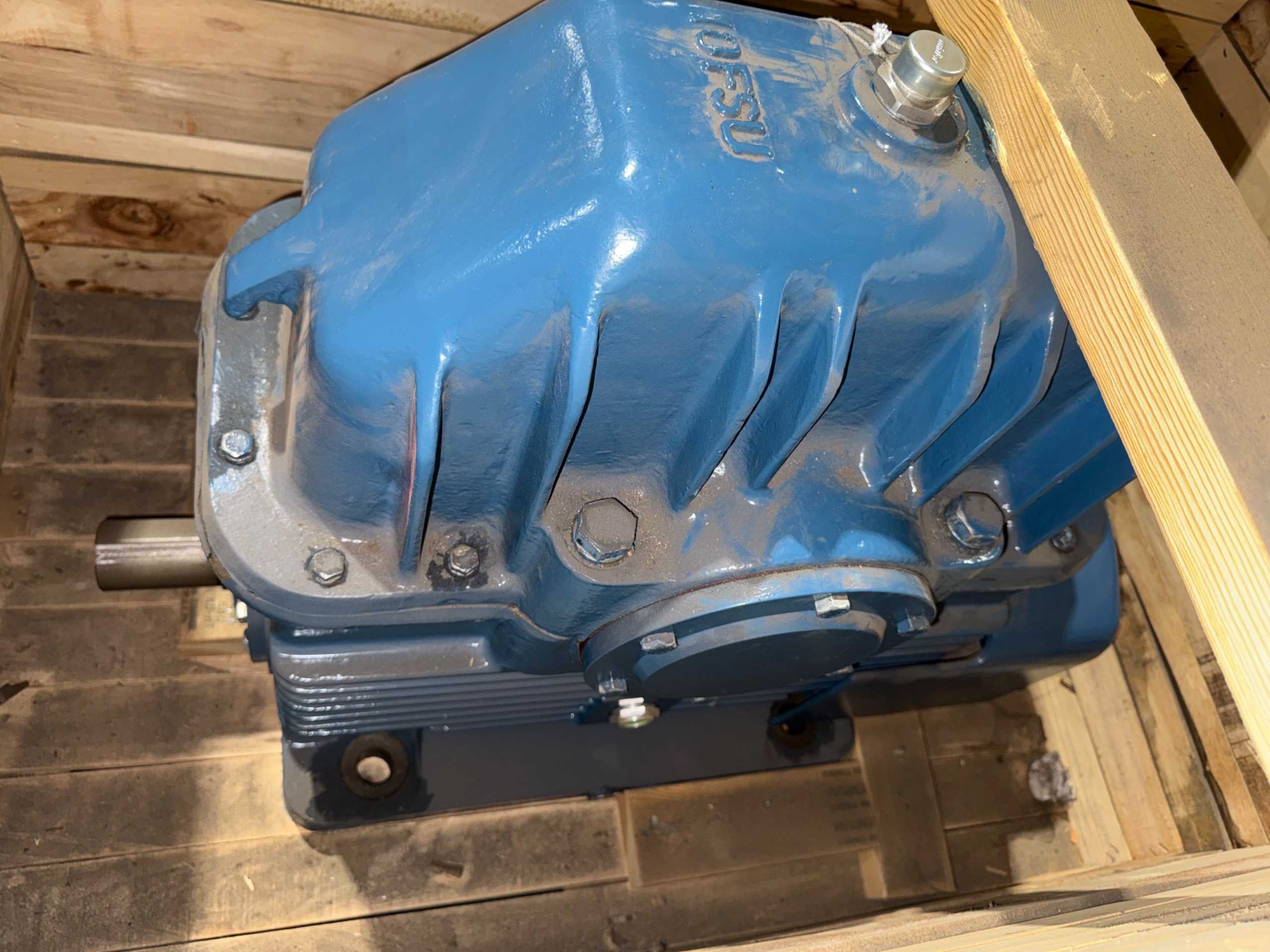

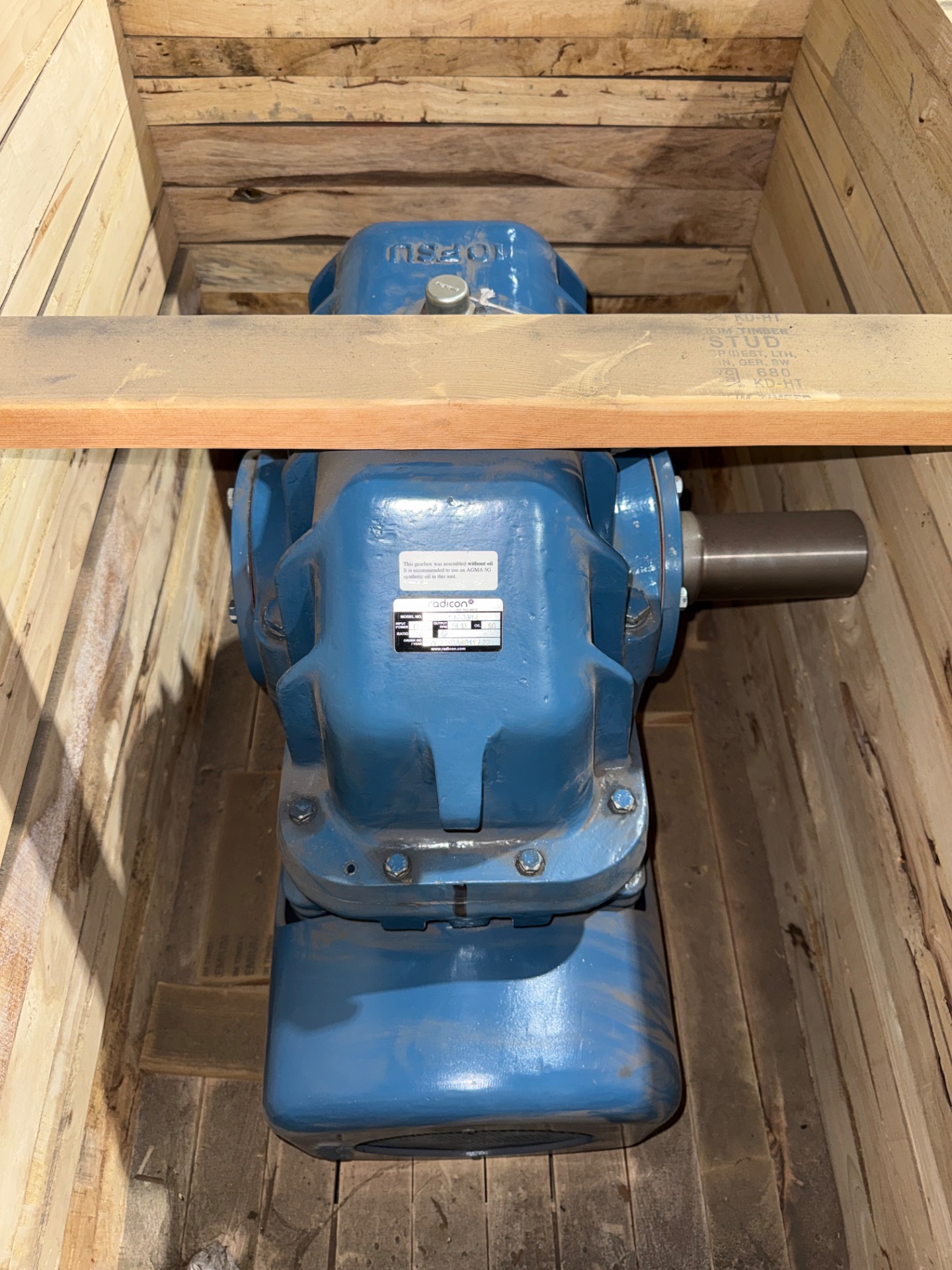

2022 RADICON ERU10-30/1-L UNDERDRIVEN WORM GEAR UNIT 10IN CENTER, 30:1 RATIO

THE RADICON ERU10-30/1-L IS A HEAVY-DUTY SINGLE-REDUCTION UNDERDRIVEN WORM GEAR UNIT FROM THE ER SERIES, DESIGNED AS A DIRECT REPLACEMENT FOR DAVID BROWN SERIES A UNITS. THIS SPECIFIC MODEL FEATURES A 10-INCH CENTER DISTANCE AND A 30:1 REDUCTION RATIO. THE UNIT IS CONSTRUCTED WITH A RUGGED, OIL-TIGHT, AND DUST-PROOF CLOSE-GRAIN CAST IRON GEAR CASE, SUITABLE FOR OUTDOOR INSTALLATION. ITS INTERNAL COMPONENTS INCLUDE A CASE-HARDENED ALLOY STEEL WORM, CARBURIZED AND GROUND FOR PRECISION, AND A CENTRIFUGALLY CAST PHOSPHOR-BRONZE WORM WHEEL RIM SHRINK-FITTED ONTO A CAST IRON CENTER. THE SHAFTS ARE SUPPORTED BY HIGH-CAPACITY TAPER ROLLER BEARINGS TO MANAGE SIGNIFICANT JOURNAL AND THRUST LOADS. LUBRICATION IS PROVIDED VIA AN OIL SPLASH SYSTEM FROM THE SUMP, AND COOLING IS ACHIEVED THROUGH A POLYPROPYLENE OR METAL FAN DIRECTING AIRFLOW OVER THE RIBBED HOUSING.
