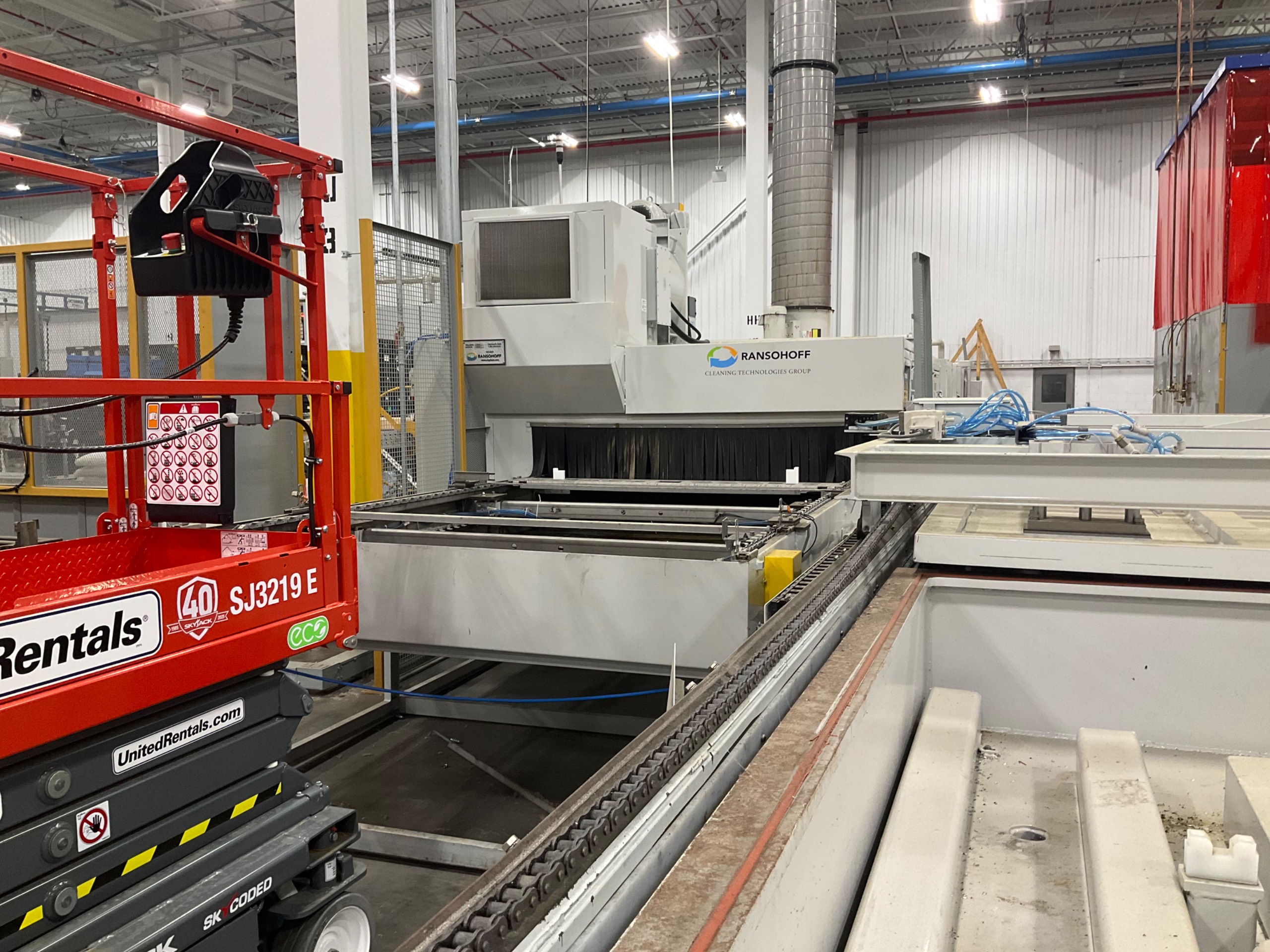

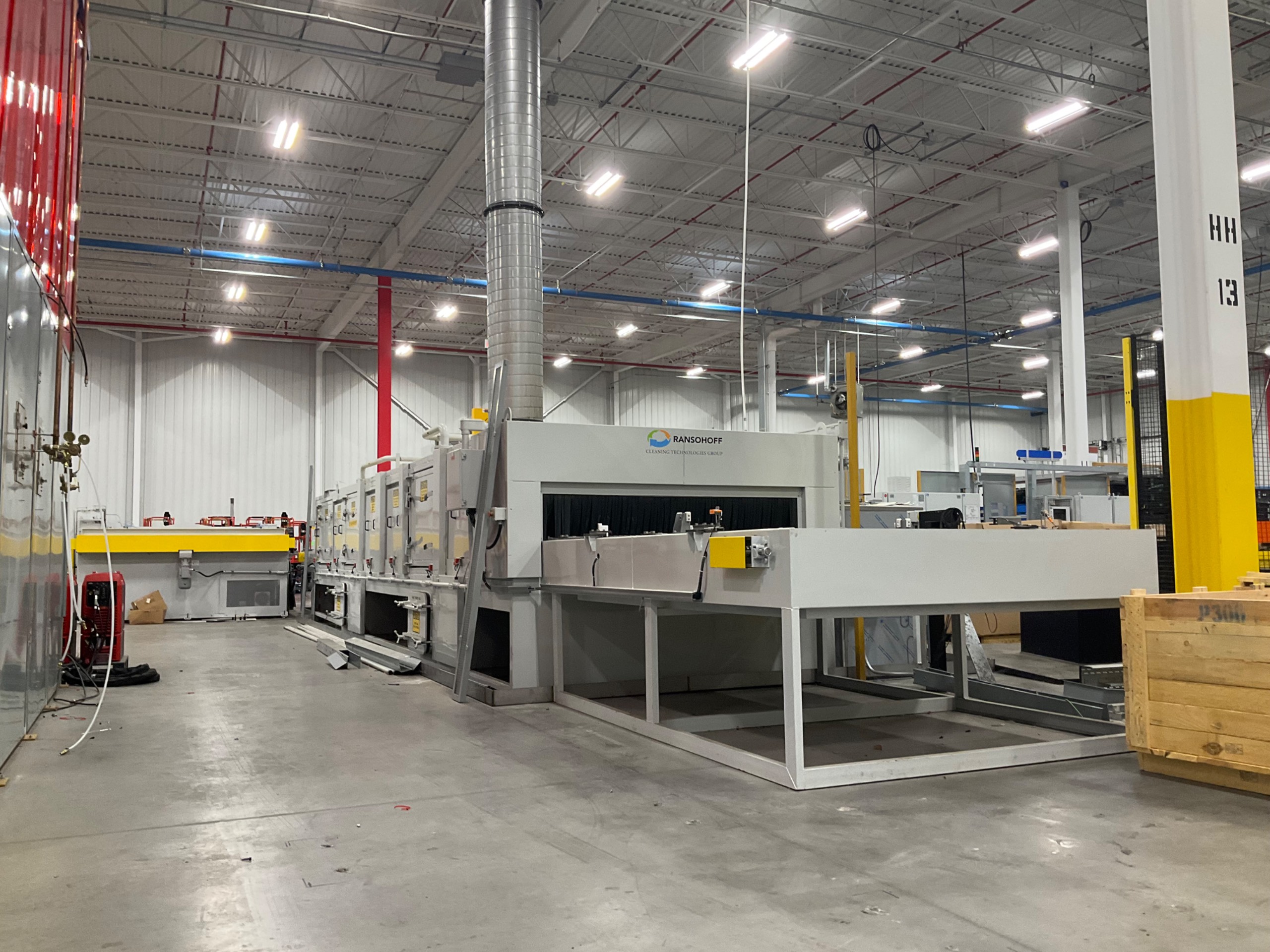

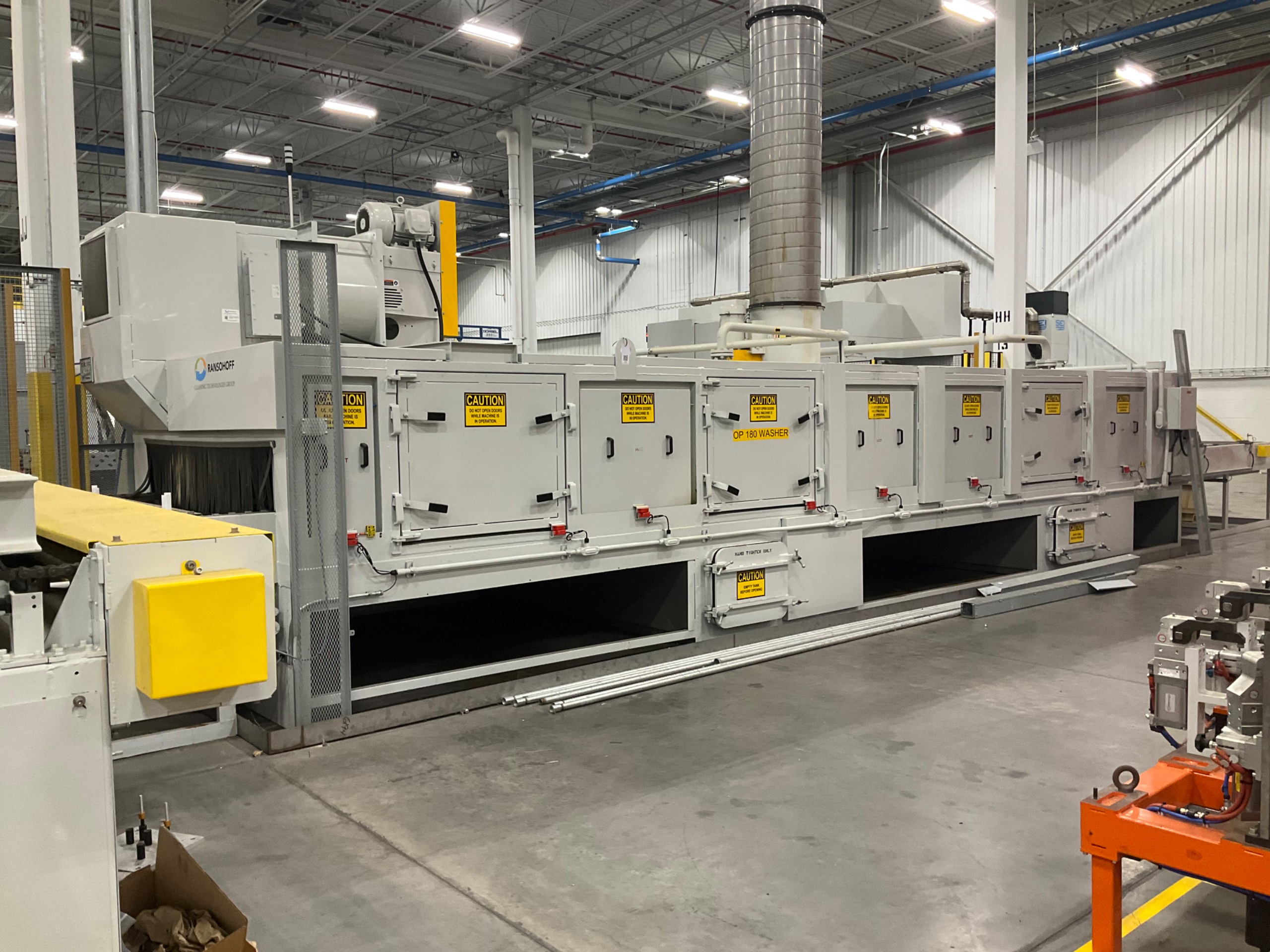

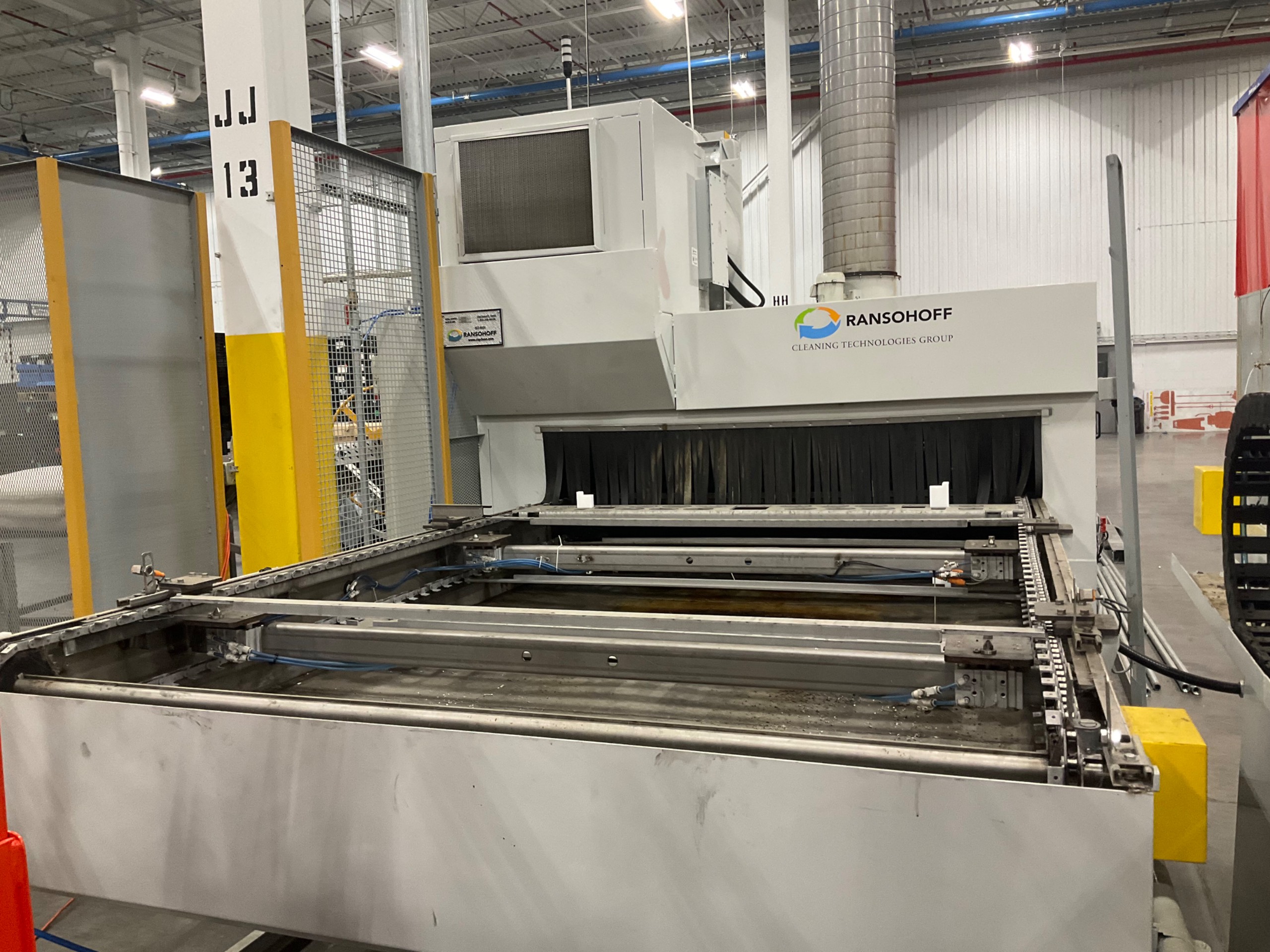

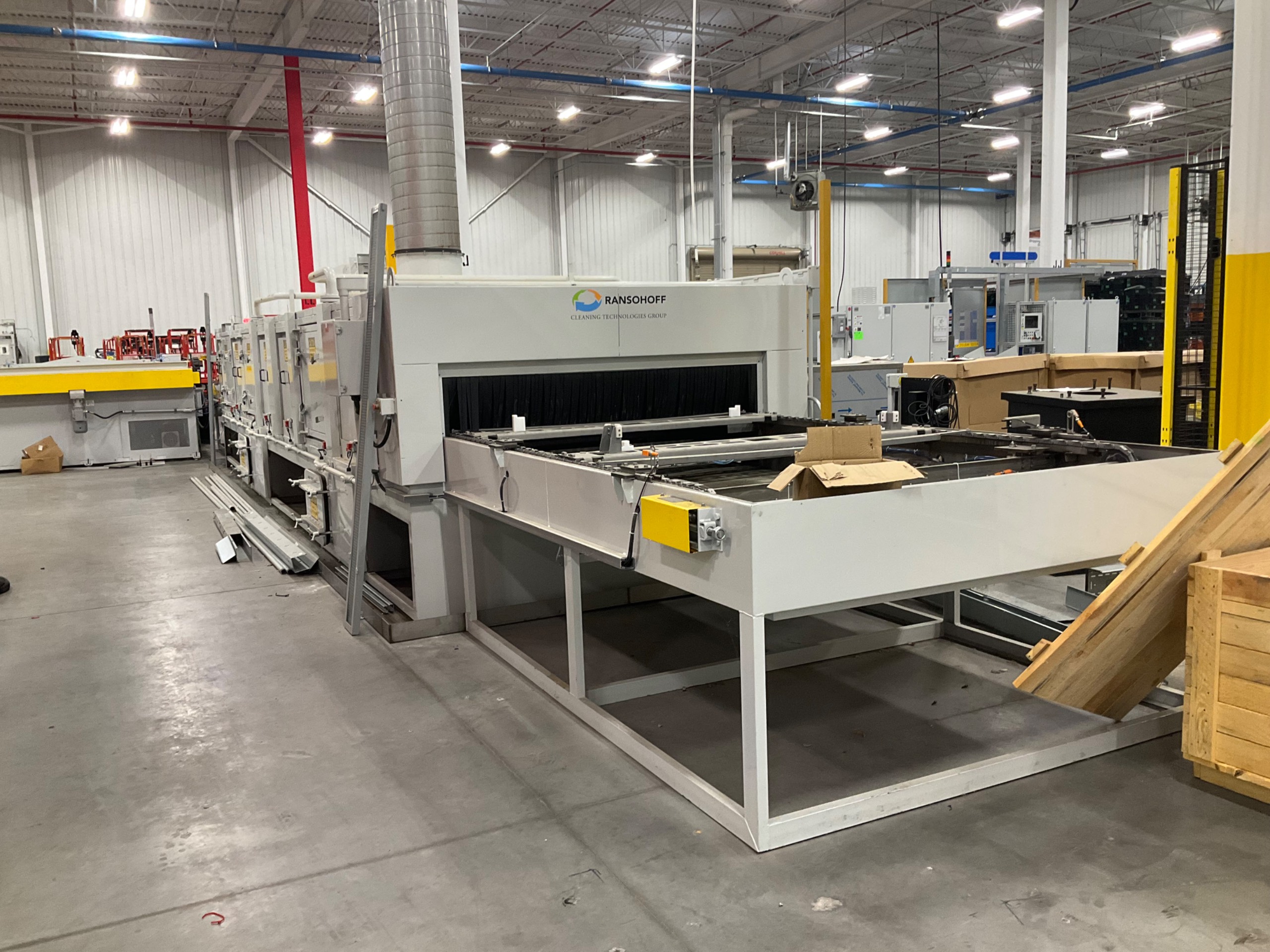

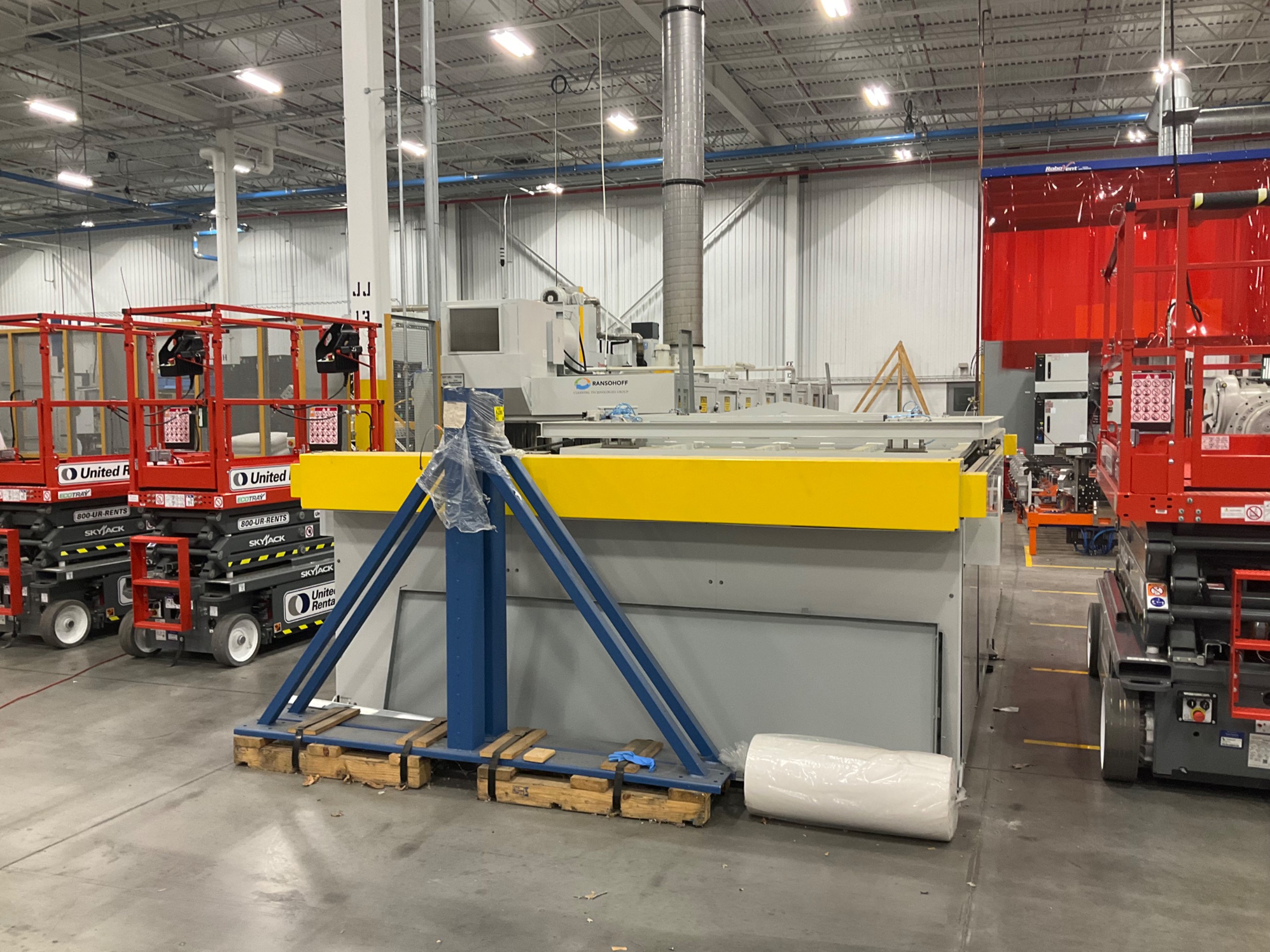

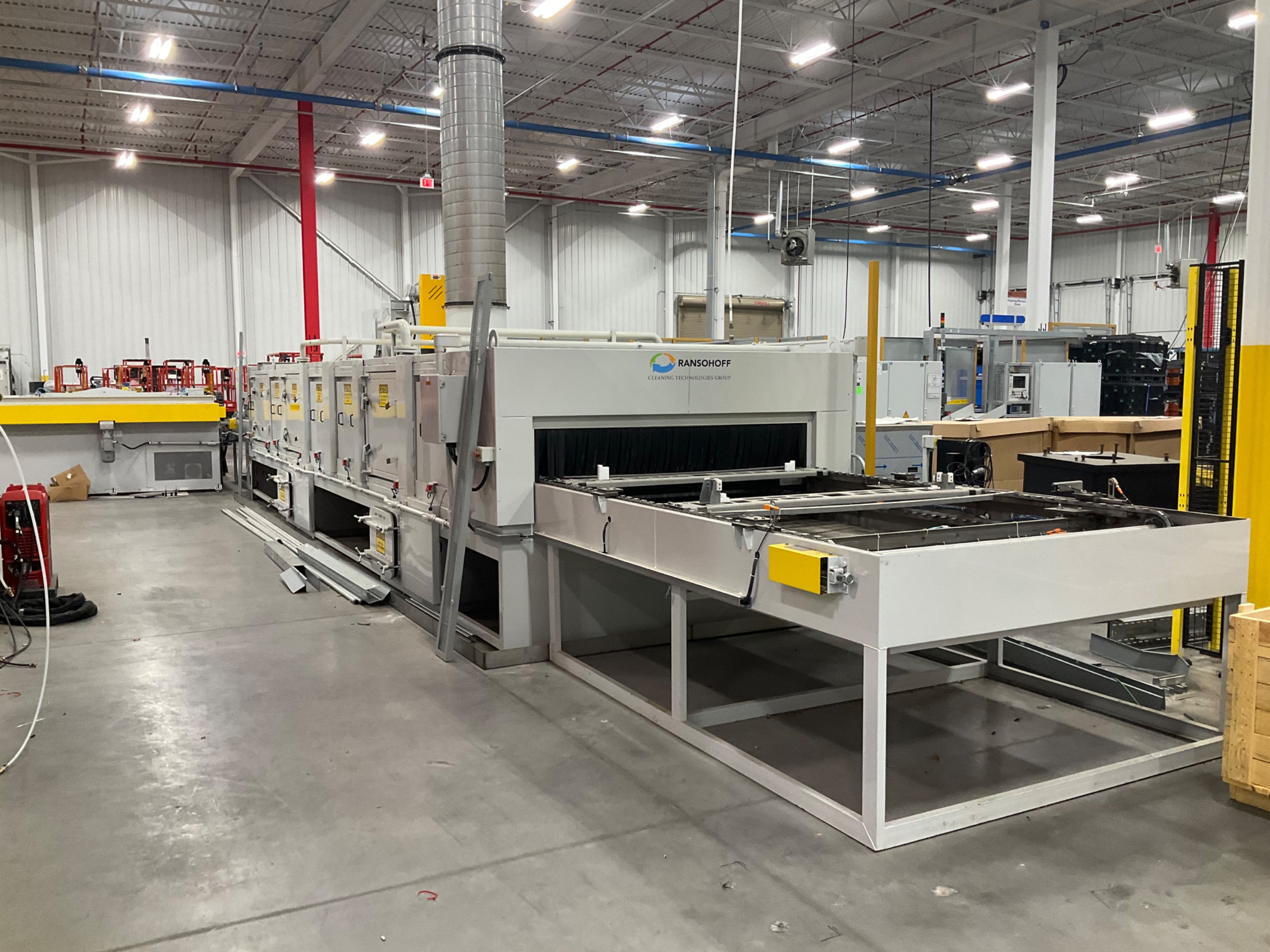

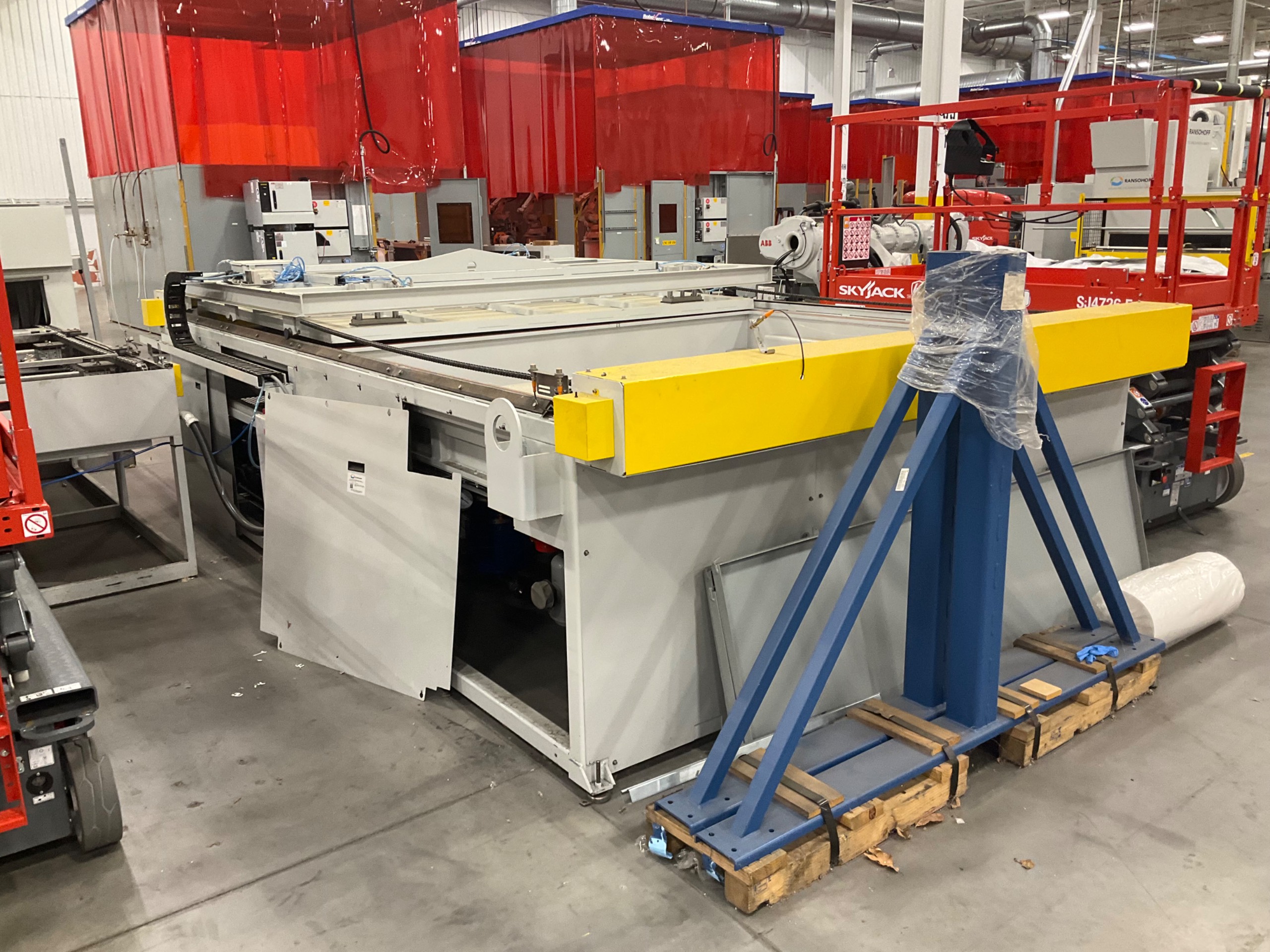

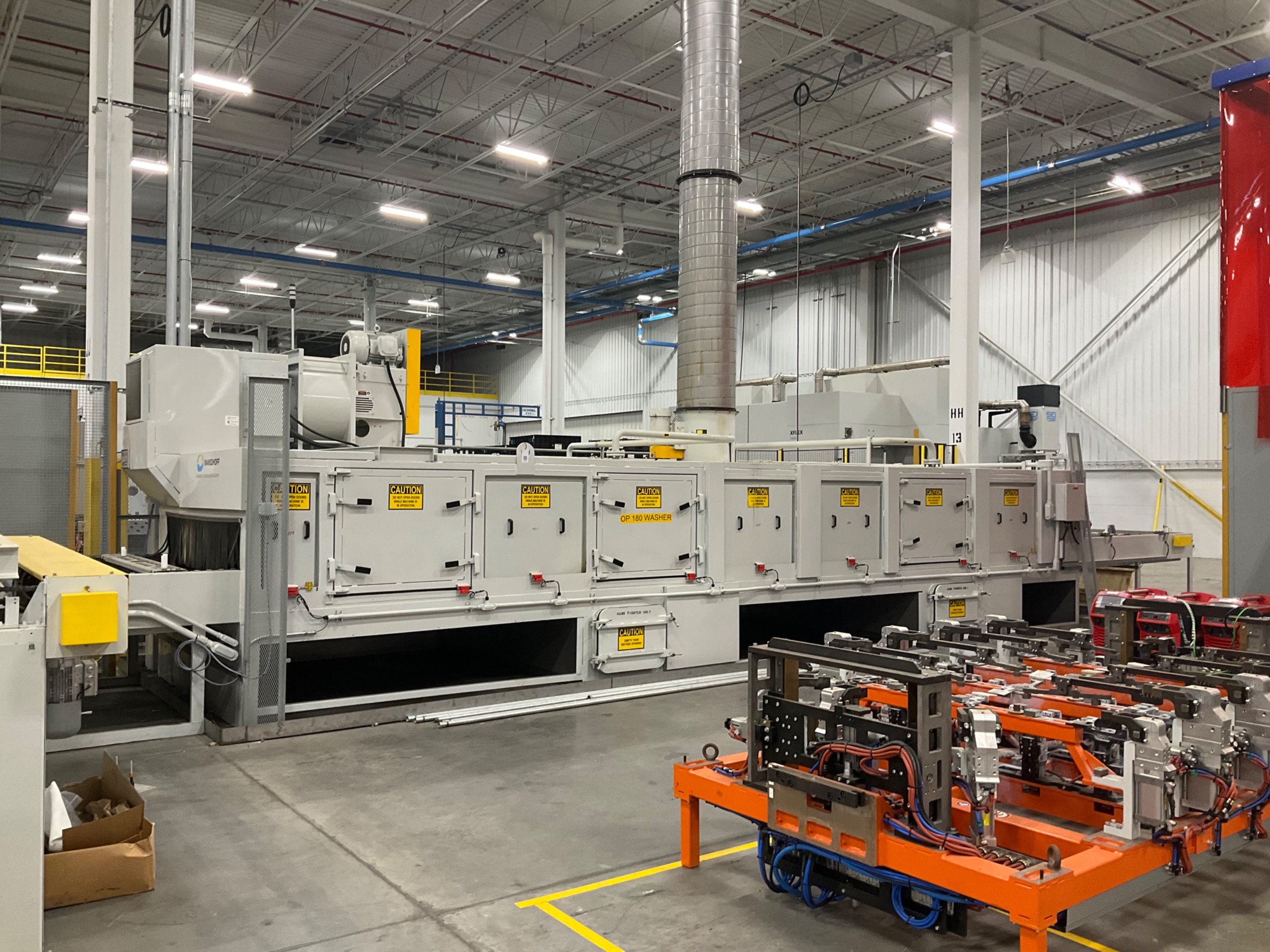

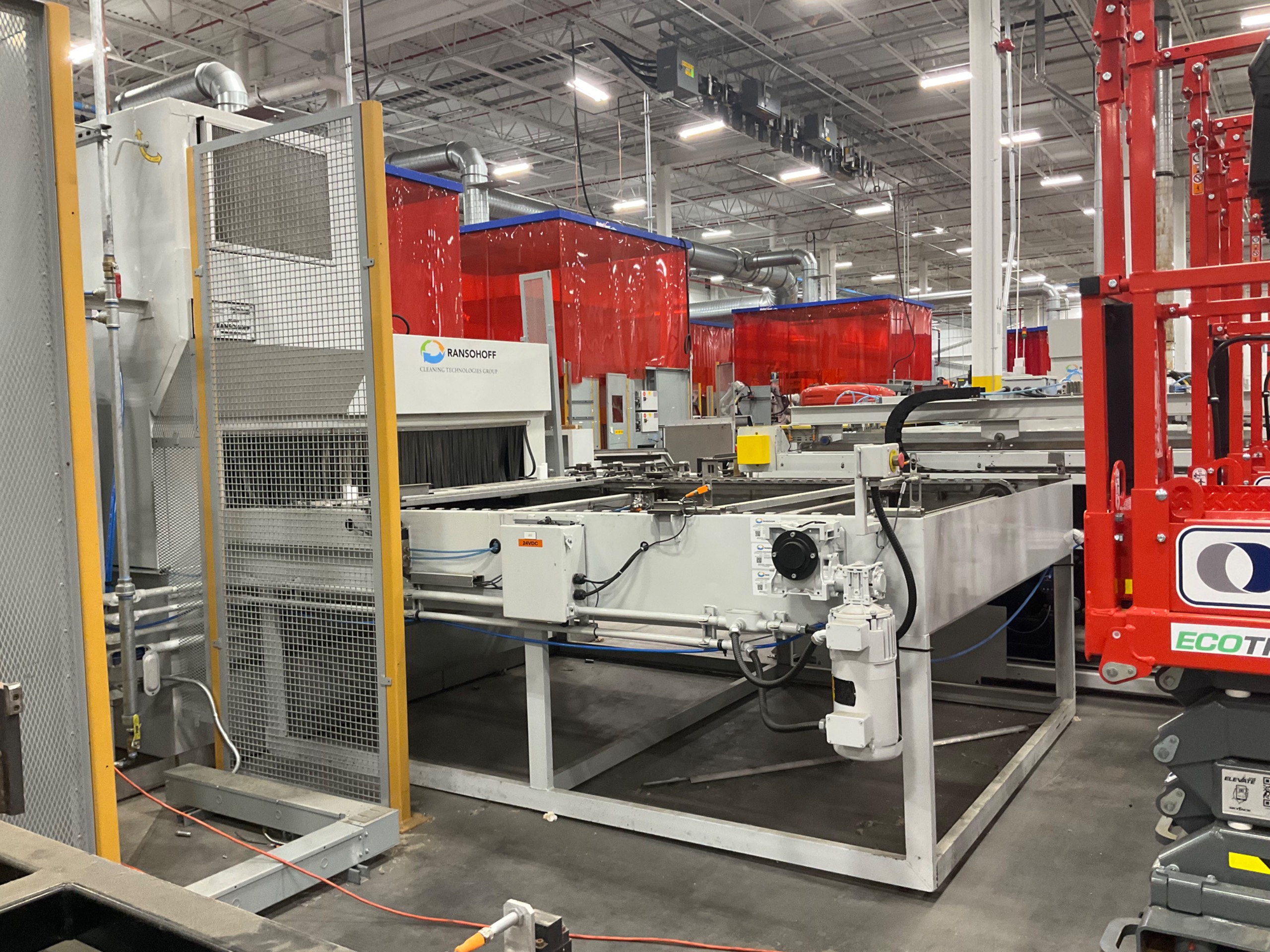

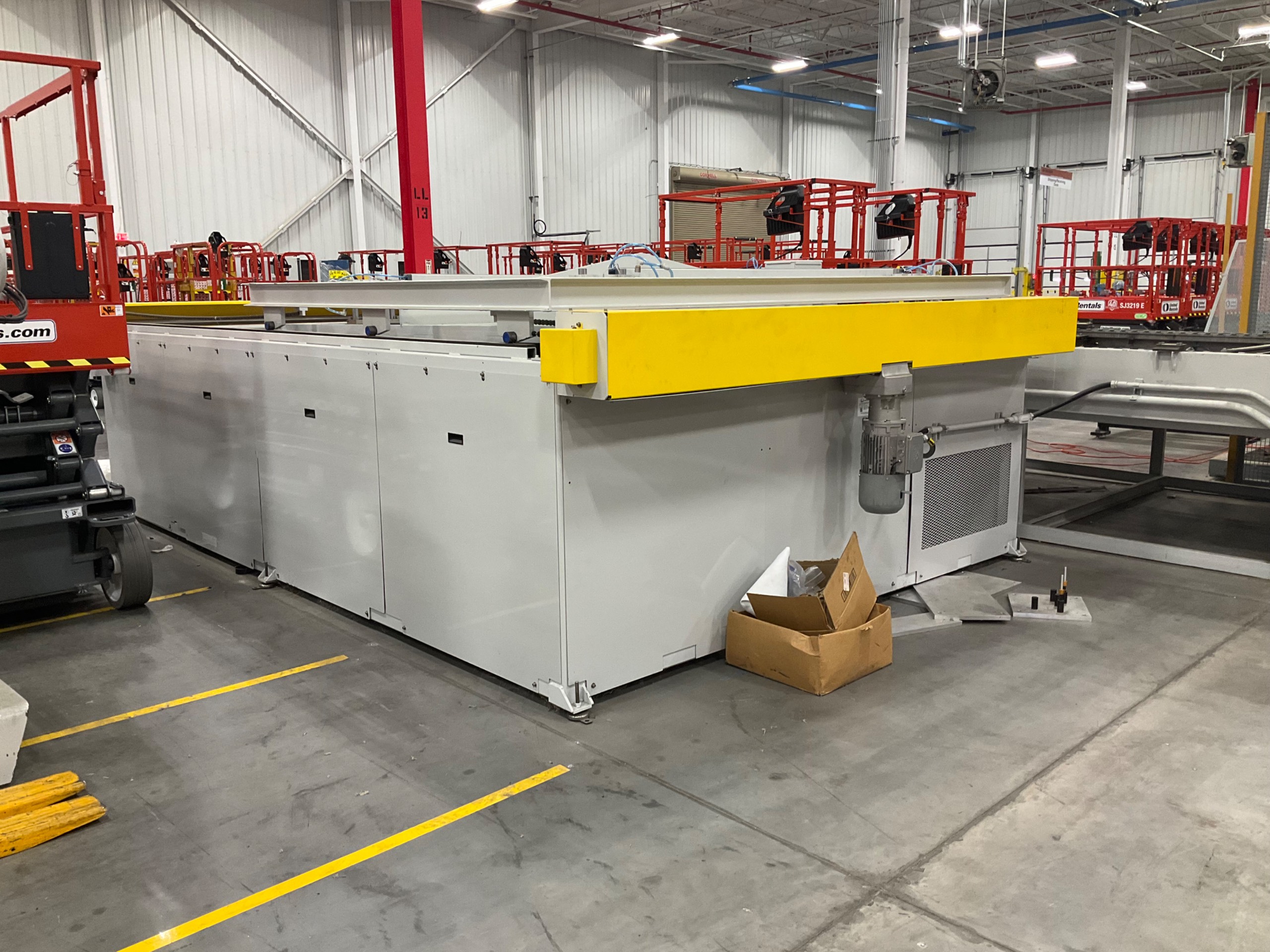

2022 RANSOHOFF LEANVEYOR PARTS WASHING MACHINE

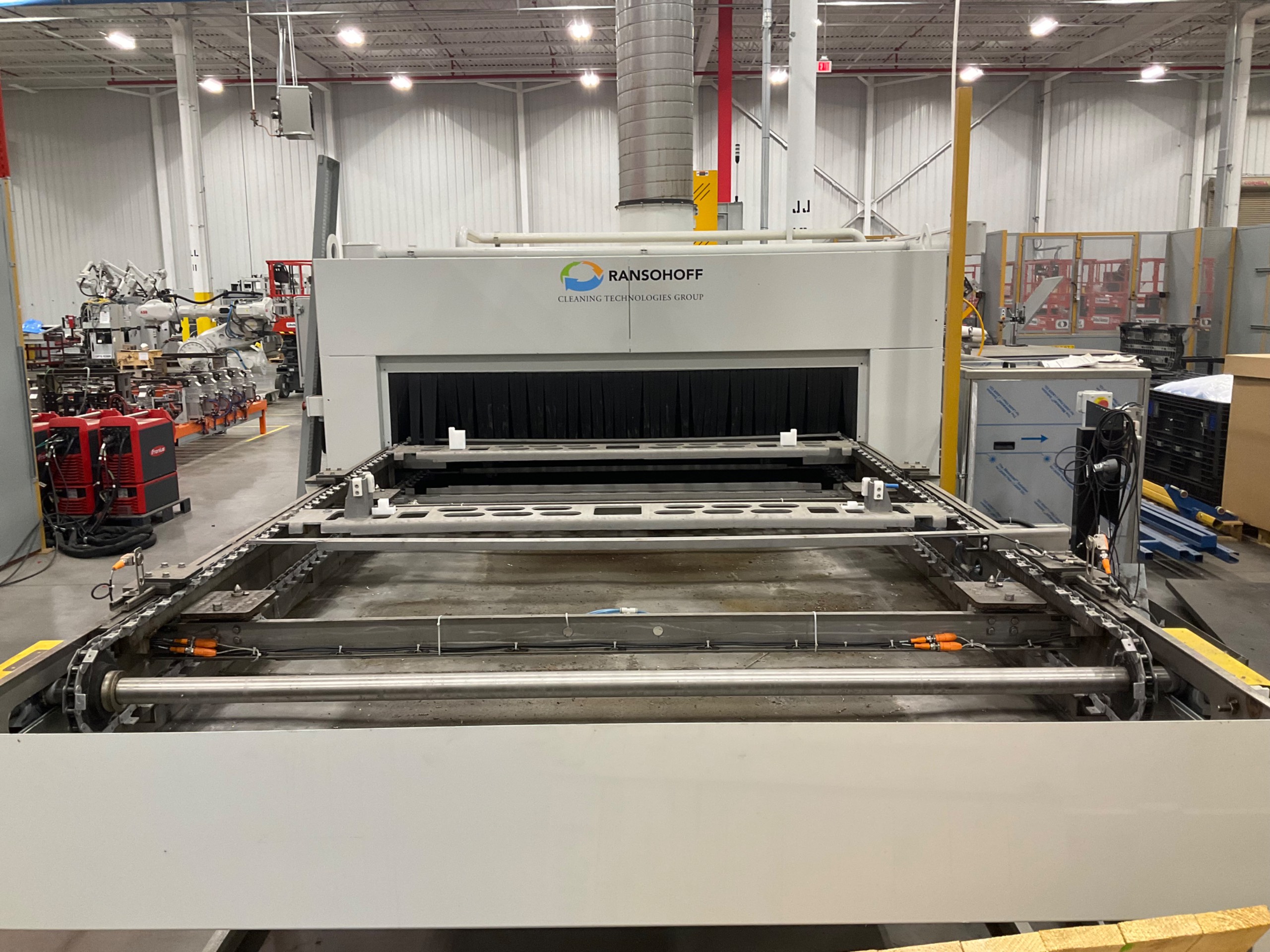

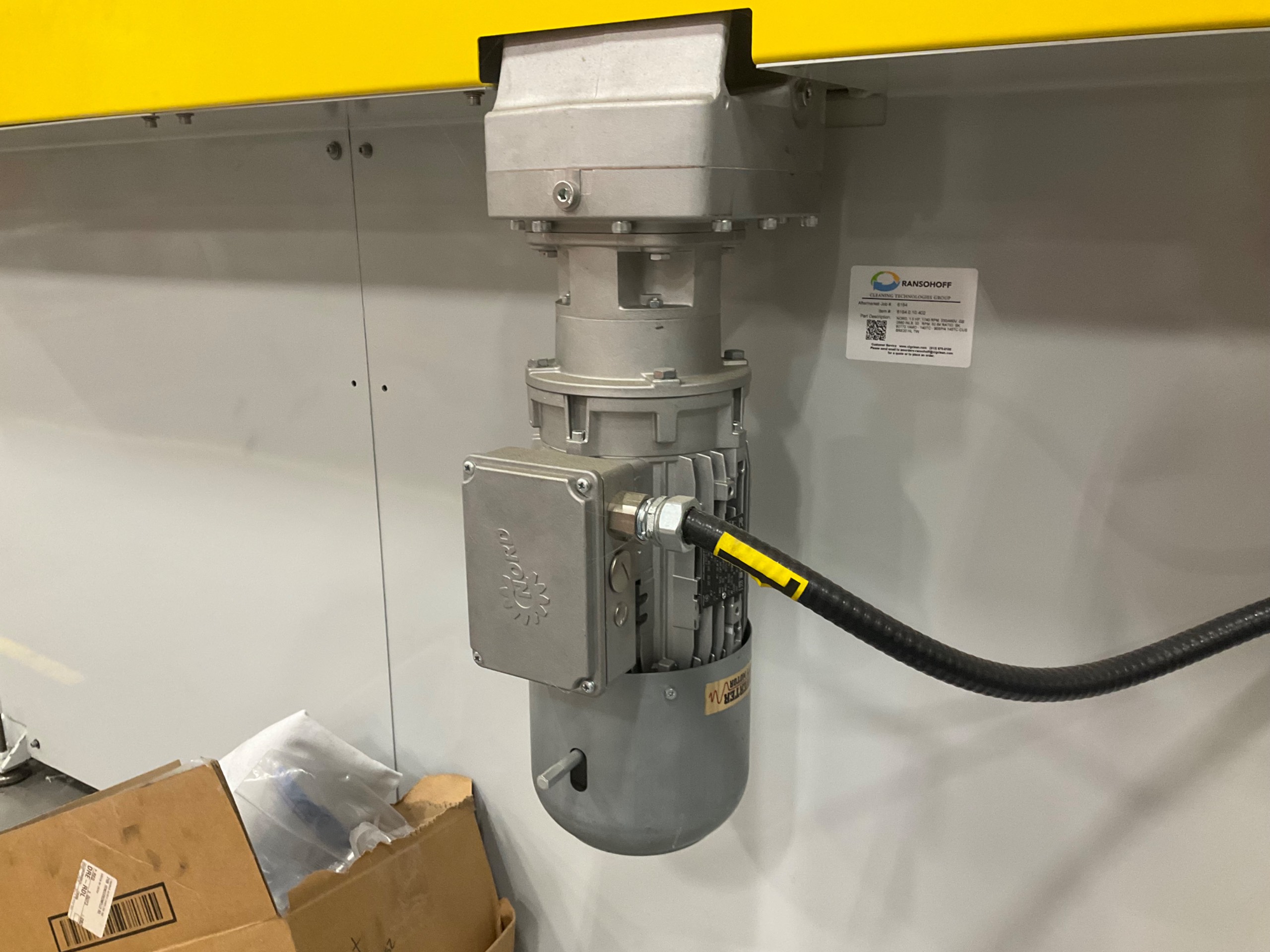

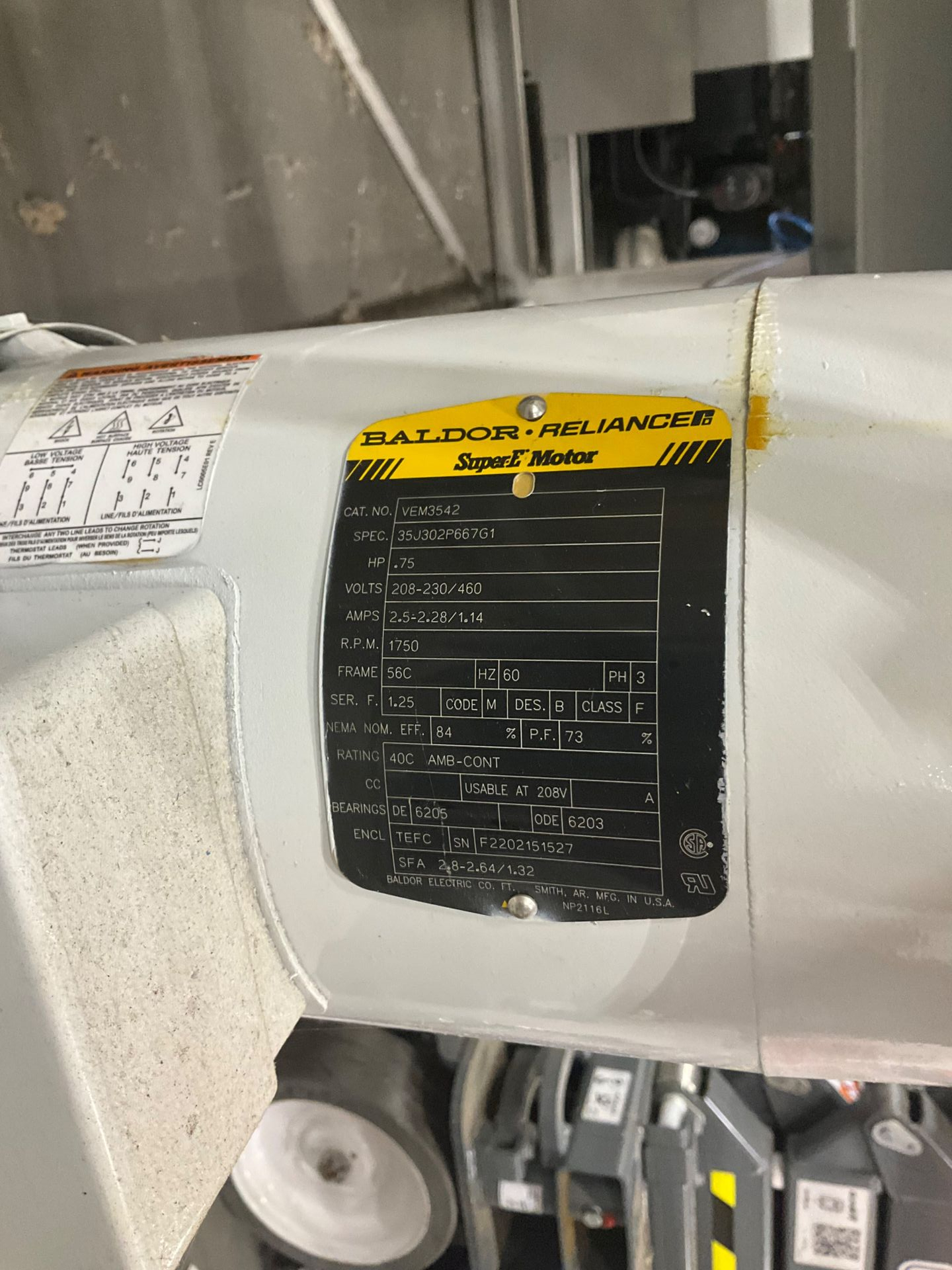

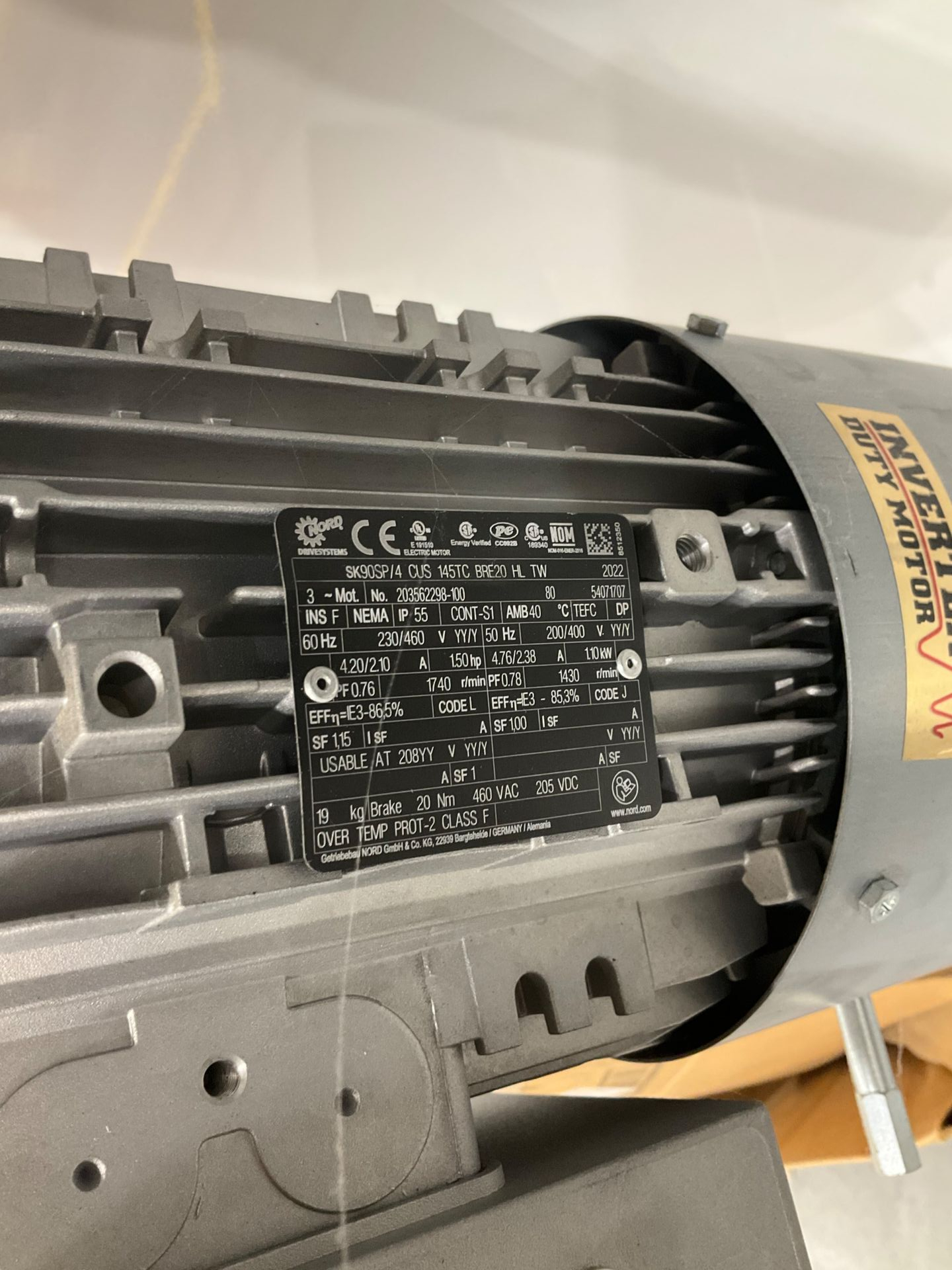

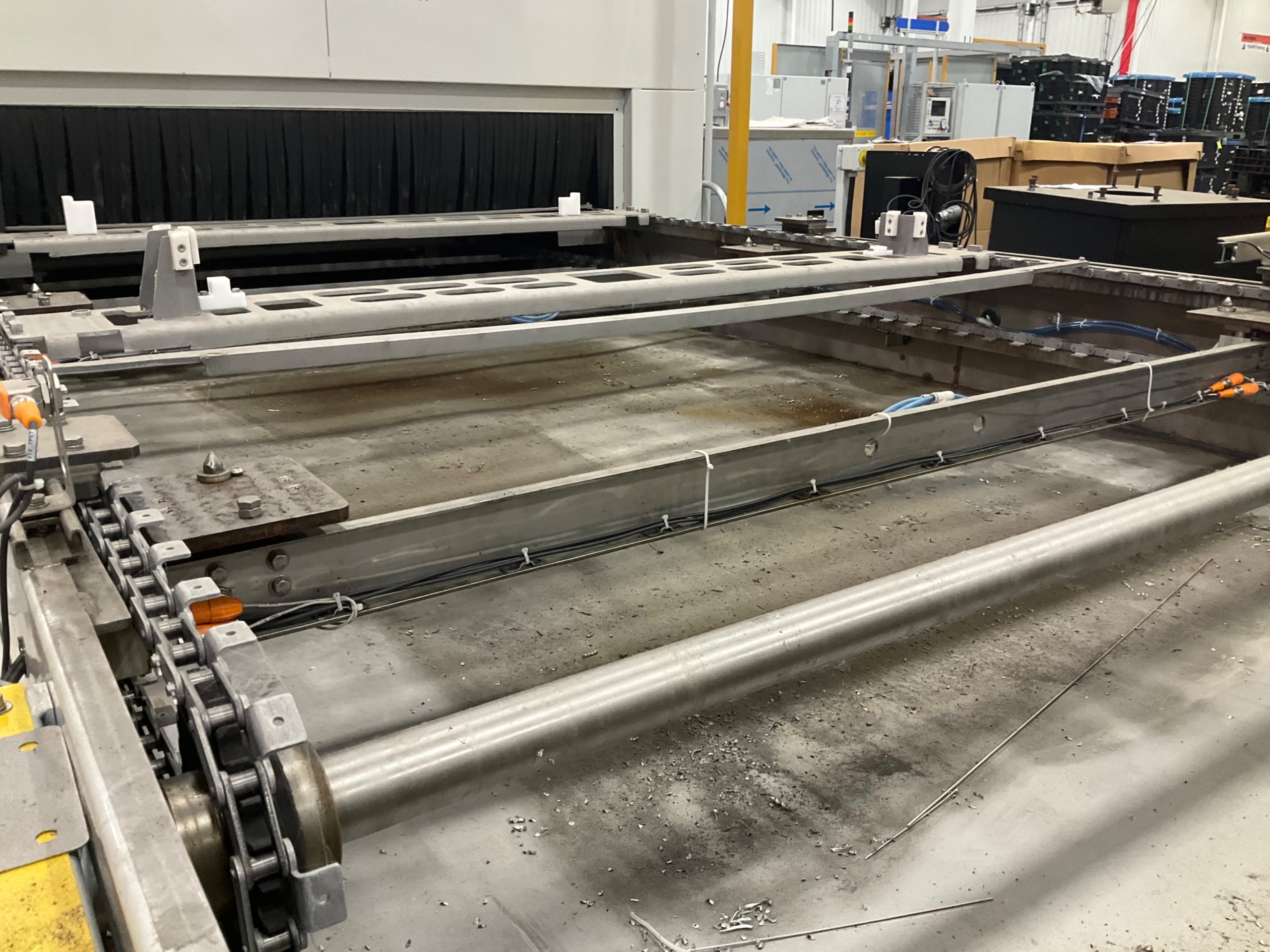

CLEANING METHOD: CONVEYORIZED SPRAY WASHER USING HIGH-PRESSURE SPRAY IMPINGEMENT WITH HEATED AQUEOUS CLEANING SOLUTION . CLEANING PERFORMANCE: WASH PUMP DELIVERS 100 GPM @ 70 PSI, SOLUTION TEMPERATURE ADJUSTABLE UP TO 160 °F . PART SIZE CAPABILITY: STANDARD CONVEYOR OPENING OF 36″ WIDE × 12″ HIGH (TUNNEL CLEARANCE) . THROUGHPUT RATE: CONVEYOR SPEED ADJUSTABLE 1–20 FEET PER MINUTE, GIVING A RANGE OF THROUGHPUT DEPENDING ON PART SIZE/FIXTURE LOADING (E.G., ~450–2400 PARTS/HOUR IN TYPICAL USE) . - NORD MOTOR SPECS: MODEL: SK90SP/4 CUS 145TC BRE20 HL TW 60 HZ → 230/460 V (Δ/Y), CURRENT: 4.20 / 2.10 A 50 HZ → 200/400 V (Δ/Y), CURRENT: 4.76 / 2.38 A POWER OUTPUT: 60 HZ: 1.50 HP (1.10 KW) 50 HZ: 1.10 KW SPEED: 60 HZ: 1740 RPM 50 HZ: 1430 RPM - BALDOR MOTOR SPECS: HORSEPOWER (HP): 0.75 VOLTAGE: 208–230/460 V AMPERAGE: 2.5–2.28 / 1.14 A RPM: 1750 FREQUENCY (HZ): 60 PHASE: 3
