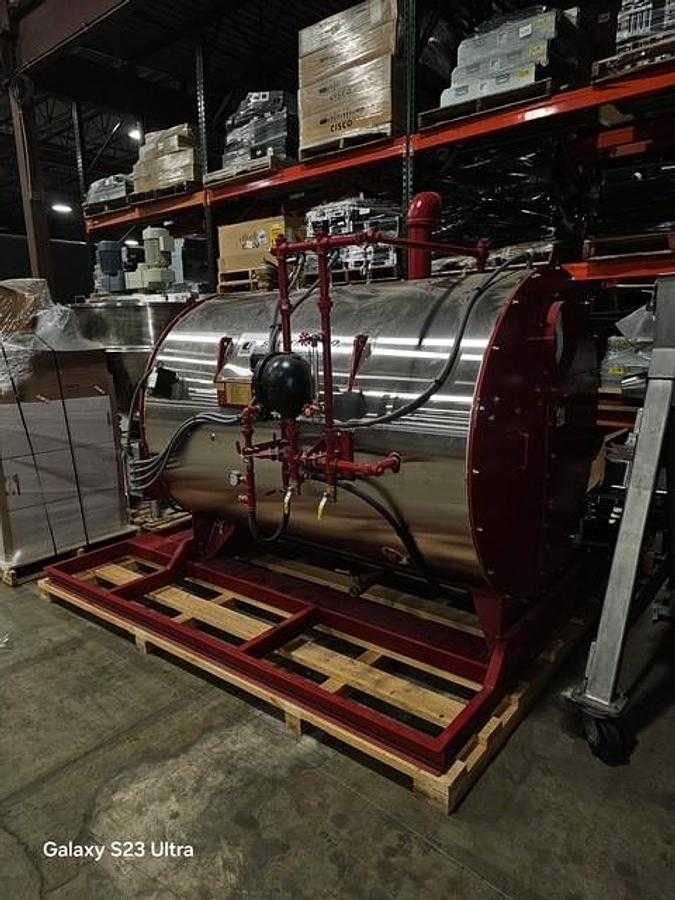

2022 Sioux SF50G Steam-Flo Steam Generator, 50 HP, 1725 lbs/Hr, 15 PSI, Lp/Ng, 115V

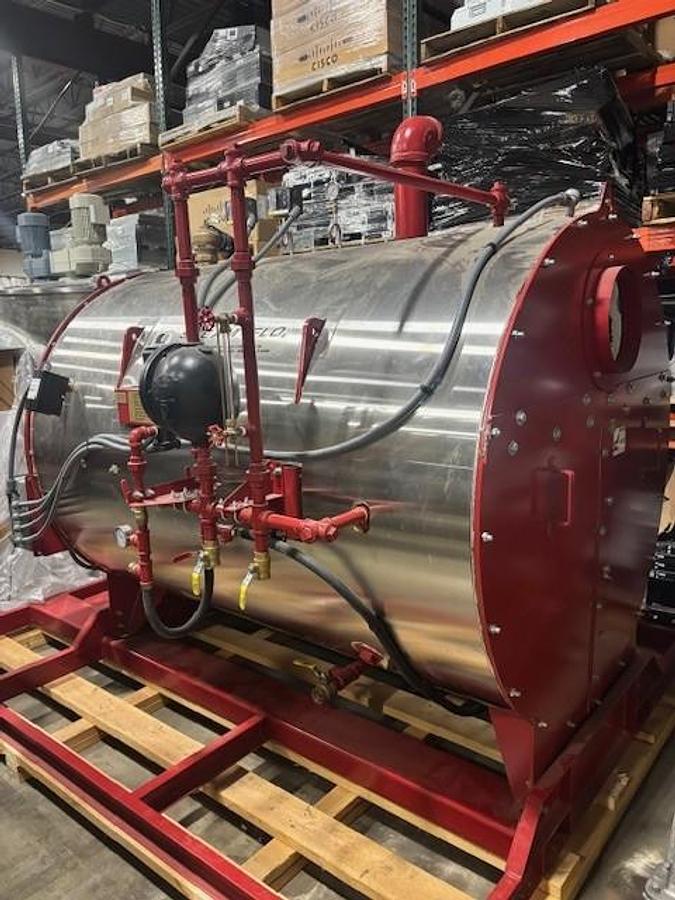

The 2022 Sioux SF50G Steam-Flo is a low-pressure industrial steam generator designed to provide a continuous supply of saturated steam for applications such as soil sterilization, concrete curing, and aggregate heating. This unit features a 50 HP boiler capacity with a heat input of 2,000,000 BTU/HR and a steam output of 1,725 lbs/hr. It operates at a maximum steam pressure of 15 PSI and a maximum steam temperature of 250°F. The generator is built to ASME section IV standards and includes a NEMA 4 electrical enclosure. Safety components consist of redundant auto and manual reset pressure switches, an ASME pressure relief valve, a pressure gauge, and a water feeder with a low-water manual reset level switch. Mechanical connections include a 3/4 inch garden hose water inlet, a 4 inch NPT steam outlet, and a 1 1/2 inch NPT fuel inlet for LP or natural gas. The vessel has a total volume of 519 gallons and an operating volume of 330 gallons, with a heat transfer surface of 278 sq ft. Electrical requirements are 115V, 1 phase, 60HZ with a 10-amp operating current. The unit measures 112 inches in length, 87 inches in width, and 87 inches in height, with a dry weight of 5,086 lbs. It is designed to reach full steam production within 5 to 10 minutes of start-up.
