2023 BARNES SE1054L SUBMERSIBLE SEWAGE EJECTOR PUMP, 1 HP, 600V, 3-PHASE, 2IN SOLIDS, 220 GPM

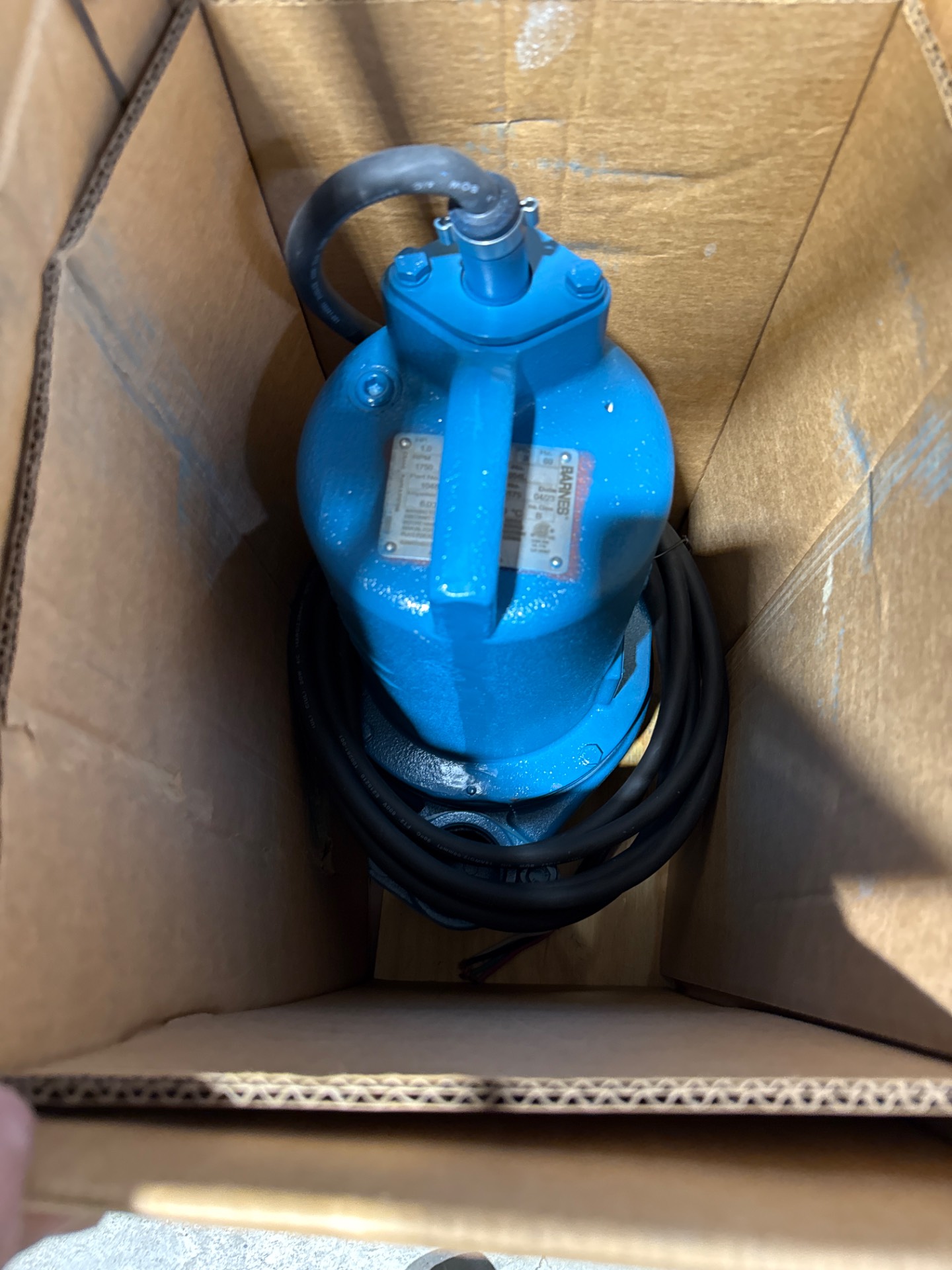

THE BARNES SE1054L (PART NUMBER 104891) IS A SUBMERSIBLE SEWAGE EJECTOR PUMP DESIGNED FOR WASTEWATER AND SEWAGE HANDLING APPLICATIONS. THE UNIT FEATURES A 1 HP ELECTRIC MOTOR OPERATING AT 1750 RPM, CONFIGURED FOR 575–600V, THREE-PHASE, 60 HZ POWER SUPPLY. THE PUMP IS CONSTRUCTED WITH A CAST IRON HOUSING AND IS EQUIPPED WITH A 2-VANE OPEN IMPELLER. IT IS CAPABLE OF HANDLING SOLIDS UP TO 2 INCHES IN DIAMETER AND DELIVERS A MAXIMUM FLOW RATE OF APPROXIMATELY 220 GPM WITH A MAXIMUM HEAD OF 36 FEET. THE UNIT INCLUDES A 2-INCH NPT FEMALE VERTICAL DISCHARGE CONNECTION AND IS SUPPLIED WITH A POWER CORD. THE PUMP IS CONFIGURED FOR MANUAL OPERATION AND FEATURES A SINGLE MECHANICAL SEAL DESIGN.
