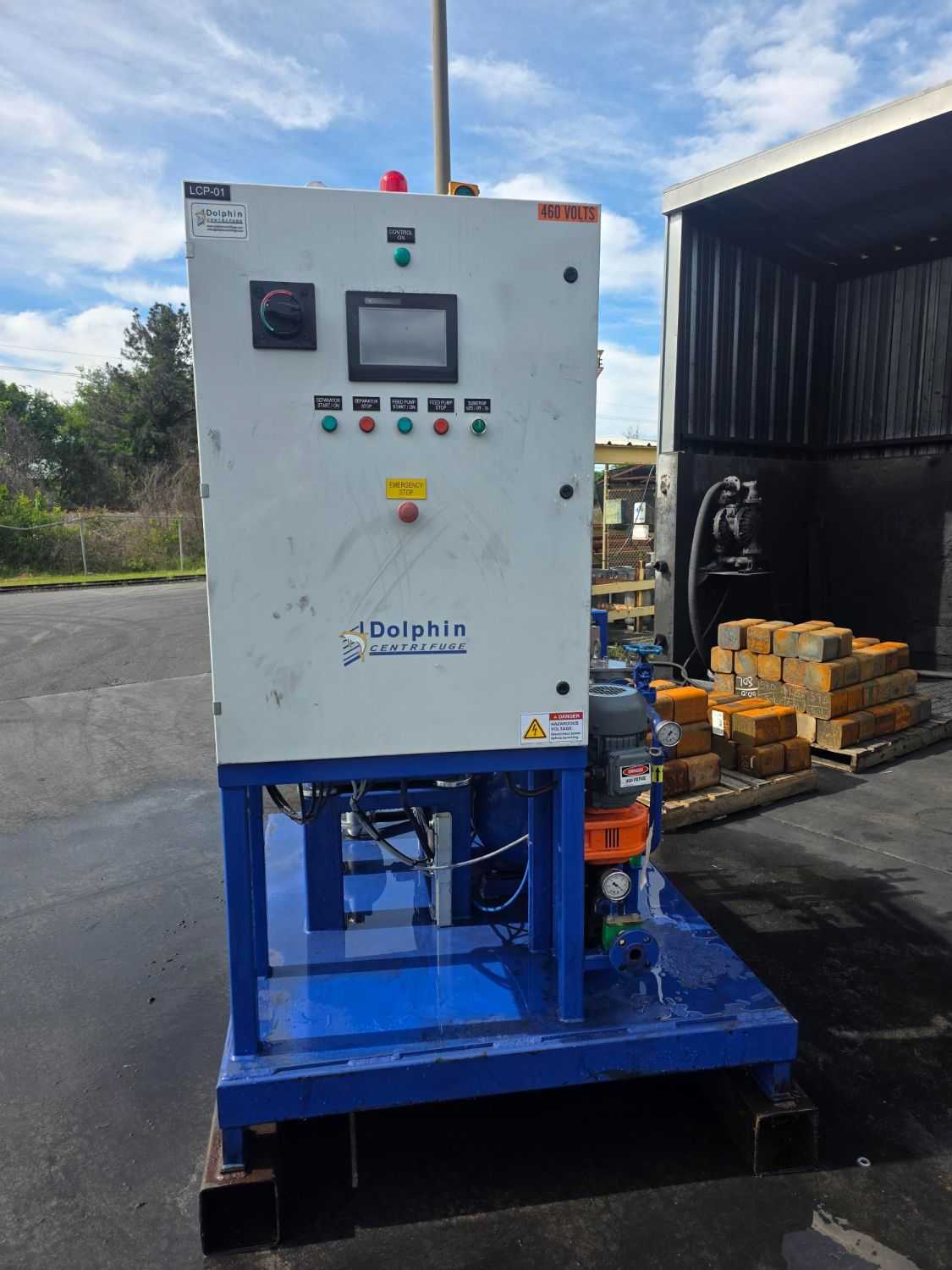

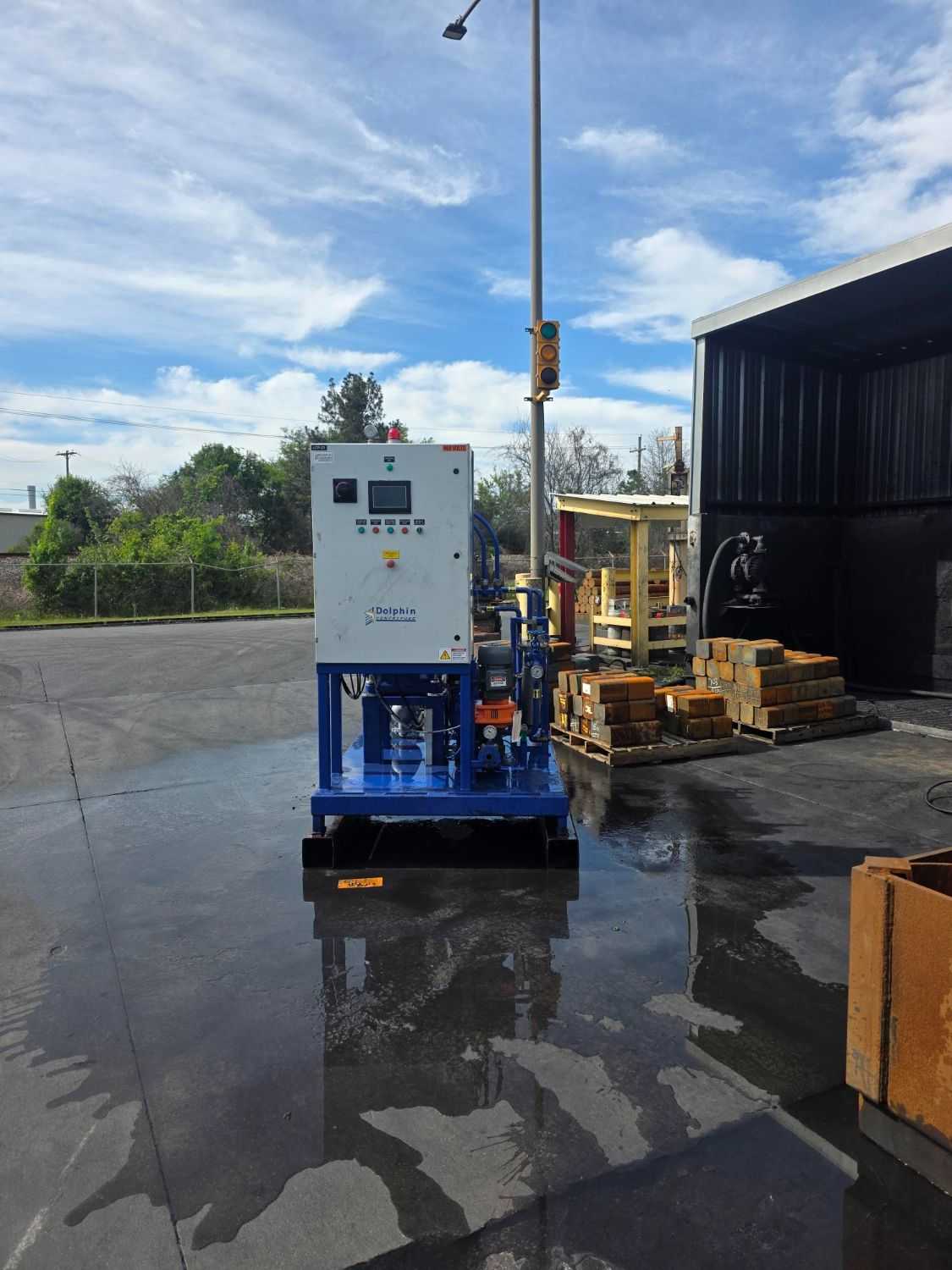

2023 DOLPHIN CENTRIFUGE WHPX-405 CENTRIFUGE SYSTEM, 12 GPM, 460V, 4 HP

BUILT TO THE FOLLOWING SPEC: ALFA LAVAL WHPX-405 HI-SPEED, SELF-CLEANING, DISC CENTRIFUGE (FULLY REMANUFACTURED) INCLUDES: - LIGHT PHASE DISCHARGED UNDER PRESSURE (PARING DISC PUMP) - HEAVY PHASE DISCHARGED UNDER PRESSURE (PARING DISC PUMP) - NEW 460 VAC ELECTRIC MOTOR (~4 HP) - CLUTCH DRIVEN - SPECIAL TOOLSET FOR BOWL SERVICE - SET OF GRAVITY DISCS - CENTRIFUGE MANUALS, OTHER DOCS NEMA4 CONTROL PANEL 460VAC (NEW) INCLUDES: - POWDER COATED CARBON STEEL ENCLOSURE - CONTROL TRANSFORMER (110VAC CONTROL VOLTAGE) - DOL STARTER FOR CENTRIFUGE MOTOR - AUTOMATIC CONTROLS W/ PLC & TOUCH-SCREEN - FULL MANUAL CONTROLS - ALARM FUNCTIONS I. LIQUID SEAL BREAK W/ FEED SHUT-OFF (PRESSURE SWITCH) II. FAIL TO SHOOT (CURRENT SENSOR) HEAVY DUTY INDUSTRIAL BASE (NEW) INCLUDES: - CENTRIFUGE AND CONTROL PANEL INSTALLED - VIBRATION DAMPERS, PANEL STAND & 4 INCH ELEVATION FEET - 1" WELDED CARBON STEEL (SCH 40) PIPE - 1" ANSI RF FLANGES FOR INLET / OUTLET CONNECTIONS - 1" FLOW CONTROL, ISOLATION & CHECK VALVES (AS NEEDED) - 1/4" SAMPLE PORTS - PROCESS GAUGES W/ ISOLATION VALVES - ALL CONDUIT AND CABLING INSTALLED WATER HARNESS (NEW) INCLUDES - STAINLESS STEEL CONSTRUCTION - 2" GF PRESSURE GAUGES (LOW & HIGH PRESSURE) - 3/4" FLOW CONTROL BALL VALVE - 3 X BRASS SOLENOID VALVES - MOUNTING BRACKETS (SKID MOUNTED) - BRAIDED HOSE CONNECTIONS TO OPERATING WATER DEVICE (ON CENTRIFUGE) PRE-FILTER HOUSING (NEW) INCLUDES - STAINLESS STEEL FILTER HOUSING W/ STAINLESS STEEL BASKET - 2" DIFFERENTIAL PRESSURE GAUGE (BAG-FILL INDICATION) - 3/4" BOTTOM DRAIN W/ BALL VALVE - FULLY PIPED & MECHANICALLY INTEGRATED INTO SYSTEM SLUDGE RECEPTACLE & TRANSFER SYSTEM (NEW) INCLUDES - ~25 GAL. WELDED CS SLUDGE TANK (SKID INTEGRATED) - 1” AIR DIAPHRAGM PUMP - 1" BOTTOM DRAIN W/ PLUG - 3-WAY AIR-SOLENOID VALVE - AUTO / MANUAL OPERATION FROM LCP TOUCH-SCREEN - ELECTRICALLY & MECHANICALLY INTEGRATED INTO SYSTEM FEED PUMP (NEW) INCLUDES - 12 GPM HEAVY DUTY GEAR-TYPE PUMP - 2 HP TEFC MOTOR - BUILT-ON PRESSURE RELIEF VALVE - SAFETY GUARD - VFD CONTROL FROM LCP - PUMP SPEED CONTROL FROM LCP TOUCH-SCREEN - ELECTRICALLY & MECHANICALLY INTEGRATED INTO CENTRIFUGE SYSTEM
