2023 DYMAX BLUEWAVE QX4 V2.0 UV CURING DEVICE

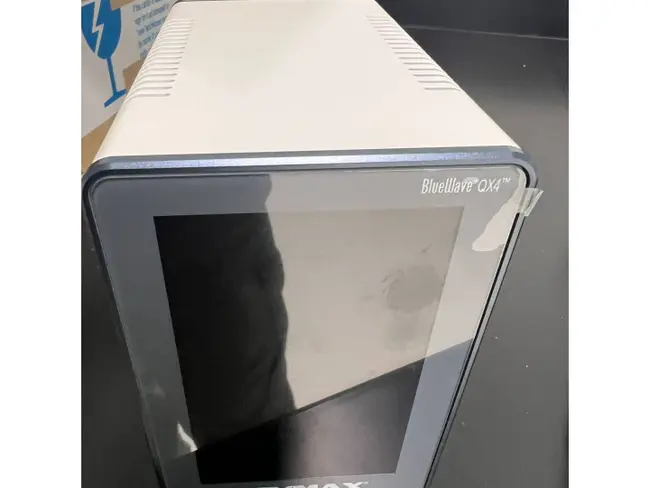

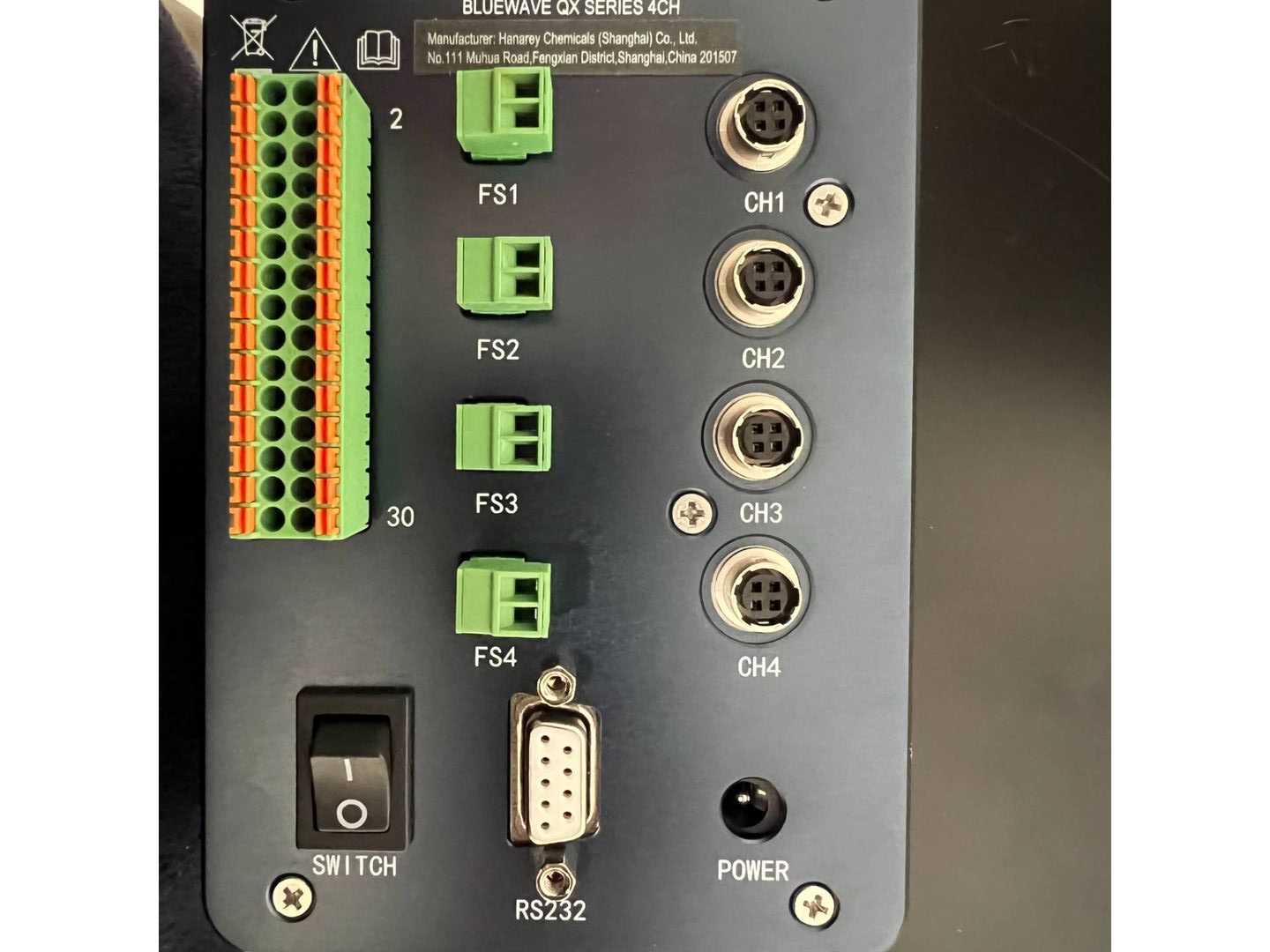

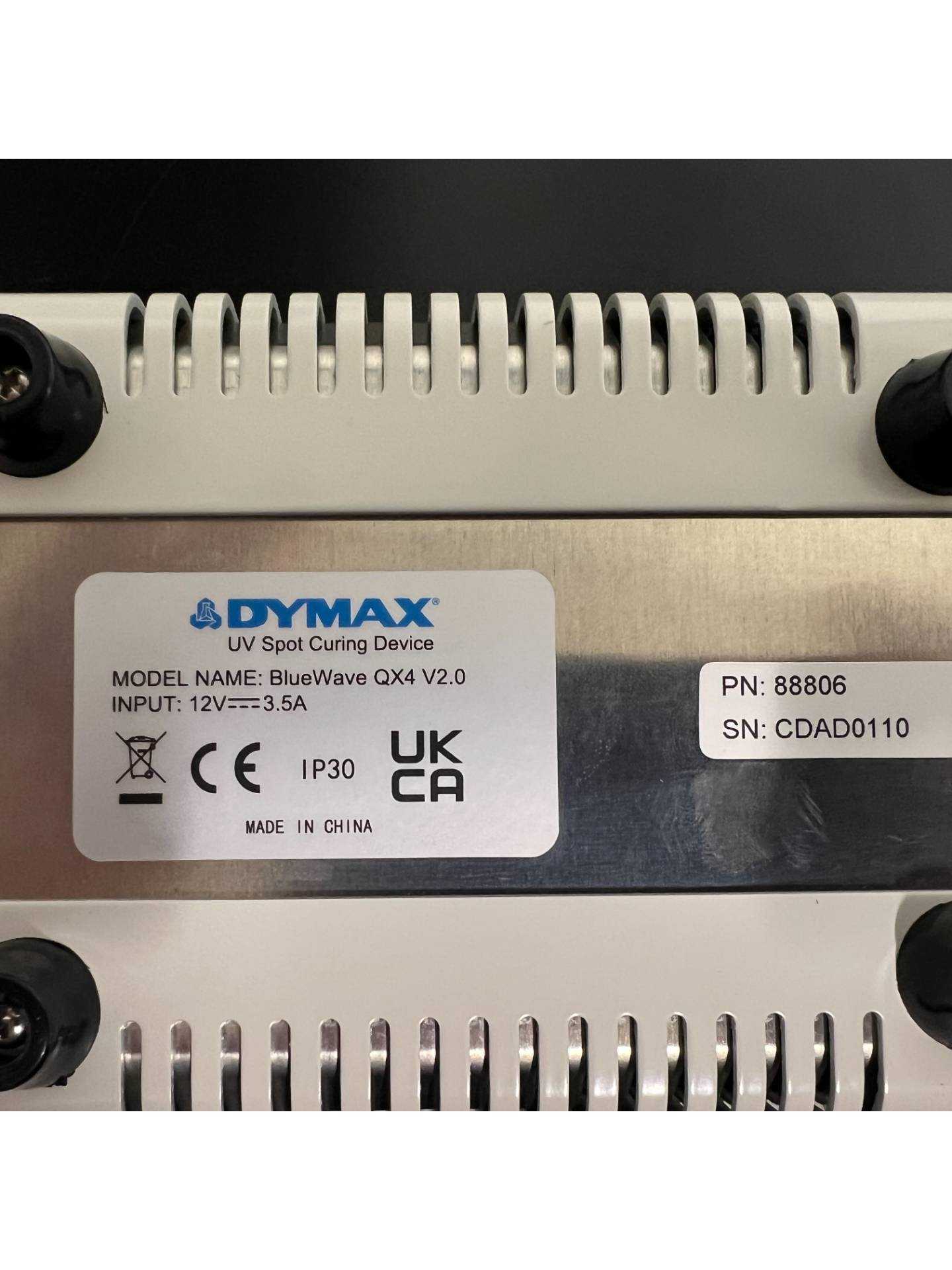

THE DYMAX BLUEWAVE QX4 V2.0 IS A HIGH-INTENSITY LED SPOT-CURING SYSTEM DESIGNED FOR PRECISION LIGHT DELIVERY IN AUTOMATED OR MANUAL ASSEMBLY PROCESSES. THE SYSTEM FEATURES A CONTROLLER WITH A TOUCHSCREEN INTERFACE CAPABLE OF MANAGING UP TO FOUR INDEPENDENT LED HEADS. THESE HEADS ARE AVAILABLE IN THREE DISTINCT WAVELENGTHS: 365 NM (REDICURE), 385 NM (PRIMECURE), AND 405 NM (VISICURE), WITH PEAK INTENSITY OUTPUTS REACHING UP TO 22.9 W/CM2 DEPENDING ON THE CONFIGURATION. EACH HEAD CAN BE OUTFITTED WITH INTERCHANGEABLE 3-MM, 5-MM, OR 8-MM FOCUSING LENSES TO TAILOR THE SPOT SIZE TO SPECIFIC APPLICATION REQUIREMENTS. THE V2.0 MODEL PROVIDES ENHANCED CONTROL, ALLOWING USERS TO PROGRAM INDIVIDUAL EXPOSURE TIMES AND INTENSITY SETTINGS IN 1% INCREMENTS FROM 10% TO 100% FOR EACH CHANNEL. ACTIVATION IS SUPPORTED VIA THE FRONT PANEL, A FOOT SWITCH, OR A PLC INTERFACE FOR SEAMLESS INTEGRATION INTO HIGH-SPEED PRODUCTION LINES. THE SYSTEM UTILIZES NATURAL CONVECTION COOLING AND FEATURES EFFICIENT THERMAL MANAGEMENT TO ENSURE CONTINUOUS OPERATION WITHOUT OVERHEATING. TECHNICAL SPECIFICATIONS INCLUDE A POWER SUPPLY INPUT OF 100-240 V, AN ADJUSTABLE LED TIMER FROM 0.1 TO 999 SECONDS, AND A COMPACT CONTROLLER FOOTPRINT OF APPROXIMATELY 9.0 CM X 14.1 CM X 13.7 CM. THE UNIT IS ENGINEERED FOR INSTANT ON-OFF CAPABILITY, ELIMINATING WARM-UP PERIODS AND IMPROVING ENERGY EFFICIENCY COMPARED TO TRADITIONAL LAMP-BASED SYSTEMS.
