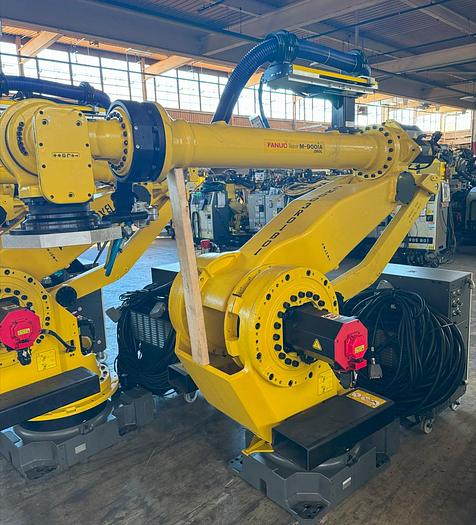

2023 FANUC M900IA/260L CNC ROBOT, 260KG PAYLOAD, 3100MM REACH, R30IB CONTROLLER

THE FANUC M900IA/260L IS A SIX-AXIS ARTICULATED CNC ROBOT DESIGNED FOR HEAVY-DUTY INDUSTRIAL APPLICATIONS. IT FEATURES A 260KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 3100MM, AND A REPEATABILITY OF ±0.3MM. THE ROBOT MASS IS 1800KG. THE SYSTEM IS CONTROLLED BY AN R30IB CONTROLLER AND INCLUDES A TEACH PENDANT AND CONNECTION CABLES. AXIS MOTION SPEEDS ARE 100°/S FOR J1, 105°/S FOR J2, 95°/S FOR J3, 120°/S FOR J4 AND J5, AND 200°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 ±75°, J3 +90° TO -121°, J4 ±360°, J5 ±125°, AND J6 ±360°. THE ARTICULATED STRUCTURE PROVIDES HIGH-SPEED MOVEMENT AND A WIDE RANGE OF MOTION FOR DIVERSE MANUFACTURING TASKS.
